Multi-Parameter Handheld Tester: Computer Software Operation Instructions

Handheld Tester: Computer Software Operation Instructions

1. Install the Software

   The software supports both English and Chinese. You can choose to install it in English.

2. After Installation

   Once installation is complete, there is a default device. You can configure and import rule files on the default device, or you can delete the default device and create a new device by selecting Management and then choosing Create Device.

   Set the device name and choose the device type.

3. Create Device

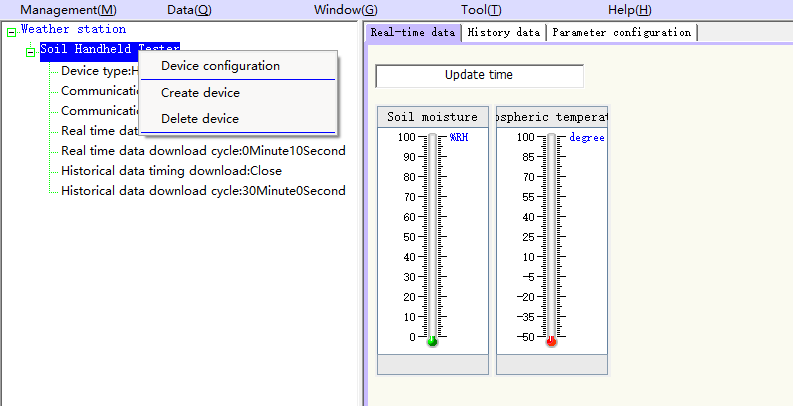

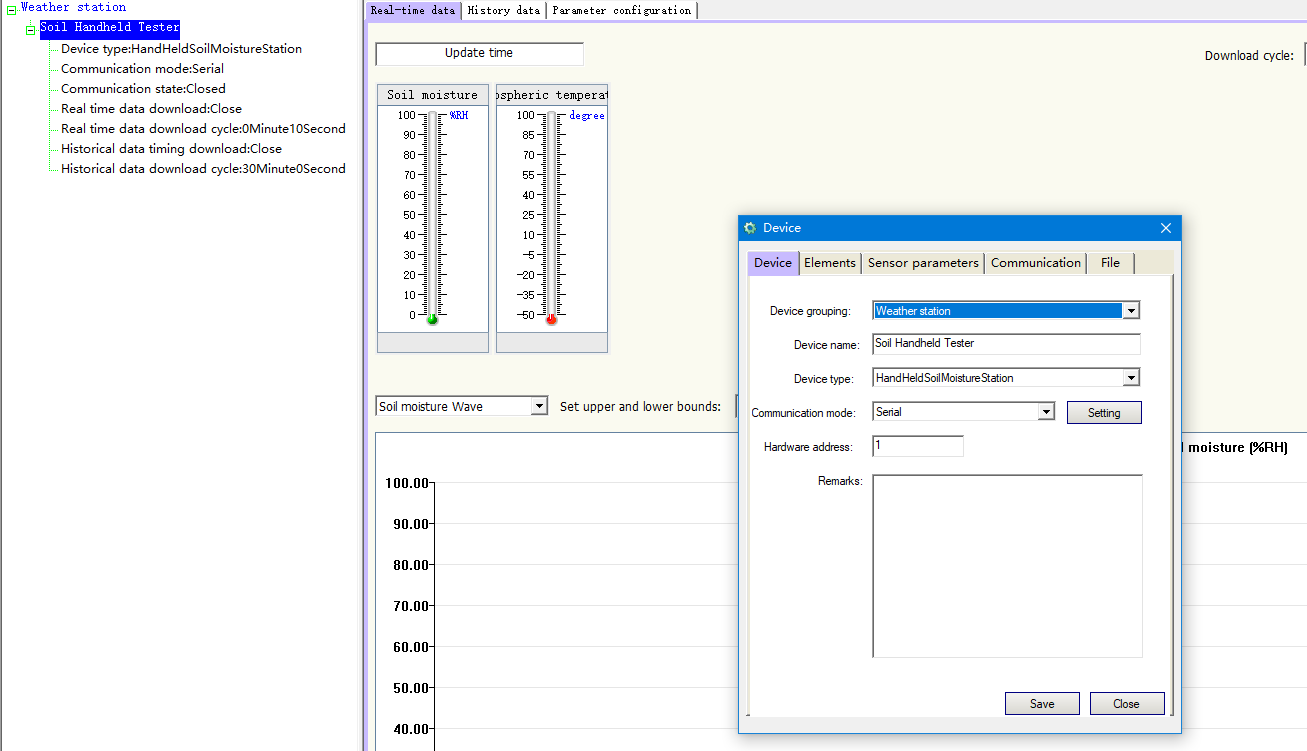

   After creating the device, select Device Configuration.

4. Import Configuration File

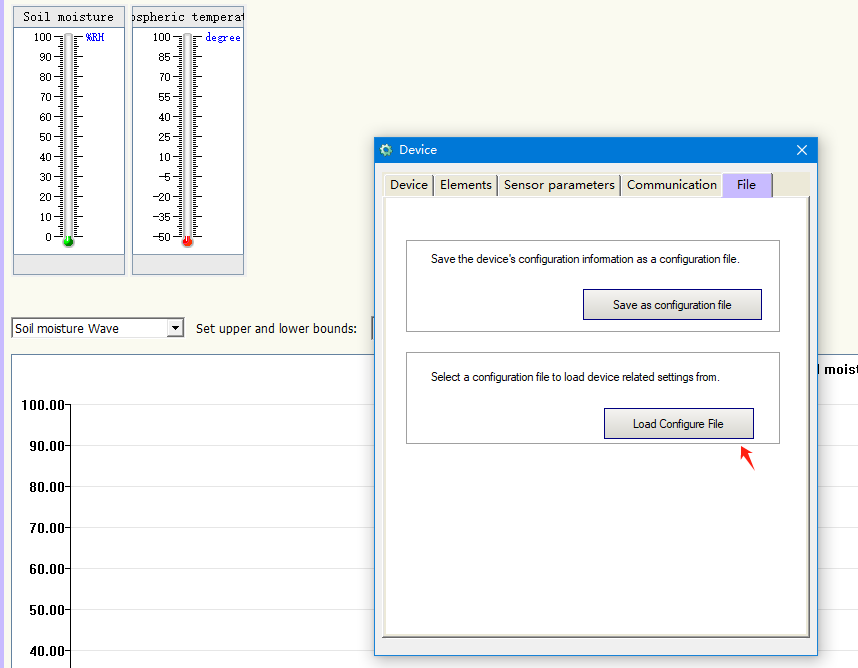

   Then go to the File tab and select Import Configuration File.

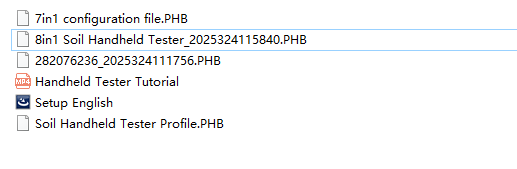

For example, you may see configuration files like the 7in1 Configuration File or 8in1 Soil Handheld Tester_2025324115840 Configuration File.

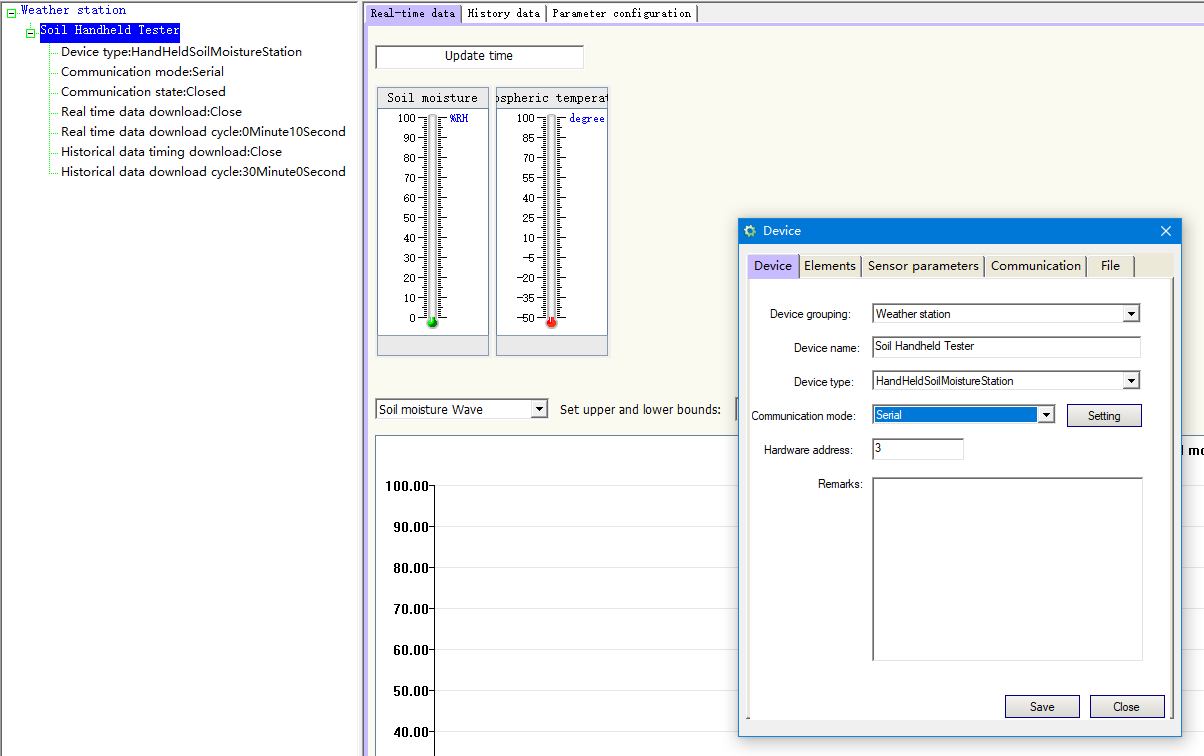

Configuration File: After selecting the configuration file, return to the device.

5. Serial Port Settings

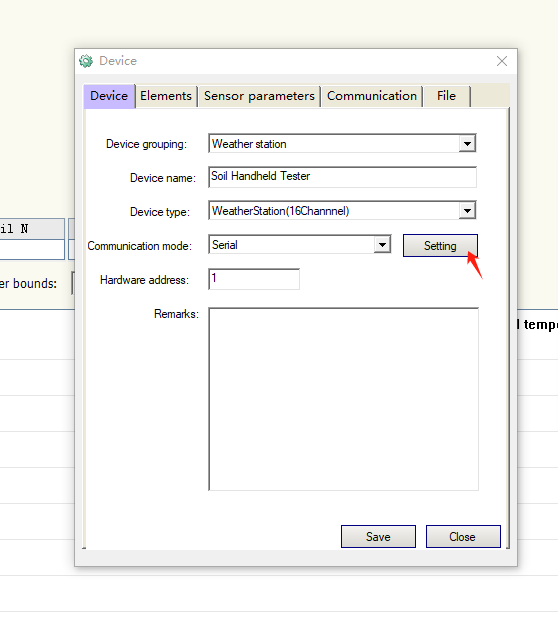

   Move the mouse to the Communication Mode section, click Setting, and the Serial Port Setup page will pop up.

   Click Setting.

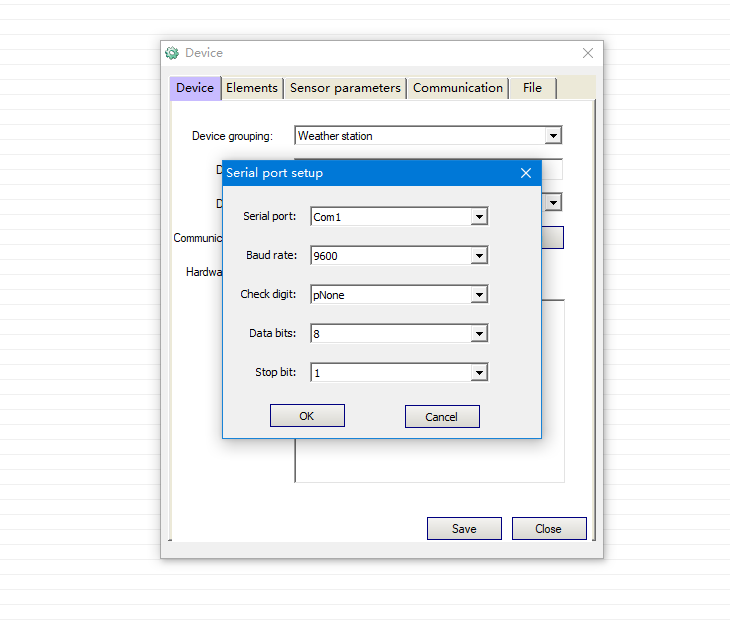

   Select Serial Port:

   How to Choose Serial Port?

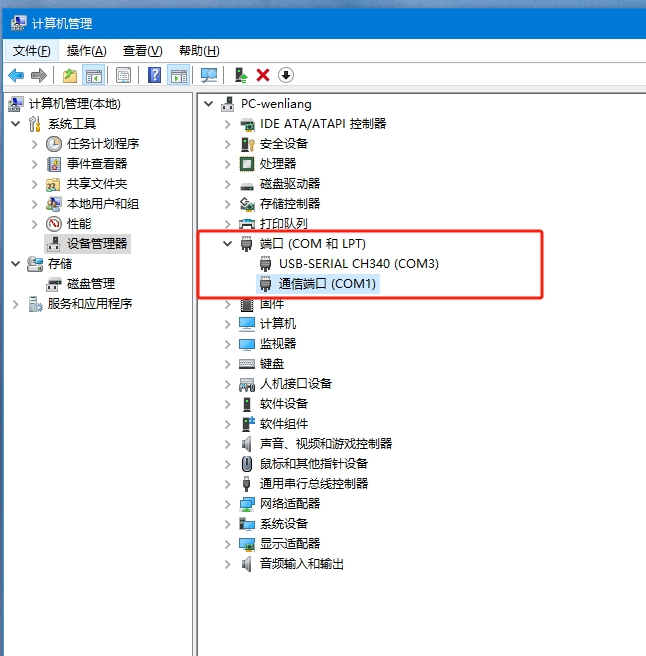

   1. You need to go to the Device Manager on your computer and find the port. Remember the port number of the handheld tester you plugged in, for example, COM3, as shown in the screenshot below.

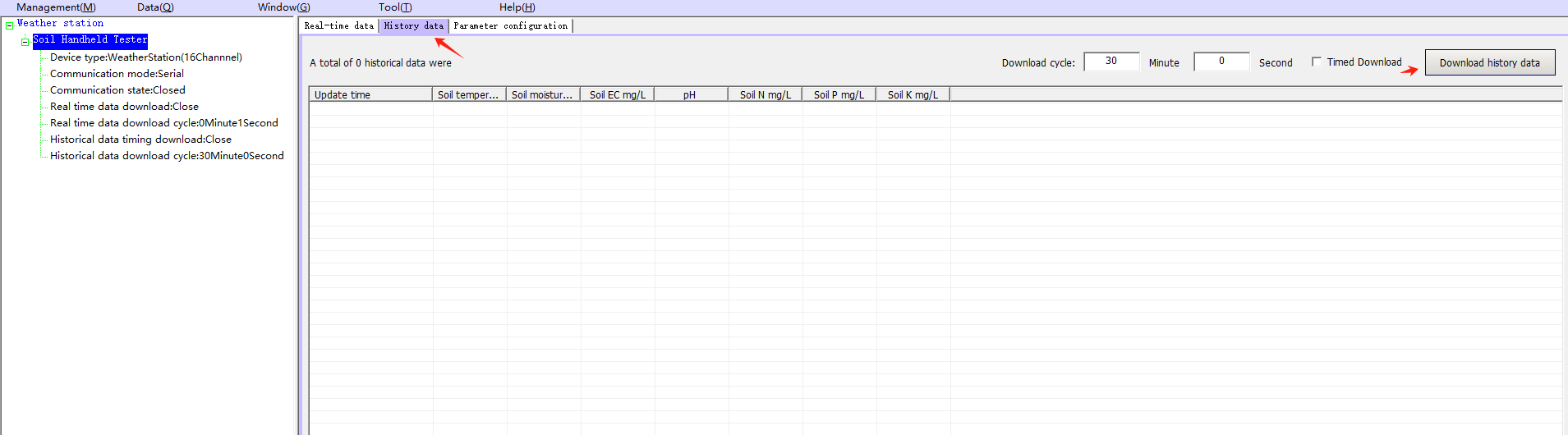

   Once everything is set up correctly, select Historical Data and download the historical data to your computer for operation and analysis.

1. Intelligent Multi-Parameter Handheld Tester Product Overview

This instrument is used for quickly measuring agricultural environmental parameters such as soil temperature, humidity, pH, salinity, and electrical conductivity, as well as meteorological parameters like wind speed, wind direction, temperature, humidity, and pressure. The data is displayed in real-time on the screen and stored in the internal chip of the tester. After measurement, the data can be downloaded to a computer using the accompanying software for research or archival purposes.

The device utilizes a variety of environment sensors developed by our company, allowing for multiple uses with a single device. The instrument consists of a handheld unit, soil sensors (temperature and humidity sensors, salinity sensors, pH meters), meteorological sensors (wind speed sensors, wind direction sensors, atmospheric temperature, humidity and pressure sensors, visibility sensors, etc.), a USB data cable, and a portable carrying case. It is widely applied in agriculture, forestry, geological exploration, plant cultivation, meteorological monitoring, and other fields. Additional sensors will be added in the future, so please stay tuned. This instrument is suitable for a wide range of applications in meteorology, environmental protection, agriculture, forestry, hydrology, warehousing, scientific research, and other areas.

2. Intelligent Multi-Parameter Handheld Tester Product Features

2.1. Compact, aesthetically pleasing, and easy to carry; features touch-sensitive buttons, a large-screen dot matrix LCD display, and English menu operation.

2.2. The sensor probes maintain consistency; interfaces for different meteorological or soil parameters are interchangeable without affecting accuracy.

2.3. The instrument automatically recognizes the sensor type, eliminating the need for manual setup of measurement elements.

2.4. Additional meteorological parameters can be added simply by purchasing new sensors, without the need for a new main unit.

2.5. Data storage function, capable of storing up to 20,000 records, allowing data to be viewed on the main unit or imported to a computer.

2.6. Can manually record data or automatically set sampling intervals for data recording without needing a computer.

2.7. Automatic data recording and storage; data stored in the main unit will not be lost even if power is disconnected.

2.8. The instrument is equipped with an internal GPS for accurate positioning of measurement points (latitude and longitude), with positioning accuracy to four decimal places (less than 5 meters).

2.9. When connected to a computer, the stored data can be backed up in EXCEL format, making it easy to retrieve for future use.

3. Intelligent Multi-Parameter Handheld Tester Technical Specifications

- Power Supply: Lithium-ion battery

- Communication: USB

- Storage: 20,000 data entries

- Dimensions:

   - Main Unit: 100 × 200 × 28 mm

   - Overall Unit: 405 × 100 × 100 mm

- Weight: Approximately 0.5 kg

- Operating Environment: -20°C to 80°C; 5% RH to 95% RH

5. Handheld Tester Software

This Handheld rapid testing instrument's software is compatible with Windows 2000 or higher operating systems and allows for the download and display of the historical data recorded by the instrument. The data is stored in Flash memory and can be accessed by other software for further use.

Handheld Tester PC Software Installation Kit and Configuration File

https://www.niubol.com/Instruction-Manual/Handheld-Tester-PC-Software.html
