Wind-suction Solar Insect Trap Light

Product Name: Wind-suction Solar Insect Trap Light

Wind-suction Solar Insect Trap Light Product Introduction

The Wind-suction Solar Insect Trap Light is an innovative physical insect control device that uses light waves to attract pests and insects towards the light source. It then utilizes a powerful negative pressure airflow to suck the insects into a collection box, effectively eliminating them. The device operates using solar panels to charge during the day and automatically activates the light at night to attract pests. The Wind-suction Solar Insect Trap Light has low maintenance costs, is easy to operate, and is environmentally friendly, offering a more efficient insect control solution compared to traditional methods.

 Wind-suction Solar Insect Trap Light Product Applications

The Wind-suction Solar Insect Trap Light is ideal for use in agriculture, forestry, warehouses, fish ponds, and other environments where pests are a problem. It effectively controls various Lepidoptera pests. With its non-toxic, eco-friendly design and ease of use, it is an ideal solution for modern agriculture and environmentally-conscious pest control.

Wind-suction Solar Insect Trap Light Product Features

- High-Efficiency Pest Control: The device attracts insects through light waves, and the wind suction fan pulls the insects into the collection chamber, drying and dehydrating them.

- Solar-Powered: The solar panels charge the battery during the day, enabling automatic operation at night—energy-efficient and environmentally friendly.

- Low Maintenance: Requires minimal upkeep—only periodic cleaning of the insect collection chamber and solar panels.

- Multi-Function Control: Features light control, time control, rain control, and temperature control, ensuring optimal operation in various environmental conditions.

- Eco-Friendly & Safe: Non-toxic and harmless, the device uses a physical method to eliminate pests, protecting the natural ecological balance.

Wind-suction Solar Insect Trap Light Design Principles

The Wind-suction Solar Insect Trap Light works by converting sunlight into electrical energy via the solar panels and storing it in a lithium battery. At night, the light automatically turns on to attract insects, and the wind fan generates negative pressure to suck the pests into the collection chamber. After 6 hours of operation, pests are significantly reduced, and beneficial insects can resume their activity. The device combines physical pest control with biological pest control, maintaining ecological balance.

Wind-suction Solar Insect Trap Light Technical Specifications

- Lithium Battery: 12Ah, DC12.8V, with overcharge, over-discharge, and short circuit protection.

- Solar Panel: Monocrystalline silicon solar panel, power ≥40WP, actual conversion efficiency ≥21%.

- Lamp Type: LED light tubes with wavelengths of 365nm and 395nm, power ≥3W.

- Fan Type: Spiral strong suction fan, power 20W/12V, speed 2200 RPM.

- Lamp Pole Material: 60mm galvanized steel tube, 2.0mm thickness, height 3 meters.

- Appearance: Smooth, uniform surface, no cracks or damage.

- Protection Rating: IP65.

- Effective Area: 50-60 acres (varies based on environment and insect species).

- Total Power Consumption: ≤30W (varies by model).

Wind-suction Solar Insect Trap Light Intelligent Control Features

- Light Control: Automatically turns on/off based on daylight changes.

- Time Control: Set up different working time modes (up to 8 modes) based on insect activity patterns.

- Rain Control: Automatically enters protection mode when humidity exceeds 95% RH.

- Temperature Control: Automatically enters sleep mode when the temperature drops below 5°C; resumes operation when the temperature exceeds 5°C.

Wind-Suction Solar Insect Killer Installation Instructions

1. Ground Installation: Install the concrete base and embed the steel rebar ground anchor into the base for stability.

2. Fixing the Solar Panel: Use an I-beam-style bracket to fix the 40W solar panel at the correct angle for optimal sunlight exposure.

3. Mounting the Lamp: Secure the lamp head and pole with bolts for stability.

4. Adjusting Direction: Ensure the solar panel faces north-south to maximize solar energy absorption.

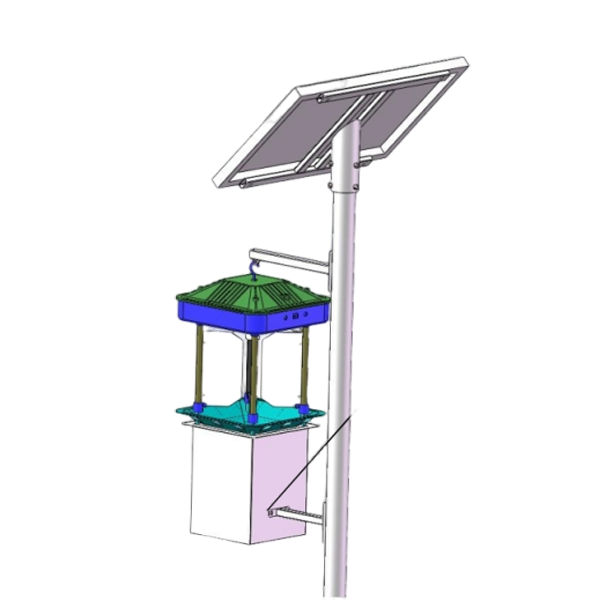

Wind-absorbing insecticide lamp head fixing rod installation:

Hang the lamp by putting the M5 hook on the head through the M12 nut.

At the bottom of the lamp head, align it with the two fixing holes on the short rod, and secure it using 2 sets of M6*25 galvanized screws.

The panels are installed in a south-facing direction for longer light hours and more efficient power generation.

Adjust the direction of the lamp pole to ensure that it is vertical and not tilted. Then, use 4 sets of M14 nuts, flat washers, and spring washers to securely fasten the lamp pole base to the ground cage threaded rod.

Adjust the product so that the solar panel is placed with its longitudinal axis facing the north-south direction.

Based on actual conditions, promptly clean the insects attached to the high-voltage electroshock net and remove the pests from the collection box to ensure effective pest control.

Regularly wipe off the dust from the solar panel using a dry cloth to maintain optimal charging performance.

Maintenance & Care

- Regularly clean the insect collection chamber to ensure efficient operation.

- Clean the solar panels of dust to maintain optimal charging performance.

- Periodically replace the light tubes to ensure effective attraction of insects.

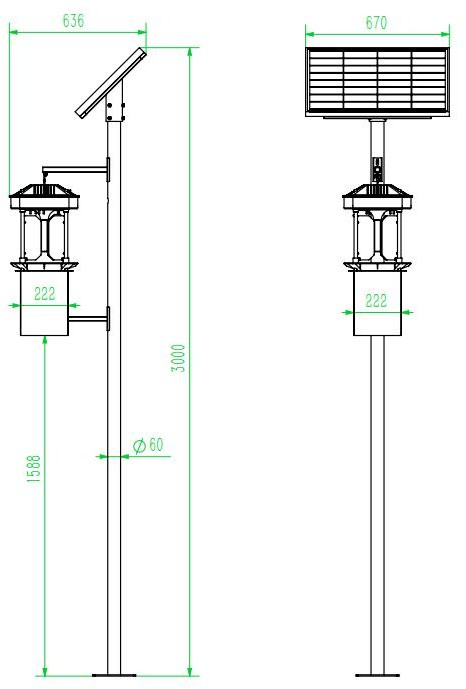

Product Size

Wind-Suction Solar Insect Killer Applicable Fields

- Agriculture: Use in crop fields to control pests.

- Forestry: Protect trees from pest infestations.

- Warehouses: Prevent insect damage to stored goods.

- Fish Ponds: Control pests in aquatic environments.

Conclusion

The Wind-suction Solar Insect Trap Light, with its advanced design and efficient pest control capabilities, offers an ideal solution for modern agriculture and eco-friendly pest management. It not only enhances pest control efficiency but also plays an important role in protecting the environment and maintaining biodiversity. This energy-efficient, eco-friendly, low-cost insect killer is a valuable tool for a healthier, greener environment.

Buy Now, and let the Wind-suction Solar Insect Trap Light bring you a healthier, greener environment!
