High Efficiency Solar Panels

Product Details: High-efficiency Solar Power System - Stable and Reliable Power Solution for Outdoor Monitoring

Solar Power System Product Overview

Designed for outdoor weather stations and soil moisture monitoring stations, our highly efficient solar power system utilizes advanced solar technology and high-capacity battery storage solutions to ensure that your monitoring equipment continues to operate stably in any environment. Whether in remote mountainous areas, vast fields or complex and changing outdoor environments, our solar power systems provide reliable and long-lasting power support.

Product highlights of solar power system

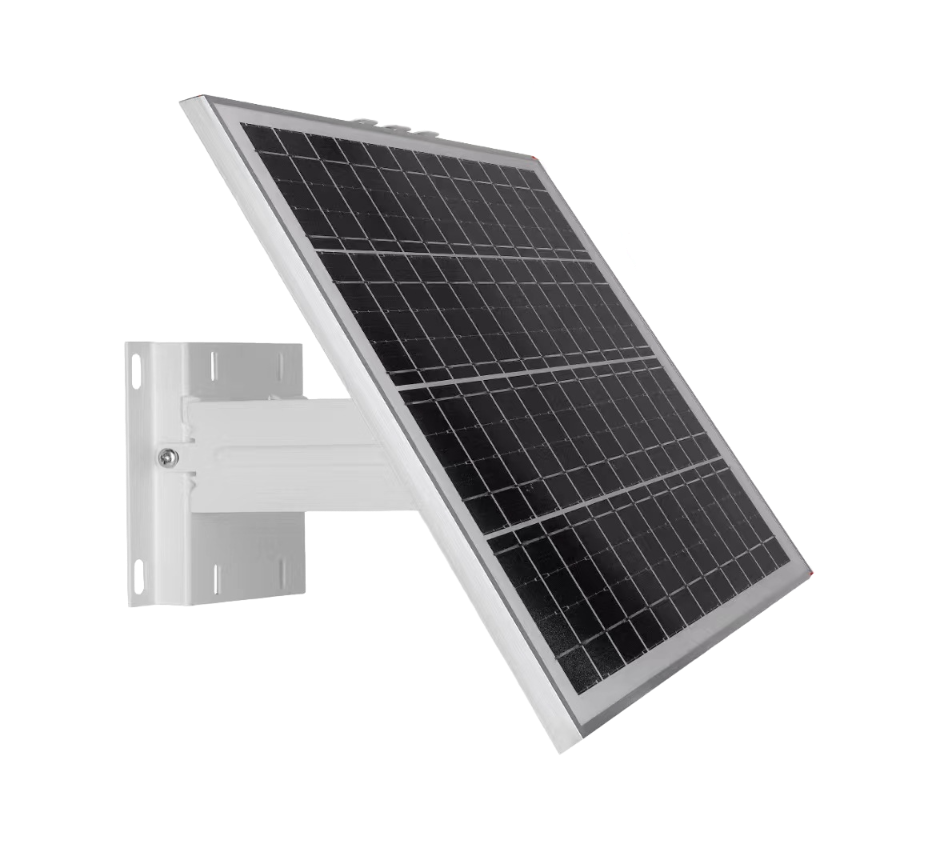

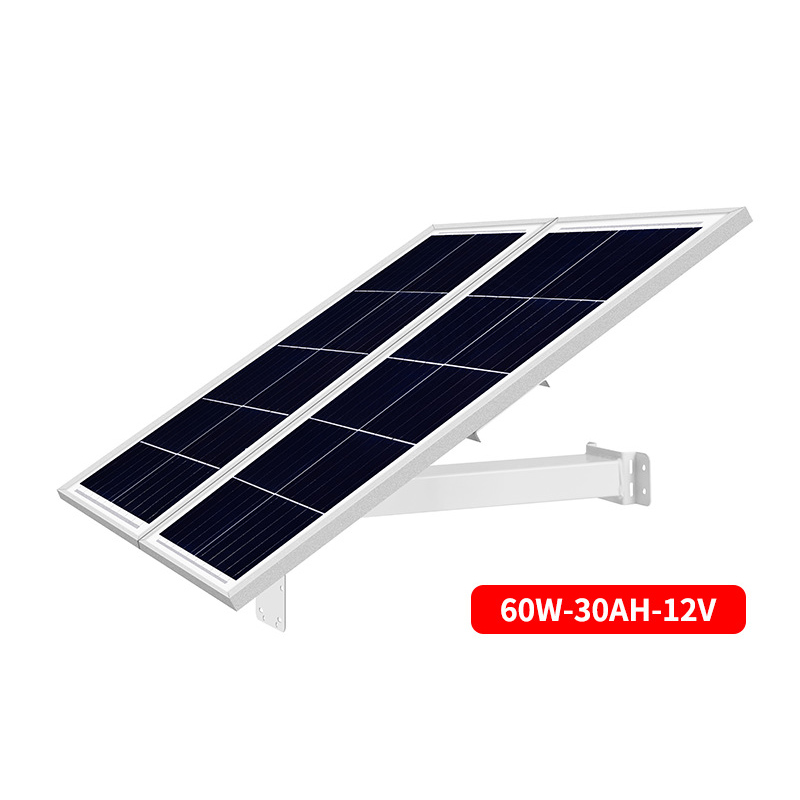

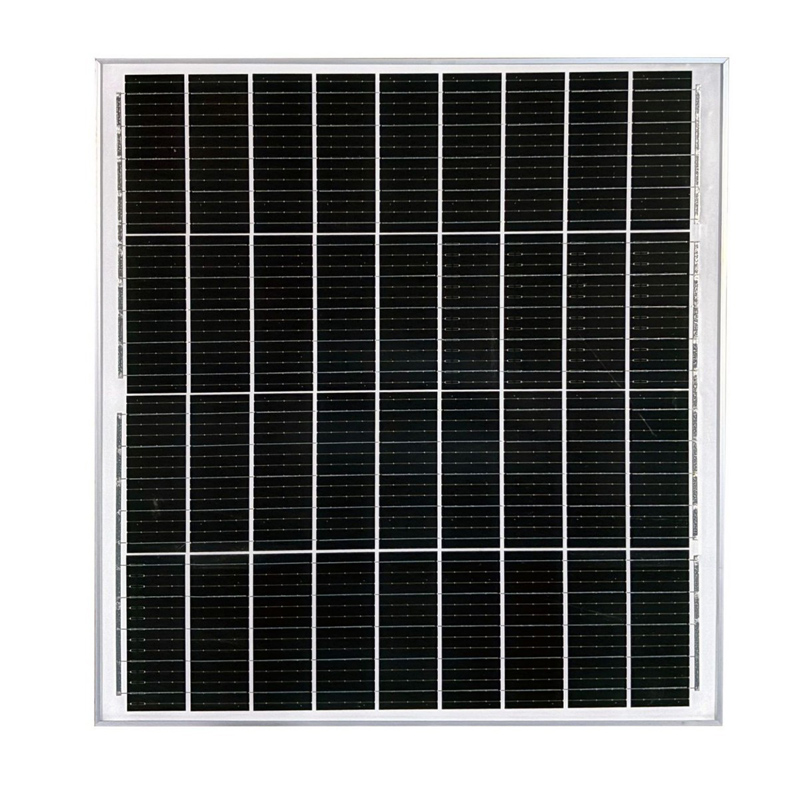

1. High-efficiency solar panel (60W)

   - High conversion rate: Adopting high-efficiency monocrystalline silicon solar panels, the photoelectric conversion efficiency is as high as 20% or more, which can generate electricity efficiently even under low-light conditions, ensuring a stable and reliable power supply.

   - Strong durability: the surface of the solar panel is made of high-strength tempered glass, which has excellent impact resistance and can be used for a long time in harsh environments.

2. Large-capacity battery (30Ah)

   - High energy density: equipped with high-performance lithium batteries, high energy density, can store power for a long time, to meet the needs of outdoor monitoring equipment for a long time.

   - Long life: the battery cycle life of more than 2000 times, the service life of up to 5-8 years, reducing the frequency of replacement and maintenance costs.

3. Flexible installation (split type and integrated type optional)

   - Split system: can be installed flexibly according to the actual environment, strong adaptability. Solar panels and battery modules are arranged separately for easy adjustment and maintenance.

   - One-piece system: simple design, easy installation, suitable for rapid deployment. All components are integrated into one unit, reducing installation time and complexity.

4. Intelligent control

Equipped with an intelligent switch, it can easily control the power on and off to ensure the safety of electricity consumption.

5. Environmental protection and energy saving

Utilizes renewable energy, reduces carbon emissions and helps green monitoring.

Scenarios of solar power supply system

Outdoor weather station: provide stable power for weather sensors, data collectors (DTU/RTU/gateway) and other equipment to ensure accurate and real-time transmission of weather data.

Soil moisture monitoring station: provide power for soil moisture sensor, temperature sensor, soil ph sensor and other equipment, help precision agriculture and improve crop yield.

- Other application scenarios: suitable for environmental monitoring stations, traffic signals, communication base stations and other outdoor equipment that require long-term stable power supply.

Solar power supply system installation guide

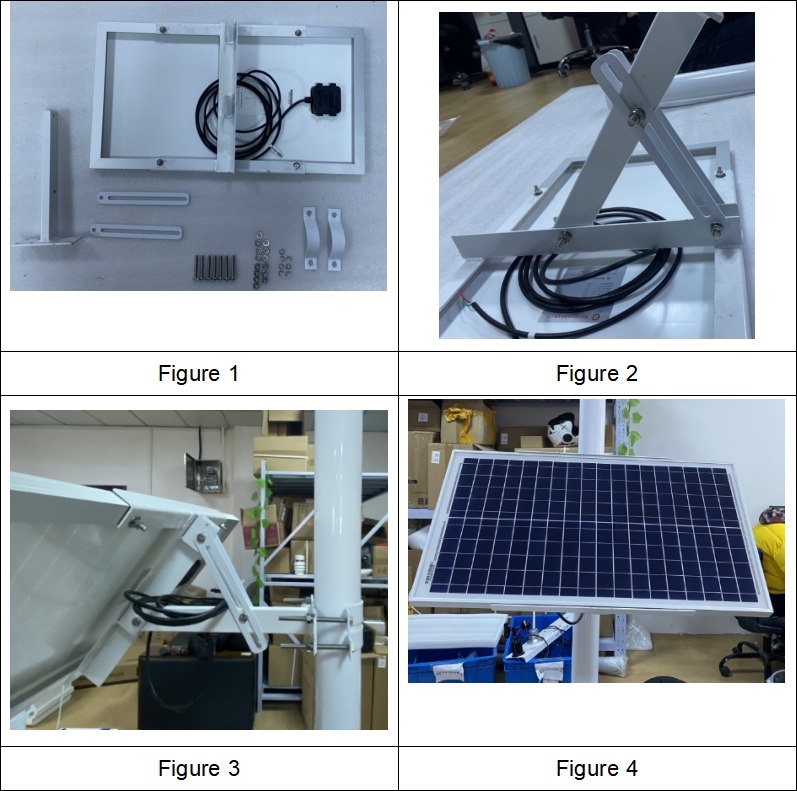

(A) Split solar power supply system installation

1. Prepare materials: according to the packing list, find the solar panel, solar panel mounting bracket, screw hoop and other accessories.

2. Mounting Bracket: Install the solar panel bracket on the back of the solar panel (as shown in Figure 2).

3. Fix the bracket: Fix the mounted bracket on the pole (as shown in Figure 3), and make sure the solar panel surface is facing south.

4. Connecting Cables

   Use waterproof cable to connect the solar panel to the controller, make sure the connection is firm and not loose.

5. Mounting the Battery

   Place the battery in a suitable location and connect the battery to the controller with a waterproof cable.

6. Turn on the power

   Turn on the power switch on the controller (1 for on, 0 for off) and check if the system works properly.

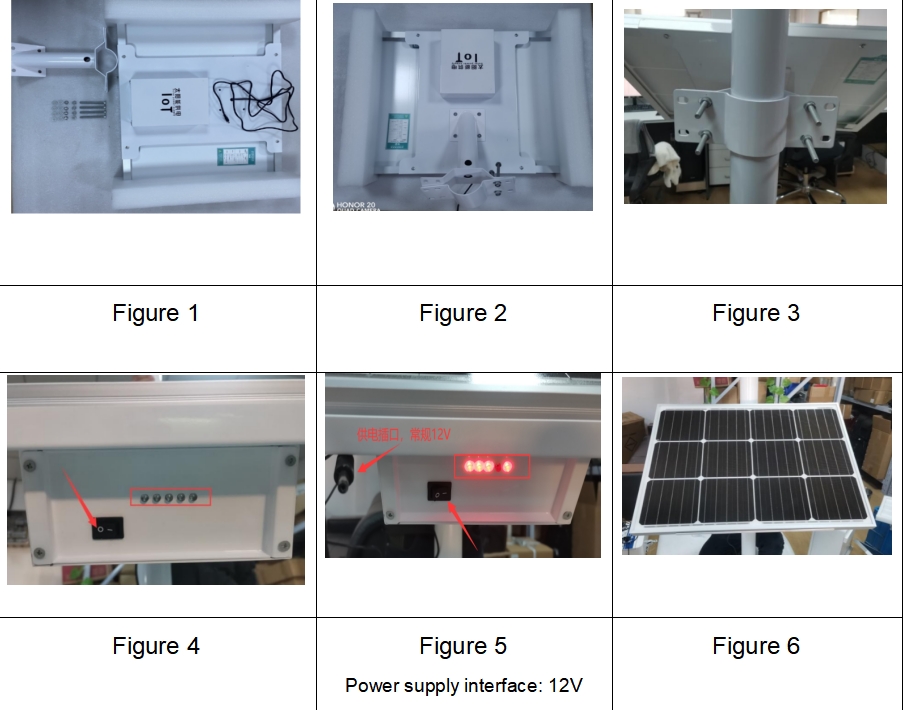

(B) Integrated solar power system installation

1. Prepare materials: according to the packing list, find the one-piece solar power supply system and its accessories.

2. Mounting cross arm: Use 4 screws to fix the mounting cross arm on the back of the solar panel (as shown in Fig. 1 and Fig. 2).

3. Fix the system: Remove the mounting hoop screws, set them on the mounting pole and lock the screws (as in Figure 3).

4. Turn on the power: Turn on the power supply system switch (1 for on, 0 for off), plug the power supply socket into the collector power supply port (as shown in Fig. 4 and Fig. 5), and make sure that the solar panel is facing south (as shown in Fig. 6).

Attention

During installation, please make sure all screws are tightened to avoid loosening and causing damage to the device.

The solar panel should be facing south to get the best power generation effect.

Regularly check the status of the solar panels and batteries to ensure normal operation of the system.

Avoid installation or maintenance operations under extreme weather conditions.

It is recommended to conduct a comprehensive inspection of the system once a quarter to clean the dust on the surface of the solar panels to ensure power generation efficiency.

Conclusion

Choose our high-efficiency solar power system to provide stable and reliable power support for your outdoor weather stations and soil moisture monitoring stations. We are committed to providing you with high quality products and services to help make your monitoring work more efficient and accurate. Please feel free to contact us for any questions or needs!
