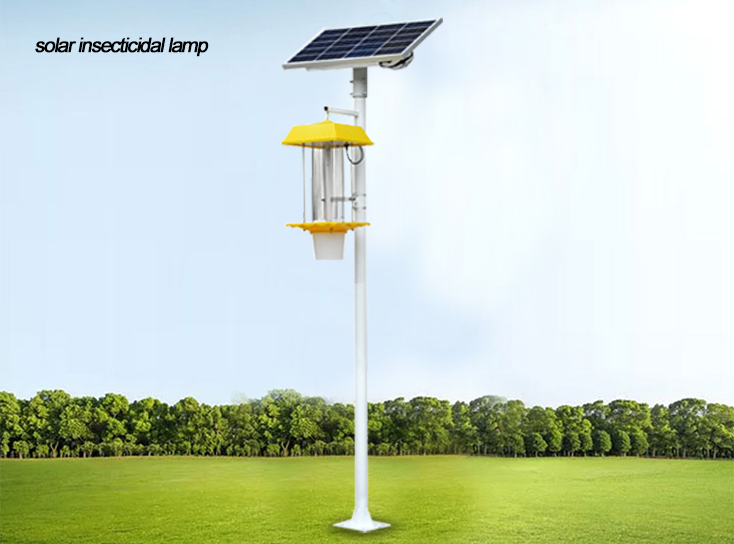

Frequency Vibration Solar Insect Trap

Solar Insect Trap Product Introduction

The Frequency Vibration Solar Insect Trap is an advanced pest control device that leverages the phototaxis behavior of insects. By emitting light at specific wavelengths, it attracts pests and eliminates them using a high-voltage electric grid. Incorporating frequency vibration induction technology, this product complies with the national safety standards outlined in GB/T24689.2-2017 for plant protection machinery.

Frequency vibration solar insecticidal lamp Applications

This solar insect trap is versatile and suitable for various settings, including:

• Agriculture and forestry

• Vegetable gardens and orchards

• Tobacco fields and vineyards

• Urban landscaping and aquaculture

• Warehousing and brewery operations

It effectively targets a wide range of pests, such as cotton bollworms, scarab beetles, cutworms, corn borers, fruit moths, beet armyworms, fall webworms, pine caterpillars, longhorn beetles, and more—covering 87 families and 1287 species of pests.

Frequency vibration solar insecticidal lamp Design Principle

The trap operates by converting sunlight into electricity via a solar panel during the day, storing it in a maintenance-free battery. An automatic control system manages light, time, rain, overcharge, and over-discharge protection. The device emits a low-temperature plasma at a wavelength of 365±50nm, which strongly attracts insects due to their phototaxis, wave attraction, and taxis characteristics. Pests are then killed or stunned by a high-voltage grid surrounding the light source.

Frequency vibration solar insecticidal lamp Technical Specifications

Frequency vibration solar insecticidal lamp Key Features

• Light Control: Automatically activates at 2–20LX and deactivates at 30–200LX.

• Rain Control: Enters protection mode when humidity exceeds 95%RH, resuming when humidity drops.

• Time Control: Customizable on/off schedules based on pest behavior via a WeChat mini-program.

• Temperature Control: Adjustable low-temperature protection thresholds.

• High-Voltage Safety: Short-circuit current limited to ≤10mA for safety.

• Durable Design: Weather-resistant, aesthetically pleasing, and free of defects.






Frequency vibration solar insecticidal lamp Installation Instructions

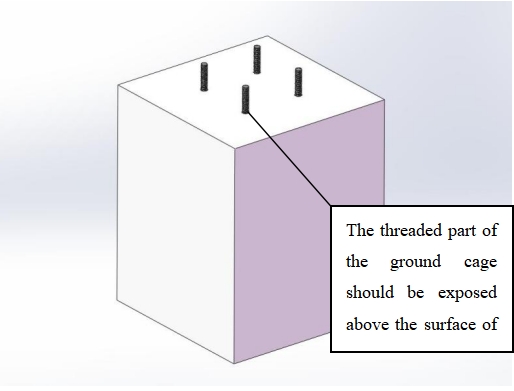

1. Base Installation: Cast a 400mm×400mm×500mm cement base with embedded steel reinforcement. Protect exposed threads with insulating tape.

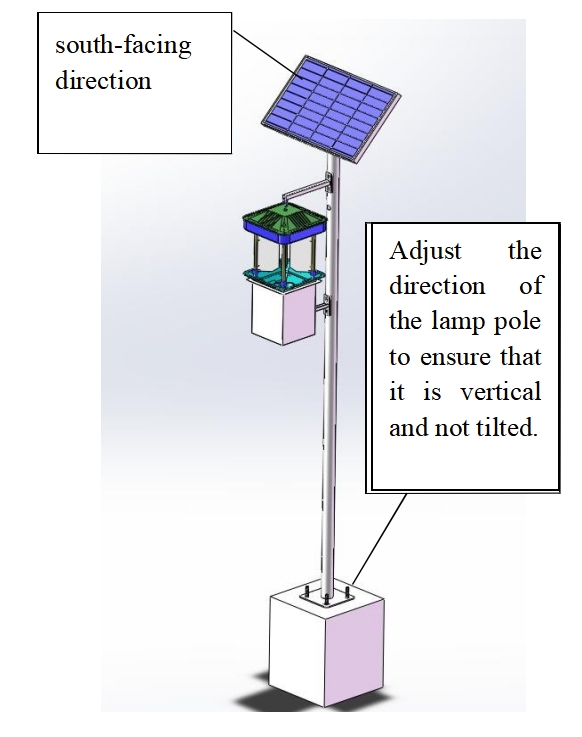

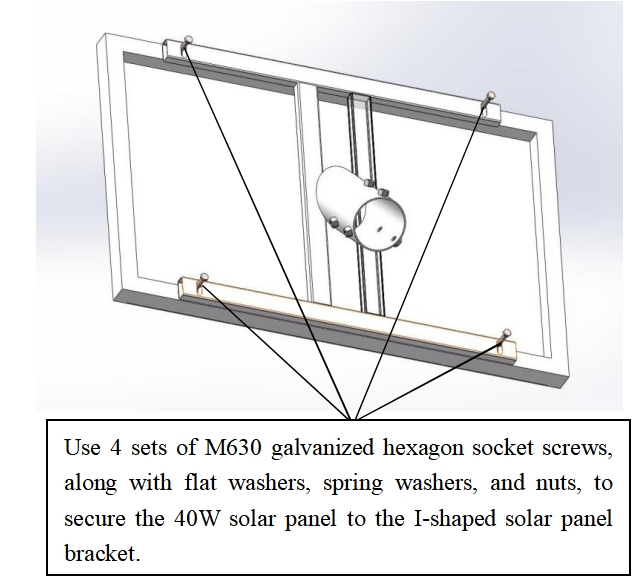

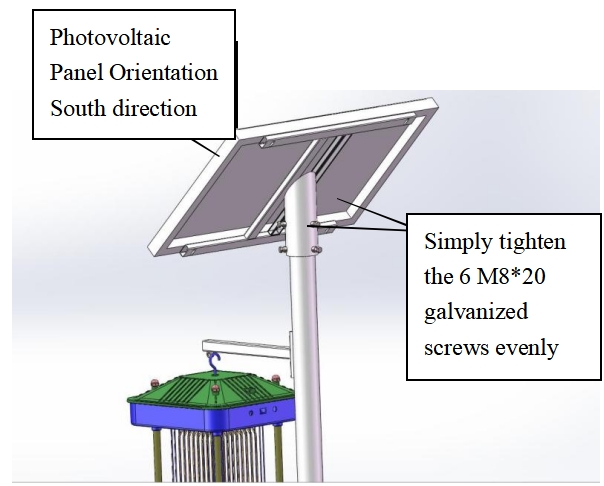

2. Solar Panel Mounting: Secure the 40W solar panel to the pole using an I-shaped bracket, ensuring it faces south.

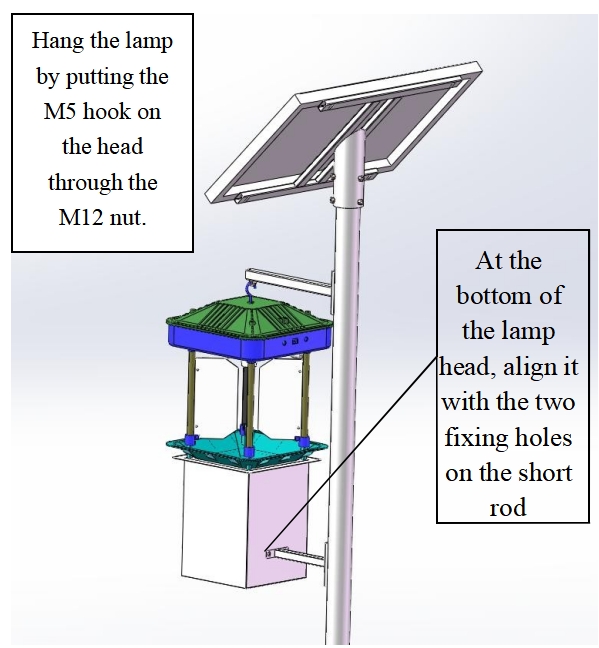

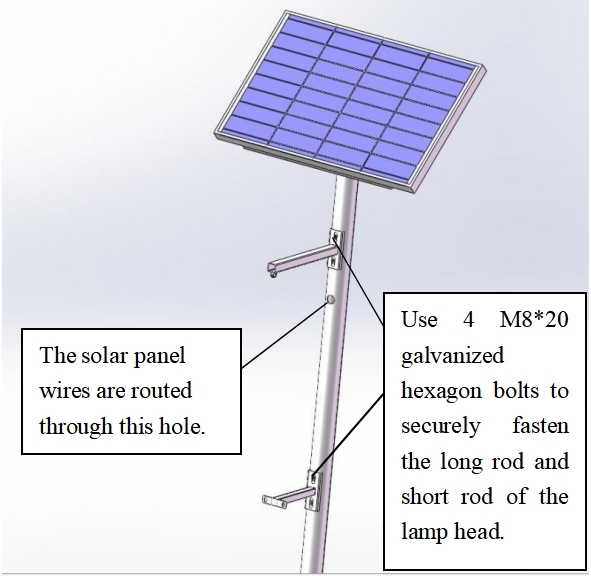

3. Lamp Head Installation: Connect the lamp head to the pole and secure it firmly.

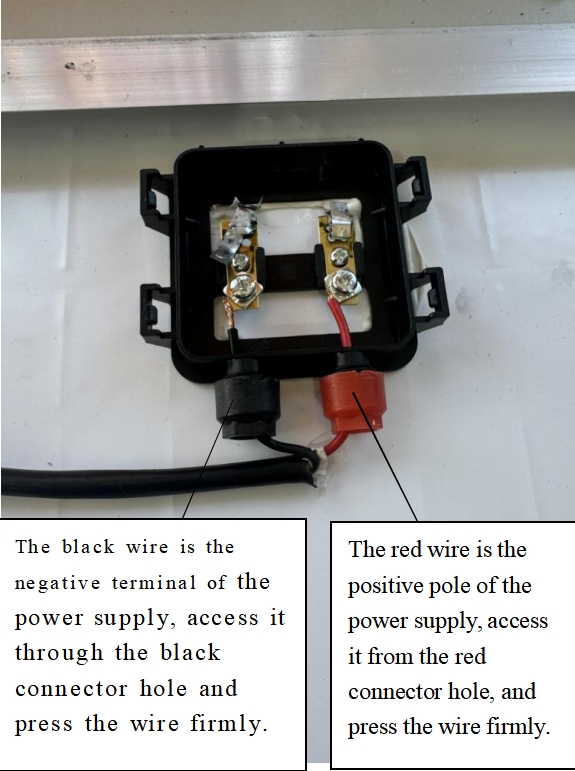

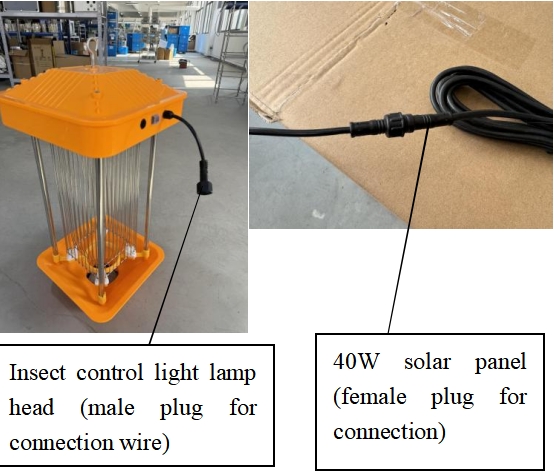

4. Wiring: Connect the solar panel to the lamp head using the provided male-female connectors.




5. Maintenance: Regularly clean the solar panel and remove dead insects from the grid and collection box to maintain efficiency.

Wiring Diagram Placeholder

Installation Diagram Placeholder

Why Choose Our Solar Insect Trap?

Designed for efficiency and durability, the Frequency Vibration Solar Insect Trap offers an eco-friendly, low-maintenance solution for pest control. Its advanced technology and robust construction make it ideal for large-scale agricultural and environmental applications.

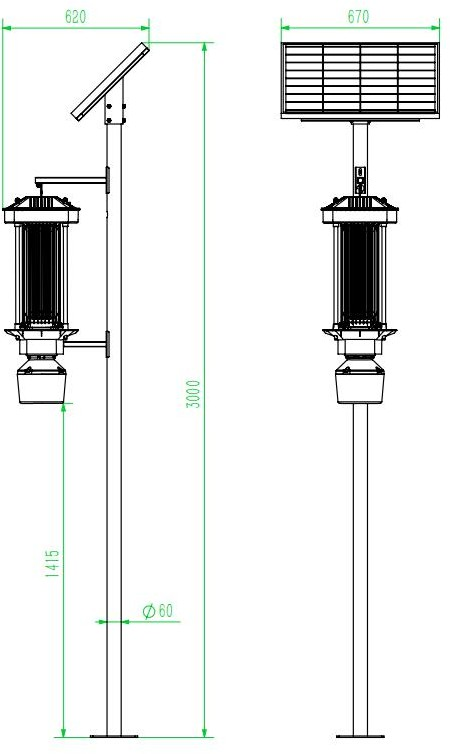

Product Size

Solar insecticidal lamps：
