Portable Tripods Weather Station Stands

Portable Tripod Weather Station Support Frame

Product Overview:

This product is a versatile monitoring stand specifically designed for environmental monitoring, weather observation, and agricultural sensors. Made from high-quality galvanized steel pipes with a surface spray coating, it boasts excellent corrosion resistance and durability, making it suitable for various complex outdoor environments. The stand is divided into two sections: the upper and lower parts, each equipped with a maintenance port and micro-connector holes for easy installation and equipment maintenance. Additionally, the number of horizontal arms can be flexibly adjusted according to actual needs, making it suitable for diverse usage scenarios.

Portable Tripod for Weather Station Technical Specifications:

Portable Tripod Product Features:

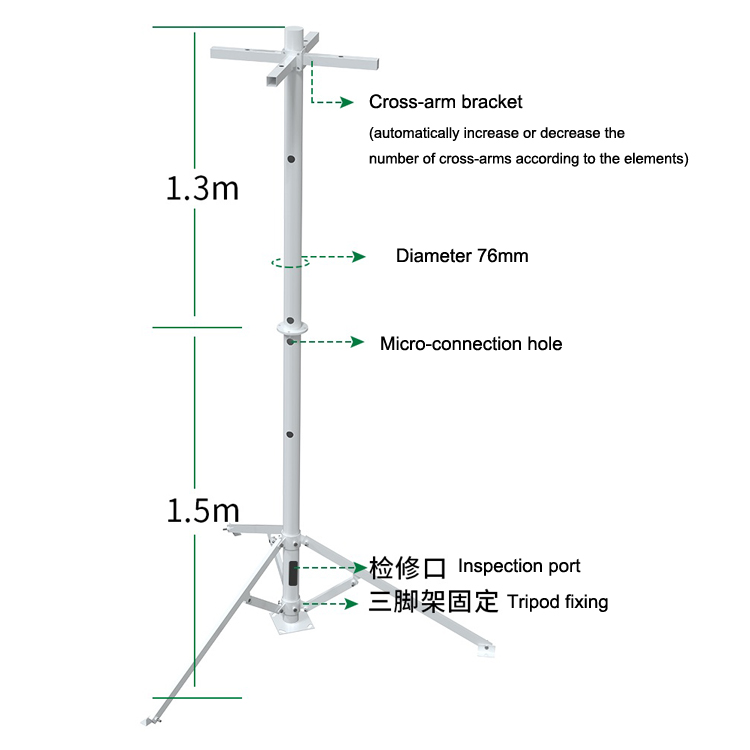

1. Scientific and Rational Structure Design:

   - Lower Section Height: 1.5m, with maintenance port and micro-connector holes for easy equipment maintenance and connections.

   - Upper Section Height: 1.3m, with micro-connector holes for fixing sensors or other monitoring equipment.

   - Total Height: 2.8m (customizable), suitable for various monitoring requirements.

2. High Strength Materials:

   - Main Material: High-quality galvanized steel pipe with a wall thickness of 2.0mm, ensuring structural strength and stability.

   - Surface Treatment: Eco-friendly spray coating process enhances corrosion resistance and prolongs service life.

3. Flexible Horizontal Arm Support:

   - The number of horizontal arms can be increased or decreased according to actual needs, supporting multi-point device installations.

   - Horizontal arms are designed to be sturdy with strong load-bearing capacity, suitable for mounting various sensors, cameras, etc.

4. Convenient Installation and Maintenance:

   - The tripod base comes with a fixed system, ensuring easy installation and strong stability.

   - The maintenance port is thoughtfully designed for easy daily inspection and equipment maintenance.

5. Wide Applicability:

   - Support Diameter: 76mm, compatible with a wide range of standard interface devices.

   - Widely used in weather monitoring, agricultural sensing, environmental testing, and other fields.

Weather Station Application Scenarios:

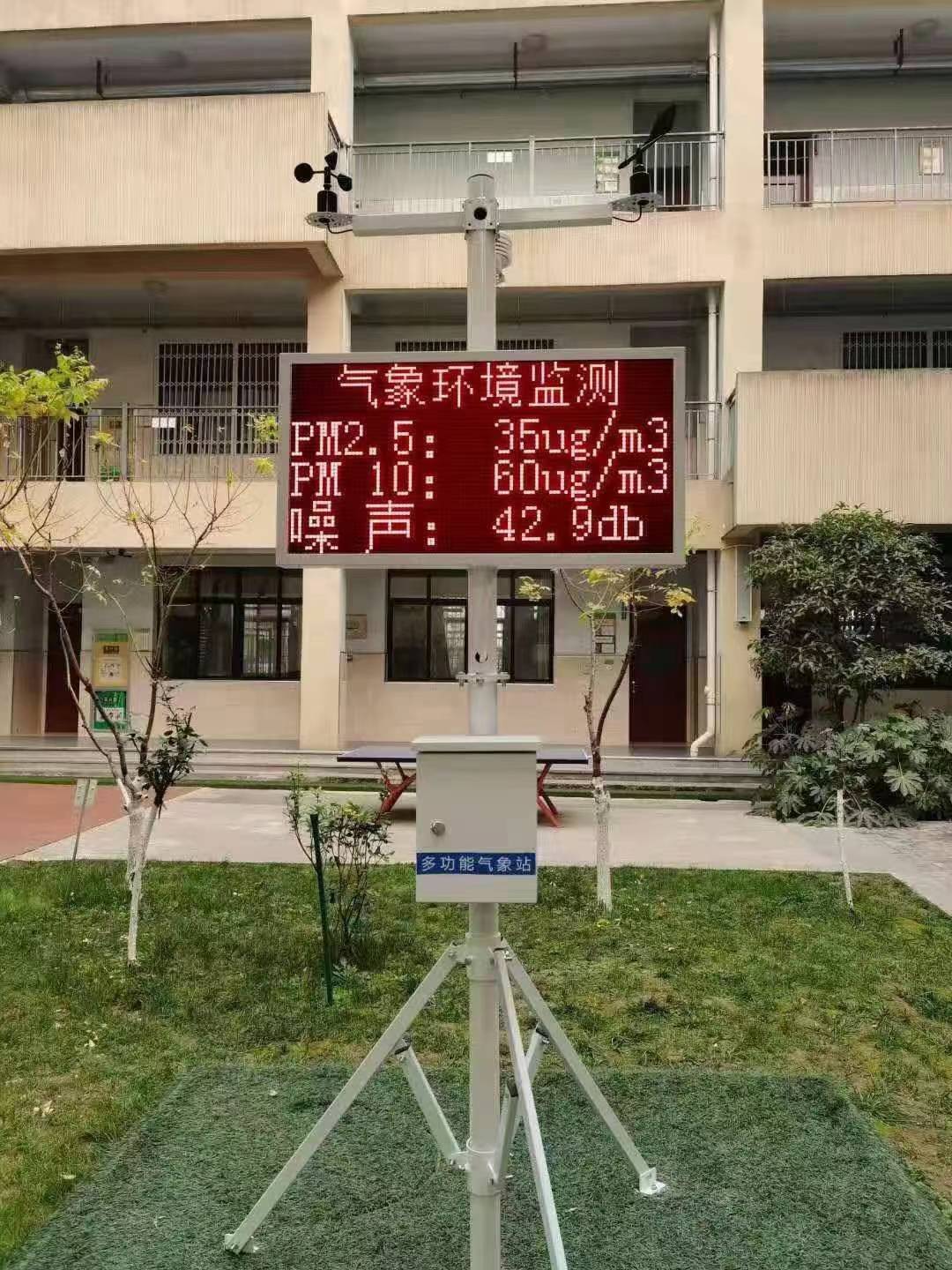

- Weather Monitoring: Mount wind speed meters, wind direction instruments, temperature and humidity sensors, etc., to achieve accurate weather data collection.

- Agricultural Sensing: Used to fix soil moisture, temperature, pH value sensors, etc., to support the development of smart agriculture.

- Environmental Monitoring: Supports the installation of air quality monitors, noise meters, and other devices to ensure the health of the ecological environment.

- Security Monitoring: Suitable for mounting cameras, infrared detectors, and other devices to enhance regional security.

Portable Tripod Product Advantages:

- High Reliability: Galvanized pipe material + spray coating process, corrosion-resistant, rust-proof, suitable for harsh environments.

- Modular Design: Adjustable horizontal arms to meet different monitoring needs.

- Ease of Use: Thoughtful maintenance port design reduces maintenance costs.

- Cost-Effective: High-quality materials combined with reasonable pricing, making it an ideal choice for monitoring fields.

Installation Instructions:

1. Ensure the installation surface is level and stable, avoiding soft or sloped terrain.

2. Use the tripod fixed system to securely anchor the stand to the ground.

3. Adjust the number of horizontal arms according to equipment needs and fix devices through the micro-connector holes.

4. Regularly check the maintenance port to ensure normal equipment operation.

After-Sales Service:

- Detailed installation guidance and technical support.

- Free repairs or part replacements within the warranty period.

- Customized solutions available based on customer needs.

For more product information or customized solutions, please feel free to contact us!
