Photovoltaic Weather Station: The "Intelligent Eye" of Photovoltaic Power Stations

In the context of global energy transition, solar energy, as a clean and renewable energy source, is gradually replacing traditional fossil fuels. Photovoltaic (PV) power stations, as an important way to utilize solar energy, have their power generation efficiency directly affected by meteorological conditions. Therefore, the photovoltaic weather station plays a crucial role as the "intelligent eye" of PV power stations, enhancing the performance and ensuring the power generation benefits of the stations.

Functions and Components of Photovoltaic Weather Stations

A photovoltaic weather station is a specialized environmental monitoring device designed for photovoltaic power stations. It integrates various high-precision sensors to monitor and collect solar radiation, meteorological elements, and environmental data in real-time, providing scientific support for station operation and maintenance. The core functions of a photovoltaic weather station include the following:

1. Solar Radiation Monitoring

The power generation efficiency of a photovoltaic power station is closely related to solar radiation. The intensity and distribution of solar radiation directly affect the electricity generation of photovoltaic modules. A photovoltaic weather station is equipped with various solar radiation sensors to measure several types of radiation in real-time:

- Solar Tilted Radiation: Measures solar radiation intensity at a specific angle, providing data to optimize the tilt angle of photovoltaic panels.

- Sunshine Duration: Records the daily duration of solar radiation, helping to evaluate the actual generation time of the power station.

- Global Solar Radiation: Measures the total solar radiation intensity on the ground, providing data for the overall power generation potential of the station.

- Direct Solar Radiation: Measures the intensity of direct sunlight radiation, which helps assess the impact of local weather on the photovoltaic power station.

- Diffuse Solar Radiation: Measures the intensity of scattered light radiation, analyzing the impact of meteorological changes on radiation.

2. Meteorological Element Monitoring

In addition to solar radiation data, the photovoltaic weather station can also monitor and record various meteorological elements in real-time:

- Wind Speed and Direction: Wind speed and direction are crucial for assessing the wind impact on a photovoltaic power station, especially during extreme weather conditions. Excessive wind speeds can damage photovoltaic equipment, while wind direction data helps assess wind energy resources.

- Temperature and Humidity (Psyche Box): By monitoring air temperature and humidity, the station can analyze how temperature affects the efficiency of photovoltaic cells.

- Atmospheric Pressure: Changes in atmospheric pressure are closely related to weather changes, providing important references for short-term weather forecasting and station operation.

3. Tracking System

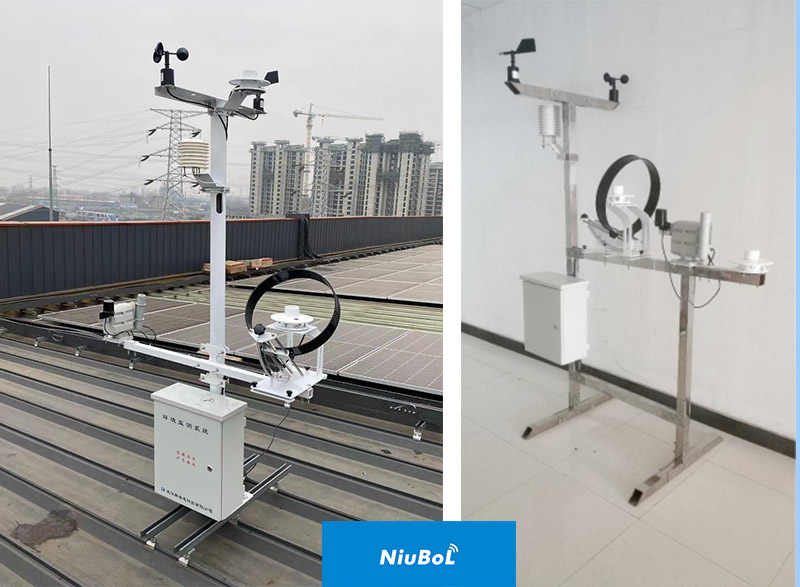

Since solar radiation is a dynamic process, the photovoltaic weather station uses a high-precision automatic tracking system to ensure accurate data collection. The tracking system can automatically adjust the orientation of sensors to remain aligned with the sun, solving issues caused by manual maintenance and fixed sensors leading to data errors. This system typically uses solar tracking sensors and GPS positioning technology to ensure accurate angle adjustments, collecting and transmitting data in real time.

Key Sensors and Their Functions

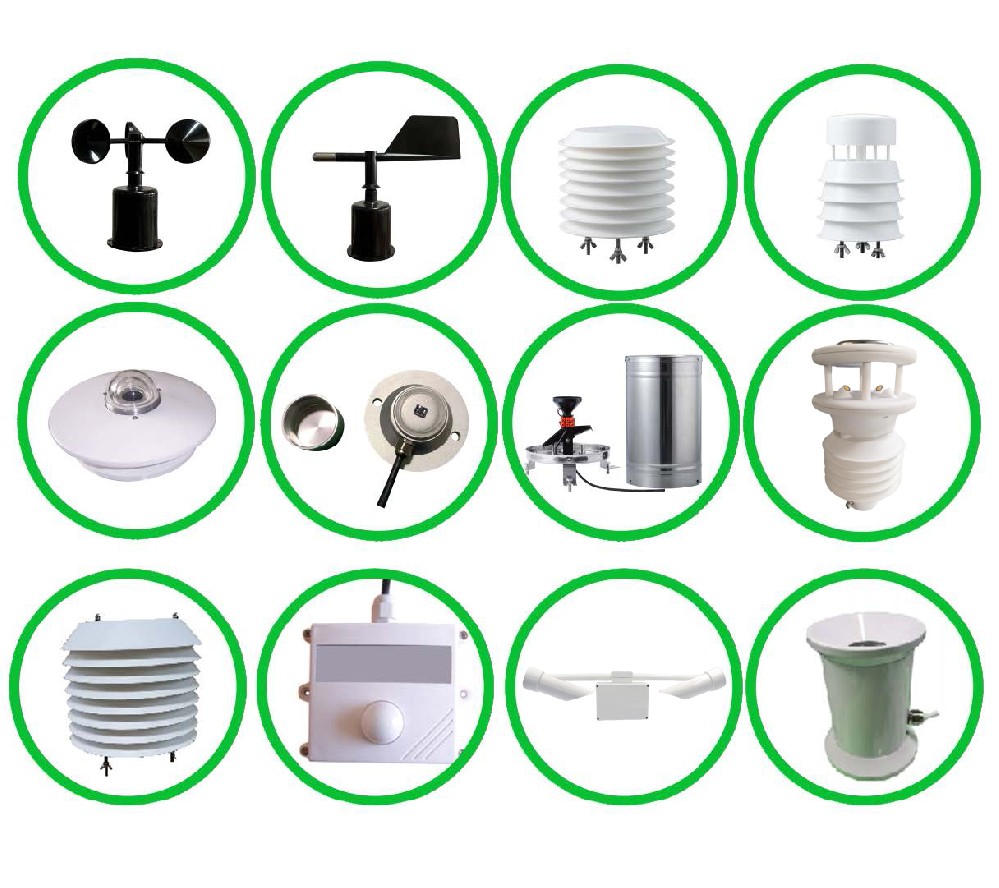

The core of a photovoltaic weather station lies in the various sensors it is equipped with. These sensors provide scientific data support by accurately measuring different meteorological elements, ensuring the photovoltaic power station operates efficiently and stably under different environmental conditions. Below are some common sensors in photovoltaic weather stations and their functions:

1. Solar Radiation Sensors

- Fully Automatic Solar Radiation Sensors: These sensors measure total solar radiation, direct solar radiation, and diffuse solar radiation intensity. Their accuracy directly affects the assessment and utilization of solar resources by the photovoltaic power station. With an automatic solar tracking system, the sensors can adjust their angles in real time to stay aligned with the sun, providing more precise radiation data.

- Silicon Photovoltaic Radiation Sensors: Based on silicon photovoltaic technology, these sensors are widely used for radiation monitoring in photovoltaic power stations. They efficiently capture solar radiation changes, adapt to various climatic conditions, and optimize data collection through the solar tracking system.

2. Wind Speed and Direction Sensors

- Ultrasonic Wind Speed Sensors: These sensors use ultrasonic waves to measure wind speed with high precision and strong adaptability, ensuring stable operation under various meteorological conditions. Monitoring wind speed and direction is crucial for assessing the external environment of the photovoltaic power station and planning wind protection measures.

- Mechanical Wind Direction Sensors: These sensors measure wind direction using rotating cups or pressure differential principles. Wind direction data helps determine wind energy resources around the station and optimize its layout design.

3. Air Temperature and Humidity Sensors

- Psyche Box Temperature and Humidity Sensors: These sensors, installed inside a psyche box, monitor air temperature and humidity in real-time, reflecting how environmental changes affect the photovoltaic power station's power generation performance. As temperature and humidity variations impact the efficiency of photovoltaic modules, accurate temperature and humidity data are essential for station operation.

4. Atmospheric Pressure Sensors

- Digital Barometric Pressure Sensors: These sensors measure changes in atmospheric pressure, which is an important basis for predicting weather changes. By monitoring atmospheric pressure, the photovoltaic weather station can anticipate the arrival of adverse weather conditions and provide early warnings for station operation management.

5. Rainfall Sensors

- Rain Gauge Sensors: The photovoltaic weather station is equipped with rain gauge sensors to monitor rainfall in real-time. Heavy rain or strong precipitation can affect the station's equipment, so obtaining rainfall data promptly helps take preventive measures to ensure equipment safety.

Power Supply and Data Transmission of Photovoltaic Weather Stations

1. Solar Power System

 The photovoltaic weather station uses a solar power system for its own power supply, aligning with the green and eco-friendly concept. It is equipped with a wide-temperature, maintenance-free gel battery that ensures stable operation under various environmental conditions. By using solar power for self-sufficiency, it reduces operational costs and avoids secondary environmental pollution, perfectly aligning with the sustainable development of photovoltaic power stations.

2. Data Transmission and Remote Monitoring

The photovoltaic weather station supports 4G wireless network transmission technology, enabling real-time uploading of collected data to the environmental monitoring cloud platform. Users can view data at any time through web portals or mobile apps, allowing real-time monitoring of the photovoltaic power station's operation status and environmental changes. This intelligent management approach significantly improves operational efficiency, reduces manual inspection costs, and enhances the station's stability and safety.

Advantages of Photovoltaic Weather Stations

Compared to traditional weather stations, photovoltaic weather stations have several significant advantages, making them indispensable tools for photovoltaic power station operation and maintenance:

1. Precise Data Collection

Photovoltaic weather stations are equipped with high-precision sensors and automatic tracking systems, enabling the collection of highly accurate meteorological data, including solar radiation, wind speed, and temperature. This data is crucial for optimizing station layout, evaluating power generation efficiency, and predicting long-term operation.

2. Environmentally Friendly and Low Maintenance Costs

As part of the photovoltaic power station, the photovoltaic weather station uses solar power and has a maintenance-free battery design, eliminating the need for external power sources and avoiding common weather station power supply issues. Its high stability and low maintenance requirements further reduce operational costs.

3. Easy Installation and Intelligent Management

The photovoltaic weather station requires no complex power lines or frequent on-site maintenance. The device can be installed by simply choosing an appropriate location and securing the photovoltaic panels and monitoring equipment. Combined with cloud platforms and app management systems, users can easily monitor the station remotely and manage it intelligently.

4. Adaptability to Harsh Environments

Photovoltaic weather stations are highly adaptable and can operate stably under various climatic conditions. Whether in high temperatures, low temperatures, sandstorms, or heavy snow, photovoltaic weather stations maintain normal operation, ensuring the stability and reliability of data.

Application Prospects of Photovoltaic Weather Stations

With increasing global attention on green energy and sustainable development, the application prospects of photovoltaic weather stations are vast. They not only provide accurate meteorological data support for photovoltaic power stations but also help improve the stations' power generation efficiency and safety. In the future, with ongoing technological advancements, photovoltaic weather stations will see even broader application worldwide, especially in regions reliant on solar energy, becoming an essential "intelligent eye" for photovoltaic power station operation.

Conclusion

As an integral part of modern photovoltaic power stations, the photovoltaic weather station plays a crucial role in the sustainable development of the photovoltaic industry with its high-precision data collection, eco-friendly power supply, and intelligent management system. With the global transition in energy structures and the continuous progress in photovoltaic technology, photovoltaic weather stations will show even broader application value in future energy management and environmental monitoring fields.
