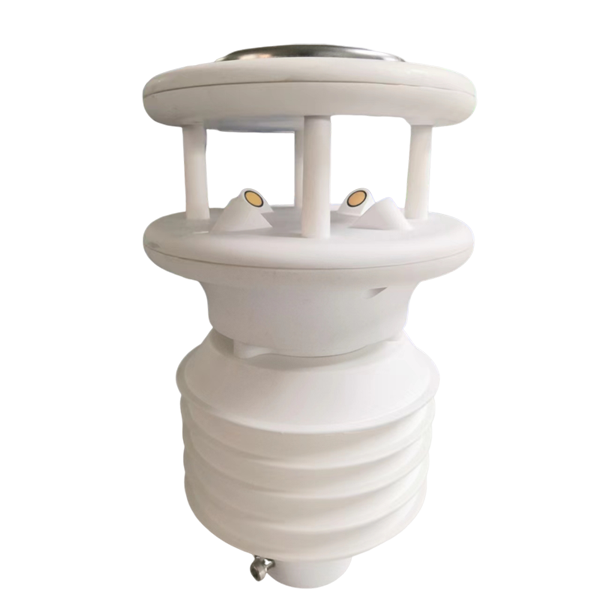

Mini Ultrasonic Weather Station: Precision Environmental Monitoring

In an age where environmental monitoring is critical across industries, the ultrasonic mini weather station stands out as a compact, high-precision solution. Integrating advanced ultrasonic technology with a suite of sensors, this device measures wind speed, wind direction, temperature, humidity, air pressure, precipitation, light intensity, noise, and air quality (PM2.5 and PM10). Its robust design, ease of installation, and versatile applications make it an essential tool for agriculture, transportation, environmental protection, research, and more. This article delves into the station’s sensors, their functions, and the transformative value they bring to diverse sectors.

Overview of the Ultrasonic Weather Station

The ultrasonic mini weather station is a state-of-the-art environmental monitoring system designed for accuracy and convenience. Unlike traditional weather stations that rely on mechanical components, it uses non-contact ultrasonic technology to measure wind parameters, eliminating wear and tear while enhancing precision. Equipped with multiple sensors, it provides comprehensive data on environmental conditions, transmitted via reliable communication protocols for real-time analysis. Its compact size, built-in electronic compass, and flexible installation make it ideal for both stationary and mobile applications, from urban rooftops to remote fields and maritime vessels.

Ultrasonic Snow Depth Sensor	All-in-One Ultrasonic Weather Station	5 in1 Ultrasonic Weather Station Sensor	6 in1 Ultrasonic Weather Station Sensor	7 in1 Ultrasonic Weather Station Sensor

Sensors and Their Functions

The ultrasonic mini weather station integrates a range of high-precision sensors, each tailored to capture specific environmental parameters. Below is a detailed look at these sensors, their functions, and their practical value.

1. Ultrasonic Wind Sensor

· Function: Measures wind speed and direction using ultrasonic pulses transmitted through the air. By calculating the time-of-flight differences of sound waves, it detects wind movement with high accuracy, even in turbulent conditions.

· Value: Unlike mechanical anemometers, this sensor has no moving parts, ensuring long-term reliability and minimal maintenance. It captures wind data from gentle breezes to gale-force winds, supporting weather forecasting, aviation safety, and renewable energy planning. For example, precise wind data helps optimize wind turbine placement or predict storm paths.

2. Temperature and Humidity Sensor

· Function: Uses capacitive or resistive elements to measure ambient temperature (accuracy ±0.1°C) and relative humidity (±2% RH).

· Value: Temperature and humidity data are critical for agriculture, where they guide irrigation and pest control. In urban settings, they inform heat stress warnings or HVAC system adjustments. For research, they contribute to climate models, tracking trends like urban heat islands.

3. Barometric Pressure Sensor

· Function: Employs piezoelectric or capacitive technology to measure atmospheric pressure, detecting changes as small as 0.1 hPa.

· Value: Pressure data indicates approaching weather systems, enabling early warnings for storms or cyclones. In transportation, it supports altitude corrections for aviation. In environmental studies, long-term pressure records reveal atmospheric circulation shifts.

4. Rain Gauge (Precipitation Sensor)

· Function: Measures rainfall intensity and accumulation using optical or piezoelectric methods, with resolution down to 0.1 mm.

· Value: Precipitation data drives flood warnings and drought management. In agriculture, it optimizes irrigation schedules, conserving water. For infrastructure planning, it informs drainage system designs, reducing urban flooding risks.

5. Light Intensity Sensor

· Function: Measures illuminance (lux) using photodiodes, capturing sunlight levels across a wide range.

· Value: Light intensity data supports solar energy optimization, guiding panel adjustments for maximum efficiency. In agriculture, it informs planting schedules based on photoperiod requirements. For public health, it aids UV exposure advisories.

6. Noise Sensor

· Function: Detects ambient sound levels (dB) using high-sensitivity microphones, with a range typically from 30 to 130 dB.

· Value: Noise monitoring is crucial for urban planning, ensuring compliance with noise regulations near schools or hospitals. In environmental studies, it assesses human impact on wildlife. For workplaces, it supports occupational health by identifying excessive noise exposure.

7. Air Quality Sensors (PM2.5 and PM10)

· Function: Measures particulate matter (PM2.5 and PM10) concentrations using laser scattering technology, with accuracy within ±10 µg/m³.

· Value: Air quality data informs public health advisories, particularly in polluted urban areas. It supports environmental regulations, guiding emission reduction strategies. In agriculture, it helps assess dust impacts on crops, enabling protective measures.

These sensors are housed in a durable, weather-resistant enclosure, ensuring reliable performance in extreme conditions, from -40°C to 80°C and up to 95% humidity.

Key Features of the Mini Ultrasonic Weather Station

The ultrasonic mini weather station is engineered for precision, flexibility, and ease of use. Its standout features include:

1. Advanced Ultrasonic Technology

By replacing mechanical components with ultrasonic measurements, the station achieves superior accuracy and durability. It responds instantly to wind changes, capturing data in real time without calibration drift, making it ideal for dynamic environments like maritime or mobile applications.

2. Comprehensive Data Integration

The station integrates data from all sensors into a single platform, supporting storage, analysis, and visualization. Users can access real-time and historical data via a dedicated software interface, mobile app, or API, enabling seamless integration with existing systems like PLCs or SCADA.

3. Robust Communication

Using the Modbus-RTU protocol over RS485, the station ensures stable data transmission up to 2000 meters. This long-range capability supports remote monitoring in large facilities or dispersed agricultural fields. Optional 4G or Wi-Fi modules enable cloud-based data uploads for global access.

4. Easy Installation with Electronic Compass

An integrated electronic compass eliminates the need for precise directional alignment during installation. Simply ensure a level mount, and the station self-calibrates, reducing setup time and enabling use on moving platforms like ships or vehicles.

5. Customizable and Scalable

The station supports secondary development, allowing users to add sensors (e.g., CO2 or UV) or tailor data outputs to specific needs. Its modular design accommodates diverse applications, from small research projects to large-scale environmental networks.

6. Low Maintenance and Durability

With no mechanical parts and a rugged, IP65-rated enclosure, the station requires minimal upkeep. Solar-powered options with backup batteries ensure continuous operation in remote or off-grid locations.

Applications and Value Across Industries

The Mini ultrasonic weather station delivers actionable insights for a wide range of sectors, enhancing safety, efficiency, and sustainability.

1. Agriculture and Forestry

· Application: Monitors microclimates to optimize irrigation, pest control, and harvest timing.

· Value: Real-time temperature, humidity, and precipitation data increase crop yields by up to 20%, as seen in precision farming studies. Air quality monitoring protects crops from dust or pollutants, while wind data prevents pesticide drift.

2. Environmental Protection

· Application: Tracks air quality, noise, and weather patterns in urban and industrial areas.

· Value: PM2.5 and PM10 data support pollution control measures, reducing health risks. Noise monitoring ensures compliance with regulations, improving community well-being. Long-term weather data informs climate adaptation strategies.

3. Transportation and Maritime

· Application: Provides wind, visibility, and precipitation data for roads, airports, and ships.

· Value: Real-time alerts for high winds or low visibility reduce accidents, as demonstrated by a 15% drop in weather-related crashes in regions with advanced monitoring. On ships, the station’s mobility ensures accurate data during navigation.

4. Scientific Research

· Application: Collects high-resolution data for meteorology, ecology, and climate studies.

· Value: Researchers use wind, light, and air quality data to model urban heat islands or assess ecosystem health. The station’s portability supports field experiments in remote areas, advancing global climate knowledge.

5. Urban Planning and Smart Cities

· Application: Monitors microclimates and pollution to optimize urban design.

· Value: Temperature and wind data guide green space placement, reducing urban heat by up to 3°C, as seen in smart city projects. Noise and air quality data inform traffic management, enhancing livability.

Mini Ultrasonic Weather Station Technical Specifications

Why Choose the Mini Ultrasonic Weather Station?

The ultrasonic mini weather station redefines environmental monitoring with its precision, versatility, and user-friendly design. Its key advantages include:

· Unmatched Accuracy: Ultrasonic technology ensures reliable data without mechanical wear.

· Comprehensive Monitoring: Covers meteorological and environmental parameters in one device.

· Ease of Use: Simplified installation and remote access streamline operations.

· Durability: Built for harsh environments, with minimal maintenance needs.

· Flexibility: Customizable for specific applications, from farms to smart cities.

Conclusion

The ultrasonic mini weather station is a game-changer in environmental monitoring, combining cutting-edge technology with practical design. By delivering real-time, high-precision data on wind, weather, and air quality, it empowers industries to make informed decisions, enhance safety, and promote sustainability. Whether optimizing crop yields, ensuring safe transportation, or advancing climate research, this compact device is a vital tool for navigating a dynamic world. As environmental challenges grow, the ultrasonic mini weather station stands ready to provide the insights needed for a resilient, sustainable future.

Contact us today to learn how this innovative solution can meet your monitoring needs with tailored, high-performance capabilities.
