Smart Dust Monitoring Solution

1. Background of Smart Dust Monitoring Solution

With the acceleration of urbanization and the increase in construction sites, dust pollution has become a significant environmental issue impacting air quality and public health. Dust not only raises the concentration of particulate matter (PM2.5 and PM10), but also potentially leads to respiratory diseases and other health problems. To effectively control dust pollution, the Smart Dust Monitoring Solution was developed. This solution integrates various sensors, IoT technologies, and big data analysis to achieve real-time monitoring, early warning, and intelligent control of dust pollution. It helps environmental protection departments, construction units, and urban managers enhance environmental management efficiency and improve air quality.

2. Overview of Smart Dust Monitoring Solution

The Smart Dust Monitoring Solution deploys a variety of sensors (e.g., wind speed sensors, PM2.5 sensors, noise sensors, etc.) to monitor dust concentration, air quality, and environmental parameters in construction sites, city roads, and industrial parks in real-time. With the integration of IoT, big data analysis, and intelligent warning systems, this solution enables managers to monitor dust pollution status, take effective measures to reduce pollution, improve air quality, and enhance urban environmental quality.

3. How to Implement the Smart Dust Monitoring Solution

3.1 System Architecture Design

The architecture of the smart dust monitoring system is divided into four layers:

1. Perception Layer: Collects environmental data in real-time through various sensors (e.g., wind speed, wind direction, PM2.5, noise, etc.).

2. Transmission Layer: Uses wireless networks (such as 4G/5G, LoRa, NB-IoT) to transmit data to the data center.

3. Platform Layer: Provides data storage, processing, analysis, and visualization functions.

4. Application Layer: Offers real-time monitoring, warning release, data analysis, and other application services for managers and relevant departments.

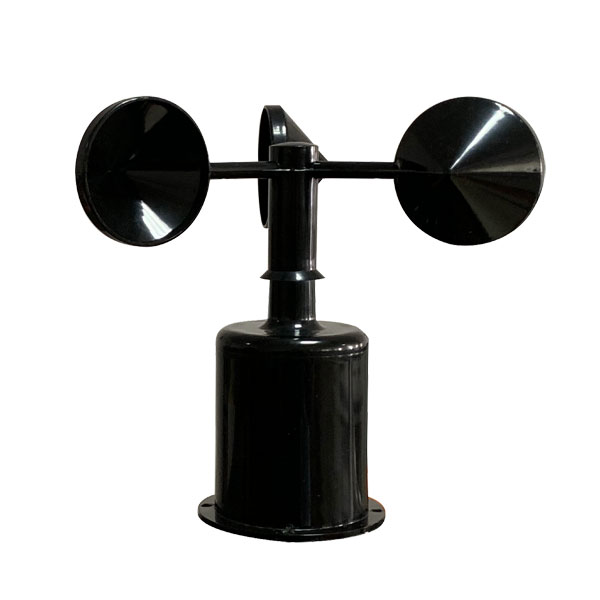

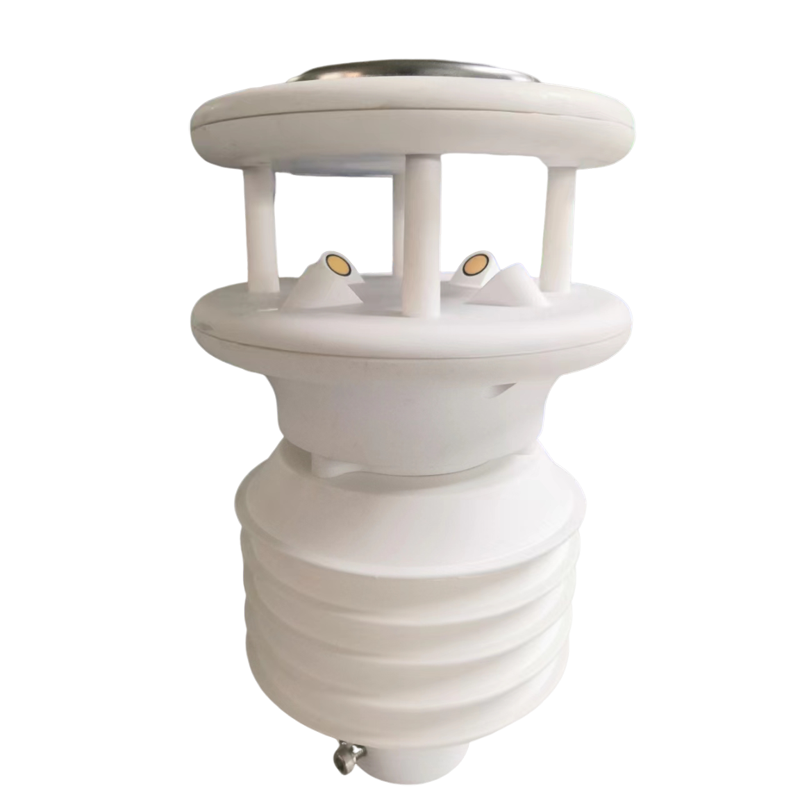

Wind Speed sensor	Wind direction sensor	Tipping bucket rain gauge sensor	Atmospheric Temperature Humidity air pressure Sensor	All-in-One Weather Station

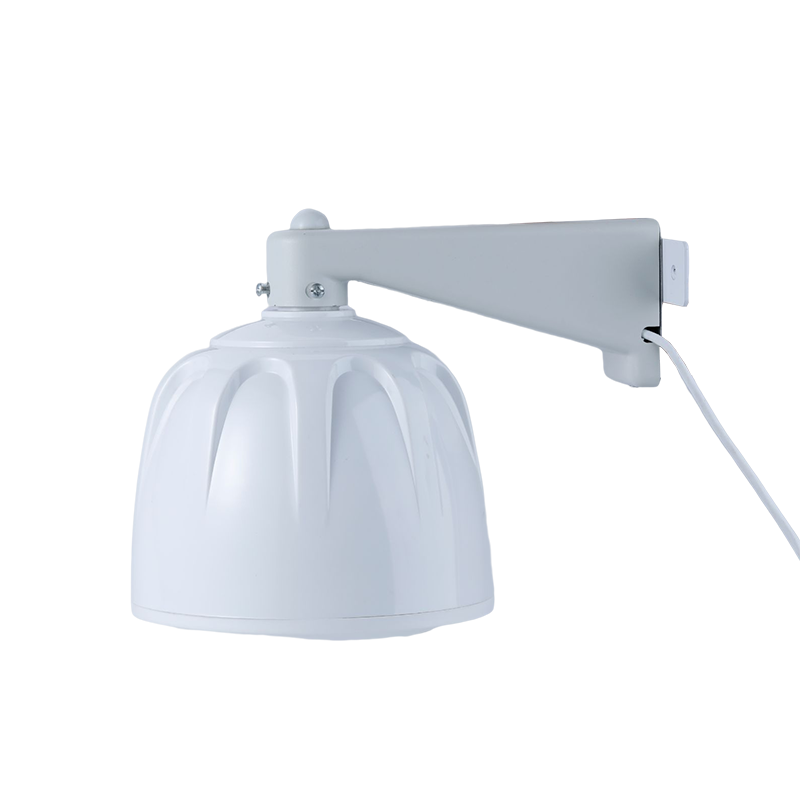

Noise sensor	CO2 sensor	PM2.5 and PM10 sensors	Four gas and two dust sensor	Precision Level Transmitter

3.2 Selection and Deployment of Smart Dust Monitoring Sensors

1. Wind Speed Sensor: Monitors wind speed to assess the range of dust dispersion. Deployed near dust pollution sources or key monitoring points.

2. Wind Direction Sensor: Monitors wind direction, combined with wind speed data to analyze the direction of dust dispersion. Deployed near dust pollution sources.

3. Atmospheric Temperature, Humidity, and Pressure Sensor: Monitors temperature, humidity, and air pressure to assess the impact of meteorological conditions on dust. Deployed in open areas.

4. Rainfall Sensor: Monitors rainfall to assess the effect of rain on dust suppression. Deployed in areas susceptible to rainfall.

5. PM2.5 Sensor: Monitors PM2.5 concentration in the air, directly reflecting the level of dust pollution. Deployed in densely populated areas, traffic arteries, and other key locations.

6. CO2 Sensor: Monitors CO2 concentration to assist in assessing air quality. Deployed in areas where air quality changes need to be monitored.

7. Four Gases and Two Dust Sensors: Monitors four gases (e.g., SO2, NO2, O3, CO) and two types of particulate matter (PM10, PM2.5), providing comprehensive air quality data. Deployed in key areas.

8. Noise Sensor: Monitors environmental noise levels to assess the impact of dust pollution on residents' lives. Deployed in residential areas, schools, and other sensitive areas.

9. Immersion Liquid Level Sensor: Monitors the water level of dust suppression equipment (e.g., spraying systems) to ensure proper operation. Deployed near dust suppression equipment.

10. Video Surveillance Camera: Captures real-time footage of dust pollution sources and dispersion, providing evidence for manual checks and enforcement. Deployed at key monitoring points.

3.3 Data Transmission and Processing

1. Data Transmission: Uses wireless networks (e.g., 4G/5G, LoRa, NB-IoT) to transmit sensor data to the data center.

2. Data Processing: Cleans, integrates, and formats the data, using intelligent algorithms for analysis to extract useful information.

3.4 Platform Construction and Visualization

1. Data Service Platform: Achieves data storage, querying, analysis, and visualization.

2. User Interface: Designs an intuitive interface for easy access to real-time and historical data by managers.

3. Warning Mechanism: Automatically triggers an alert when monitoring data exceeds preset thresholds, notifying relevant personnel.

3.5 Application Services and Decision Support

1. Real-time Monitoring and Early Warning: The system monitors dust concentration and air quality in real-time, promptly issuing warnings when thresholds are exceeded.

2. Data Analysis and Decision Support: Big data analysis identifies pollution sources and patterns, providing scientific data for decision-making.

3. Automation Control: Interacts with dust suppression systems like spraying systems and mist cannons to automatically initiate dust control measures.

4. Role and Value of the Smart Dust Monitoring Solution

1. Real-time Monitoring of Dust Pollution: Real-time collection of dust concentration, air quality, and other data helps environmental protection agencies understand pollution status.

2. Improving Air Quality: Through intelligent control and dust suppression measures, dust pollution is reduced, improving the local air quality.

3. Reducing Environmental Risk: Real-time alerts and data analysis assist construction units in taking timely actions to reduce dust pollution and avoid environmental penalties.

4. Enhancing Management Efficiency: Intelligent data collection and analysis reduce the cost of manual inspections and improve environmental management efficiency.

5. Supporting Scientific Decision-Making: Big data analysis provides scientific decision-making support to environmental agencies and construction units, optimizing pollution control strategies.

5. Case Analysis

Case 1: Smart Dust Monitoring System at a Construction Site

- Background: A construction site deployed PM2.5 sensors, wind speed sensors, and noise sensors to monitor dust concentration and construction noise in real-time.

- Effect: Through real-time data collection and analysis, the system automatically activated the spraying system, reducing dust pollution, significantly improving the air quality around the construction site.

Case 2: Smart Environmental Project at an Industrial Park

- Background: An industrial park deployed four gases and two dust sensors, CO2 sensors, and cameras to monitor air quality and pollution sources in real-time.

- Effect: By analyzing the data, the system was able to identify primary pollution sources and issue alerts, improving the air quality in the park and significantly enhancing environmental management efficiency.

Conclusion:

The Smart Dust Monitoring Solution integrates multiple sensors and intelligent monitoring technologies to enable real-time monitoring and early warning of dust pollution and air quality. This solution not only improves environmental management efficiency but also provides scientific decision-making support to environmental protection departments and construction units, helping reduce dust pollution and improve air quality. Through intelligent data analysis and control, the solution provides strong support for urban environmental governance and sustainable development.
