Smart Agriculture Planting Solutions

1. Solution Overview

The Smart Agriculture Planting Solution integrates Internet of Things (IoT), big data analysis, artificial intelligence, and smart sensing technologies to create a digital management system that covers all elements of farmland. This solution can monitor key indicators such as soil, weather, and crop growth in real-time, enabling precise irrigation, intelligent fertilization, environmental regulation, and pest and disease early warning. Ultimately, it aims to increase yields, improve efficiency, conserve resources, and achieve ecological sustainability. The system is suitable for various scenarios, including open fields and greenhouse environments, with potential yield increases of 20%-40%, water and fertilizer waste reductions of 30%-50%, and facilitates the transformation of traditional agriculture into data-driven, modernized farming.

2. Core Functions and Value of Smart Agriculture/Planting Solutions

- Precise Environmental Monitoring and Control

  - Function: Real-time collection of data on atmospheric temperature, humidity, light intensity, CO₂ concentration, wind speed, and direction, with dynamic adjustment of irrigation, ventilation, and shading systems.

  - Value: Reduces losses from extreme weather by 30%, shortens crop growth cycles by 10%-15%.

- Soil Health Management

  - Function: Monitors soil temperature, moisture, conductivity, salinity, pH, and nitrogen, phosphorus, potassium (NPK) content to generate precise fertilization and irrigation plans.

  - Value: Reduces fertilizer waste by 30%-50%, prevents soil degradation, and increases fertilizer efficiency by 30%-50%.

- Crop Growth Optimization

  - Function: Optimizes light energy utilization and pest control by analyzing leaf surface humidity and photosynthetically active radiation data.

  - Value: Increases photosynthesis efficiency by 20%, reduces pesticide usage by 25%.

Wind Speed Sensor	Atmospheric Temperature Humidity pressure Sensor	illumination sensor	Tipping bucket rain gauge sensor	Leaf Wetness Sensor
Wind Direction Sensor	PAR Sensor	3-in-1 Soil Temperature Humidity EC Sensor	Soil Moisture Temperature sensor	Soil pH sensor

3. Sensor System Design

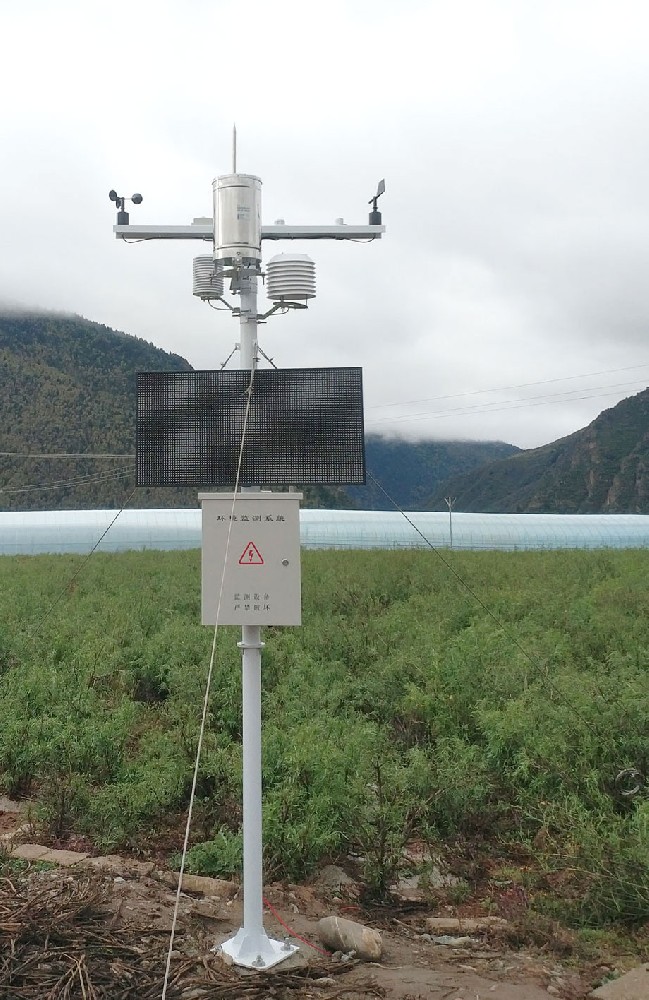

- Weather Monitoring Layer

  - Atmospheric Temperature, Humidity, and Pressure Sensor

    - Purpose: Monitors temperature, humidity, and atmospheric pressure.

    - Function: Provides meteorological data support for agricultural production, helps forecast weather changes, and allows for rational production planning.

  - Wind Speed and Direction Sensors

    - Purpose: Measures wind speed and direction in farmland.

    - Function: Provides data for irrigation, fertilization, and pest control management, and issues early warnings of strong winds to reduce wind damage to crops.

  - Photosynthetically Active Radiation Sensor

    - Purpose: Measures light intensity in the 400-700nm wavelength range.

    - Function: Provides light data support for agriculture, optimizes crop growth environments, and improves crop yield.

  - Rainfall Sensor

    - Purpose: Monitors rainfall in real-time.

    - Function: Provides data for precise irrigation and disaster warning, helping create scientific planting plans and management strategies.

- Soil Monitoring Layer

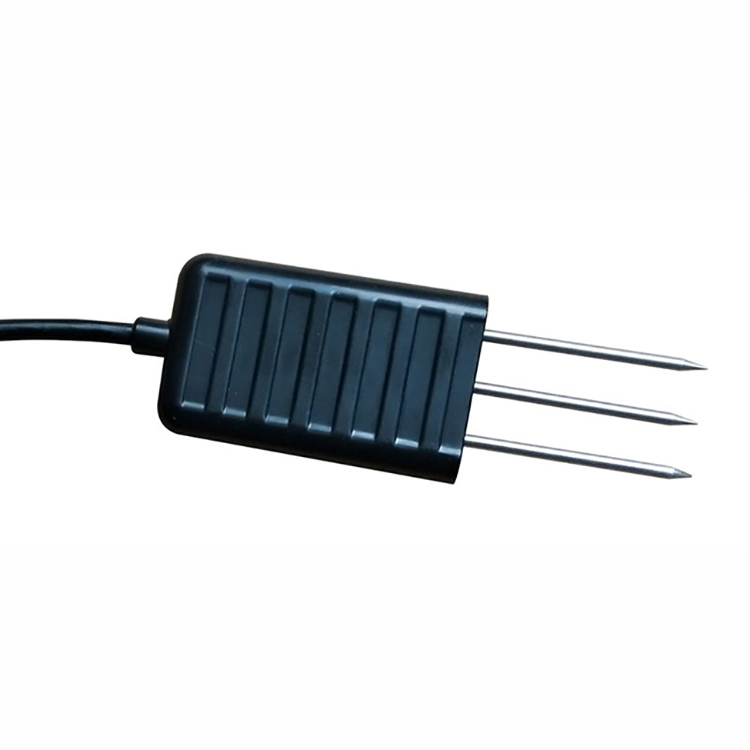

Soil Temperature and Moisture Sensors

- Purpose: Monitors soil temperature and moisture content in real-time.

- Function: Provides scientific data for precise irrigation, improving water resource utilization.;

Soil Electrical Conductivity Sensor(soil ec sensor)

- Purpose: Measures the electrical conductivity of the soil, reflecting salt content.

- Function: Guides scientific fertilization to avoid salt damage to crops.

- Soil Salinity Sensor

- Purpose: Accurately measures the salt content in the soil.

- Function: Provides data support for soil classification and crop growth, reducing soil salinization issues.

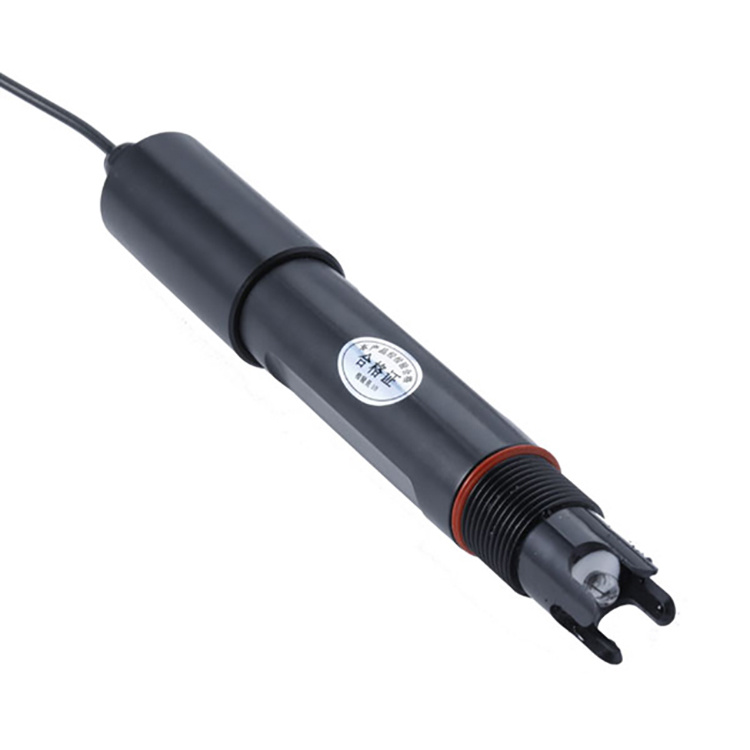

  - Soil pH Sensor

    - Purpose: Monitors soil pH in real-time.

    - Function: Provides scientific data for precise irrigation and fertilization, adjusting soil pH to optimize crop growth environments.

  - Soil NPK Sensor

    - Purpose: Monitors nitrogen, phosphorus, and potassium levels in the soil.

    - Function: Improves fertilizer efficiency and reduces environmental pollution.

- Crop Monitoring Layer

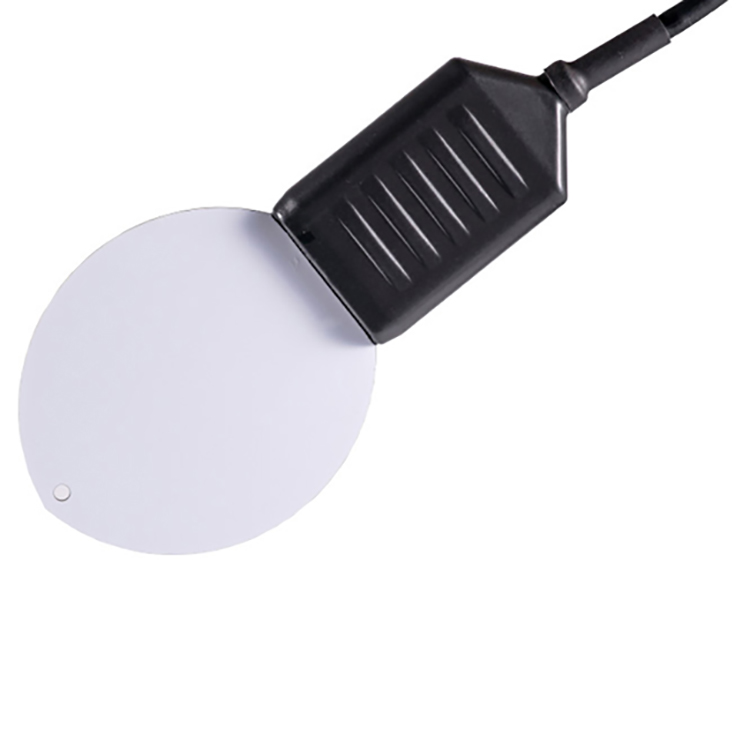

  - Leaf Surface Humidity Sensor

    - Purpose: Monitors the humidity on the surface of plant leaves.

    - Function: Helps understand the plant’s water absorption status, optimizing irrigation strategies and saving water.

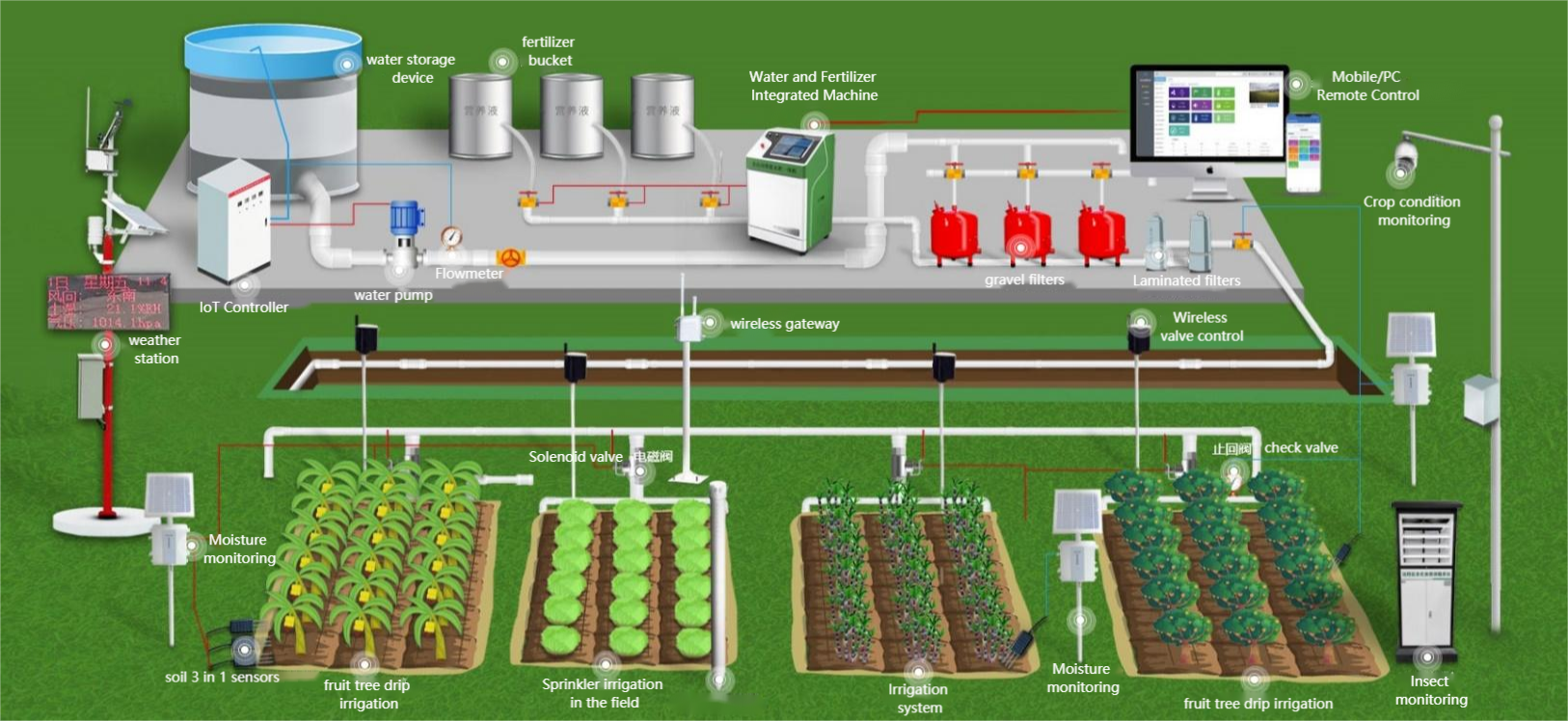

4. System Architecture and Workflow for Smart Agriculture/Planting Solutions

- Perception Layer

  - Components: Agricultural sensors + smart cameras + weather stations, supporting cellular network/LoRa low-power transmission.

  - Deployment Density: One comprehensive sensing node per 3 acres, with dense deployment in key areas (e.g., irrigation hubs).

- Transmission Layer

  - Communication Protocol: 5G/4G backbone + Lorawan self-organizing network, data transmission delay < 150ms.

  - Edge Computing: Gateways with built-in data cleaning algorithms to filter out invalid fluctuations (e.g., sudden wind speed spikes).

- Platform Layer

  - Digital Twin: Builds a 3D farmland model that dynamically maps crop growth and environmental parameters.

  - AI Engine: Uses LSTM neural networks to predict environmental trends for the next 72 hours with a decision accuracy of >93%.

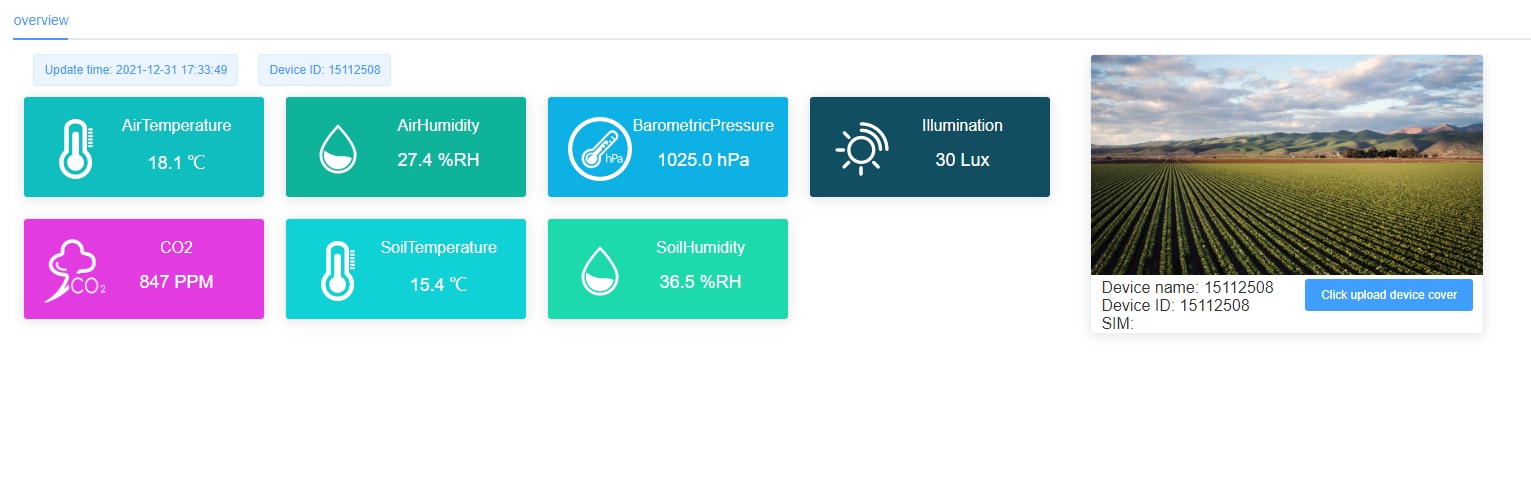

- Application Layer

  - Mobile Terminals: Compatible with Android/iOS apps.

5. Application Examples for Smart Agriculture/Planting Solutions

- Crop Growth Monitoring and Early Warning

  - Real-Time Monitoring: Deploying various sensors in farmland to monitor soil, climate, and crop growth conditions in real-time, with data transmitted to the cloud for comprehensive and accurate growth information.

  - Drone Remote Sensing: Using drones with high-definition cameras and multispectral sensors for large-scale, high-precision aerial monitoring to identify crop diseases, pests, and growth anomalies.

  - AI Image Recognition: Using deep learning algorithms to intelligently analyze farm images, automatically identifying crop species, growth stages, and pest types, improving monitoring accuracy and efficiency.

  - Big Data Analysis and Prediction: Leveraging historical weather data, crop growth data, and pest occurrence patterns to build crop growth models, predicting trends and potential risks.

- Precision Agricultural Management

  - Smart Irrigation: Precisely controlling irrigation amounts and frequencies based on soil moisture sensors and weather data to improve water use efficiency.

  - Precision Fertilization: Developing personalized fertilization plans based on soil nutrient sensors and crop growth needs to increase fertilizer utilization and reduce environmental pollution.

  - Environmental Control: Using greenhouse control systems to automatically adjust temperature, humidity, and light levels, creating optimal growth conditions for crops.

  - IoT Monitoring: Real-time monitoring of crop growth environments, harvest times, and processing stages, providing data support for quality traceability.

- Agricultural Decision Support

  - Data Analysis Platform: Establishing an agricultural data analysis platform to integrate various data resources and provide scientific decision support for agricultural production.

  - Smart Decision System: Combining expert systems and machine learning algorithms to provide personalized crop management advice (e.g., irrigation, fertilization, pest control) based on real-time monitoring data and predictions.

Conclusion:

The Smart Agriculture Planting Solution integrates advanced technologies to enable comprehensive monitoring and refined management of farmland. It not only improves agricultural production efficiency and reduces resource waste but also promotes sustainable agricultural development. In the future, with continuous advancements in IoT, big data, and AI, smart agriculture will further evolve, bringing more innovation and opportunities for growth. These technologies help farmers better adapt to climate changes, enhance crop yield and quality, and drive modern agriculture towards greener, more efficient practices. This solution not only increases the intelligence of agricultural production but also provides farmers with more scientific management tools, aiding the modernization of the agricultural industry.
