USB to rs485 adapter

Usb to rs485 adapter Product Parameter.

AMSAMOTION USB to 232/485 Converter

Model:USB-232/485

Color: black and gray

Operating voltage: USB power supply

interface standards: compatible with EIA/TIARS-232C, RS485

System requirements: WINDOWS WIN7/8/9/10 and MAC OS 8.6

Support baud rate: 300BPS-128000BPS

Electrical interface: 5PIN terminal block

Communication interface: TXD, RXD, GND (three-wire full-duplex, RS232), A, B (two-wire half-duplex, RS485)

Support USB port: USB2.0 compliant, compatible with USB1.1

Size: 6.32CM*2.73CM*13.8CM

Operating environment: -40 ° C to 85 ° C, relative humidity of 5% to 95%

Application Scenario:Cashier/PLC/Access Control System/Barcode Printer/Scanner/Numerical Control Warmer/Industrial Instruments

Usb to rs485 adapter Applications.

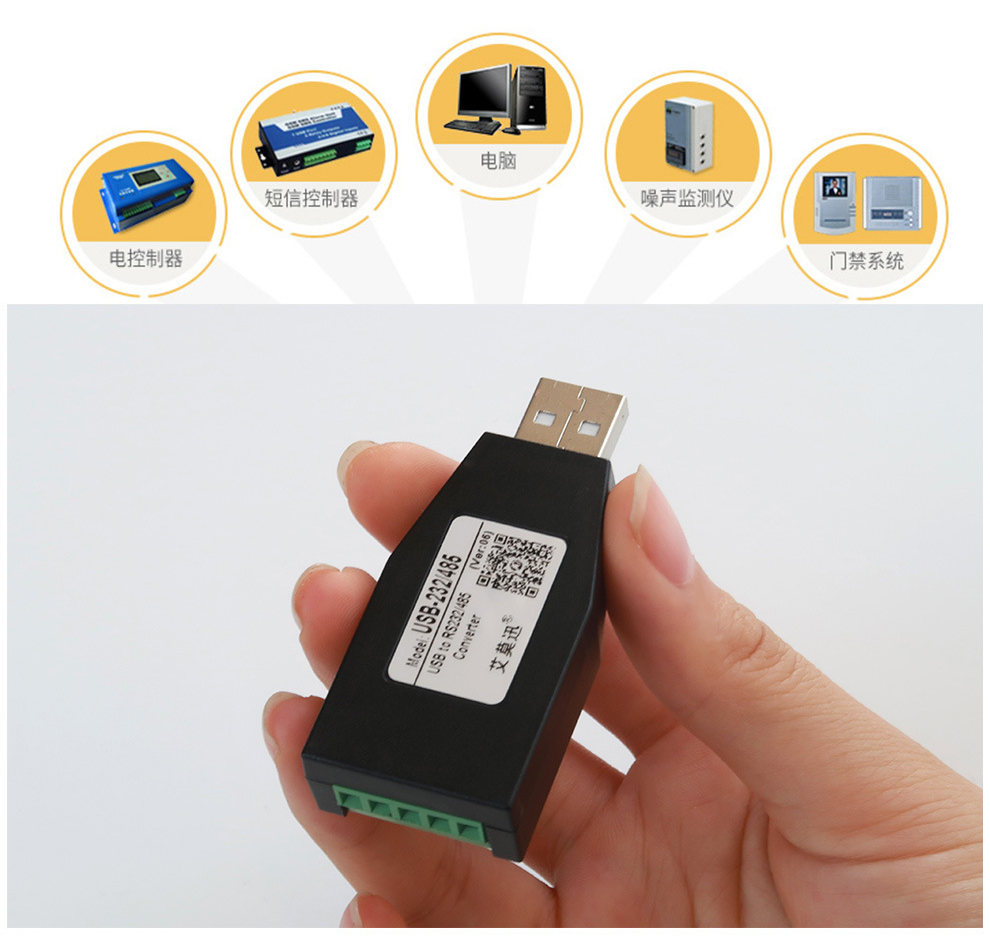

Suitable for a wide range of devices :.

USB-232-485 is an industrial-grade 2-in-1 converter that extends RS232/485 interface through USB. It enables RS232/485 devices to be easily connected to computer hosts with USB interface. Often used in cash registers, PLC, access control systems, bar code printers, scanners, CNC warming machines, industrial instruments and many other fields.

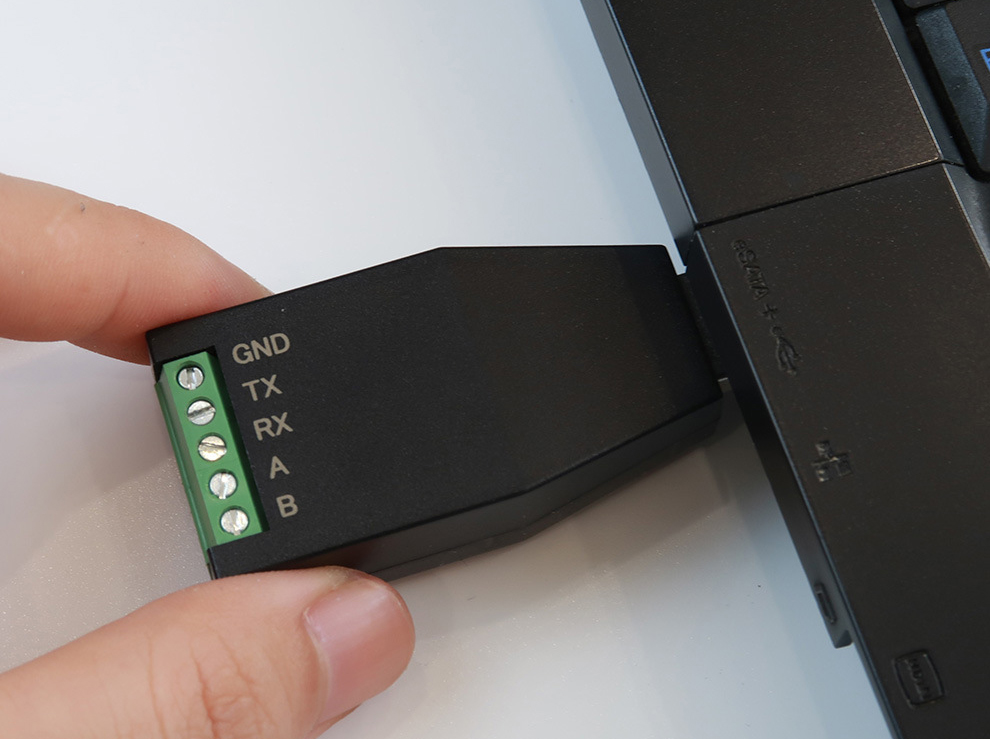

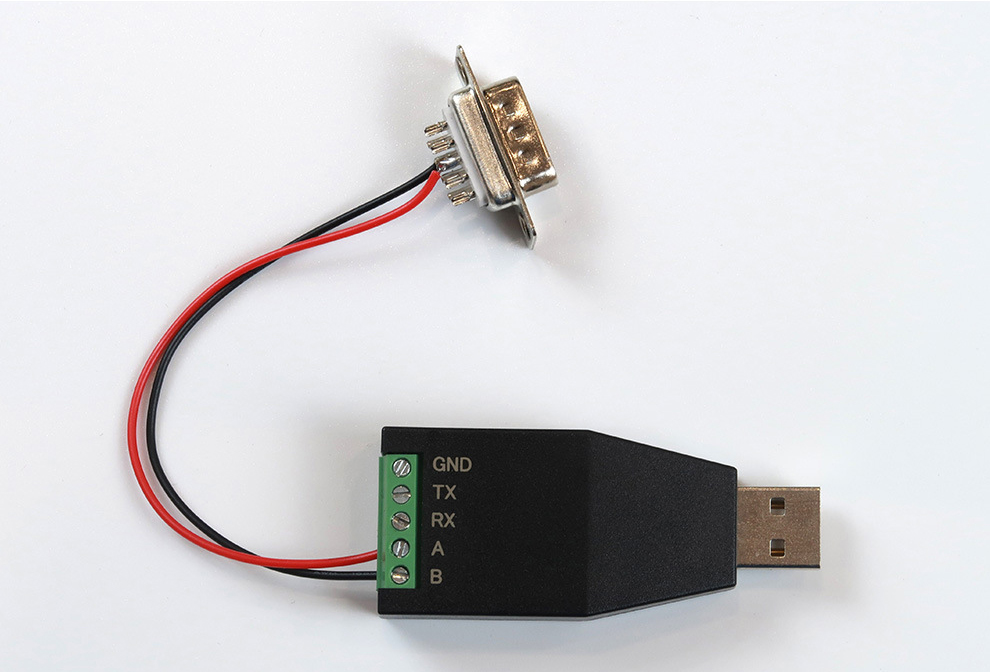

Flexible wiring

232/485 adopts terminal form, flexible wiring, high sensitivity, internal automatic completion of the communication protocol conversion and data sending and receiving control and other characteristics. Full-featured and easy to use, is a high stability, low power consumption, cost-effective module, and is a good solution to the problem.

Stable transmission

Baud rate 300BPS-128000BPS(RS232), 300BPS-128000BPS(RS485), long transmission distance and high communication rate.

USB Interface

Support USB port, compliant with USB2.0, compatible with USB1.1. electrical interface, 5PIN terminal block: interface standard, compatible with EIA/TIARS-232C,RS485.

Multi-system compatible

WIN8/10 drive-free, compatible with a variety of computer systems, hot-swappable
