Rain and Snow Sensor with Automatic Heating

Rain and snow sensor product introduction

NBL-W-RSS Rain and Snow Sensor is an intelligent sensor for sensing external rain and snow conditions. It adopts advanced surface grid electrode technology and is equipped with imported intelligent microprocessor, which provides high sensitivity and accurate measurement capability. Its built-in automatic heating device can effectively eliminate the rain and snow attached to the interference, to ensure that the system continues to operate stably. The product outputs a set of relay normally open/closed switch signals, simplifying the installation and use of the process.

Rain and snow sensor technical parameters

NBL-W-RSS rain and snow sensor product features:

1. high sensitivity rain and snow detection:

  The use of surface grid electrode sensing external rain and snow, rapid response, high sensitivity, can accurately identify the presence or absence of rain and snow.

2. accurate measurement capability:

  Adopting imported intelligent microprocessor to process the rain and snow data to ensure the accuracy of the measurement results.

3. automatic heating device:

  Built-in automatic heating device can eliminate the interference of rain and snow adherence and guarantee the normal working condition of the sensor system.

4. Output signal convenient access:

  Provide a set of relay normally open/closed switch signal, easy to system integration and use.

NBL-W-RSS rain and snow sensor working principle:

NBL-W-RSS rain and snow sensor utilizes surface grid electrodes to sense the presence of raindrops or snowflakes. When rain or snow falls on the surface of the sensor, the electrodes sense a change in conductivity, and an intelligent microprocessor analyzes and recognizes this change to determine the presence or absence of rain or snow. At the same time, an automatic heating device is automatically activated depending on the condition of the sensor surface to eliminate the rain or snow adhering to the sensor, ensuring continuous and reliable measurements.

How do I install the rain/snow sensor?

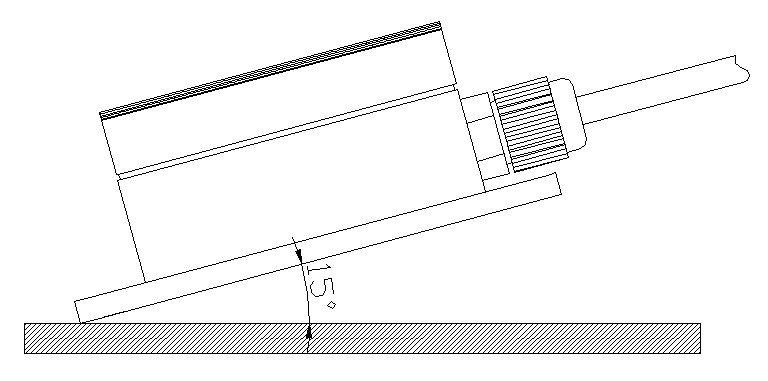

When installing the rain and snow sensor, keep the sensing surface of the sensor and the horizontal plane at an angle of 15 degrees to prevent the accumulation of rain and snow from affecting the sensor's measurement.

NBL-W-RSS Rain and Snow Sensor Main Uses:

NBL-W-RSS rain and snow sensor can be widely used in meteorology, marine, environment, airport, port, laboratory, industry and agriculture and transportation, etc. to realize the qualitative measurement of the presence or absence of rain and snow.

1. meteorological monitoring:

  It is used for real-time monitoring and recording of rain and snow amount to support weather forecasting and data analysis.

2. Marine environment:

  In offshore facilities, it is used to detect rain and snow to ensure navigation safety and normal operation of equipment.

3. transportation field:

  Installed on transportation facilities such as roads, bridges or tunnels for real-time monitoring of rainfall or snowfall conditions, providing early warning and control signals.

4. industrial applications:

  Used for environmental monitoring in industrial sites to ensure the safety and stability of production equipment and operating environment.

5. scientific research laboratory:

  Used in the field of scientific research for rain and snow data collection and experimental applications.

In short, NBL-W-RSS rain and snow sensor has become the ideal choice for rain and snow monitoring in various industries with its excellent performance, stable working condition and wide range of applications. Whether you need to monitor weather changes in real time, ensure traffic safety, or conduct experimental research, NBL-W-RSS rain and snow sensors can provide you with accurate and reliable data support.

Rain and snow sensor data sheet

NBL-W-RSS-Rain-Snow-Sensor-instruction-manual.pdf
