Photovoltaic weather station

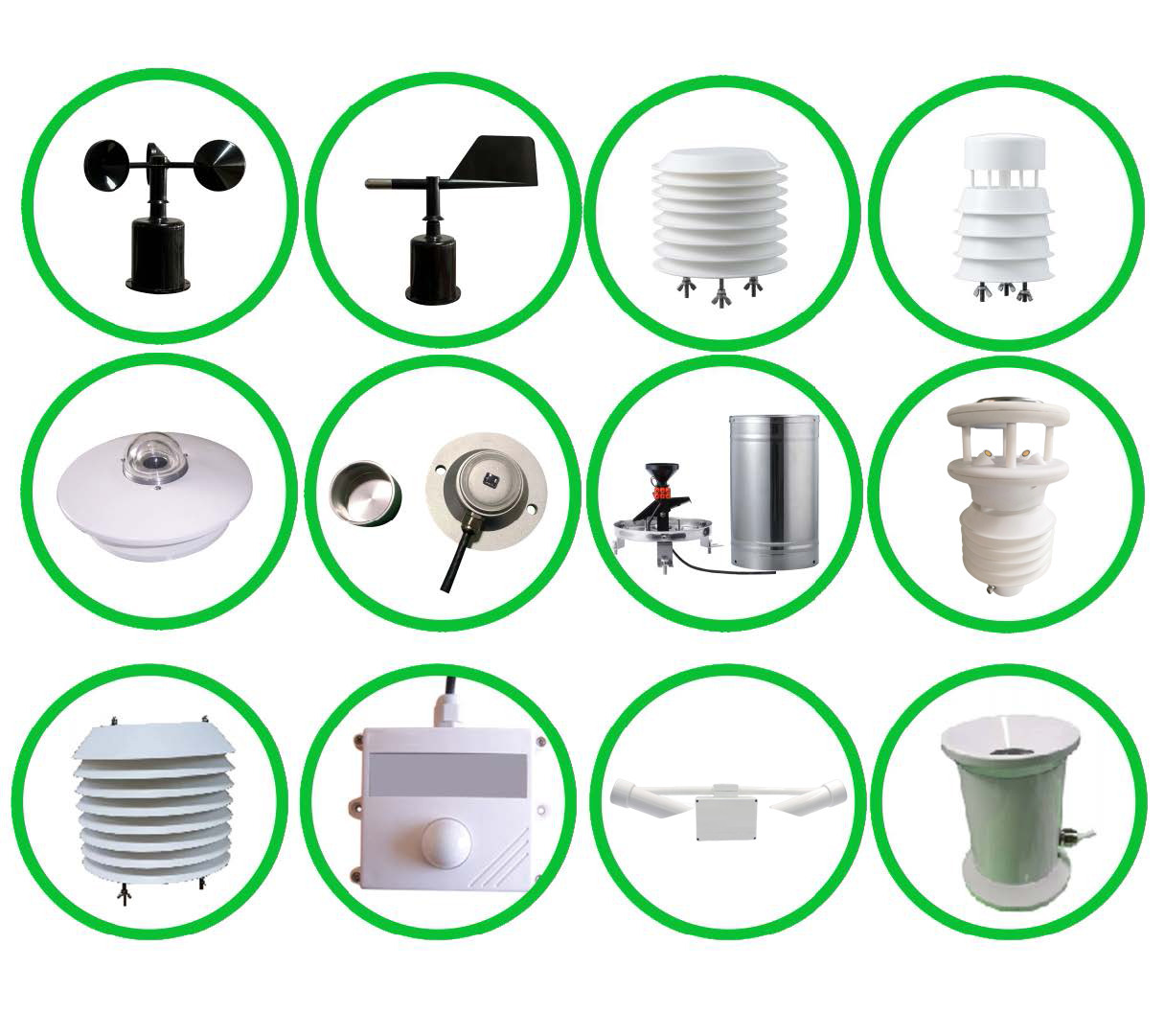

A photovoltaic environmental weather station(Photovoltaic weather station) is a device used to monitor meteorological factors that affect the performance of photovoltaic modules in a photovoltaic power generation system. A typical PV environmental weather station usually contains the following sensors:

1. temperature sensor: used to monitor the ambient temperature, which is critical for assessing the temperature rise and thermal management of the PV modules.

2. Humidity sensor: Used to measure the ambient humidity, the level of which affects condensation and heat dissipation on the surface of the PV module.

3. wind speed sensor: Used to measure the wind speed, which can affect the local airflow on the surface of the PV module, which in turn affects the temperature and performance of the module.

4. wind direction sensor: Used to measure the wind direction, which is also necessary to assess the effect of wind on the PV module.

5. solar radiation sensor: used to measure solar irradiance, which is an important parameter for PV power generation prediction and system design.

6. precipitation sensor (optional): used to monitor precipitation as it affects the cleanliness and performance of the PV module.

7. UV sensor (optional): used to measure the intensity of UV radiation, which may also affect the performance and lifetime of the PV modules.

8. barometric sensor (optional): used to monitor atmospheric pressure, which may be necessary for some weather models and energy prediction systems.

These sensors are usually mounted on a tower or stand at a certain height above the ground to ensure that the data collected is representative. Real-time collection and analysis of data is critical for operational optimization, fault prevention and performance prediction of PV systems.

The installation of PV ambient weather stations and PV weather stations is an important part of the PV power generation system, and they play an important role in ensuring the operational efficiency and safety of the PV system. The following is a detailed description of the installation of PV ambient weather stations and PV weather stations:

 Installation of PV environmental weather station:

1. siting requirements:

   - It should be selected at or near the boundary of the PV power generation system in order to accurately monitor the meteorological factors affecting the performance of PV modules.

   - Overshadowing, such as buildings, trees or other high objects, should be avoided to ensure that the meteorological data that the weather station can receive is representative.

   - It should be installed in direct sunlight and well-ventilated areas to avoid localized heat island effects.

- Select a place with high and open terrain in order to obtain accurate meteorological data.

- Consider convenient electrical connection and data transmission conditions.

 2. Equipment Preparation

Main equipment of PV environmental weather station:

- Photovoltaic solar panels

- Meteorological sensors (e.g. temperature, humidity, wind speed, wind direction, radiation, etc. sensors)

- Data collector and controller

- Bracket and mounting base

- Batteries and backup power supply

- Data transmission module (e.g. GPRS, 4G, 5G, 6G, WiFi, LoRa, etc.)

 3. PV Environmental Weather Station Installation Steps

Foundation Preparation:

- According to the selected location, carry out infrastructure construction, such as concrete foundation, rack mounting, etc.

  Installation of racking and solar panels:

- Install the racking to ensure stability.

- Fix the PV solar panel on the rack and adjust the angle to maximize the efficiency of solar energy reception.

Install weather sensors:

- Install temperature, humidity, wind speed, wind direction, solar radiation and other sensors according to the sensor manufacturer's installation guide.

- Ensure that the sensors are mounted in appropriate locations to avoid shading and interference.

Connecting the data collector and controller:

- Connect the data cable of each sensor to the data collector.

- Install and configure the controller to ensure that all devices communicate properly.

  - Connect the communication lines between the weather station and the data acquisition system to ensure real-time data collection and transmission.

  - For remote monitoring systems, ensure that the weather station has a stable network connection.

Power supply and backup power:

- Connect photovoltaic solar panels to the battery or storage system to ensure continuous power supply.

- Install a backup power supply to prevent power interruptions due to prolonged cloudy weather or equipment failure.

Data Transfer Module:

- Install a data transmission module to ensure that the weather data can be transmitted to the monitoring center or cloud platform in real time.

 4. PV Environmental Weather Station(Photovoltaic weather station) Commissioning and Calibration

System commissioning:

- Check whether all connections are firm and make sure there is no loose or short circuit.

- Turn on the data acquisition system and check whether the data output of each sensor is normal.

Calibrate the sensors:

- Calibrate each sensor according to the calibration method provided by the equipment manufacturer to ensure measurement accuracy.

Test Data Transmission:

- Test the data transmission module to ensure that the data can be transmitted stably and accurately to the intended receiving end.

 5. PV Weather Station (Photovoltaic weather station)Maintenance

Regular Inspection:

- Regularly check the cleanliness of the solar panel surface and clean it when necessary to ensure power generation efficiency.

- Regularly check the connection status of sensors and data cables to prevent loosening or damage.

Software Updates:

- Regularly check and update the firmware or software of the data collector and controller to ensure the stability and safety of system operation.

Data Monitoring:

- Continuously monitor the meteorological data to detect and deal with abnormal data or equipment failure in time.

Equipment Replacement:

- According to the service life and performance of the equipment, regularly replace the aging or malfunctioning equipment to ensure the long-term stable operation of the system.

Through the above steps, you can complete the installation and commissioning of the PV environmental weather station and PV weather station to provide a reliable basis for subsequent meteorological data collection and analysis.

In short, the PV environmental weather station(Photovoltaic weather station) is a device specifically designed to monitor the environmental meteorological conditions around the PV power generation system. Its main function is to collect and record data on solar radiation, temperature, humidity, wind speed, wind direction and other meteorological parameters to help optimize the operation and efficiency of PV power generation systems. The establishment of PV environmental weather stations not only helps to optimize the performance of PV power generation systems, but also provides a scientific basis for relevant decision-making, and is one of the important tools for modern PV energy management.
