IoT agricultural weather station

The IoT agricultural weather station is a device that applies IoT technology to agricultural weather monitoring, which collects weather data through various sensors and transmits the data to a cloud platform or data center for analysis and management. This kind of weather station plays an important role in agricultural production and can help farmers keep abreast of the weather conditions of their farmland so that they can make better planting and management decisions. The following is a detailed introduction about IOT agricultural weather station:

First, the Internet of things agricultural weather station system composition

IOT agricultural weather station is usually composed of the following main parts:

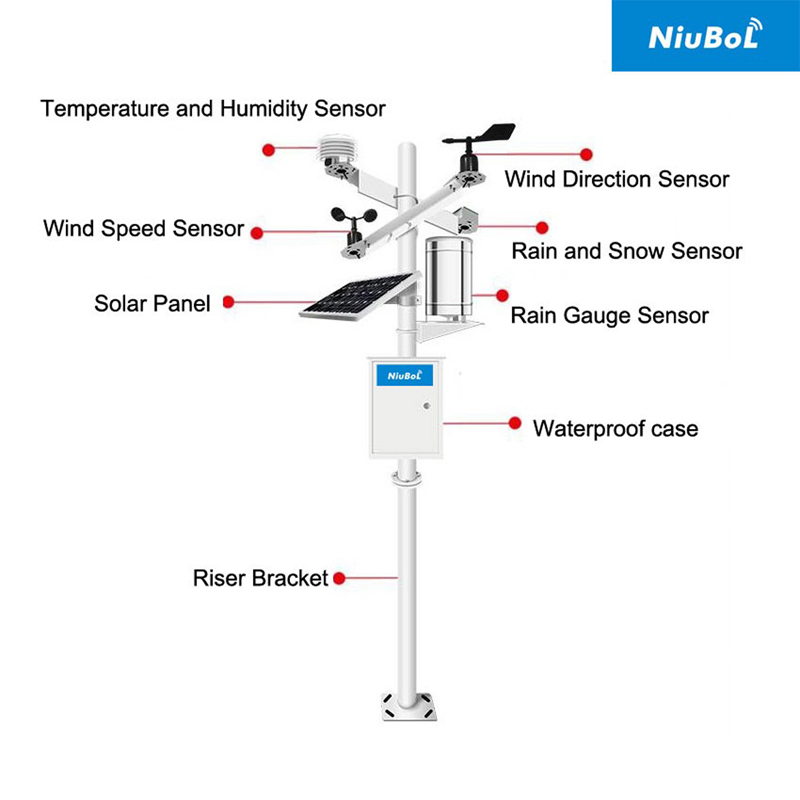

1. Meteorological sensors: used for real-time monitoring and collection of various meteorological parameters, such as air temperature, humidity, light intensity, wind direction, wind speed, precipitation, atmospheric pressure, soil temperature, soil moisture, etc.. These sensors are designed with high precision and high reliability to ensure the accuracy and stability of the data.

IoT agro-weather stations usually contain the following sensors:

1.1. Temperature sensor: used to monitor temperature changes, which is important for crop growth and development.

1.2. Humidity sensors: used to measure soil and air moisture, which is critical for irrigation decisions and crop management.

1.3. light sensor: used to measure light intensity, which is critical for crop photosynthesis and growth.

1.4. wind speed sensor: to measure wind speed, which can affect crop growth and distribution.

1.5. wind direction sensor: to measure the direction of the wind, which is important for some crop cultivation and control of the spread of pests and diseases.

1.6. Precipitation sensors (rain gauge): used to monitor precipitation, which is critical for irrigation scheduling and crop growth management.

1.7. Soil sensors: used to measure soil temperature, humidity, pH, etc., which is important for understanding soil conditions and crop growth environment.

1.8. Nutrient Sensor (optional): Soil NPK sensor used to monitor the nutrient content of the soil, which is important for fertilization decisions and crop management.

2. Data collector: responsible for receiving data from weather sensors and for initial processing and storage. Data collectors usually have powerful data processing capabilities, can display and record meteorological data in real time, and support remote data transmission.

3. Communication device: used to transmit the data collected by the data collector to a remote server or cloud platform. The communication equipment usually adopts wireless communication technology, such as GPRS, 4G, 5G, 6G, Lorawan, etc., to ensure the stability and real-time data transmission.

4. Control system: According to the meteorological data and crop growth demand, the control system automatically adjusts the environmental adjustment equipment, such as irrigation system, ventilation system, heating system, etc., to realize precise and intelligent agricultural management.

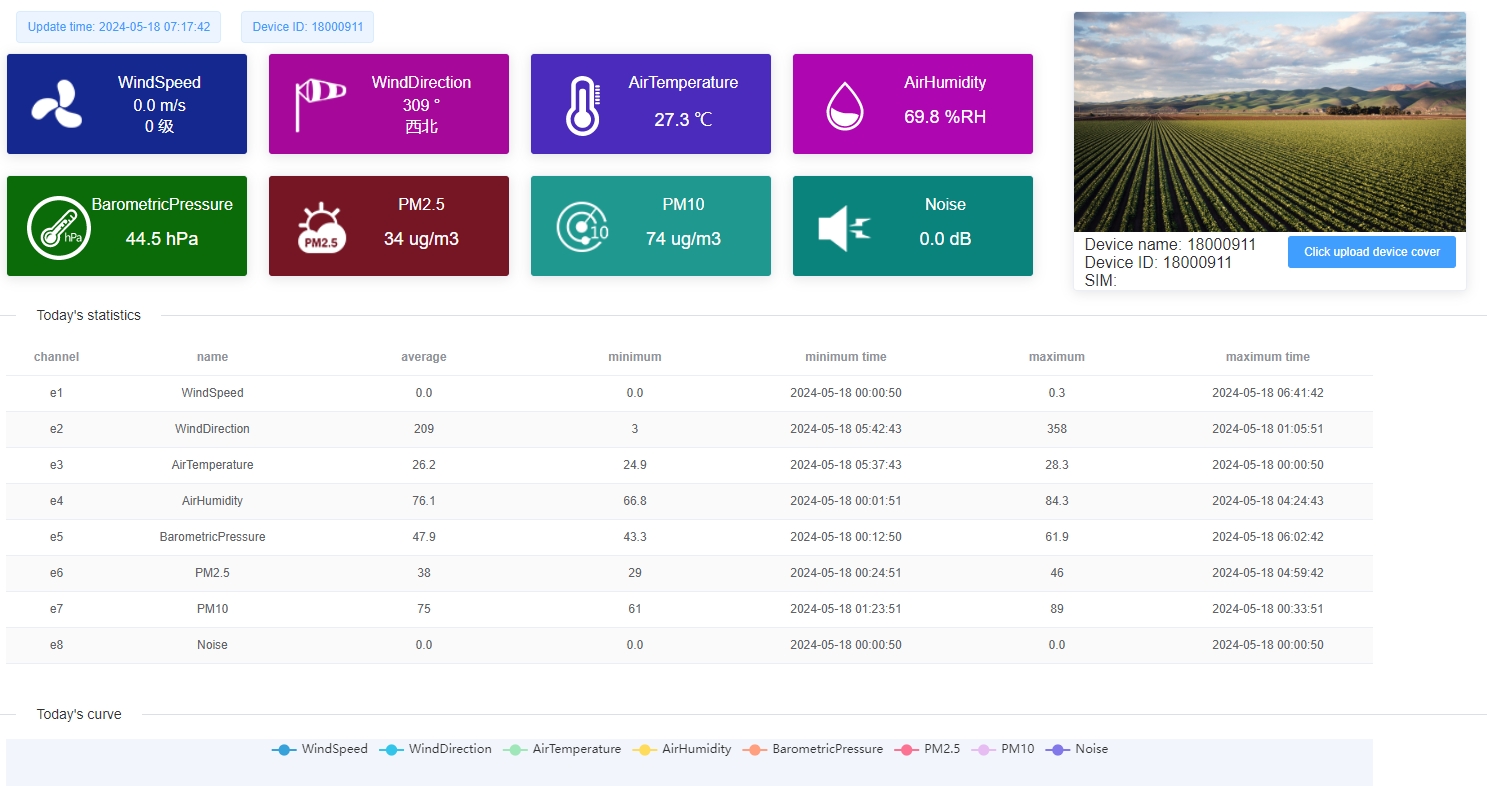

By connecting these sensors to the Internet, the IoT agricultural weather station can realize remote data collection, real-time monitoring and automatic alarm. Farmers can access the data from the weather station through smartphones, computers and other devices and make scientific planting and management decisions based on these data. In addition, the IoT agricultural weather station can be integrated with other agricultural equipment (e.g., irrigation systems, agricultural drones, etc.) to realize automated and intelligent agricultural production.

Second, the key technology of IOT agrometeorological station

IOT agricultural weather station adopts a number of advanced technologies to ensure the stability and reliability of the system:

1. Wireless sensor network technology: through the wireless sensor network to realize multiple nodes of the network observation, observation of a wide range, suitable for large-scale agricultural weather monitoring.

2. Internet of Things (IoT) technology: enables users to access the system anytime and anywhere via the Internet, view real-time meteorological data and image data, and remotely operate environmental adjustment equipment.

3. Cloud computing technology: put the server center in the network cloud, reduce the system cost, save the user's expenses, and at the same time provide powerful data processing and analysis capabilities.

Third, the Internet of Things Agricultural Weather Station product features

IOT agricultural weather station has the following product features:

1. Real-time monitoring: through various sensors equipped, it can monitor various meteorological parameters in real time, providing real-time and accurate data support for agricultural production.

2. Data collection: It can collect various parameters including soil moisture, soil temperature, air temperature, humidity, light intensity, wind direction, wind speed, precipitation, atmospheric pressure, etc., and the data can be wirelessly uploaded to the cloud platform.

3. Precise control: According to the meteorological data and crop growth demand, the environmental adjustment equipment is automatically adjusted through the control system to realize precise and intelligent agricultural management.

4. Modularized design: each observation unit is independent, and can realize large-scale cluster observation through flexible addition and subtraction configuration.

Application Scenarios of IoT Agricultural Weather Station

IOT agricultural weather station can be applied to a variety of agricultural scenarios, mainly including the following aspects:

1. Farmland management: IOT agricultural weather station can monitor the meteorological parameters of farmland in real time, such as temperature, humidity, light intensity, wind speed, wind direction, etc., providing farmers with accurate meteorological data. Farmers can rationally arrange crop planting, irrigation, fertilization and other management activities based on these data to improve the yield and quality of crops.

2. Greenhouse: In greenhouses, the IOT agricultural weather station can monitor the temperature, humidity, light and other parameters in the greenhouse to help farmers accurately control the environment in the greenhouse and provide suitable growing conditions for crops. This is important for improving the yield and quality of crops in greenhouse greenhouses.

3. Orchard management: For orchards, IOT agro-weather stations can monitor meteorological parameters in the orchard, such as precipitation, temperature, humidity, etc., to help farmers understand the climatic conditions of the orchard, so as to rationally arrange irrigation, pruning, and other management activities of the fruit trees, and to improve the yield and quality of the fruit trees.

4. Grassland monitoring: In the grassland area, the IOT agro-meteorological station can monitor the meteorological parameters of grassland, such as rainfall, wind speed, wind direction, etc., to provide data support for the ecological protection and management of grassland. At the same time, it can also help herders understand the climate conditions of the grassland and rationally arrange grazing activities.

5. Ecological monitoring: IOT agro-meteorological station can also be applied in the field of ecological monitoring, such as wetlands, forests and other ecosystems of meteorological parameters monitoring. Through real-time monitoring and collection of meteorological data, it provides scientific basis for ecological protection and management.

The IOT agrometeorological station is widely used in agriculture, forestry, grassland, ecology, parks and other scenarios for microclimate monitoring, auxiliary pest and disease reporting and so on. It effectively solves the problem of intelligent and digital application in the fields of technology application promotion and scientific research of agricultural technicians.

The price of the IoT agricultural weather station:

As for the price of IoT agro-weather station, its price varies depending on factors such as brand, function, performance and the region it is located in. Generally speaking, the price range is large, ranging from a few hundred dollars to a few thousand dollars. Here are some price references:

Entry-level weather stations: usually have basic features such as temperature, humidity, wind speed and direction measurements. Prices are usually around a few hundred dollars.

Mid-range weather stations: have more comprehensive features, such as the possibility of measuring precipitation, light intensity, and soil moisture in addition to basic parameters. Prices may range from a few hundred to a few thousand dollars.

Advanced weather stations: have more sensors and features, such as multi-point soil moisture monitoring, UV radiation measurement, and more accurate data collection. Prices can range from a thousand dollars to tens of thousands of dollars or more.

It should be noted that the above prices are for reference only and may vary depending on factors such as brand, configuration and market supply and demand. In addition, the extra cost of after-sales service, data processing and cloud storage of the weather station should also be taken into account. In order to get the most accurate price information and the right IoT Agricultural Weather Station for your needs, it is recommended to consult a reliable supplier or vendor.

In conclusion, IoT Agricultural Weather Station is a powerful and technologically advanced agricultural monitoring equipment that can provide real-time and accurate data support for agricultural production and promote intelligent, precise and sustainable development of agriculture.
