What is an Optical Rain Sensor?

 Introduction and working principle of optical rain sensor

 I. Definition of Optical Rain Sensor

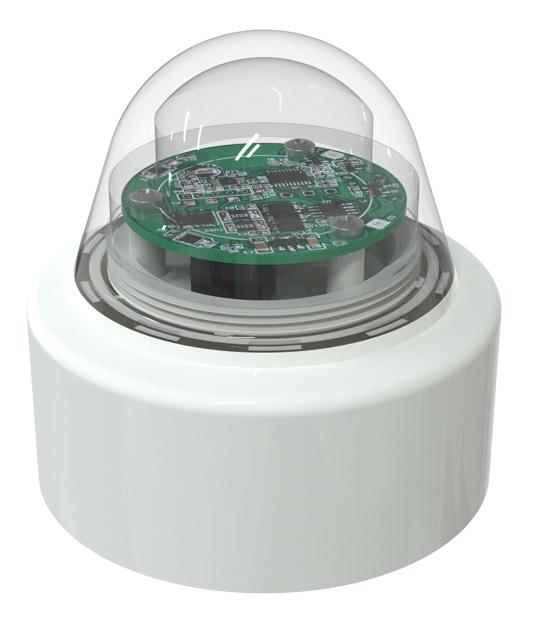

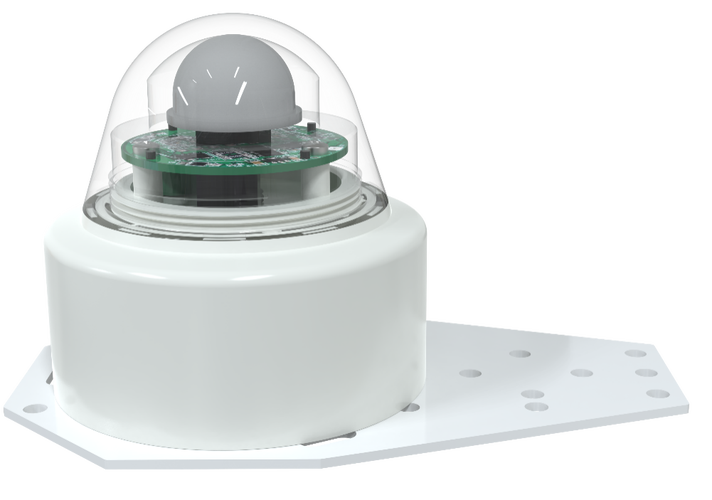

Optical rain sensor is a high-tech meteorological monitoring equipment based on the optical principle of rainfall measurement. It utilizes advanced optical technology and electronic engineering technology to achieve accurate measurement of rainfall through light sources (such as lasers or LEDs) and light-sensitive components (such as infrared receiver tubes) as well as signal processing circuits. This non-contact measurement effectively avoids the clogging problem that may occur in traditional mechanical sensors, and improves the accuracy and stability of the measurement.

 Second, the working principle of optical rainfall sensor

The working principle of the optical rain sensor mainly depends on the reflection, refraction and scattering characteristics of light. When raindrops pass through the sensor's sensing area, they disturb the light beam inside the sensor, resulting in changes in the light intensity received by the light-sensing element. These changes are captured by the sensor and analyzed and calculated by the processing unit to arrive at the amount of rainfall. Specifically, an optical rain sensor typically consists of a light source, a receiver, and a processing unit. The light beam from the light source passes through the raindrops and some of the light is reflected or refracted. The receiver receives these reflected light signals, and the processing unit analyzes and calculates them to derive the value of rainfall.

 Third, the advantages of optical rainfall sensor

1. high precision measurement: non-contact measurement method, to avoid the traditional mechanical sensors due to clogging and other problems caused by the measurement error.

2. Small size and light weight: compact design, easy to install and maintain, reducing the threshold of use.

3. low power consumption design: suitable for long time running application scenarios, save energy and extend the service life of the equipment.

4. Wide range of application: widely used in intelligent irrigation, ship navigation, mobile weather stations, automatic door and window systems and geologic disaster monitoring.

5. Real-time monitoring capabilities: able to quickly capture the changes in the rainfall process, providing an important basis for meteorological early warning and disaster prevention.

 Fourth, the shortcomings of optical rain sensor

1. greater impact by the environment: in the fog, smoke or dusty environment, may interfere with the normal work of the sensor, affecting the measurement accuracy.

2. Higher costs: Compared with traditional mechanical sensors, production costs are higher, especially high-performance optical sensors require a larger investment.

3. Complicated maintenance: Although there are no complex mechanical components, it is necessary to keep the optical components clean, regular cleaning and maintenance to ensure measurement accuracy.

 V. Application areas of optical rainfall sensors

- Intelligent irrigation system: Adjust the irrigation strategy according to the rainfall situation to save water resources.

- Ship navigation: provide real-time weather data to help ships adjust their course or take protective measures.

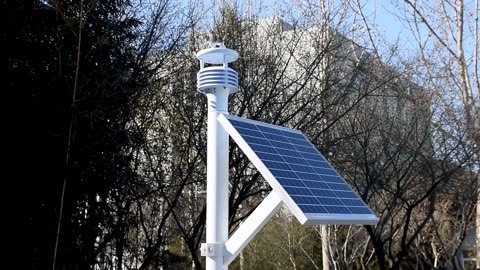

- Mobile weather station: rapid deployment to obtain accurate weather data and adapt to emergency situations.

- Automated Window and Door Systems: Integrate with smart homes to automatically close windows when it rains.

- Geological disaster monitoring: Provide accurate rainfall data to predict flash floods, landslides and other disasters.

 Conclusion

Optical rainfall sensors are becoming an important tool in the field of meteorological monitoring due to their high accuracy, small size, fast response and low power consumption. Despite the challenges of high cost and environmental interference, with the development of technology, its stability and application range will be further improved, and it is expected to play an important role in more fields. In the future, how to reduce cost and improve stability will be the key to popularize the application.
