What is a rainfall sensor?

Rainfall Sensor Introduction

Rainfall Sensor, or rainfall gauge, is a device used to detect and measure the amount of precipitation. It can automatically record the start and end time of rainfall as well as the amount of rainfall, providing data support for meteorological monitoring, agricultural irrigation, flood warning and other fields. Rainfall sensors are usually composed of two parts: the sensor is responsible for sensing rainfall and converting it into electrical signals, and the recorder is responsible for receiving and storing these signals and converting them into readable rainfall data.

 Rainfall Sensor Classification and Working Principle

 1. Mechanical Rainfall Sensor (tipping bucket rainfall sensor)

- Working Principle: Rainwater enters into the water receiver through the rain bearing opening, falls into the diversion funnel, and then flows into the tipping bucket through the funnel opening. When the amount of water reaches a certain height, the tipping bucket loses its balance and tips over, pouring out the water. As the rainfall continues, the tipping bucket will turn left and right, and the contact switch will convert the number of times the tipping bucket is turned over into an electrical signal and send it to the recorder.

- Features:

  - High accuracy: capable of measuring precipitation accurately, widely used in meteorological observation and hydrological monitoring.

  - High reliability: simple structure, easy to operate and maintain.

  - Application scenarios: meteorological stations, hydrological stations, agricultural irrigation systems, etc.

 2. Pressure rainfall sensor

- Working Principle: Measure the precipitation by utilizing the principle of pressure sensor. When a precipitation drop falls on the sensor probe, the sensor senses the pressure change and converts it into an electrical signal output.

- Features:

  - Rapid response: enables rapid detection of rainfall events, making it suitable for dynamic measurements.

  - No moving parts: Reduces mechanical wear and tear and maintenance requirements.

- Application Scenarios: Environmental monitoring, scientific research projects, etc. that require fast response.

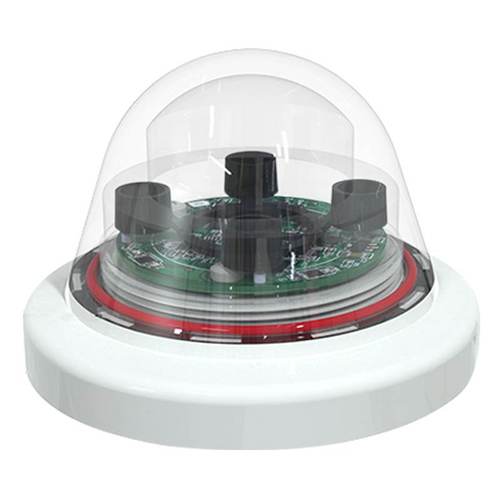

 3. Optical Rainfall Sensor

- Working principle: works through the principle of refraction or reflection of light, usually includes a light-emitting diode and an optical sensor. When there is no rain on the windshield, the light is almost completely reflected to the sensor; when there are water droplets, part of the light is deflected and the amount of light received by the sensor is reduced, thus detecting the presence of rain.

- Features:

  - High accuracy: able to accurately measure the intensity of rainfall and can even distinguish between different forms of precipitation such as rain and snow.

  - Low Maintenance Requirements: No moving parts, reducing failure rates and maintenance requirements.

- Application Scenario: Intelligent transportation system, automobile automatic wiper system, outdoor activity management, etc.

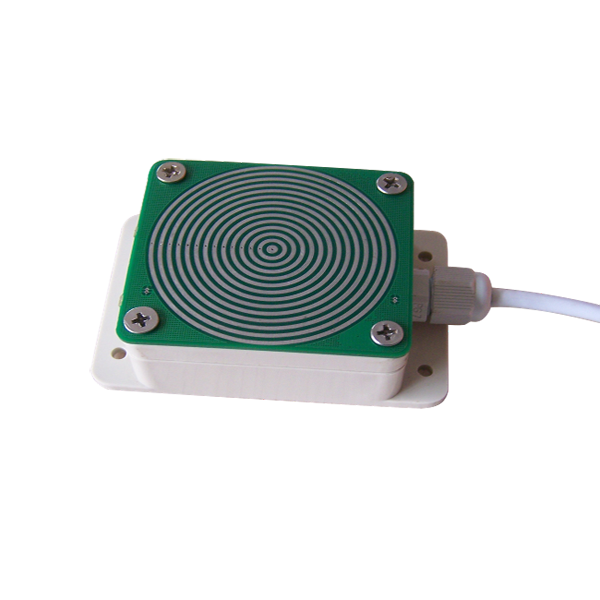

 4. Capacitive rain sensor

- Working Principle: Made by utilizing the principle that rainwater and glass have different dielectric constants, it detects the presence of rainwater by measuring the change of capacitance. When water covers the surface of the sensor, the capacitance value changes and the sensor determines the amount of rainfall by measuring the change in capacitance value.

- Features:

  - Non-contact measurement: no direct contact with rainwater is required, reducing mechanical wear and tear and maintenance requirements.

  - High sensitivity: sensitive to small amounts of rain, suitable for continuous monitoring.

- Application scenarios: precision agriculture, environmental monitoring, intelligent irrigation systems, etc.

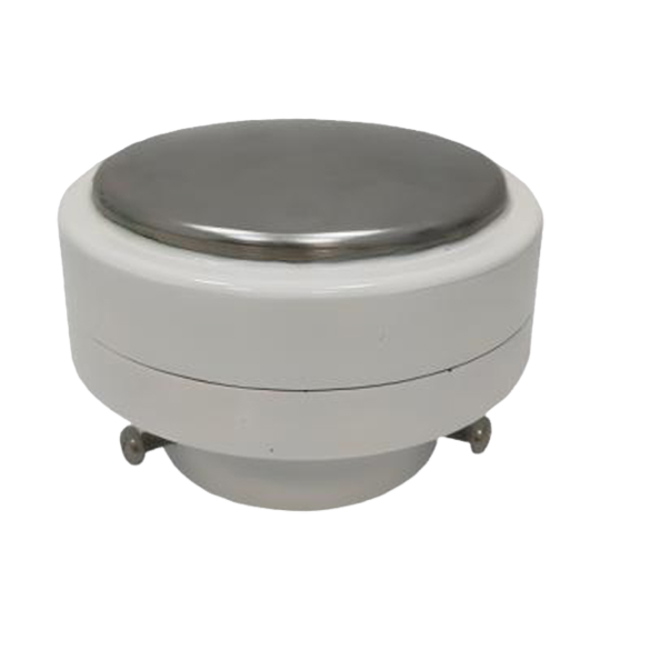

 5. Piezoelectric rain sensor

- Working principle: using the piezoelectric effect, the mechanical displacement or vibration generated by the impact of raindrops is converted into an electrical signal, thus realizing the measurement of rainfall. When the raindrops hit the surface of the sensor, the piezoelectric material will produce a small deformation, which in turn generates an electrical signal.

- Features:

  - Rapid response: able to respond quickly to the impact of raindrops, suitable for dynamic measurements.

  - No moving parts: reduces failure rate and maintenance requirements.

- Application scenarios: scientific research institutions, environmental monitoring stations, special environmental monitoring that requires rapid response.

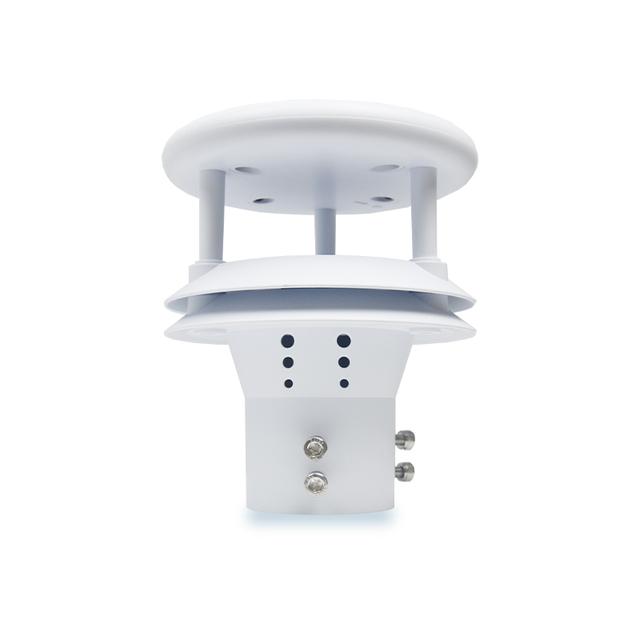

 6. ultrasonic rain sensor

- Working Principle: Utilizes ultrasonic ranging technology to monitor changes in the height of the water surface in the rain barrel. It transmits ultrasonic pulses and then receives the signal reflected back from the water surface. By calculating the round trip time of the signal, the height of the water surface can be accurately determined and the amount of rainfall can then be deduced.

- Features:

  - Contactless measurement: reduces mechanical wear and improves long-term stability.

  - High accuracy and fast response: able to measure quickly and provide real-time data, suitable for systems that require immediate feedback.

- Application scenarios: remote weather stations, forest monitoring, water conservancy projects, etc.

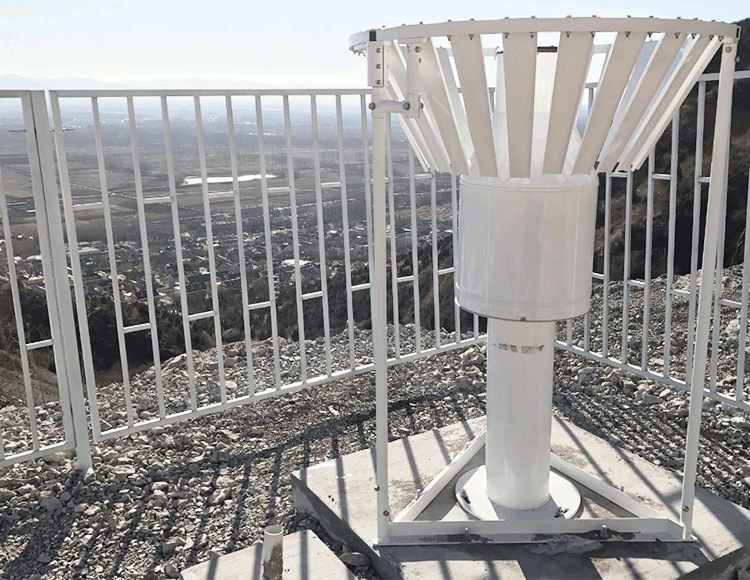

 7. Weighing rain gauge

- Working Principle: Determines the amount of rainfall by directly measuring the weight of collected rainwater. It uses a high-precision sensor to record changes in the weight of water in a container. The sensor monitors the increase in weight in real time as the rain falls on the specially designed container.

- Features:

  - High accuracy: capable of accurately measuring the amount of precipitation, especially suitable for measuring snowfall.

  - Continuous monitoring: Suitable for unattended automatic monitoring systems over long periods of time.

  - Wide applicability: capable of accurately measuring different types of precipitation, including rain, snow or mixed precipitation.

- Application scenarios: research institutes, water management, hydrological monitoring stations, etc.

 Why do you need Rainfall Sensor?

1. Accurate measurement of precipitation: Rainfall Sensor is able to accurately measure the amount of precipitation, providing accurate data support in various fields.

2. Automation: Rainfall sensors enable automation in areas such as agricultural irrigation, urban flood control and automotive manufacturing, improving efficiency and safety.

3. Improvement of driving safety: In automobile manufacturing, rain sensors can be used in automatic wiper systems to automatically adjust the wiper speed according to the size of the rain, improving driving safety and comfort.

4. Promote scientific research: the data provided by rain sensors can provide a scientific basis for climate research, water resource management and other fields, and promote scientific research and development in related fields.

5. Strong adaptability: different types of rainfall sensors have different characteristics and advantages, and can meet the rainfall measurement needs in different fields and scenarios.

 Rainfall Sensor Application Scenarios and Value

1. meteorological observation:

   - Application: Used in meteorological stations (stations) to monitor precipitation, precipitation intensity and other meteorological parameters, providing data support for weather forecasting and climate research.

   - Value: Provide accurate rainfall data to help meteorological departments make short-term and medium- to long-term weather forecasts and improve forecast accuracy.

2. Agricultural irrigation:

   - Application: Automatically adjust the irrigation system according to the precipitation amount to realize water-saving irrigation and improve crop yield and quality.

   - Value: Optimize the use of water resources, reduce waste, and ensure crops grow under optimal water conditions.

3. Flood warning:

   - Application: Monitor rainfall to prevent flood disaster and take countermeasures in advance.

   - Value: Provide scientific basis for flood prevention and disaster reduction, and protect people's life and property.

4. urban drainage system:

   - Application: Optimize the operation of drainage system to prevent urban flooding.

   - Value: Improve the urban flood prevention capability and water resource management level, and ensure the safe operation of urban infrastructure.

5. automobile manufacturing:

   - Application: Used in automobile automatic wiper system, intelligent lighting system and intelligent sunroof system, etc. to improve driving safety and comfort.

   - Value: Automatically adjusting the wiper speed according to the rainfall, ensuring clear vision for drivers and improving driving safety.

6. Water Resources Management:

   - Application: Assisting in reservoir management and water resource protection, optimizing water resource allocation.

   - Value: Provide accurate precipitation data to support rational utilization of water resources and environmental protection.

7. Environmental Protection Monitoring:

   - Application: Monitor the impact of rainfall on the environment and support ecological protection and restoration.

   - Value: Provide scientific basis for environmental research and promote sustainable development.

8. scientific research:

   - Application: To provide scientific basis for climate research, water resource management and other fields, and to promote scientific research and development in related fields.

   - Value: Promote climate change research, reveal the spatial and temporal distribution law of rainfall, and support policy making.

 Summarize

Rainfall sensor is an important device for detecting and measuring precipitation with various types and working principles. From simple tipping bucket rain gauges to advanced optical and capacitive sensors, they offer a range of solutions for specific needs. The importance of rainfall sensors lies in their ability to provide accurate rainfall data, which is vital for weather forecasting, water management and environmental protection, helping us to understand and responsibly utilize the Earth's water cycle. As technology continues to evolve, rain sensors will demonstrate their great potential and value in many more applications.
