What device is used to measure wind speed and direction？

There are various methods for measuring wind speed and direction, which can be categorized into traditional measurement, mechanical measurement, ultrasonic measurement, calorimetric measurement and so on, according to different measurement principles and technical means. The following are the specific measurement methods and equipment used:

Measurement of wind speed and direction

1. Traditional measurement:

Anemometer: An anemometer usually consists of a pole and a vector arrow that rotates with the direction of the wind to indicate the current wind direction.

Mechanical anemometers: such as the three-cup anemometer, wind speed is measured by the rotation of the wind cup. The rotation speed of the cup is proportional to the wind speed, and the wind speed can be calculated by measuring the rotation speed.

2. Mechanical measurement:

Mechanical wind speed and wind direction sensors are most common with arrow-type wind sensors and three-cup wind speed sensors. The wind speed sensor measures the wind speed through the rotation of the wind cup, while the wind direction sensor indicates the wind direction through the rotation of the wind vane.

3. Ultrasonic measurement:

Ultrasonic wind speed and direction sensors utilize the ultrasonic time difference method to achieve wind speed and direction measurements. By measuring the time difference between the propagation of ultrasonic waves in downwind and upwind, the wind speed and direction can be calculated. This method has the advantages of high accuracy and weather resistance.

4. Calorimetric measurement:

Calorimetric anemometers (also known as hot-wire anemometers) derive wind speed by heating a thin metal wire to a certain temperature and then measuring the rate at which the wire cools in the fluid. This method is suitable for measuring low wind speeds.

Equipment for measuring wind speed

Devices for measuring wind speed mainly include anemometers and wind speed sensors, which are based on different measurement principles and technical means to realize the measurement of wind speed. The following are some common wind speed measurement devices:

Wind cup anemometer: It consists of three or four cups at a certain angle to each other, and the wind speed is measured through the rotation of the cups. This kind of anemometer is simple, reliable and widely used in meteorological observation and industrial production.

Blade anemometer:These have a vertical axis with a free rotating blade (or propeller) at one end. The blade points into the wind and its speed is measured to determine the wind speed.

Hot wire anemometers:These measure wind speed using the principle of calorimetry, where the wind speed is deduced by heating a thin metal wire to a certain temperature and then measuring the rate at which the wire cools in the fluid. This method is suitable for measuring low wind speed with high sensitivity and accuracy.

Digital Anemometer: The internal advanced digital microprocessor is used as the control core, and the external advanced digital communication technology is used, which is able to display the wind speed data in real time and support data storage and transmission. This kind of anemometer is suitable for all kinds of large-scale mechanical equipment and meteorological observation stations.

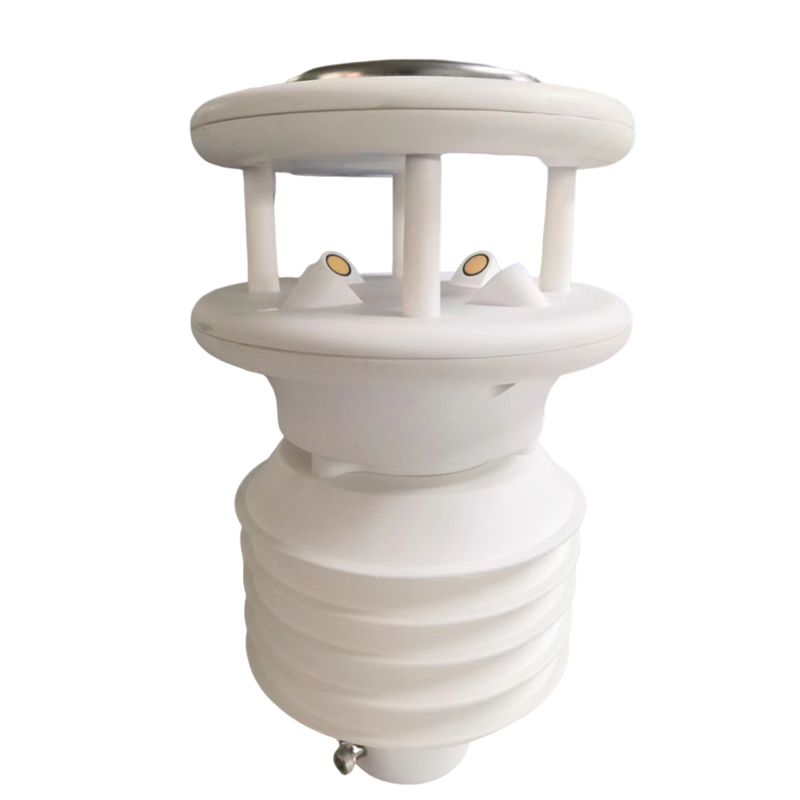

Ultrasonic anemometer: It utilizes ultrasonic time-difference method to measure wind speed and wind direction, and deduces wind speed and wind direction by measuring the time difference of ultrasonic wave propagation in downwind and upwind. This kind of anemometer has the advantages of high precision, strong weather resistance and wide range of application.

Usually specialized instruments for measuring wind direction are called wind sock and wind vane (wind direction sensor).

1.Wind vane:Wind vane, also known as wind vane or wind sock, is used to measure wind direction. It consists of a flat or curved plate that is aligned with the direction of the wind. A wind vane is usually mounted on a pole or tower, and the design can be simple (e.g., basic arrow shape) or more complex with a direction indicator.

2. Electronic wind sensors: Electronic wind sensors use electronic components to measure wind direction. For example, wind sensors using Hall effect sensors can determine wind direction by detecting changes in the magnetic field.

3. Optical Wind Sensors: These sensors utilize optical principles, such as the use of slits in a rotating disc and a light source, to determine wind direction by detecting the direction in which the light beam is blown by the wind.

4. Ultrasonic wind sensors: These sensors calculate wind direction and speed by transmitting and receiving ultrasonic pulses and measuring the displacement of these pulses due to wind.

5. Radar Wind Sensors: use radar technology to transmit signals and analyze the returned signals to determine the direction and speed of the wind.

 The use of wind direction sensors:

- Installation location: The wind direction sensor should be placed in an open area, away from buildings and other obstacles to avoid false readings.

- Calibration: Before use, the wind direction sensor needs to be calibrated to ensure it reads accurately.

- Data Reading: Data from wind sensors can be read by visual observation, mechanical counters or electronic displays.

- Data Logging and Transmission: Modern wind sensors are often capable of logging data and transmitting it to a centralized monitoring system, either wired or wirelessly.

Wind speed and direction sensors provide important data support for a variety of applications, including weather forecasting, wind power generation, marine navigation, aviation flight, and environmental protection.

In summary, there are various methods for measuring wind speed and direction, and the equipment used varies. In practical applications, appropriate measurement methods and equipment should be selected according to specific needs and measurement environments.
