All products

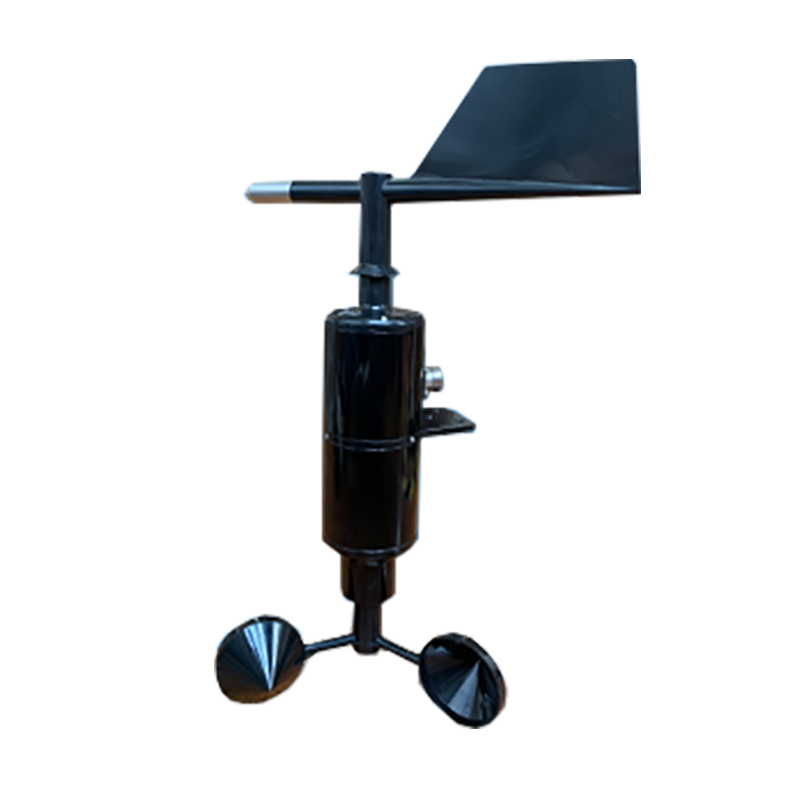

Wind speed and direction sensor

Wind speed and direction sensor is an instrument used to measure wind speed and direction. This sensor usually consists of two main parts: one for measuring wind speed and the other for measuring wind direction. Wind speed and direction sensors can be used to monitor wind direction and speed in agricultural fields for better control of crop growth and harvesting. In the forestry field, wind speed and wind direction sensors can be used to monitor the wind direction and wind sp···

Inquiry

Tel/WhatsApp:+8615367865107

Email:Arvin@niubol.com +Nearly 100 partner company in more than 68 countries. We are committed to providing high-quality, practical products to meet your needs and help you solve problems.

Product Details

Wind speed and direction sensor is an instrument used to measure wind speed and direction. This sensor usually consists of two main parts: one for measuring wind speed and the other for measuring wind direction.

Integrated wind speed and direction sensor application scenarios:

The product has the advantages of large measuring range, good linearity, strong resistance to lightning strikes, convenient observation, stability and reliability, etc.

It can be widely used in meteorology, marine, environment, airport, port, laboratory, industry and agriculture and transportation.

Integrated wind speed direction sensor.png

Integrated wind speed and direction sensor technical parameters:

Wind speed sensor
Measuring range0~45m/s, 0~70m/s optional
Accuracy±(0.3+0.03V)m/s (V: wind speed)
Discrimination rate0.1m/s
Start wind speed≤0.8m/s
Product power consumption50 mW
Product weight130 g
Wind direction sensor
Measuring range0 to 360°
Resolution
Accuracy±3°
Start wind speed≤0.5m/s
Product weight210 g
Product power consumption5.5 mW
Cable ratingrated voltage: 300V , temperature rating: 80°C
Power supplyDC5V/12V/24V
Wiring methodVoltage type: 4 wires, current type: 4 wires, RS-485 signal: 4 wires
Signal outputvoltage type: 0-5V DC, current type: 4-20 mA
RS-485 signalsupport ModBus protocol (baud rate 9600 can be set, address 0-255 can be set)
Materialmetal shell, engineering carbon fibre airfoil and tailpiece, good strength, higher sensitivity
Working environmentTemperature -40℃~50℃ ; Humidity ≤100%RH
Protection classIP45

integrated wind speed and direction sensor.jpg

Wind speed and direction sensor is an instrument used to measure wind speed and direction. This kind of sensor usually consists of two main parts: one for measuring wind speed and the other for measuring wind direction.

Wind speed sensor: it mainly knows the wind speed by measuring the speed of air flow. Inside the sensor there is usually an element that senses the air flow, such as a thermistor or an ultrasonic transmitter/receiver. When the air flows, these elements are disturbed, which changes their resistance or ultrasonic signal, thus measuring the wind speed.

Wind Sensor: It mainly knows the direction of the wind by measuring the direction in which the wind is blowing or coming from. Wind sensors typically use compass directions (0°-360°) or compass-based azimuth angles to measure wind direction. Some advanced wind sensors also have digital outputs that provide more accurate wind direction measurements.

Wind speed and direction sensors have a wide range of applications in meteorology, environmental protection, agriculture, forestry and other fields. For example, in the meteorological field, wind speed and direction sensors can provide important meteorological data to help meteorologists predict weather and climate change. In the field of environmental protection, wind speed and direction sensors can be used to monitor the spread and impact of air pollutants.

In agriculture, wind speed and direction sensors can be used to monitor the direction and speed of wind on farmland to better control the growth and harvesting of crops. In forestry, wind speed and direction sensors can be used to monitor wind direction and speed in forests for better control of forest fire suppression and prevention.

The wind speed and direction sensor is commonly used in the following scenarios:

1. Meteorological monitoring: wind speed and wind direction sensor plays an important role in the field of meteorological monitoring. It can provide accurate wind speed and direction data to help meteorologists understand the movement and evolution of weather systems, so as to better predict weather and climate change.

2. Environmental protection: wind speed and direction sensors can be used to monitor the spread and impact of air pollutants, helping environmental protection departments to develop more effective air pollution control measures.

3. Agriculture and forestry: In agriculture and forestry, wind speed and direction sensors can be used to monitor wind direction and speed in farmland and forests. This is very important for seeding, fertiliser application, harvesting in agriculture and fire prevention and irrigation operations in forestry. For example, agricultural production usually takes place under specific climatic conditions and therefore requires knowledge of the wind speed and direction in the external environment. Foresters also need to know the wind conditions in order to understand the conditions for plant growth.

4. Construction: In the construction field, wind speed and direction sensors can help designers to design safer and more durable buildings. Sensors can provide detailed information about wind loads and the wind resistance of a building, which can help improve the structure and design of a building.

5. Nautical: In the nautical field, wind speed and direction sensors can help ships understand the direction and speed of the wind so that they can better adjust their course and speed. This is very important for the safety and efficiency of the ship's navigation.

Overall, wind speed and wind direction sensor is a very important measuring instrument with a wide range of application scenarios, which can help people better understand the weather conditions and cope with different weather conditions.
