Weather Station with Rain Gauge

Weather Station with Rain Gauge

Weather Station is a scientific facility used to observe and record the atmospheric conditions, which collects a large amount of meteorological data through regular and continuous observation of various meteorological elements such as temperature, humidity, wind speed, wind direction, barometric pressure, precipitation, and so on. After being processed and analyzed, these data not only provide us with daily weather forecasts, but also provide important support for meteorological research, climate change monitoring, agricultural production, aviation and navigation safety, water resource management and other fields.

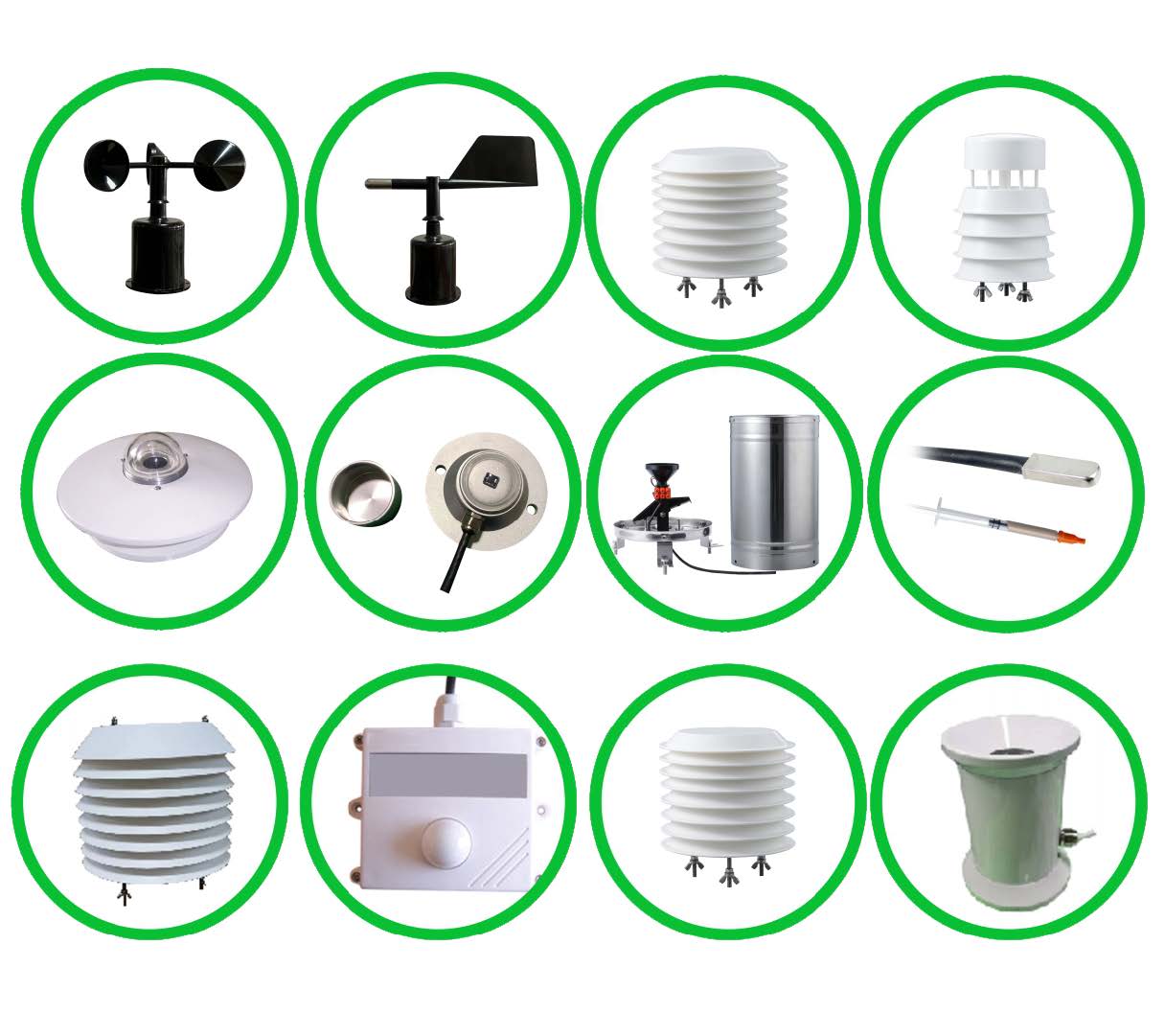

Sensors and their functions in weather stations

The core equipment of a weather station is a weather sensor, which is used to measure and record various weather elements. Common meteorological sensors and their functions are as follows:

1. Temperature sensor: It is used to measure the temperature of air, and its measurement accuracy is of great significance to weather forecasting and agricultural production. Common temperature sensors are thermocouple type and resistance type, etc.

2. Humidity sensor: measuring the relative humidity of the air, that is, the relative proportion of water vapor content in the air. For meteorological disaster warning and agricultural production, etc. also plays a key role. Commonly used capacitive humidity sensors.

3. Wind speed and direction sensor: it can measure the wind speed and direction in real time, providing important data support for weather forecasting and wind power generation.

4. Barometric Sensor: Measures atmospheric pressure, which plays an important role in the prediction of weather changes. For example, a drop in barometric pressure may indicate imminent rainfall or severe weather.

5. Light sensor: Measures the intensity of solar radiation, which plays an important role in agriculture and solar energy industry.

6. soil moisture sensors: monitor the moisture content of the soil, which is important for agricultural production.

7. Precipitation sensor: specialized in measuring precipitation, it is a key device for assessing water resources, flood warning and agricultural irrigation schemes.

Rain gauge in detail

A rain gauge, also known as a rain sensor, is an instrument used by meteorologists and hydrologists to measure the amount of precipitation in an area over a period of time. Two common types of rain gauges are siphon rain gauges and tipping bucket rain gauges. The principle of operation of the tipping bucket rain gauge is to measure the amount of rainfall by means of a tipping bucket that receives rainwater. When the rainfall reaches a certain amount (usually 0.1mm~0.2mm~0.5mm), the tipping bucket will turn over, and every time it turns over, it will generate an electric signal, and by recording the number of times it turns over, you can calculate the amount of rainfall.

Why do you need a rain gauge

Rain gauges are an indispensable tool in meteorological observation because they are directly related to water resource management, agricultural planning, flood control and disaster prevention. Accurate rainfall data is essential for understanding precipitation patterns, water allocation, crop irrigation needs, and the design of urban drainage systems.

How rain gauges work

Common types of rain gauges include siphon rain gauges and tipping bucket rain gauges. Siphon rain gauges introduce rainwater into the measuring vessel through siphoning, while tipping bucket rain gauges utilize the turning of a bucket to measure rainfall. When a certain amount of rainfall reaches a certain level, the tipping bucket flips over and the number of flips is recorded by a counter to calculate the amount of rainfall.

Role of rain gauge

Rainfall monitoring: rain gauges are able to monitor the occurrence and intensity of rainfall events in real time, providing accurate rainfall data to the meteorological department. This data is vital for weather forecasting, climate research, and water resource management.

Water resource assessment: Through long-term monitoring of rainfall, the water resource status of a region can be assessed, providing a basis for rational allocation and utilization of water resources. At the same time, rainfall data can also be used for reservoir scheduling, irrigation planning, and decision making for flood and drought control.

Natural disaster early warning: Rainfall is one of the main factors leading to natural disasters such as floods and landslides. Through the monitoring of rain gauges, rainfall anomalies can be detected in a timely manner, providing early warning information to relevant departments so that effective disaster prevention and mitigation measures can be taken.

Climate change research: The change of rainfall is one of the important indicators of climate change. Through long-term monitoring and analysis of rainfall data, the trend and pattern of climate change can be understood, providing a scientific basis for coping with climate change.

Agricultural production guidance: In agricultural production, the amount of rainfall directly affects the growth and yield of crops. Through the monitoring of rain gauge, irrigation time and water volume can be rationally arranged to improve the efficiency and quality of agricultural production.

To summarize, rain gauge plays an important role in the field of meteorology and hydrology, and is of great significance in ensuring the safety and sustainable development of human production and life.

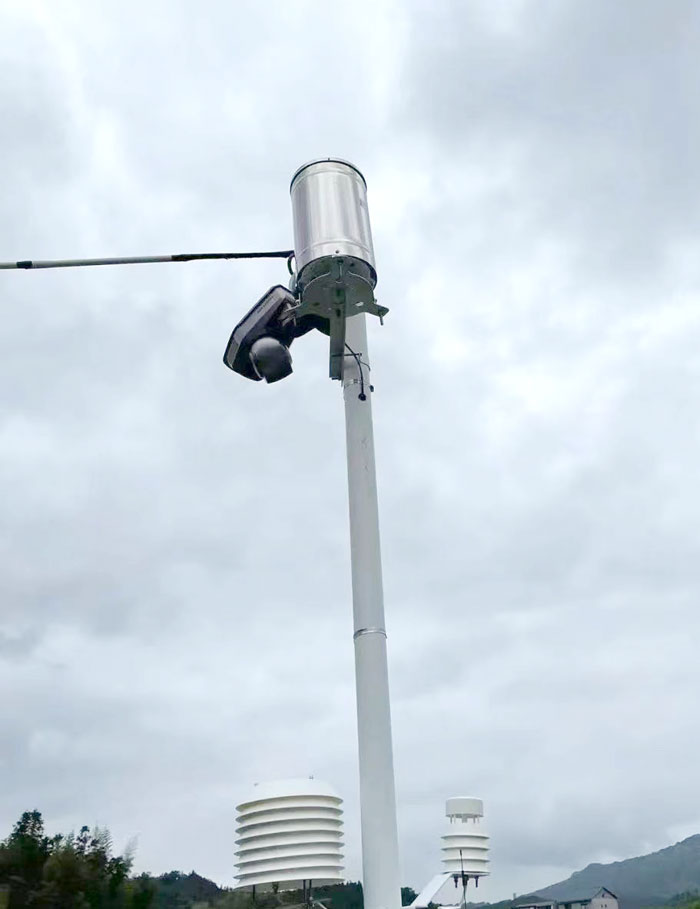

Application Scenarios of Weather Station with Rain Gauge

1. Forest fire prevention:

In the forest fire prevention area, the weather station with rain gauge can monitor the rainfall, wind speed and other meteorological data in real time, providing timely and accurate information support for fire prevention work. When abnormal meteorological conditions occur, it can provide timely warning and take appropriate measures.

2. Flash flood monitoring:

In flash flood-prone areas, weather stations with rain gauges can monitor rainfall, water level and other data in real time, providing strong support for flash flood warning and emergency response. Through data analysis, the likelihood and trend of flash floods can be predicted, providing a scientific basis for disaster prevention and control.

3. Agricultural production:

Farmers can rationally arrange irrigation according to the data from the rain gauge, reduce the number of times and amount of water when there is sufficient rainfall to save water resources and costs, and irrigate in time during drought periods to ensure the normal growth of crops.

4. Field research:

In the field research project, with rain gauge weather station can provide comprehensive meteorological data support, help researchers to understand the meteorological characteristics of the field environment and the law of change.

5. urban planning:

In the design of urban drainage systems and flood warning systems, rain gauge data is a key input.

6. water resource management:

- Flood Early Warning: Monitor precipitation and issue timely flood warnings.

- Reservoir operation: Adjust reservoir release strategies based on precipitation data.

7. meteorological services:

- Weather forecasting: Provide more accurate weather forecasting services.

- Climate research: Collect long-term precipitation data and study climate change trends.

Summarize

A weather station is an important scientific facility for observing and recording atmospheric conditions, which collects and processes meteorological data by being equipped with various sensors. Among them, the weather station with rain gauge is the core component of modern meteorological observation system, which not only provides basic meteorological data, but also plays an irreplaceable role in many fields such as water resource management, disaster prevention and agricultural production.

As a key sensor, rain gauge plays an irreplaceable role in meteorological monitoring, hydrological management, agricultural production and other fields through accurate measurement of precipitation. Weather station with rain gauge can be widely used in forest fire prevention, flash flood monitoring, agricultural production and field research and other fields, which brings many benefits to our life.
