Rain Gauge Manufacturers

Rain gauges are essential tools for monitoring and measuring rainfall and play a key role in various industries such as meteorology, hydrology, agriculture and environmental science. With the advancement of technology, Niubol as a rain gauge manufacturer has developed a range of innovative products including single tumbler, double tumbler and piezoelectric rain gauges, each designed to meet specific needs and provide unparalleled accuracy.

ABS Tipping bucket rain gauge sensor	Tipping bucket Rain gauge sensor	Double tipping bucket rain sensor	Piezoelectric Rain Gauge

As technology continues to evolve, so does the range of rain gauges. In this article, we will provide you with a detailed introduction to the three common types of rain gauges, namely the single tipping bucket rain gauge, double tipping bucket rain gauge and piezoelectric rain gauge, as well as their main application scenarios.

1. Single tipping bucket rain gauge

Single tipping bucket rain gauge (also known as tipping bucket rain sensor) is a traditional precipitation measurement equipment, is a widely used real-time observation and digitization of rainfall data instruments, mainly by a dumpster and a funnel composition. When precipitation enters the tipping bucket through the funnel, the bucket will be overturned due to gravity, thus realizing the measurement of precipitation. Typically 0.1mm, 0.2mm, or 0.5mm, this action triggers a signal to the recording device for automatic data recording.

Main features: single tipping bucket rain gauge structure is simple, low price, but the accuracy is relatively low, suitable for the precipitation requirements of the occasion is not high.

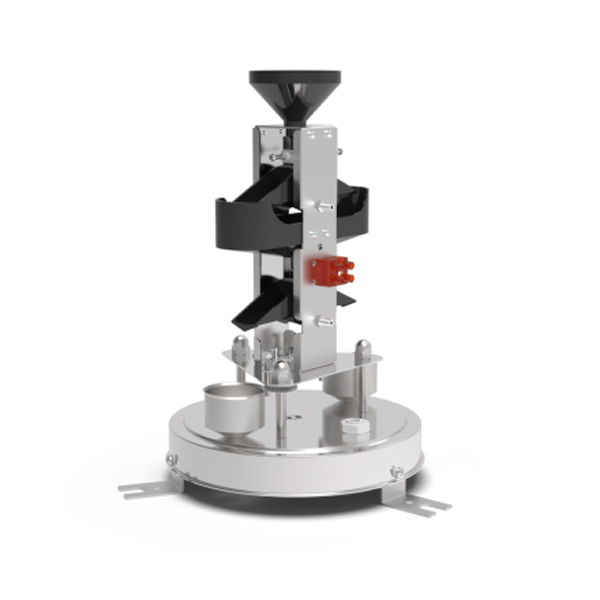

2. Double tipping bucket rain gauge

Double-dipper rain gauge or double-dipper rain sensor is developed on the basis of single-dipper rain gauge, which consists of two buckets and a funnel. When the first hopper is turned over, the second hopper immediately takes over the measurement, thus increasing the accuracy of the measurement.

The double bucket rain gauge has two buckets: the upper transition bucket and the lower measuring bucket. Rainwater first enters the transition bucket, which discharges into the measuring bucket through a throttle tube to control the flow rate. This design ensures more accurate measurement, especially during heavy rainfall.

Main features:Double tipping bucket rain gauge is suitable for agriculture, meteorology, hydrology and other fields, which require high precipitation.

3, Piezoelectric rain gauge

Piezoelectric rain gauge is a device that utilizes piezoelectric effect to measure precipitation. It has a built-in sensitive element, when the precipitation hits the sensitive element, it will produce a voltage signal. By measuring the magnitude of the voltage signal, the amount of precipitation can be accurately obtained. Instead of relying on a mechanical barrel, it utilizes a piezoelectric ceramic sensor to measure rainfall based on the impact of the raindrops.

Main Features.

Wide Measuring Range:Measures rainfall from drizzle to downpour.

Instantaneous data:Provides real-time rainfall data, including rainfall intensity and duration.

Piezoelectric rain gauge has the advantages of fast response speed, high accuracy, etc. It is widely used in meteorology, military, aviation and other fields.

4, the main application scenarios of rain gauge

1. meteorological observation: rain gauge is one of the basic equipment for meteorological observation, used to monitor precipitation, precipitation intensity and other meteorological parameters, to provide data support for weather forecasting, climate research.

2. Agriculture: rain gauge has an important role in the field of agriculture, which can help farmers rationally arrange irrigation, fertilization and other agricultural activities to improve agricultural production efficiency.

3. Hydrological monitoring: rain gauge for hydrological monitoring, can accurately obtain the precipitation situation of the basin, for flood warning, water resources management to provide the basis.

4. Environmental protection: rain gauge can be used to monitor the degree of environmental pollution, analyze the content of pollutants in precipitation, to provide data support for environmental protection.

5. Military and aviation: In the military and aviation field, rain gauge can provide real-time meteorological data for flight safety, tactical decision-making to provide protection.

6. Transportation: It is vital to maintain road and air safety in rainy days.

Summarize: Rain gauges are indispensable observation equipment in meteorology, agriculture, hydrology, environmental protection and other fields. These instruments provide accurate real-time rainfall data and play a vital role in hydrological monitoring, ensuring public safety, supporting agricultural practices and promoting scientific research. With the advancement of science and technology, the types and performance of rain gauges continue to improve, providing a strong guarantee for human life and development. We, as a Rain Gauge Manufacturer, we continue to innovate and improve the quality of our products to meet the ever-changing market demands.
