Automatic Weather Station with Rain Gauge

Time:2024-09-06 10:34:38 Popularity:198


In today's increasingly significant climate change, accurate weather monitoring is particularly important for agricultural production, urban planning, disaster prevention and mitigation, and environmental protection. The weather station with integrated rain gauge, as an important part of the modern meteorological observation system, not only realizes the real-time monitoring of rainfall, a key meteorological element, but also integrates the collection and analysis of a variety of meteorological parameters, providing a strong data support for all walks of life.

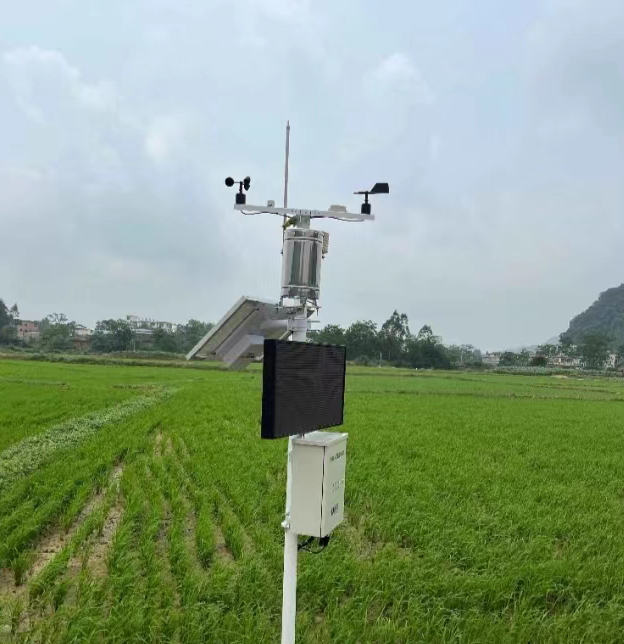

Weather Station with Automatic Rain Gauge.jpg

Composition and characteristics of automatic rainfall station

The core components of the weather station with integrated rain gauge include high-precision data collector, tipping bucket rain sensor, a variety of meteorological element sensors (such as temperature and humidity sensors, wind speed and direction sensors, barometric pressure sensors, etc.), host computer software, communication unit and a stable and reliable power supply system. The system accurately measures rainfall through the tipping bucket rainfall sensor, while other sensors are responsible for collecting meteorological data such as temperature and humidity, wind speed and direction, air pressure, etc. of the surrounding environment.

- Data Acquisition Instrument: As the core component of the automatic rainfall station, the Data Acquisition Instrument is responsible for receiving signals from the tipping bucket rainfall sensor, processing and storing the data. It has powerful data processing capability to ensure the accuracy and integrity of the data.

- Tipping bucket rain sensor: It is used to measure the rainfall directly. When rainwater accumulates to a certain amount, the tipping bucket will automatically turn over, triggering the counting, thus realizing the precise measurement of rainfall.

- Multiple Meteorological Elements Sensors: Provide comprehensive meteorological information and provide data basis for comprehensive analysis.

- Upper computer software: provides user interface for data display, analysis and management. Through the host computer software, users can remotely monitor the operation status of the rainfall station, obtain real-time water and rain information, and analyze the data in depth.

- Communication unit: supports wired or wireless communication to ensure real-time data transmission. Whether through the Internet or a dedicated network, the communication unit can ensure stable data transmission and realize remote monitoring and management.

- Power supply system: solar power is usually used, combined with batteries, to ensure that the automatic rainfall station can continue to operate in any weather conditions, without external power support.

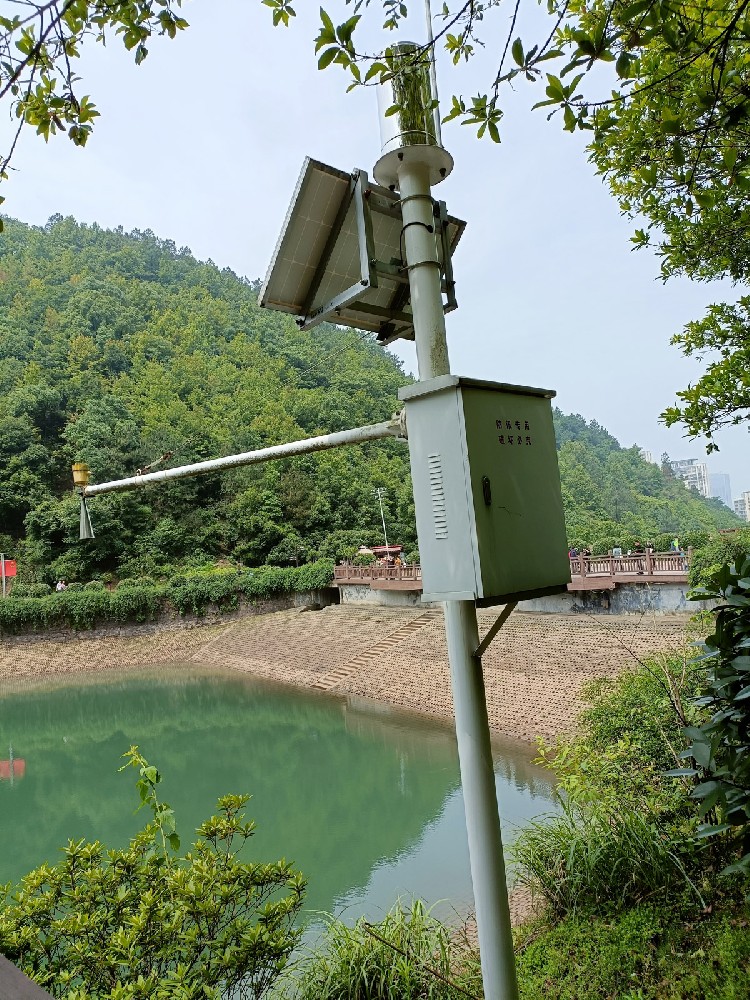

Weather Station with Automatic Rain Gauge.jpg

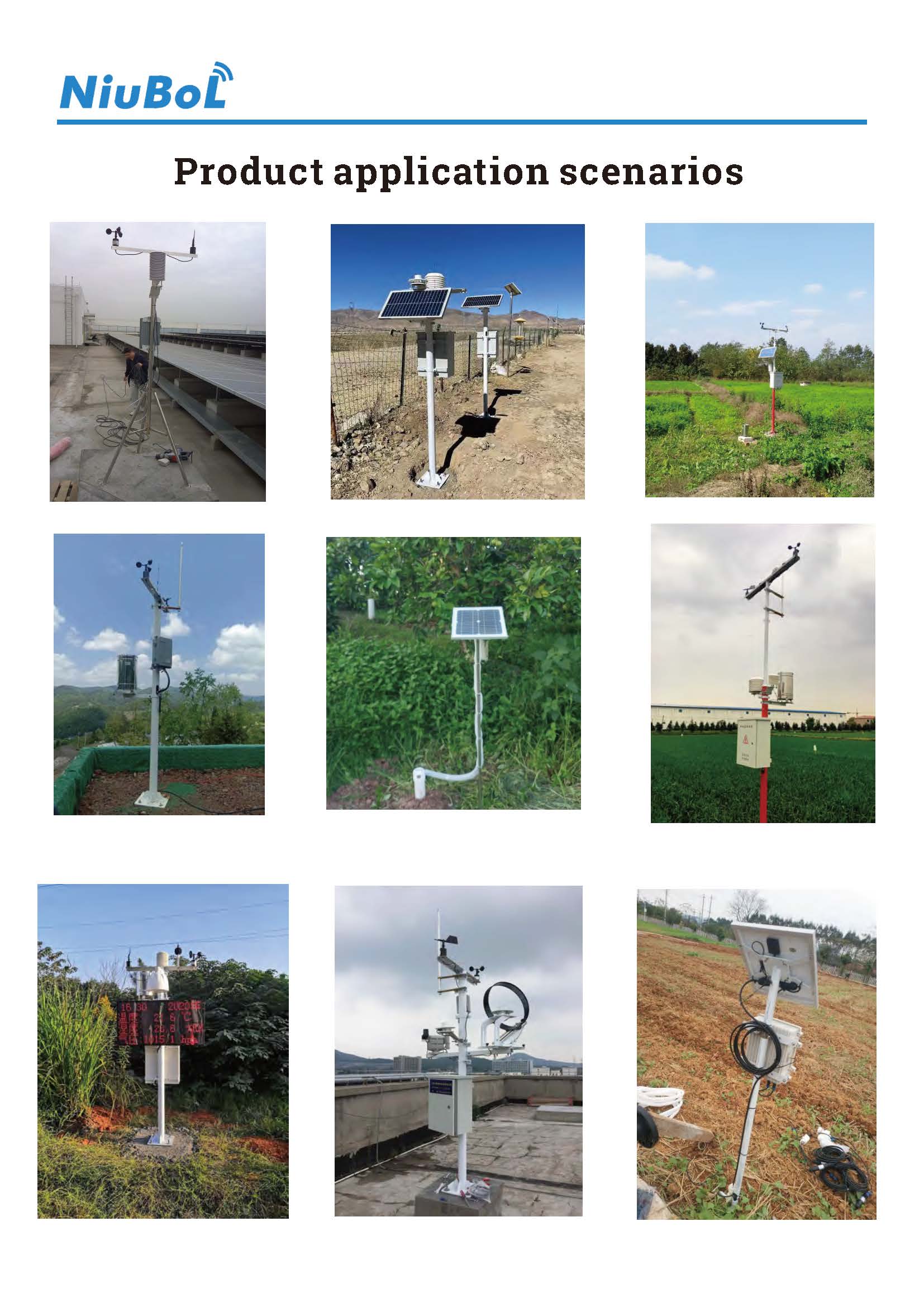

Practical applications of automatic rainfall station

- Water supply scheduling: In water resource management, the data provided by the automatic rainfall station helps to optimize the allocation of water resources to ensure that the needs of agricultural irrigation and urban water supply are met.

- Power station and reservoir water management: For hydropower stations and reservoirs, accurate hydrological data is the basis for safe operation. Automatic rainfall stations can provide critical water level and rainfall information to help managers make scientific decisions.

Environmental protection, construction and other industries: Data from automatic rain gauge stations are equally important to these industries, helping practitioners understand weather changes, rationalize work schedules and reduce the impact of natural disasters.

Flood prevention and mitigation: During the rainy season, the weather station with integrated rain gauge can monitor rainfall in real time, combine with hydrological model to predict the water level changes of rivers and reservoirs, provide scientific basis for flood prevention decision-making, and effectively reduce the occurrence of floods.

Agricultural management: Agricultural production is highly dependent on meteorological conditions, and the precise meteorological data provided by this weather station can help farmers rationally arrange farming activities, such as irrigation, fertilization, pest control, etc., to improve crop yield and quality.

Water resource management: In water supply scheduling and water management of power stations and reservoirs, the data from the weather station can be used to optimize the allocation of water resources and ensure the sustainable use of water resources.

Urban planning and construction: Through long-term monitoring of meteorological data, it provides scientific basis for urban planning and architectural design, and enhances the city's ability to cope with extreme weather.

Environmental protection: meteorological data are important for monitoring climate change, assessing ecosystem health, and formulating environmental protection policies.

automatic weather stations.jpg

Conclusion

The weather station with integrated rain gauge plays an irreplaceable role in the modern meteorological observation system with its high precision, high reliability and intelligence.

The emergence of automatic rain gauge stations has greatly improved the efficiency and accuracy of meteorological monitoring and provided powerful data support for many fields. Through its powerful data acquisition, storage and transmission capabilities, the automatic rainfall station can not only meet the daily needs of meteorological monitoring, but also play an important role in disaster early warning, resource management, etc., is an indispensable part of the modern meteorological monitoring system.
