supplier of fruit and stem growth sensors

As a supplier of fruit and stem growth sensors, we are pleased to introduce this highly accurate electronic measuring instrument with automatic temperature compensation. The sensor is able to monitor in real time the influence of environmental factors on changes in plant fruit and stem growth, providing powerful data support for agricultural research and production. The following is a detailed description of the sensor's function, value and application scenarios:

 Product introduction

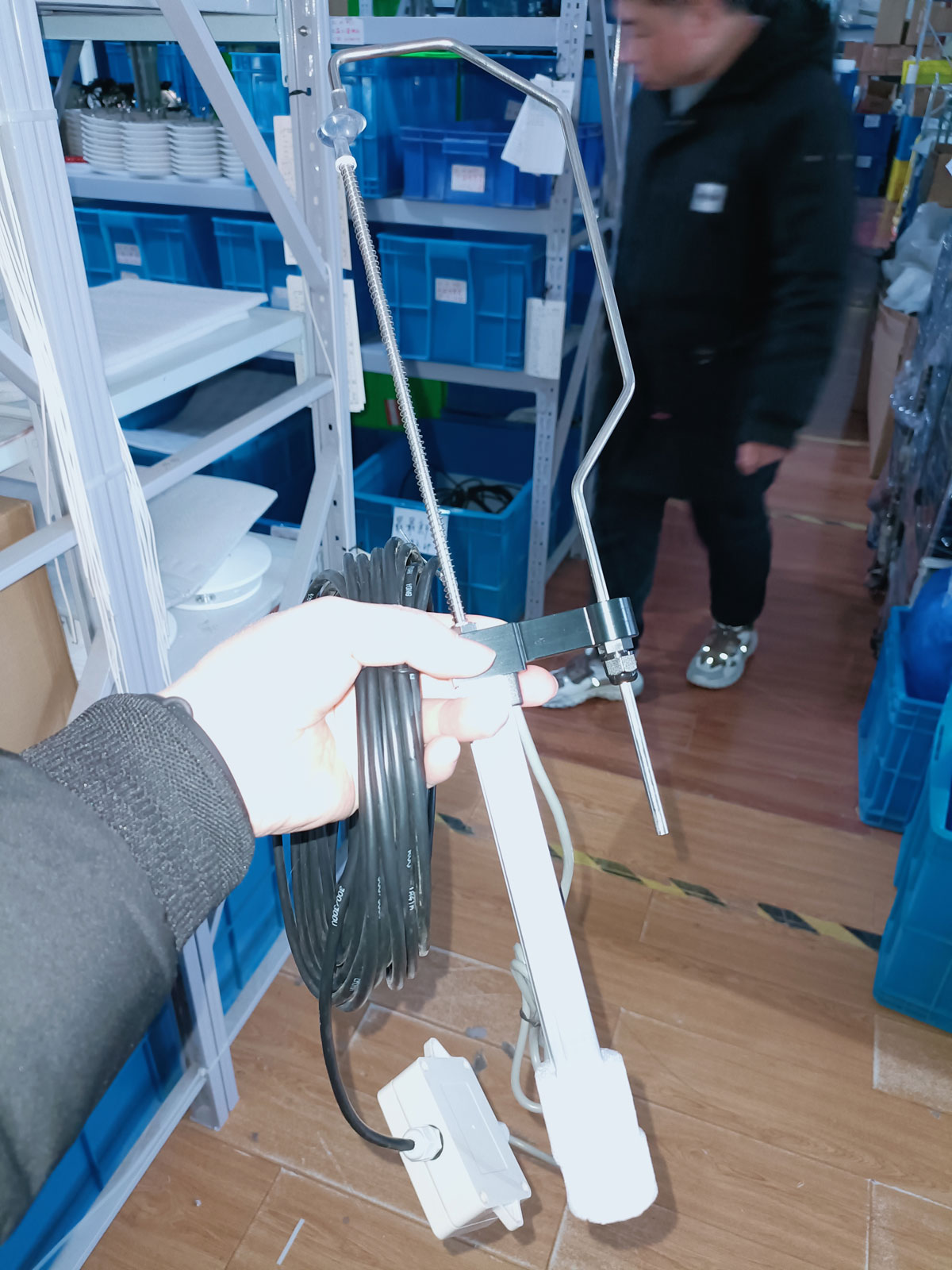

The Fruit and Stem Sensor is a professional device designed to accurately measure plant growth changes. It senses small changes in plant stem or fruit through the bridge tension probe of the sizer and converts these changes into electrical signals, which are then processed and analyzed in real time by a data collector or computer. With high precision, long life and multiple signal output methods, the sensor is suitable for a variety of complex agricultural and scientific research environments.

Fruit stem growth sensor main features

- High-precision measurement: accuracy of ±1% ensures data accuracy.

- Automatic temperature compensation: Built-in temperature compensation function reduces the impact of ambient temperature changes on measurement results.

- Multiple signal outputs: supports RS485, 4-20mA and 0-5V outputs for easy integration with other systems.

- Wide Measuring Range: Four models are available: Type A (0-50mm), Type B (0-100mm), Type C (0-150mm) and Type D (0-250mm) to meet different plant growth monitoring needs.

- Durable design: Protection level reaches IP65, adapting to harsh climate conditions and ensuring long-term stable work.

- Long life: designed to last more than 1,000,000 times, reducing maintenance costs.

Fruit stem growth sensor technical parameters:

Supply voltage: DC12-24V

Signal output: RS485 / 4-20mA / 0-5V

Measuring range: Type A: 0-50mm; Type B: 0-100mm; Type C: 0-150mm; Type D: 0-250mm

Communication protocol: standard MODBUS protocol

Baud rate: 9600

Average power consumption: 0.3W

Accuracy: ±1%

Stroke:Maximum range+3mm

Operating Temperature:-40℃～80

Operating humidity:0～95%RH

Standard cable length: 2.5m

Protection grade: IP65

Fruit Stem Growth Sensor Application Scenarios

1. Agricultural research: used to study the growth dynamics of plants under different environmental conditions and evaluate the effect of cultivation measures.

2. Precision agriculture: help farmers monitor crop growth in real time, optimize irrigation, fertilization and other management measures to improve yield and quality.

3. Greenhouse management: Used in smart greenhouses to monitor plant growth in real time and adjust environmental conditions within the greenhouse to promote healthy plant growth.

4. plant physiology research: support various plant physiology experiments to study the response mechanism of plants to environmental changes.

5. ecological monitoring: used in nature reserves or ecological restoration projects to monitor the growth of vegetation and assess the effect of ecological restoration.
