Suppliers of tipping bucket rain gauges

Time:2024-02-16 17:37:43 Popularity:308

Tipping bucket rain gauges are a type of rain gauge commonly used to measure rainfall in meteorological and hydrological applications. They are designed to collect and measure the amount of precipitation that falls over a specific period of time. The name "tipping bucket" comes from the mechanism inside the rain gauge, which consists of a small bucket that tips when filled with a certain amount of water.

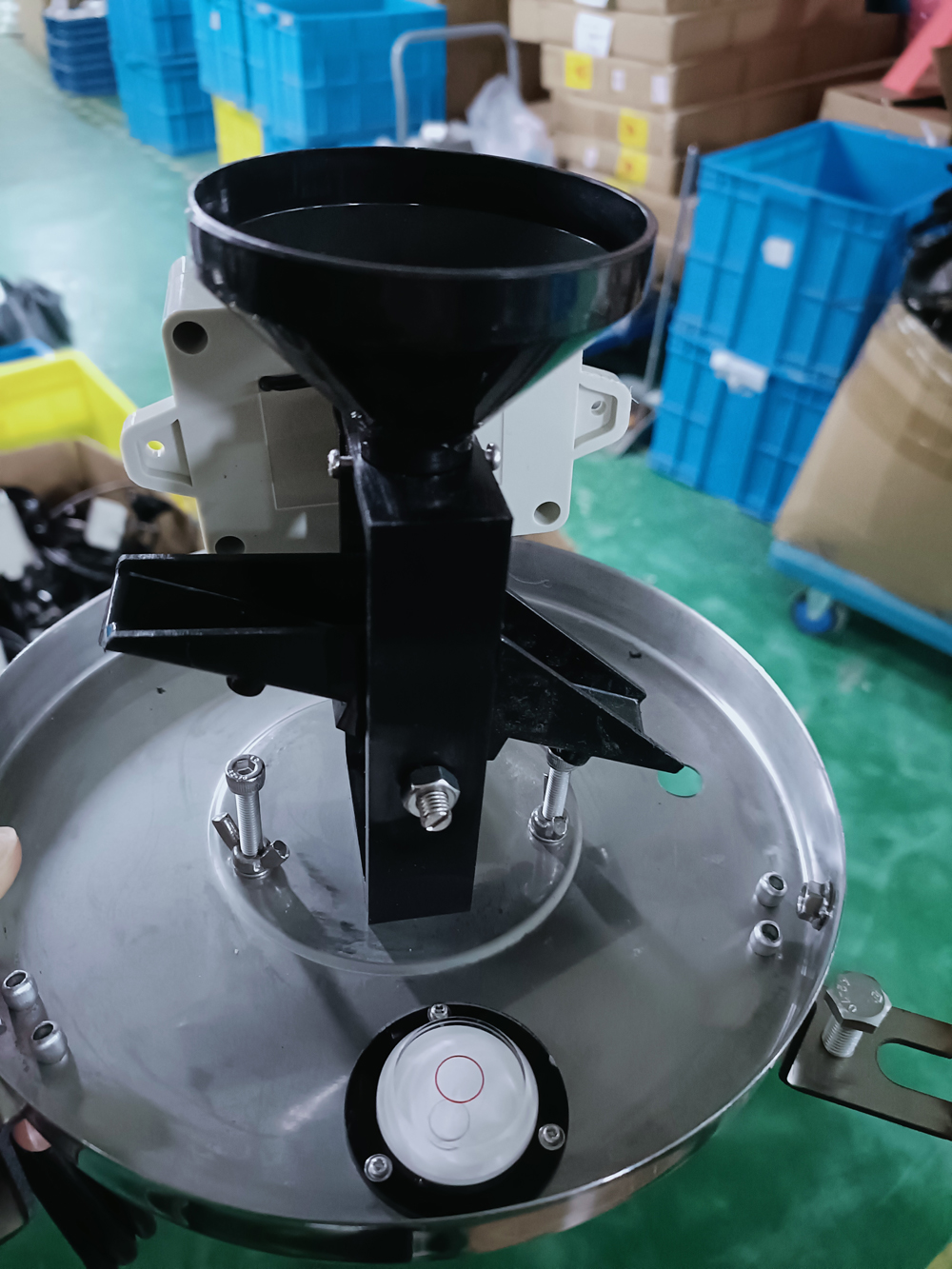

 0.2mm tipping bucket rain gauge suppliers.jpg

Here is how a tipping bucket rain gauge works:

 1. Collection Funnel: Rainwater is collected through a funnel at the top of the rain gauge and directed into the tipping mechanism.

 0.2mm tipping bucket rain gauge suppliers.jpg

2. Tipping Mechanism: The tipping bucket mechanism typically consists of two small buckets attached to a pivot. As rainwater enters the buckets, they fill up. When one bucket reaches its capacity (usually around 0.2 mm of rainfall), it tips over, emptying its contents. At the same time, the other bucket starts to collect rainwater.

 RS485 tipping bucket rain gauge suppliers.jpg

3. Counting and Recording: Each time the bucket tips, it triggers a switch or sensor that records the tip. By counting the number of tips, the rain gauge can calculate the total amount of rainfall that has been collected.

 RS485 tipping bucket rain gauge suppliers.jpg

Tipping bucket rain gauges offer several advantages:

 Suppliers of 0.1mm tipping bucket rain gauge.jpg

1. High Accuracy: Tipping bucket rain gauges are known for their accuracy in measuring rainfall, especially for moderate to heavy rainfall events.

2. Resolution: The tipping mechanism provides a high resolution of measurement, typically around 0.2 mm per tip.

3. Automation: These rain gauges can be easily connected to data loggers or weather stations for automated recording and monitoring of rainfall data.

4. Durability: Tipping bucket rain gauges are often made of durable materials such as stainless steel or plastic, ensuring longevity and reliability in various weather conditions.

 tipping bucket rain gauge.jpg

5. Real-time Data: The continuous tipping and recording of rainfall data allow for real-time monitoring and analysis of precipitation patterns.

Overall, tipping bucket rain gauges are widely used in meteorology, hydrology, agriculture, and environmental monitoring due to their precision, reliability, and ease of integration with data collection systems.
