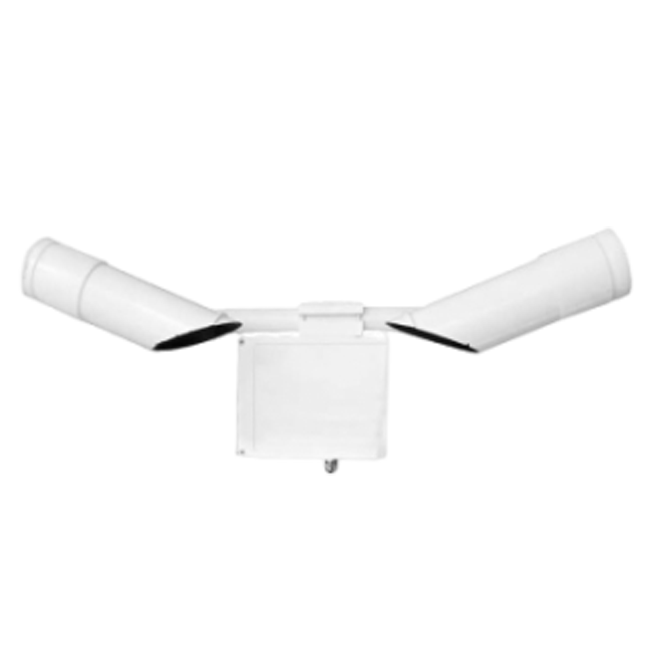

Present weather sensor

Product Overview: Present weather sensor

In a complex and changing meteorological environment, accurate and timely visibility information is essential to ensure traffic safety and improve the accuracy of weather forecasting. Present weather sensor is a new generation of meteorological visibility monitoring equipment designed based on the aerosol front scattering principle. It provides accurate weather visibility measurements.

Present weather sensor not only represents a new generation of meteorological optical range (MOR) measurement technology, but also with its excellent performance and adaptability, it is widely used in weather stations, remote automatic weather stations, airports, highways, airways, large ships and other transportation sectors, which is the ideal choice to ensure traffic safety and weather monitoring.

Present weather sensor working principle:

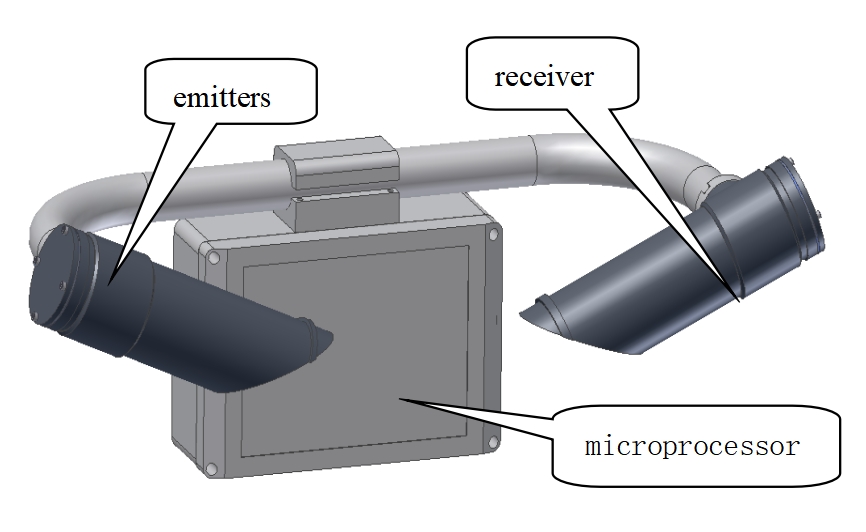

- Main components: including optical transmitter, optical receiver and microprocessor controller.

- Measurement process: the transmitter emits infrared pulse light, the receiver detects the forward scattered light intensity of aerosol particles, and the microprocessor controller converts the data into meteorological optical range of view (MOR) through specialized algorithms.

Present weather sensor core functions

Highly accurate measurement: By accurately measuring the forward scattered light intensity of aerosol particles in the atmosphere, combined with the proprietary mathematical modeling algorithm, the data is quickly converted into meteorological optical range of view (MOR), ensuring accurate and reliable data.

Wide applicability: Integrated design, compact and portable, it can easily cope with both fixed installation and temporary deployment to meet the needs of multiple scenarios.

Strong anti-interference ability: Unique double scattering receiver structure design, effectively inhibit the sunlight and stray light interference, to ensure that the measurement data is pure and free of clutter.

Visibility/Present Sensors Technical parameter：

Present weather sensor technology highlights

Durable design: Made of high-quality hard aluminum and 316 stainless steel, anodized surface passivation treatment, multiple paint protection, corrosion resistance, abrasion resistance, adaptable to a variety of harsh environments, IP65 protection level, to ensure stable operation in coastal or extreme climate.

Environmentally friendly maintenance: the transmitter and receiver window lenses are treated with special anti-dust and anti-mold coating to reduce the accumulation of dust and pollution in the natural environment, making maintenance easier.

Low Power Consumption: Power consumption is as low as 1W or less, supporting battery or solar panel power supply, green and energy-saving, suitable for remote areas or unattended sites.

Stable and Reliable: Built-in watchdog circuit ensures long-term stable operation of the instrument; real-time data display, outputting digital information every 60 seconds, supporting passive recruiting mode, convenient for data acquisition.

Dual scattering receiver: unique design effectively reduces the interference of sunlight and other stray light, ensuring the purity and accuracy of data.

Real-time Data Output: Updates data every minute, easily integrated into various monitoring systems through passive solicitation.

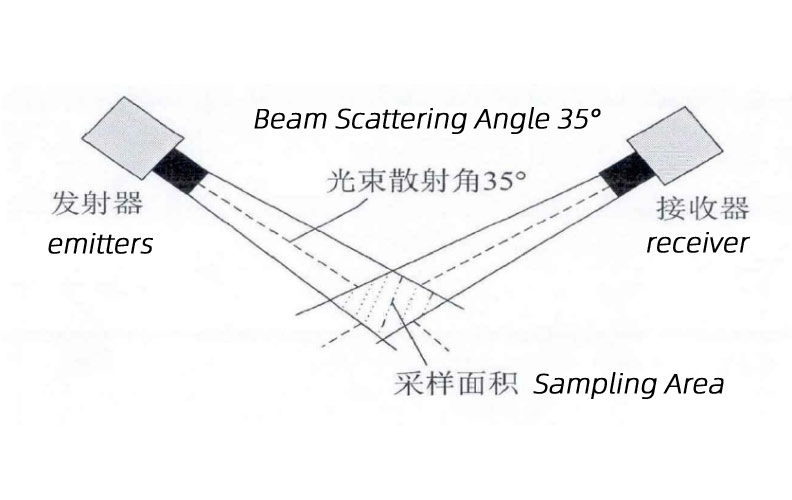

Forward Scattering Measurement Technology: Adopts forward scattering light measurement of less than 90 degrees to accurately monitor suspended particles in the atmosphere and realize high-precision visibility measurement.

Safety Protection

Electrical safety: The DC power supply circuit is equipped with anti-reverse connection and self-recovery insurance design, avoiding damage caused by misuse and ensuring circuit safety.

Electrostatic protection: The communication interface chip is equipped with 15KV anti-static protection, effectively resisting human body static hazards, to ensure operational safety.

Lightning protection design: the communication interface and power interface are integrated with lightning protection technology to reduce the damage of lightning strikes on the instrument and improve the overall protection level.

Present weather sensor application scenarios

Meteorological monitoring: Provide accurate meteorological data support for weather stations and help weather forecasts become more accurate.

Transportation: deployed in key transportation nodes such as airports, highways, airways, etc., to monitor visibility changes in real time and ensure traffic safety.

Marine Detection: Applicable to large ships, providing reliable visibility information for marine navigation and enhancing navigation safety.

Summarize

This high-end meteorological Present weather sensor, with its excellent performance, reliable quality and convenient operation, provides you with accurate meteorological visibility data, and becomes the preferred equipment in the field of meteorological monitoring and traffic safety. Whether you are a meteorologist, transportation manager or ocean explorer, it will be your indispensable assistant. Choose Niubol for more accurate and efficient weather monitoring!

Visibility sensors data sheet

NBL-W-VS-Visibility-Sensor-Instruction-Manual.pdf
