All in one weather station

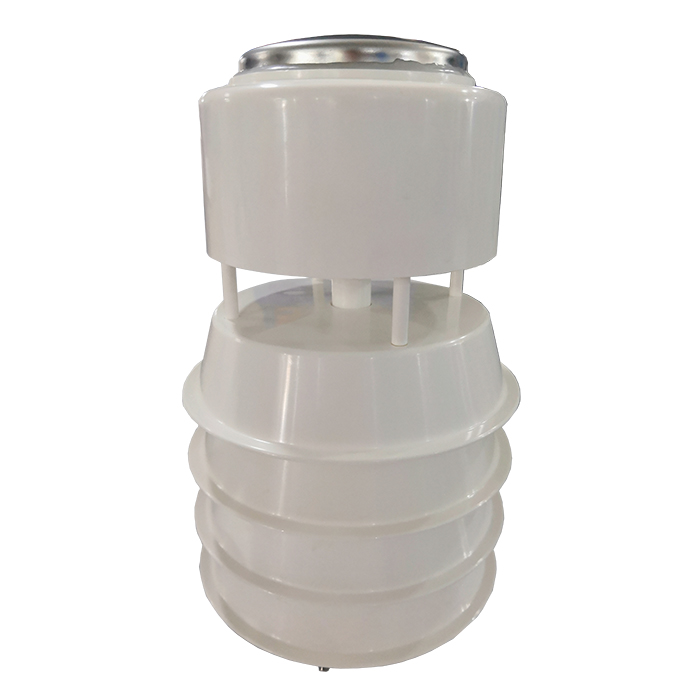

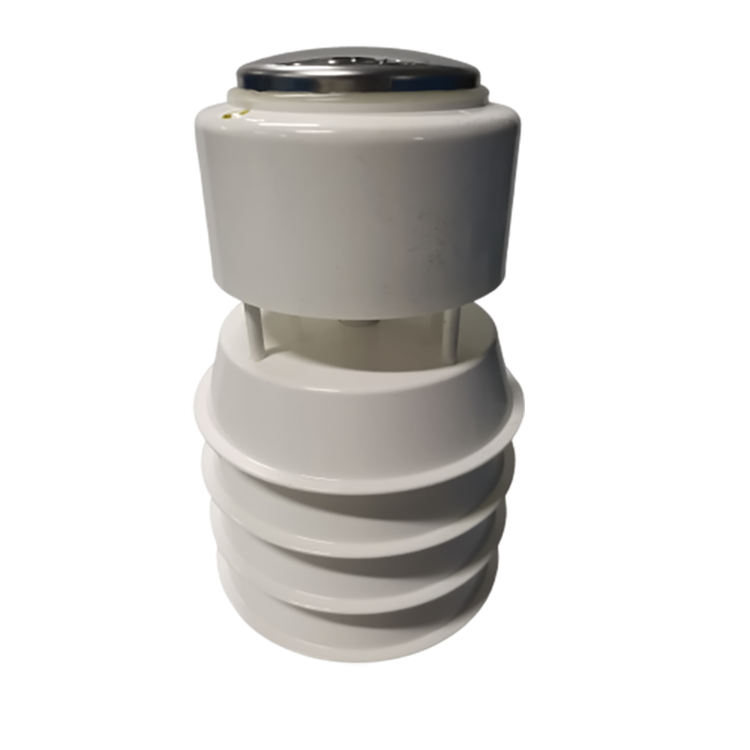

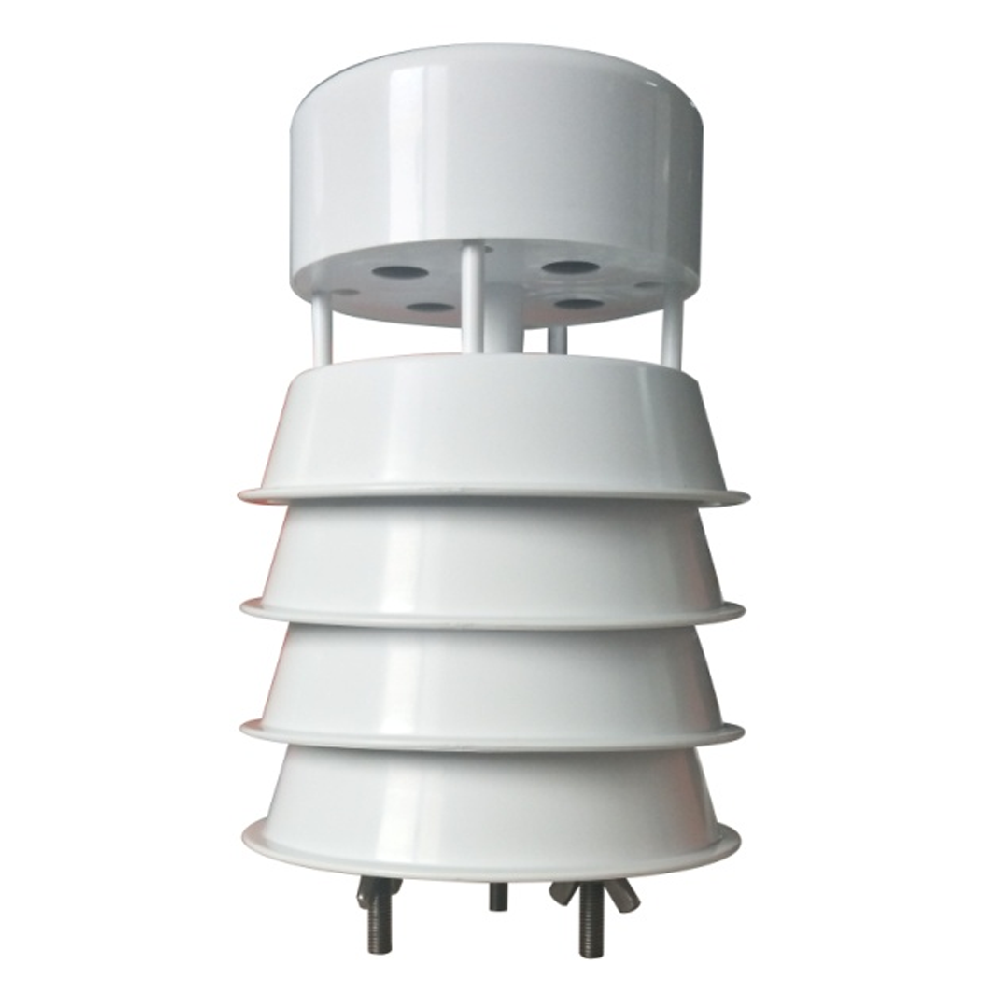

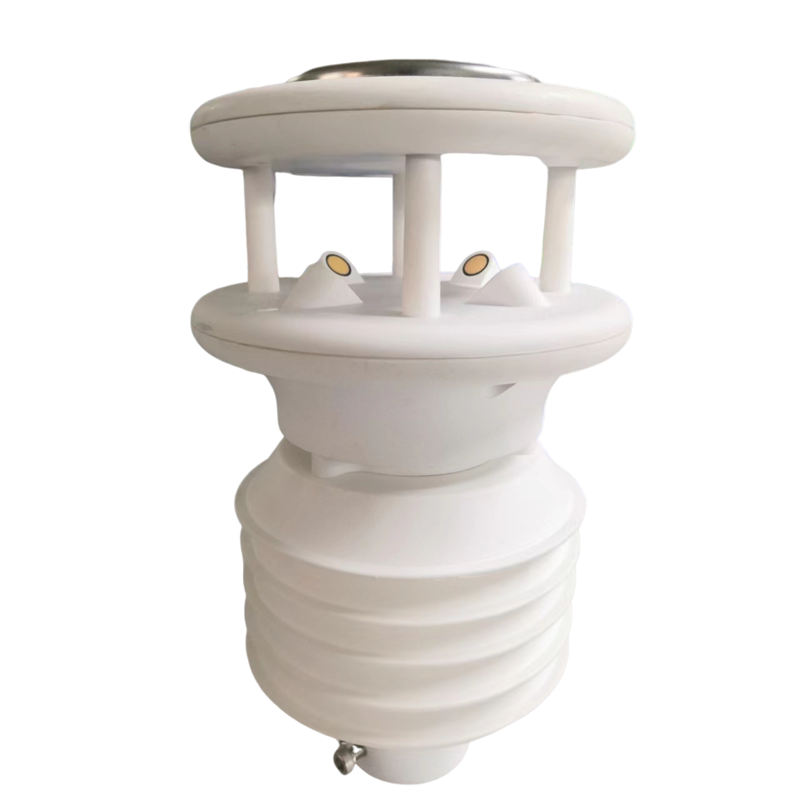

【Overview】Ultrasonic All in One Weather Station

Ultrasonic All in One Weather Station is a fully digitalized weather station that combines cutting-edge technology with precise measurements. Using the most advanced ultrasonic technology fused with high-precision digital sensors, according to different configurations, it can provide 5-in-1, 6-in-1 and even 7-in-1 comprehensive monitoring of meteorological parameters, to meet the needs of the environment from the basic to advanced observation.

All in One Ultrasonic Weather sensor	5 in1 Ultrasonic Weather Station Sensor	6 in1 Ultrasonic Weather Station Sensor	7 in1 Ultrasonic Weather Station Sensor

It realizes comprehensive monitoring of wind speed, wind direction, atmospheric temperature, humidity, barometric pressure, rainfall and illumination, providing data support for meteorological research, environmental monitoring, aviation and aerospace, port operations, laboratory analysis, industrial and agricultural production, and traffic management, etc. It meets diversified meteorological monitoring needs, and is suitable for a wide range of environments and fields.

Ultrasonic All in one Weather Station Sensor：

All in One Weather Station Core Functions

Ultrasonic wind speed and direction sensor: utilizing the principle of ultrasonic time-difference method, without mechanical rotating parts, it realizes accurate measurement of wind speed and direction, and maintains high stability and long life even under adverse weather conditions.

High-precision digital temperature and humidity sensor: adopts advanced digital signal processing technology, responds quickly to changes in the environment, provides accurate and reliable temperature and humidity data, and helps precise environmental control.

High-precision barometric pressure sensor: real-time monitoring of atmospheric pressure changes, providing an important reference basis for weather forecasting and aerial work safety.

Piezoelectric rainfall sensor (optional): accurately record rainfall through piezoelectric effect, no need for manual calibration, easy maintenance, suitable for long-term monitoring under various climatic conditions.

Illuminance Sensor (optional): Integrating high-precision illuminance measurement function, monitoring sunlight intensity, providing scientific basis for agricultural planting, solar energy utilization and other fields.

All in One Weather Station Technical parameters:

All in One Weather Station Features

All-digital design: Adopt advanced digital signal processing technology to ensure stable and fast data transmission, reduce errors and improve data accuracy.

High integration: multiple sensors integrated into one, compact structure, easy installation, reduce wiring complexity, enhance the overall aesthetics of the system.

High-strength structural design: using high-quality materials, through a special process to ensure that the equipment is still stable in extreme weather conditions, durable.

Flexible Configuration: Provide 5-in-1, 6-in-1, 7-in-1 and other configuration options to meet the monitoring needs of different scenarios, and support customized services.

Integrated design: Compact, lightweight and durable, using high-strength materials to ensure stable operation under extreme weather conditions, whether it is stormy or hot and cold.

Intelligent Output: Built-in signal processing unit supports customized output signals, such as 4-20mA, digital RS485, etc., which facilitates seamless connection with various monitoring systems.

Ultrasonic Wind Measurement Technology: Utilizing the change of ultrasonic propagation speed to measure wind speed and direction without contact ensures high accuracy and fast response of the measurement, which is not affected by mechanical wear and tear and is stable and reliable in the long term.

Wide applicability: from meteorological research to agricultural management, from urban transportation planning to outdoor activities safety, this product can provide accurate meteorological data support, is an indispensable tool for modern meteorological monitoring.

Strong adaptability to harsh environments: High-strength structural design, compact and lightweight, durable, adaptable to a variety of harsh climatic environments.

All in One Weather Station technical parameters:

- Operating temperature: -40°C to +85°C, adapt to extreme environments.

- Power supply: DC 12-24V

- Output signal: can be customized according to user requirements

- Operating environment: -30°C to 70°C, adapting to all kinds of harsh climate.

- Protection grade: IP65, outdoor all-weather use

- 5-in-1: temperature and humidity, wind speed, wind direction, atmospheric pressure.

- 6-in-1: temperature and humidity, wind speed, wind direction, atmospheric pressure, rainfall.

- 7-in-1: Temperature, humidity, wind speed, wind direction, atmospheric pressure, rainfall, illumination, providing more comprehensive data for environmental research.

All in One Weather Station Application Areas

Meteorological Observation: Provide accurate meteorological data to support weather forecasting and climate research.

Environmental Protection: Monitoring air quality, environmental humidity, rainfall, etc. to help environmental protection.

Aerospace: Provide key data support for airport runway monitoring, safe takeoff and landing of aircraft.

Port operation: real-time monitoring of wind conditions and air pressure changes at sea to ensure the safety of port operations.

Laboratory research: Provide stable and reliable environmental parameter data to help scientific research experiments go smoothly.

Industrial and agricultural production: optimize crop growth environment to improve production efficiency; monitor factory workshop environment to ensure production safety.

Transportation management: Provide real-time meteorological information support for road safety and traffic flow control.

Conclusion

Ultrasonic All in One Weather Station, in the name of science and technology, accurately perceives every moment of meteorological changes, providing solid data support for your decision-making. Whether it is scientific research and exploration, environmental protection, industrial and agricultural production, traffic management, we are your most trustworthy partner. Choosing Niubol Ultrasonic All in One Weather Station means choosing the efficiency and accuracy of future weather monitoring.

All-in-One Ultrasonic Weather Station sensor data sheet

All-in-One-Ultrasonic-Weather-Sensor-Instruction-Manual.pdf

NBL-W-61MUWS Ultrasonic Weather Station sensor data sheet

NBL-W-61MUWS-Ultrasonic-Weather-Station-Instruction-Manual.pdf

7 in 1 Ultrasonic Weather Station Sensor data sheet

NBL-W-71MUWS-Micrometeorological-Sensor-Operating-Instructions.pdf

5 in 1 Ultrasonic Weather Station Sensor data sheet

NBL-W-51MUWS-Ultrasonic-Integrated-Weather-Sensor-Instruction-Manual.pdf
