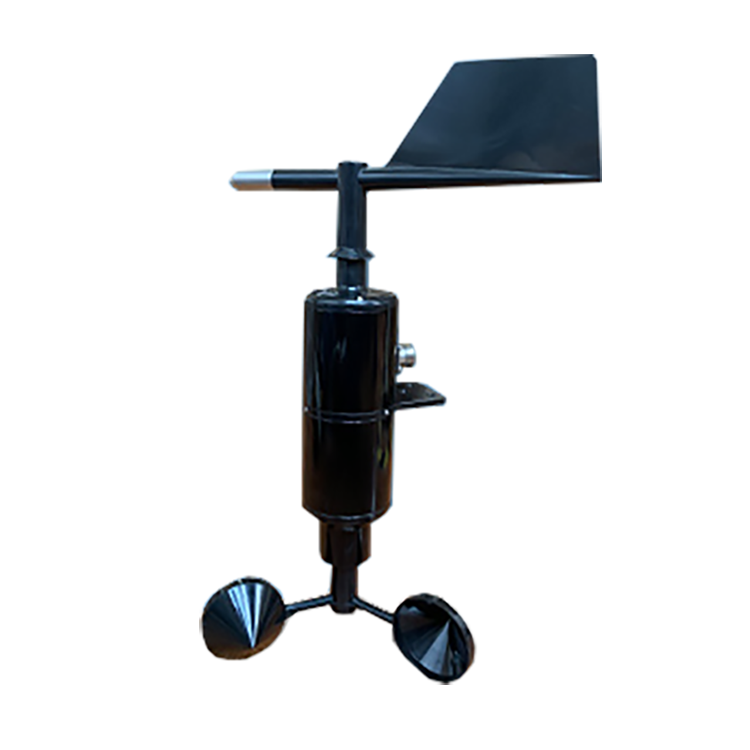

4-20mA Wind speed and direction sensor

Wind speed and direction sensor is an instrument used to measure wind speed and direction. This sensor usually consists of two main parts: one for measuring wind speed and the other for measuring wind direction. The product has the advantages of large measuring range, good linearity, strong resistance to lightning strikes, convenient observation, stability and reliability, etc.It can be widely used in meteorology, marine, environment, airport, port, laboratory, industry and agriculture and transportation.

Integrated wind speed and direction sensor technical parameters：

Wind speed and direction sensors that output a 4-20mA signal offer a straightforward and widely used method for transmitting analog signals over long distances with minimal signal degradation.  This type of sensor is particularly useful in industrial applications where long cable runs are common, and in environments with high electrical noise.  The 4-20mA current loop is a standard for transmitting sensor information, where the sensor's output varies linearly with the measured parameter (in this case, wind speed or direction).  Here's a detailed look at these sensors:

1.  4-20mA Wind speed and direction sensor Basic Principle

- 4-20mA Signal: The sensor outputs a current that ranges from 4 mA to 20 mA.  The 4 mA typically represents the lower limit of the measurement range (e.g., 0 m/s for wind speed), and 20 mA represents the upper limit (e.g., 30 m/s).  For wind direction, 4 mA could correspond to 0 degrees, and 20 mA to 360 degrees.

- Advantages: This signaling method is less susceptible to signal loss and interference over long distances compared to voltage signals, making it ideal for industrial environments.

2.  Wind Speed Measurement

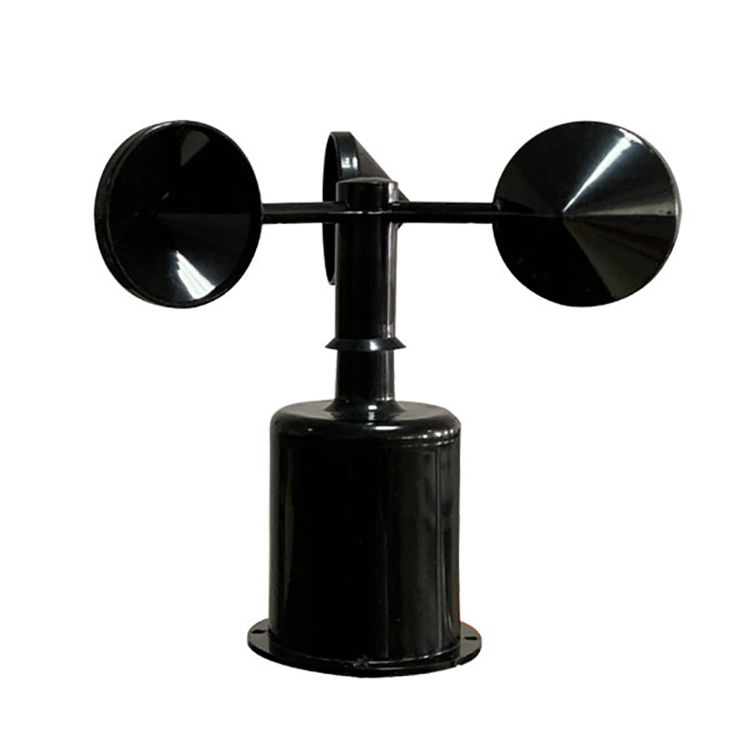

- Anemometer Type: Most 4-20mA wind speed sensors use a cup anemometer mechanism, where rotating cups drive a generator or a variable resistor whose output is converted into a current signal proportional to wind speed.

3.  Wind Direction Measurement

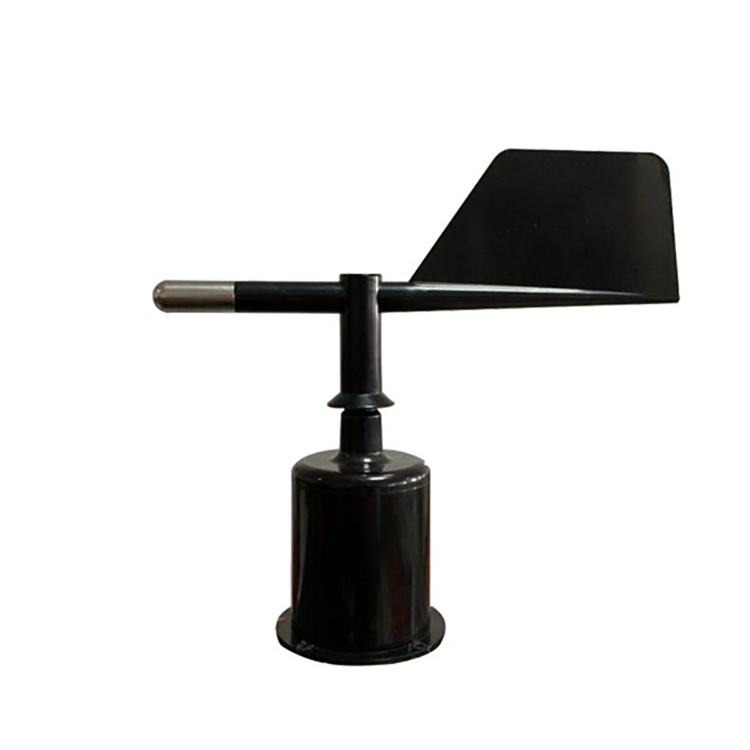

- Wind Vane: Wind direction is commonly measured with a wind vane.  The orientation of the vane changes a potentiometer or a similar variable resistance device, which is then converted into a 4-20mA current signal corresponding to the wind direction.

4.  Integration and Data Handling

- Signal Conversion: To interface with digital monitoring or control systems, the 4-20mA signal can be converted into digital form using an analog-to-digital converter (ADC).  Many industrial controllers and data loggers have built-in ADCs compatible with 4-20mA inputs.

- Loop Power: These sensors are often loop-powered, meaning they receive their operating power from the 4-20mA current loop itself.  This simplifies wiring and installation since only two wires are needed for both power supply and signal transmission.

5.  4-20mA Wind speed and direction sensor Installation Considerations

- Cabling: Shielded cables may be used to further reduce the impact of electromagnetic interference, especially in environments with heavy machinery or power lines.

- Mounting: Like other wind sensors, they should be mounted at an appropriate height (often 10 meters) and in an open area free from obstructions that could affect wind flow.

6.  4-20mA Wind speed and direction sensor Applications

These sensors are suited for various applications, including:

- Environmental monitoring

- Industrial control systems

- Building automation (for controlling HVAC systems based on wind conditions)

- Agriculture (monitoring conditions in crop and livestock management)

- Renewable energy systems (wind turbine control)

7.  Choosing a 4-20mA Wind speed and direction sensor

When selecting a wind speed and direction sensor with a 4-20mA output, consider:

- Measurement Range and Resolution: Ensure the sensor covers the range of wind speeds and directions you expect to encounter, with sufficient resolution for your needs.

- Durability: Look for sensors designed to withstand the environmental conditions of your application (e.g., waterproof, corrosion-resistant).

- Accuracy: Verify that the sensor meets your requirements for accuracy, taking into account potential sources of error.

Conclusion

Wind speed and direction sensors with 4-20mA outputs provide a reliable and straightforward solution for monitoring wind conditions in a variety of settings.  Their resistance to interference and simplicity of integration make them an excellent choice for many industrial and environmental applications.
