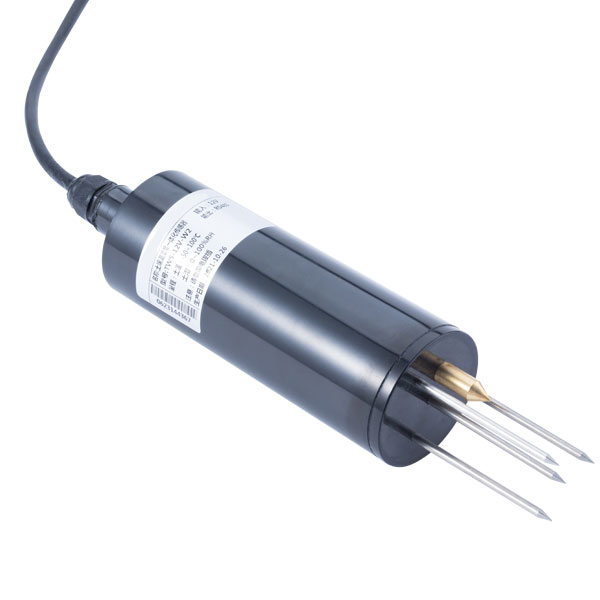

4-20mA soil moisture and temperature sensor

4-20mA soil moisture and temperature sensor is a device commonly used in agriculture and environmental monitoring to measure the moisture content and temperature of the soil.  This type of sensor operates on the principle of converting the physical parameters of soil moisture and temperature into electrical signals that can be easily transmitted and measured.The sensor typically consists of a temperature sensor and a moisture sensor. This type of sensor is commonly used in agricultural, horticultural, and environmental monitoring applications to provide valuable information about soil conditions.

Soil Moisture Measurement

Soil moisture sensors measure the volumetric water content in soil.    They often use capacitive sensing or time-domain reflectometry (TDR) principles.    Capacitive sensors measure the dielectric permittivity of the soil, which changes with moisture content.    TDR sensors, on the other hand, measure the time it takes for an electromagnetic pulse to return to the sensor, which varies with the moisture level in the soil.

Soil Temperature Measurement

Soil temperature sensors typically use a thermistor or Resistance Temperature Detector (RTD).    These components change resistance in a predictable manner with temperature changes.    The sensor circuit converts this resistance change into a corresponding 4-20mA current signal.

Integration and Data Handling

To use these sensors within a system, you'll typically integrate them with a control unit or data logger capable of reading 4-20mA inputs.    The control unit converts the current signals into digital values representing soil moisture and temperature, which can then be used for monitoring, logging, or controlling irrigation systems.

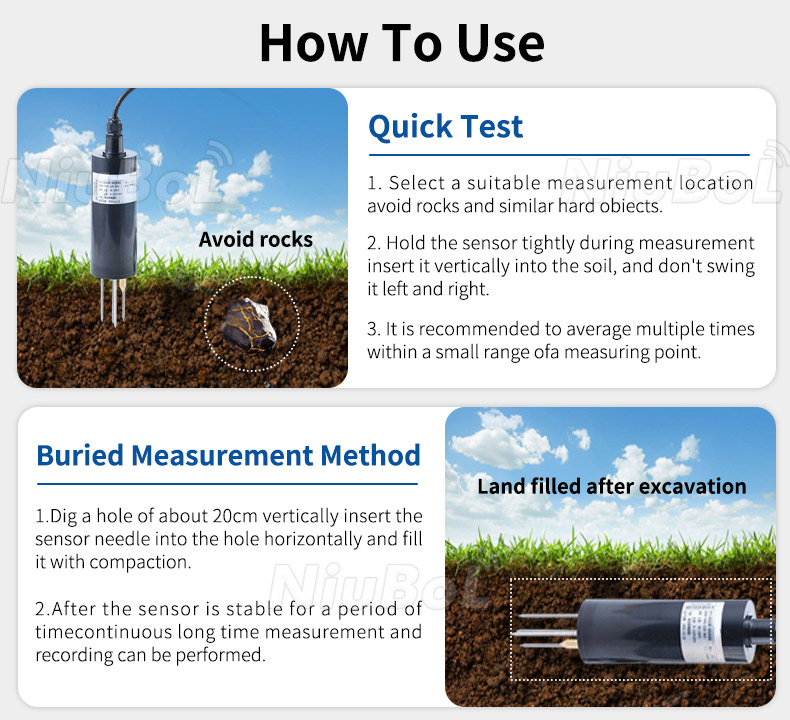

4-20mA soil moisture and temperature sensor Installation Considerations

- Placement: Install the sensor at a representative location and depth for the crops being monitored.    For most crops, the root zone is the critical area.

- Calibration: Some sensors may require calibration to ensure accuracy, particularly if the soil type significantly affects sensor readings.

- Protection: Ensure the sensor and its wiring are protected from mechanical damage and are suitable for the environmental conditions (e.g., waterproof for underground installation).

4-20mA soil moisture and temperature sensor Applications

- Precision Agriculture: Optimizing irrigation by ensuring water is applied at the right time and in the right amount.

- Environmental Monitoring: Tracking changes in soil moisture and temperature for research and conservation purposes.

- Landscaping and Turf Management: Maintaining health and appearance of lawns, golf courses, and public parks.

- Greenhouse Control Systems: Automating irrigation and climate control based on real-time soil conditions.

Choosing a 4-20mA soil moisture and temperature sensor

When selecting a 4-20mA soil moisture and temperature sensor, consider:

- Accuracy and Resolution: Ensure the sensor meets your requirements for measurement accuracy and resolution.

- Range: Check that the sensor's measurement range aligns with the expected soil moisture and temperature conditions of your application.

- Durability: Look for sensors designed to withstand environmental conditions, including moisture, temperature extremes, and chemical exposure.

- Compatibility: Verify compatibility with your existing data logging or control equipment.

Overall, the 4-20mA soil moisture and temperature sensor is a valuable tool for monitoring soil conditions in various applications, including agricultural production, environmental research, and precision irrigation management.   It provides crucial information for sustainable land management practices and can improve crop yield, water efficiency, and environmental monitoring.
