Soil wetness sensor

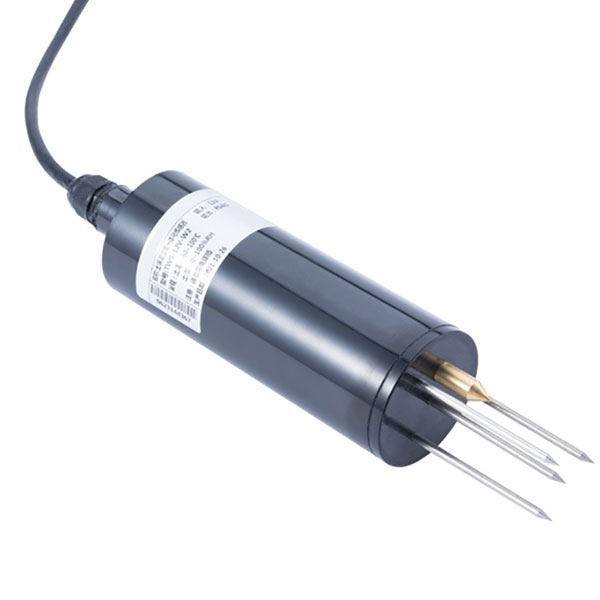

Product Details: NBL-S-THR Soil Wetness Sensor

NBL-S-THR Soil Wetness Sensor is a soil moisture measurement instrument with high accuracy and sensitivity. By transmitting electromagnetic pulses through a coaxial cable to a probe that penetrates deep into the soil medium, the apparent dielectric constant of the soil is measured, and the true moisture content of the soil is accurately calculated. This sensor is not only fast and accurate, but also stable and reliable, completely unaffected by fertilizers and metal ions in the soil, making it ideal for modern agriculture, horticulture, environmental monitoring and other fields.

NBL-S-THR Soil Wetness Sensor Technical Parameters

Second, NBL-S-THR Soil Wetness Sensor Product Features

- High-precision measurement: Soil wetness measurement range 0~100%RH, accuracy ±3%, temperature measurement range -50~100℃, accuracy ±0.5℃, to ensure the reliability of data.

- High sensitivity: fast response speed, real-time reflection of soil moisture changes.

- Anti-interference: not affected by fertilizers and metal ions in the soil, ensuring accurate measurement data.

- Multiple output forms: supports RS485, current 4-20mA and voltage 0-5V outputs to meet the needs of different scenarios.

- Energy saving and environmental protection: low power consumption, about 0.3W, green and environmental protection.

- High protection level: IP68 protection level, adapting to various harsh environments.

 NBL-S-THR Soil Wetness Sensor Application Scenarios

- Soil moisture monitoring: real-time monitoring of soil moisture, providing scientific basis for agricultural production.

- Water-saving irrigation: According to the soil moisture data, reasonably allocate irrigation resources to improve irrigation efficiency.

- Greenhouse: Monitoring soil moisture in greenhouses to ensure a suitable growing environment for crops.

- Grassland pasture: monitoring soil moisture in grassland, guiding reasonable grazing and irrigation.

- Soil quick test: rapid detection of soil moisture, providing data support for soil improvement.

NBL-S-THR Soil Wetness Sensor Installation and Use Precautions

1. Correct insertion: Make sure the sensor is inserted vertically into the soil and avoid shaking, so as not to affect the accuracy of the probe. For quick measurement, choose a suitable location, avoid hard objects and keep the soil in its original state.

2. Burial method: If long-term monitoring is required, dig a pit to insert the sensor steel needle horizontally and fill it to ensure stability. This method is suitable for continuous measurement for several months or even longer.

3. Avoiding interference: Make sure the probe is fully inserted into the soil, and be careful not to install it where there are cavities or air holes, so as not to affect the accuracy of the data. At the same time, choose the appropriate installation angle (horizontal or vertical) according to the soil characteristics.

4. Sampling point selection: Sampling points should be uniform, taking into account soil density, composition, plant root system and other factors to avoid measurement errors caused by local anomalies.

5. Maintenance and Cleaning: After use, wash and dry the probe to keep the sensor clean and prevent pollutants from affecting the measurement results.

 Seven, NBL-S-THR Soil Wetness Sensor maintenance and care

1. Regular Inspection: Regularly check whether the measurement data of the sensor is accurate, check the status of the components to prevent damage.

2. Cleaning and wiping: Regularly clean the dust and dirt on the surface of the sensor to avoid pollutants affecting the sensing performance.

3. Timely maintenance: Once the fault is found, repair or replace the damaged parts immediately to avoid affecting the continuity and accuracy of the data.

4. power protection: pay attention to the power supply voltage range, avoid reverse connection, protect the sensor circuit from damage.

5. Environmental adaptation: In lightning weather, the sensor should be removed from the soil to prevent damage from lightning strikes, and keep the equipment dry to prevent water vapor from entering.

6. Avoid frequent plugging and unplugging: Reduce physical damage to the cable to avoid abnormal readings caused by frequent plugging and unplugging.

7. Professional guidance: For installation and maintenance in complex environments, it is recommended to refer to the product manual or consult a professional to ensure correct operation.

After-sales service

- Warranty service: This product enjoys one year warranty service from the date of purchase.

- Free Repair or Replacement: During the warranty period, we will provide you with free repair or replacement if the product is damaged by non-man-made.

- Technical Support: Professional technicians will provide you with free consultation and technical support.

Choose NBL-S-THR soil temperature and humidity sensor for your business! If you have any questions, please feel free to contact us, we will be happy to serve you!

By following these installation and maintenance guidelines, you can ensure that the soil temperature and humidity sensor will work stably for a long time and provide reliable data support for agricultural irrigation, greenhouse control and so on.
