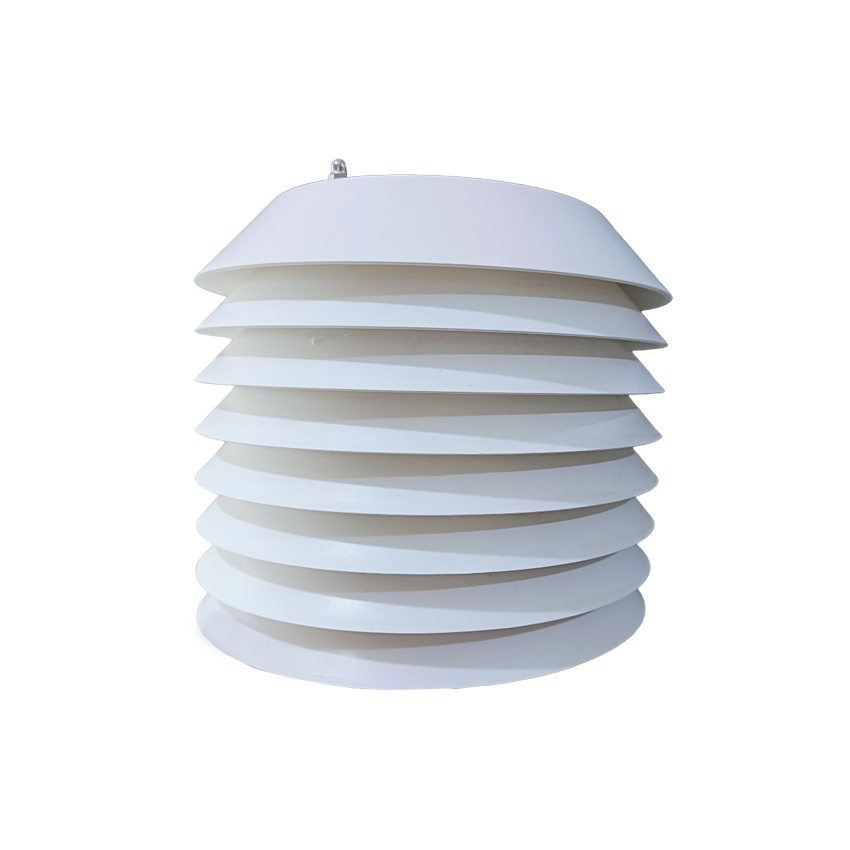

PM2.5 and PM10 Sensor

 PM2.5 and PM10 Sensor Product Details

PM2.5 & PM10 Sensor Overview

The PM2.5 & PM10 integrated sensor adopts advanced laser scattering principles, allowing for sensitive and accurate detection of PM2.5 and PM10 particulate matter concentrations in the environment. The sensor uses imported lasers and high-precision light-sensing components, ensuring data stability and reliability. An efficient built-in fan improves air circulation, giving the sensor higher integration and better performance. It is widely used in environmental monitoring, air purification, and smart home applications.

PM2.5 & PM10 Sensor Technical Specifications

 PM2.5 & PM10 Sensor Features

1. High Precision:

   - Utilizes laser scattering technology with imported lasers and light-sensing components to ensure high accuracy and stability of data.

2. High Integration:

   - The built-in fan enhances air circulation efficiency, and the compact structure makes installation and maintenance easy.

3. Flexible Power Supply:

   - Supports DC 12V-24V power supply and can be customized for other power supply needs.

4. Multiple Output Formats:

   - Supports RS485 output and can be customized for other output types.

5. Wide Temperature and Humidity Range:

   - Operates within a temperature range of -20°C to +60°C and a humidity range of 0 to 99%.

6. Low Power Consumption:

   - The product consumes only 350 mW of power, making it energy-efficient and environmentally friendly.

PM2.5 & PM10 Sensor Installation Method

1. Vertical Installation: Ensure the sensor is placed vertically to guarantee smooth airflow.

2. Avoid Artificial Airflow: Avoid installing the sensor near fans. For use in air purifiers, do not install it in front or behind the fan. It is recommended to install it on one side of the housing, ensuring there is a ventilation hole for external airflow.

3. Avoid Sticky Particles: Ensure no sticky particles, such as oil or cotton fluff, enter the module during installation. These particles may stick to the optical components and cause malfunctions.

4. Moisture Prevention: The sensor's function may be affected by moisture, so ensure the installation environment is dry and avoid exposure to humidity.

PM2.5 & PM10 Sensor Functions and Value

1. Air Quality Monitoring:

   - Real-time Monitoring: Provides accurate data on PM2.5 and PM10 concentrations, helping to assess air quality and protect human health.

   - Environmental Management: Provides scientific data for environmental protection agencies, aiding in air quality improvement.

2. Health Protection:

   - Home Health: Used in homes, schools, offices, and other places to alert users to take preventive measures against respiratory diseases.

   - Public Spaces: In places like hospitals, schools, and shopping malls, providing real-time air quality information to protect public health.

3. Environmental Research:

   - Scientific Research: Used for scientific research to monitor the trends of air pollution and support the formulation of environmental policies.

   - Education: Used in educational settings to raise environmental awareness.

4. Industrial Applications:

   - Emission Monitoring: Monitors dust concentrations in industrial environments like factories and mines, ensuring worker health and safety.

   - Environmental Compliance: Ensures production processes comply with environmental protection standards.

5. Integration with Smart Devices:

   - Air Purification: Acts as a core component of air purifiers, accurately controlling purification efficiency and ensuring indoor air quality.

   - Smart Homes: Integrated into smart home systems for real-time monitoring and adjustment of indoor air quality, providing a healthier and more comfortable living environment.

PM2.5 & PM10 Sensor Application Scenarios

1. Public Environment Monitoring:

   - Urban Air Quality Monitoring Stations: Real-time monitoring of urban air quality to provide data support for environmental protection agencies.

   - Public Spaces: In places like parks, schools, and other public areas to ensure the health of students, teachers, and patients, preventing respiratory diseases.

2. Home Health Monitoring:

   - Home Air Purifiers: Monitors and improves indoor air quality, enhancing the quality of life.

   - Smart Home Systems: Real-time monitoring and regulation of indoor air quality to provide a healthier and more comfortable living environment.

3. Industrial Environment Monitoring:

   - Factories and Workshops: Monitors air quality in industrial sites to ensure employee health and safety.

   - Construction Sites: Controls dust pollution and ensures compliance with environmental protection standards.

4. Public Places:

   - Shopping Malls, Restaurants, Libraries: Improves air quality, enhancing customer experience.

5. Research Institutions:

   - Universities, Research Institutes: Provides accurate data to support environmental science research.

6. Weather Stations:

   - Multi-sensor Weather Stations: Provides air quality data to support weather forecasting and research.

 Summary

The PM2.5 & PM10 laser scattering sensor is a high-performance, highly reliable particulate matter concentration detection product. It uses advanced laser scattering principles to accurately measure PM2.5 and PM10 concentrations in the environment, providing scientific and accurate data for environmental monitoring, air purification, smart home applications, and more. Additionally, the sensor is easy to install and maintain, making it an ideal choice for air quality monitoring systems across various industries. We invite you to experience our product and work together to improve air quality and protect human health.

PM2.5 & PM10 Integrated Sensor Data Sheet

NBL-W-PM25-PM10-Integrated-sensors-Manual.pdf
