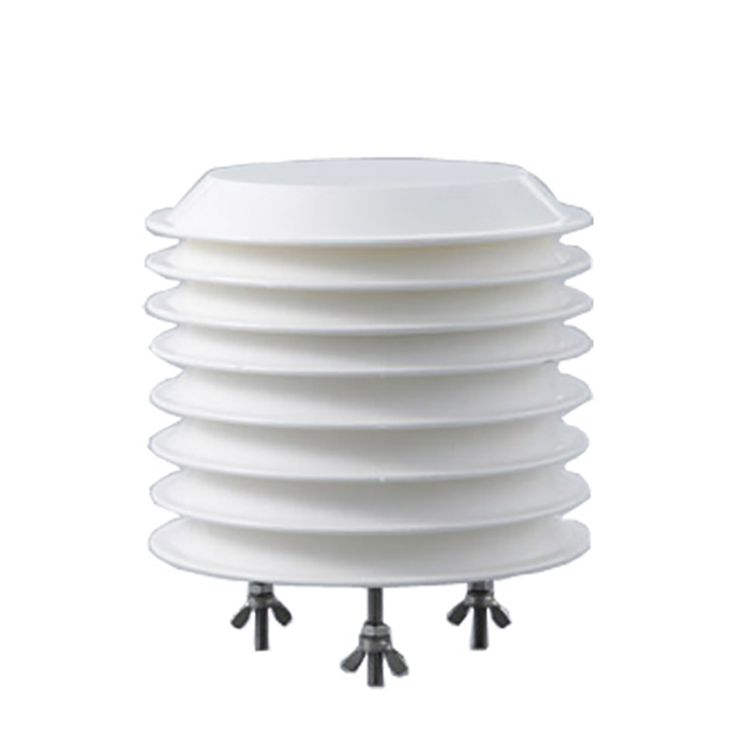

Outdoor temperature and humidity sensor

Outdoor temperature and humidity sensor Product Overview

The Outdoor Temperature and Humidity Barometric Pressure Sensor is a fully digitally detectable, high precision environmental monitoring device. The sensor integrates high-precision digital temperature, humidity and barometric pressure measurement functions, and can accurately and quickly detect atmospheric temperature, atmospheric humidity and atmospheric pressure. Its built-in signal processing unit outputs signals according to user requirements.

Its rugged design ensures that it provides reliable performance even in harsh weather conditions, whether it is extreme cold or hot environment, it can work stably and provide reliable guarantee for your data collection. Making it an indispensable tool for a wide range of fields such as meteorology, marine science, environmental research, aviation, ports, laboratories, industrial automation, agriculture, greenhouses and transport.

Outdoor temperature and humidity sensor Product Features:

- Fully Digital and Highly Accurate:The sensor uses advanced digital technology to provide accurate measurements of temperature, humidity and atmospheric pressure.

- High Accuracy Detection:Temperature measurement accuracy is ±0.5℃, humidity measurement accuracy is ±5%RH, and barometric pressure measurement accuracy is ±1.5hPa to ensure accurate data.

- Wide Range Measurement: Temperature measurement range is from -40 to 80℃, humidity measurement range is from 0 to 100% RH, and air pressure measurement range is from 10 to 1200hPa, covering a wide range of environmental conditions.

- High resolution: temperature resolution up to 0.1℃, humidity resolution up to 0.1%RH, barometric pressure resolution up to 0.1hPa, capable of capturing small environmental changes.

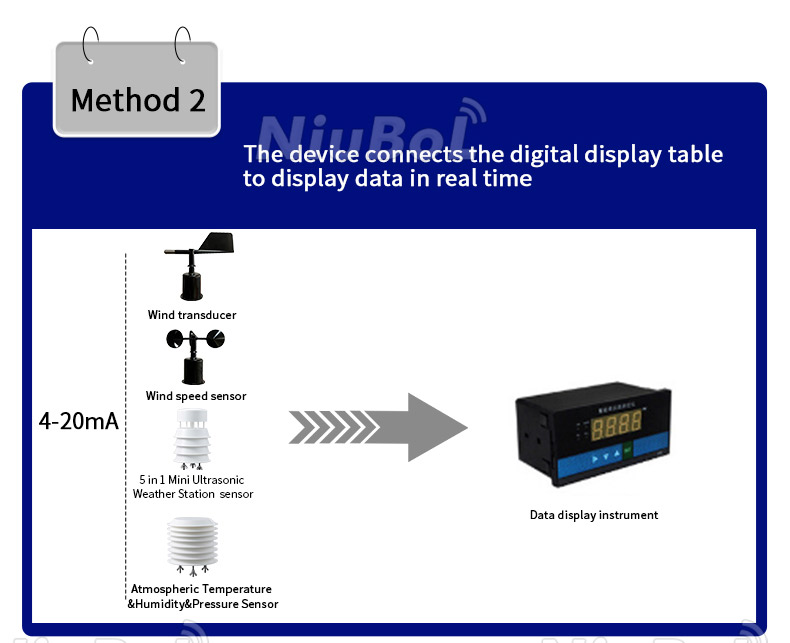

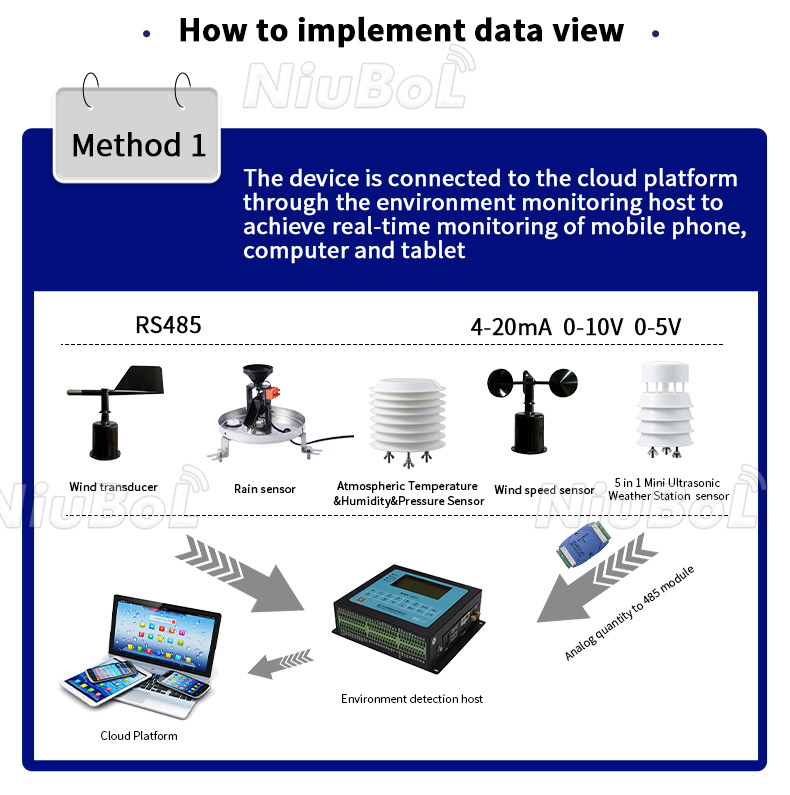

- Easy to integrate: support RS485 or 4-20mA output form, support DC 12V-24V wide voltage power supply, easy to seamlessly connect with the existing system.

- Strong adaptability to harsh environments: high-strength structural design, protection level up to IP65, fearless of wind, rain, sand and dust and other harsh climatic conditions, to ensure long-term stable operation.

- Widely used: suitable for meteorological observation, marine research, environmental monitoring, airport and port management, laboratory research, industrial control, agricultural irrigation, greenhouse regulation and traffic monitoring and other fields.

Outdoor temperature and humidity sensor Technical parameters:

Outdoor temperature and humidity sensor Application Scenario:

- Meteorological monitoring: used in meteorological stations to collect meteorological data and provide support for weather forecasting and climate research.

- Environmental monitoring: monitoring environmental changes, providing data support for environmental protection and pollution control.

- Airports and harbours: monitoring the environmental conditions of airports, harbours and other large places to ensure safe operation.

- Agriculture: monitoring the environment of farmland to provide scientific basis for agricultural production.

- Greenhouse: Monitor the environmental conditions in the greenhouse to provide the best growing environment for greenhouse crops.

The role and value of Outdoor temperature and humidity senso.

Optimise the growing environment of crops: Adjust the greenhouse temperature to the most suitable range according to the growth requirements of different crops, promote healthy growth of crops, and improve yield and quality.

Disaster prevention: Early warning of extreme weather changes, such as cold waves, heat waves, etc., helps managers take measures in advance to protect crops from damage.

Precise management: Combining humidity, air pressure and other parameters to achieve comprehensive regulation of the environment, providing data support for airports, harbours, agriculture and greenhouses to improve management efficiency.

Summary:

The outdoor temperature, humidity and air pressure sensor is an environmental monitoring device that combines high precision, high stability and easy integration. It can not only provide accurate data support for meteorological and environmental monitoring, but also play an important role in many fields such as airports, harbours, agriculture and greenhouses. Its high-strength structural design ensures accurate detection in a variety of harsh environments, making it ideal for improving environmental monitoring and management.

Whether you are a meteorologist, agricultural scientist or industrial engineer, this outdoor temperature and humidity sensor is the solution of choice for your environmental monitoring needs.
