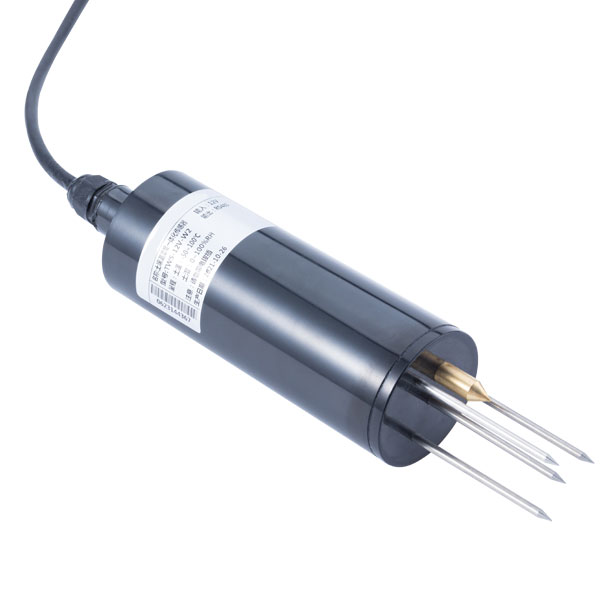

Soil temperature and moisture sensor RS485

RS485 soil temperature and moisture sensors are advanced tools used in precision agriculture, environmental monitoring, and smart irrigation systems.  The RS485 interface is particularly noted for its robustness over long distances and its ability to support multiple devices on a single network, making it an excellent choice for large-scale or complex installations.

Understanding RS485 Interface

The RS485 standard is a serial communication protocol that allows for long-distance communication (up to 1,200 meters) and the connection of multiple devices (up to 32 devices without repeaters) on a single bus.  This makes it highly suitable for applications where sensors are spread across large areas or when integrating multiple types of sensors into a comprehensive monitoring system.

Soil Moisture and Temperature Measurement

Soil Moisture Measurement: These sensors typically employ either capacitive sensing or Time Domain Reflectometry (TDR) to measure the volumetric water content of the soil.  Capacitive sensors measure the dielectric permittivity of the soil, which changes with moisture level, while TDR sensors measure the time it takes for an electromagnetic pulse to travel through the soil and reflect back, which varies with moisture content.

Soil Temperature Measurement: Soil temperature is usually measured using a thermistor or Resistance Temperature Detector (RTD) embedded within the sensor.  The resistance of these components changes predictably with temperature, and the sensor circuitry converts this into a digital signal transmitted over the RS485 bus.

Key Features of RS485 Soil Temperature and Moisture Sensors

- Multi-Drop Capability: Multiple sensors can be connected in a daisy-chain or bus configuration, simplifying wiring and installation.

- Long-Distance Communication: The RS485 protocol supports data transmission over long distances, ensuring signal integrity even in large installations.

- Digital Signal: The use of digital signals reduces susceptibility to noise and interference, improving measurement reliability.

- Integration with Control Systems: These sensors can easily integrate with automated irrigation systems, environmental monitoring stations, or agricultural management systems due to the standardized communication protocol.

RS485 soil temperature and moisture sensors Installation Considerations

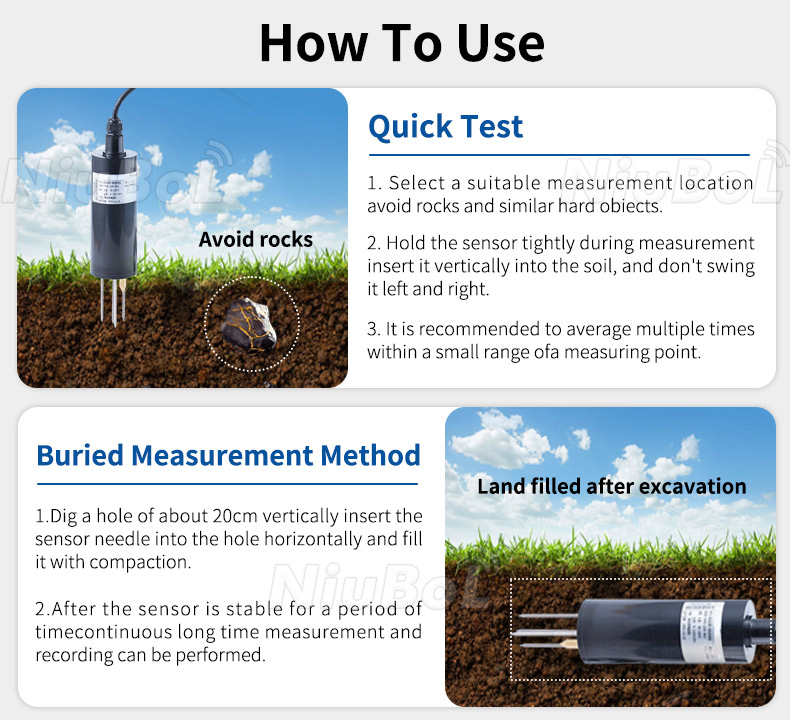

- Placement: For accurate measurements, place sensors at relevant depths within the soil, typically within the root zone of the crops being monitored.

- Cable Management: Properly plan and protect the RS485 cabling to prevent damage and ensure reliable communication.

- Addressing: Each sensor on the RS485 network must have a unique address if multiple sensors are used, allowing individual querying and configuration.

RS485 soil temperature and moisture sensors Applications

- Precision Agriculture: Enables data-driven decision-making for irrigation, helping optimize water usage and improve crop yields.

- Environmental Monitoring: Assists in tracking soil health and moisture levels over large areas, useful in conservation efforts and climate research.

- Smart Irrigation Systems: Integrates with control systems to automate watering based on real-time soil conditions, enhancing water efficiency and reducing waste.

Choosing an RS485 Soil Temperature and Moisture Sensor

When selecting an RS485-based sensor, consider the following:

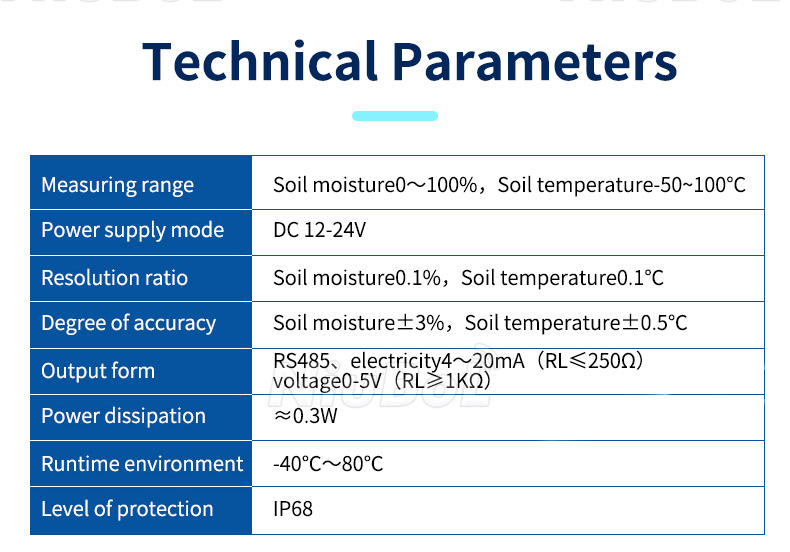

- Measurement Range and Accuracy: Ensure the sensor covers the range of conditions you expect to encounter and meets your accuracy requirements.

- Build Quality and Durability: Choose sensors designed to withstand the environmental conditions they will be exposed to, including moisture, temperature extremes, and soil chemistry.

- Compatibility: Verify that the sensor's communication protocol and electrical characteristics are compatible with your data logger, controller, or monitoring system.

- Ease of Integration: Look for sensors with well-documented interfaces and support from the manufacturer to simplify integration into your system.

RS485 soil temperature and moisture sensors offer a combination of accuracy, reliability, and flexibility, making them invaluable tools in modern agricultural and environmental management practices.  Their ability to operate over long distances and in challenging environments further enhances their utility in a wide range of applications.

In short, An RS485 soil temperature and moisture sensor is a type of sensor that uses the RS485 communication protocol to transmit data about the soil's temperature and moisture content. These sensors are often used in precision agriculture to help farmers make data-driven decisions about irrigation, fertilization, and crop management.   They can also be used in environmental monitoring to assess soil health and water availability.
