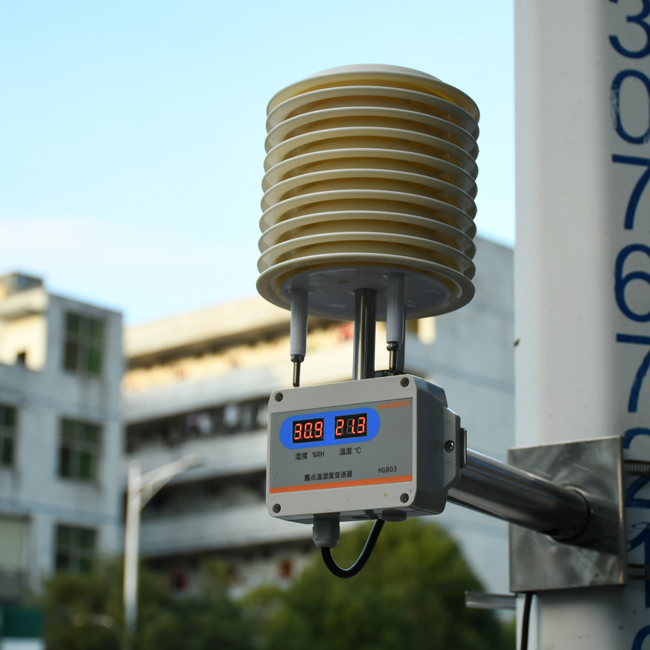

Temperature and humidity sensor with RS485 output

An RS485 Output Temperature and Humidity Sensor is a sensor that simultaneously measures temperature and relative humidity and provides the data through an RS485 communication interface.RS485 is a common serial communication protocol known for its robustness, long range capability (up to 1200 meters), and ability to support multiple devices on the same bus.

The following is a breakdown of the RS485Temperature and Humidity Sensor components:.

1. Temperature Sensor:This part of the sensor measures the ambient temperature. It typically uses a semiconductor material, such as silicon, whose electrical properties change with temperature. The most common type of temperature sensor is a digital temperature sensor, which provides a digital output corresponding to the measured temperature. 2.

2. Humidity Sensor:A humidity sensor measures the amount of water vapor present in the air. It can be based on various principles such as capacitive, resistive or thermal conductivity. Capacitive humidity sensors are common and work on the principle of measuring the capacitance of the sensor element as it changes with humidity.

3. RS485 Output:The RS485 interface is a serial communication protocol that allows sensors to communicate with compatible receivers or control units over long distances and in electrically noisy environments. The protocol defines the electrical interface and physical layer to support multiple devices, nodes on the same bus. It also defines the frame structure of the data to be sent.

Here are some key features and information about Temperature and Humidity Sensor with RS485 output:

1. Interface Standard:

RS485 is a commonly used serial communication interface standard for industrial environments that supports long distance, high speed data transmission between multiple devices.

2.Measurement range and accuracy:

The temperature measurement range usually covers -40°C to +80°C (or similar range), and the accuracy may be between ±0.3°C and ±0.5°C (depending on the specific model and environmental conditions).

Humidity measurement range usually covers 0%RH to 100%RH, accuracy may be between ±3%RH to ±4%RH (depending on specific models and environmental conditions).

3. Output Mode:

In addition to the RS485 interface, these sensors may have other output methods, such as 4-20mA, 0-10V, DC0-5V, etc., but here we are mainly concerned with the RS485 output.

4. Data transmission:

Using the RS485 interface, the sensor is able to stably transmit the collected temperature and humidity data to a remote monitoring center or control system.RS485 allows for reliable data transmission over long distances (typically up to 1200 m) and supports multi-drop configurations (multiple sensors connected to the same communication line)

5. Protocol: Sensors typically support the Modbus RTU protocol over RS485, which is a common protocol for communication between devices.

Data transfer usually follows some kind of communication protocol, such as Modbus RTU, which allows different devices to communicate and exchange data with each other. It can be easily integrated with plc (programmable logic controller), SCADA system or other industrial control systems. It realizes remote monitoring and data management, and improves the level of industrial automation and intelligence.

6. Application scenarios: temperature and humidity sensors with RS485 output can be used in a variety of application scenarios, the following are some typical application scenarios:

6.1 Industrial automation:

In the field of industrial automation, RS485 interface is widely used to connect a variety of sensors, actuators, PLC and other devices to achieve data acquisition, monitoring and control. Temperature and humidity sensors can upload temperature and humidity data in real time through the RS485 interface, helping applications such as factory automation, process control systems, and robot control to realize precise environmental control.

6.2 Building Automation:

The RS485 interface plays an important role in building automation systems. Temperature and humidity sensors can be used to monitor the temperature and humidity conditions inside a building, and upload the data to the building management system through the RS485 interface to achieve centralized management and control of subsystems such as lighting control, air conditioning control, and security systems.

6.3 Data Center:

Data centers need to maintain a constant temperature and humidity environment to ensure the stable operation of servers. Temperature and humidity sensors can be deployed inside the data center, and the environmental data can be transmitted to the monitoring platform in real time through the RS485 interface, so as to realize remote monitoring and alarm functions.

6.4 Museums and libraries:

These places need to strictly control the temperature and humidity to protect the precious cultural relics and books. Temperature and humidity sensors can be installed in key areas such as exhibition halls and libraries, and the data can be transmitted to the monitoring center in real time through the RS485 interface, so that timely measures can be taken to protect cultural relics and books.

6.5 Agricultural greenhouse control:

In modern agriculture, greenhouses require precise temperature and humidity control to promote crop growth. Temperature and humidity sensors can be installed inside the greenhouse and transmit environmental data to the control system in real time via RS485 interface to realize automated regulation of the greenhouse environment.

6.6 Environmental Monitoring:

In the field of environmental monitoring, temperature and humidity sensors can be used to monitor the meteorological conditions of the outdoor environment. Through RS485 interface, the data will be transmitted to the monitoring station or data center in real time to provide accurate data support for weather forecasting and environmental monitoring.

6.7 Warehouse Management:

The temperature and humidity conditions in the warehouse have a great impact on the stored goods. Temperature and humidity sensors can be installed inside the warehouse and transmit the data to the management system in real time through the RS485 interface to help warehouse managers adjust the environmental conditions in time to ensure the safe storage of goods.

The common feature of these applications is the need to accurately monitor and control the temperature and humidity conditions in the environment. Temperature and humidity sensors with RS485 outputs provide stable and reliable data transmission to help various systems realize precise environmental monitoring and control.
