Meteorological sensors

Meteorological sensors is a device used to measure and monitor meteorological elements. It can measure a variety of meteorological parameters, such as temperature, humidity, barometric pressure, wind speed, wind direction, precipitation, etc., and can provide accurate meteorological data to support weather forecasting, climate research, environmental monitoring and other fields. Meteorological sensors are usually composed of a sensitive element and a signal processing unit. The sensitive element is responsible for sensing changes in meteorological parameters and converting them into electrical or digital signals, which are then amplified, filtered, linearized, etc. by the signal processing unit, and finally output readable data. Meteorological sensors can be placed in a variety of environments for continuous monitoring and are characterized by compact size, high integration, easy installation, simple operation and use.

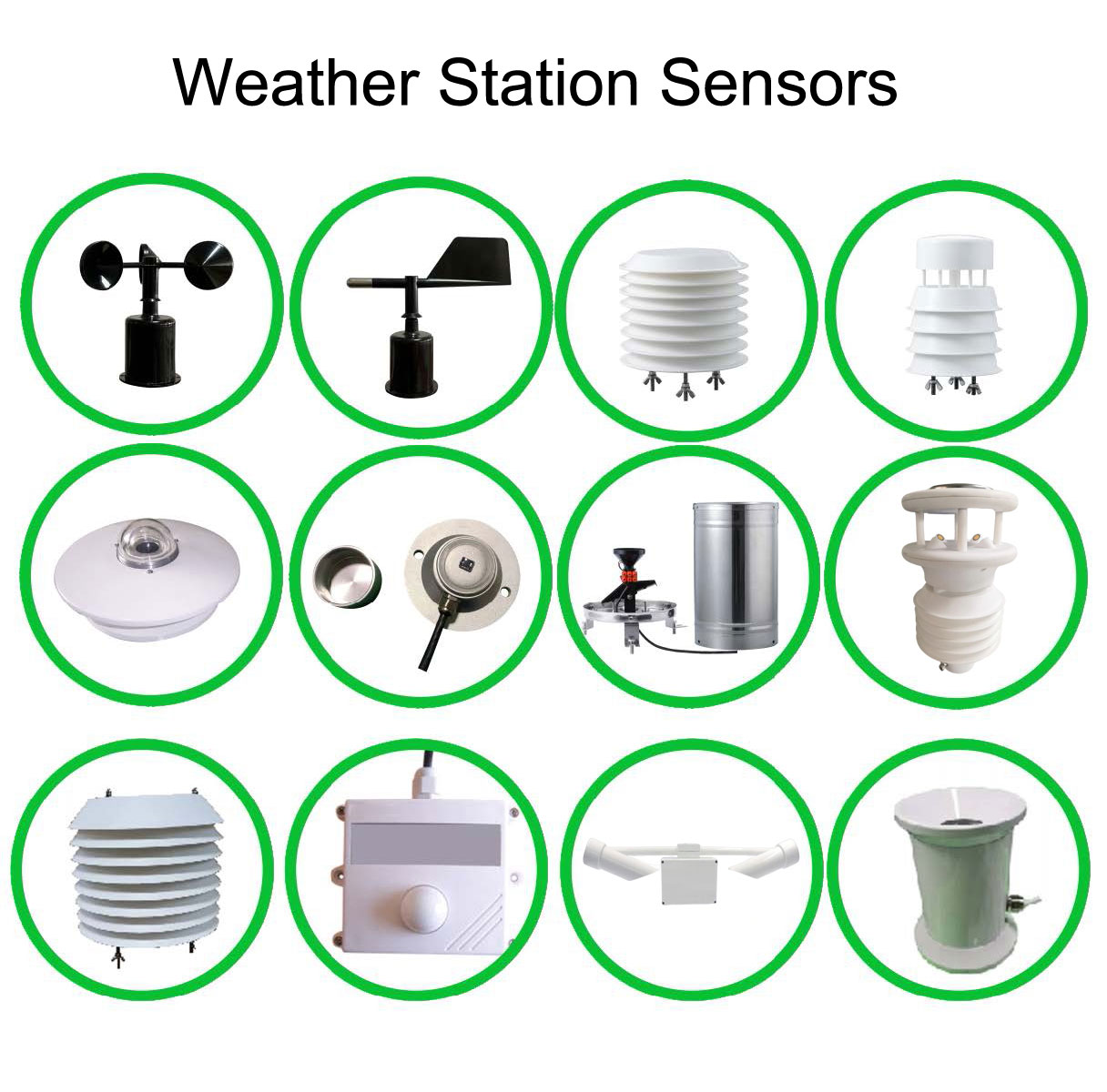

Top 8 Common weather station sensors:

1. 1.Temperature sensors

2. 2.Humidity sensor

3. 3.Barometric pressure sensors

4. 4.wind speed sensor

5. 5.Wind direction sensor

6. 6.Precipitation sensor

7. 7.Radiation sensors

8. 8.Illumination sensor

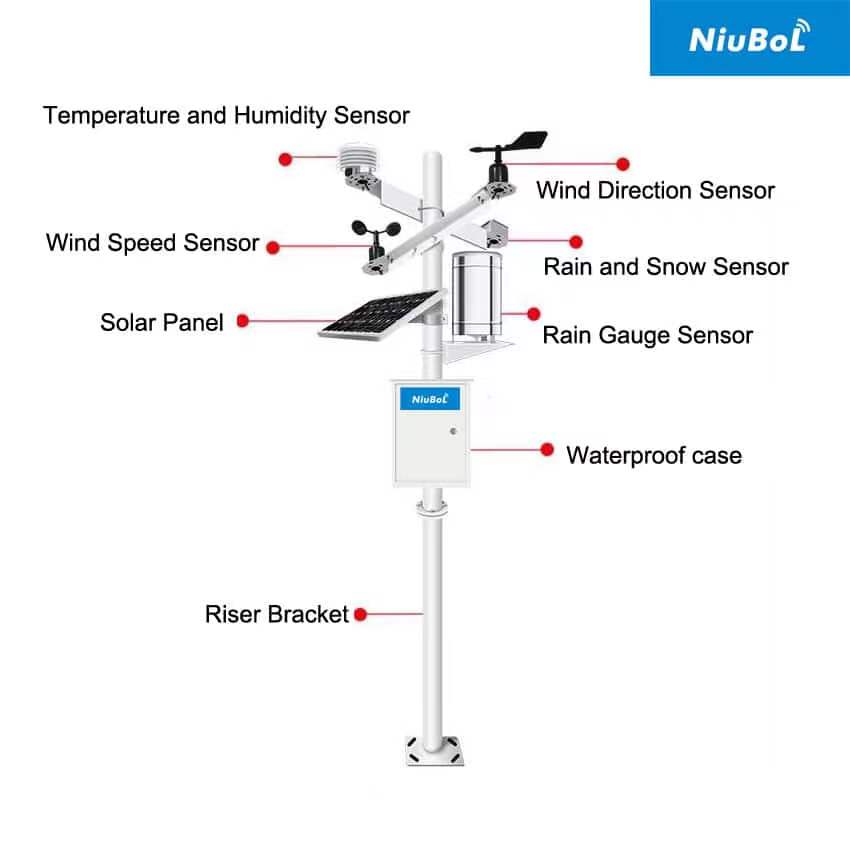

Weather station sensors are devices used to monitor meteorological elements, which can obtain various meteorological parameters in real time and provide important data support for weather forecasting, climate analysis and scientific research. The following are several common weather station sensors and their roles:

Weather station is used to monitor and record the weather elements of the equipment, common weather station sensors include:

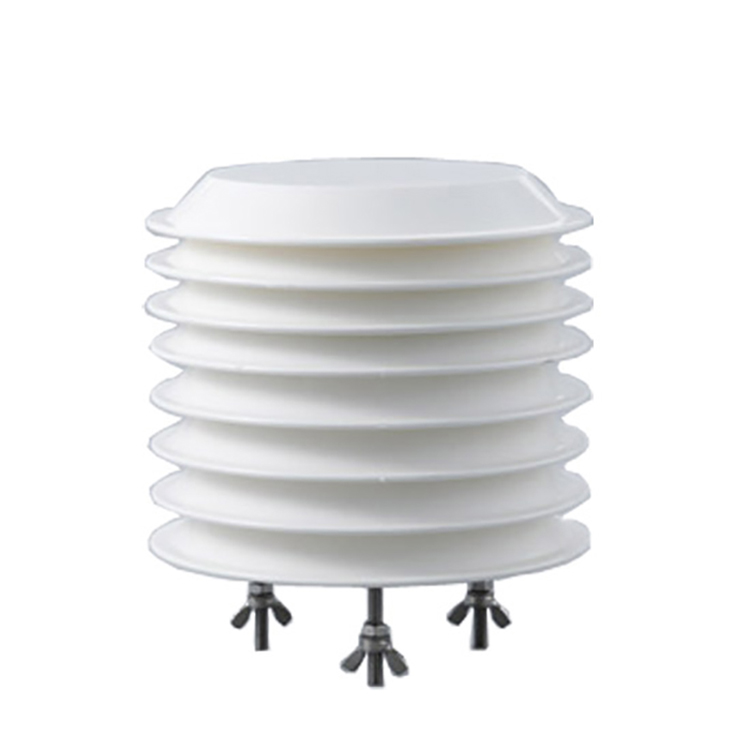

1. Temperature sensors: sensors used to measure air temperature. Common types include resistance thermometers (RTDs), thermocouples, and semiconductor temperature sensors.

Temperature sensor is a device that can measure the temperature of an object, which usually consists of a sensitive element (e.g. thermistor, thermocouple, etc.) and a signal processing unit. The sensitive element of the temperature sensor can sense changes in the temperature of the object and convert it into an electrical or digital signal, which is then amplified, filtered, linearized, etc. through the signal processing unit, and ultimately output readable measurement results.

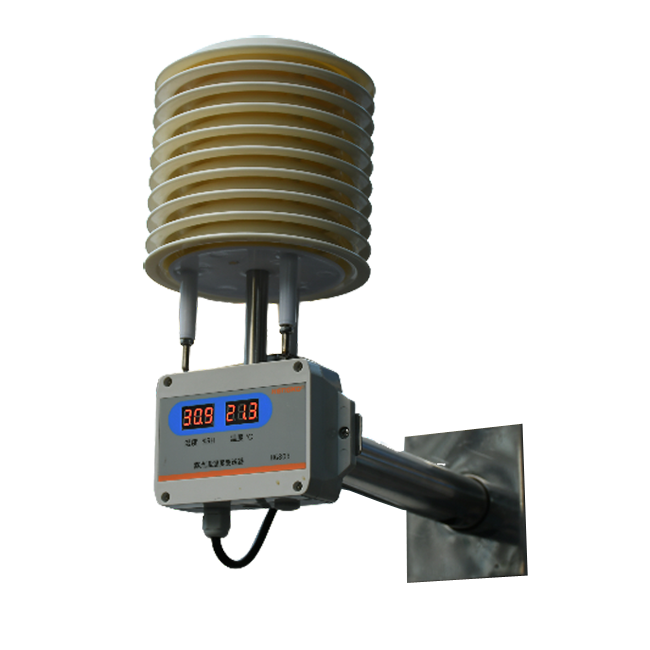

2. Humidity sensor: sensor used to measure the moisture content of the air humidity. The most common types are capacitive humidity sensors and resistive humidity sensors.

Humidity sensor is a device that can measure the humidity in the air or other gases, which usually consists of a sensitive element (e.g., moisture-sensitive resistor, moisture-sensitive capacitor, etc.) and a signal processing unit. The sensitive element of the humidity sensor can sense the change of water vapor content in the gas, and convert it into an electrical signal or digital signal, and then through the signal processing unit for amplification, filtering, linearization and other processing, and ultimately output readable measurement results.

3. Barometric pressure sensors: sensors used to measure atmospheric pressure. Common types include piezoresistive sensors and piezoelectric sensors.

Barometric pressure sensor is a device that can measure atmospheric pressure, which usually consists of a pressure-sensitive element and a signal processing unit. The pressure-sensitive element of the barometric pressure sensor can sense changes in atmospheric pressure and convert it into an electrical or digital signal, which is then amplified, filtered, linearized, etc. by the signal processing unit, and finally outputs a readable atmospheric pressure measurement result.

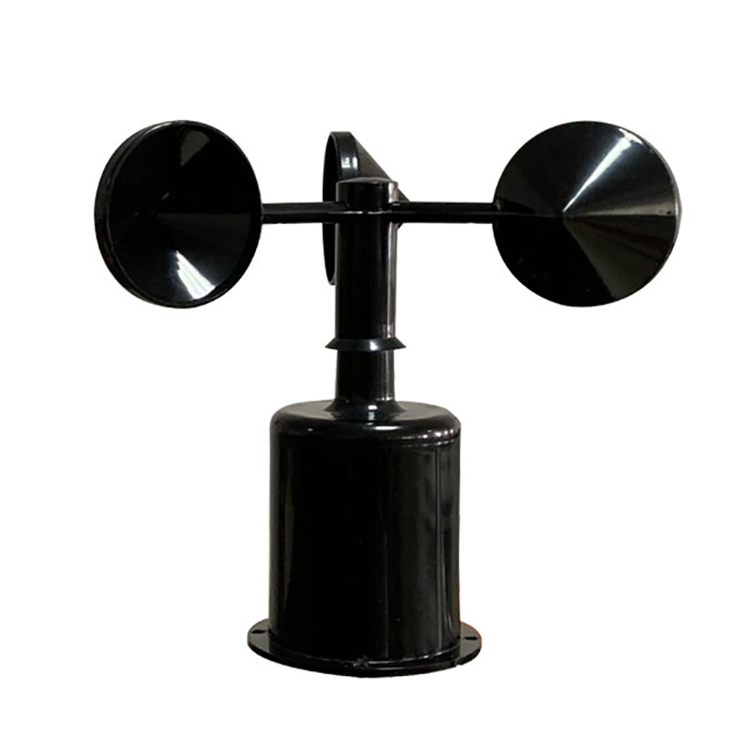

4. wind speed sensor: a sensor used to measure the speed of the wind. Common types include cup wind speed sensors, ultrasonic wind speed sensors and hot wire wind speed sensors.

A wind speed sensor is a device that measures the speed of the wind, which usually consists of a wind cup and a signal processing unit. The wind speed sensor's wind cup can sense the size of the wind speed, and convert it into electrical or digital signals, and then through the signal processing unit for amplification, filtering, linearization, and other processing, and ultimately the output of readable wind speed measurement results.

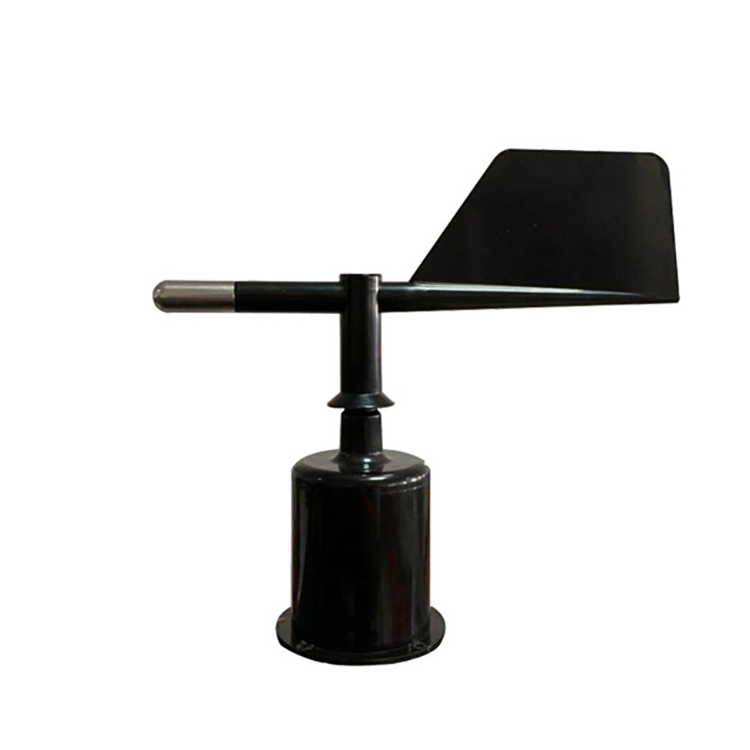

5. Wind direction sensor: the sensor used to measure the direction of the wind. The most common types are wind direction wind vane sensor and wind direction wind hanging sensor.

A wind sensor is a device that measures the direction of the wind, which usually consists of a wind vane and a signal processing unit. The wind direction sensor's wind vane is able to sense the change of wind direction and convert it into an electrical or digital signal, and then through the signal processing unit for amplification, filtering, linearization and other processing, the final output of readable wind direction measurement results.

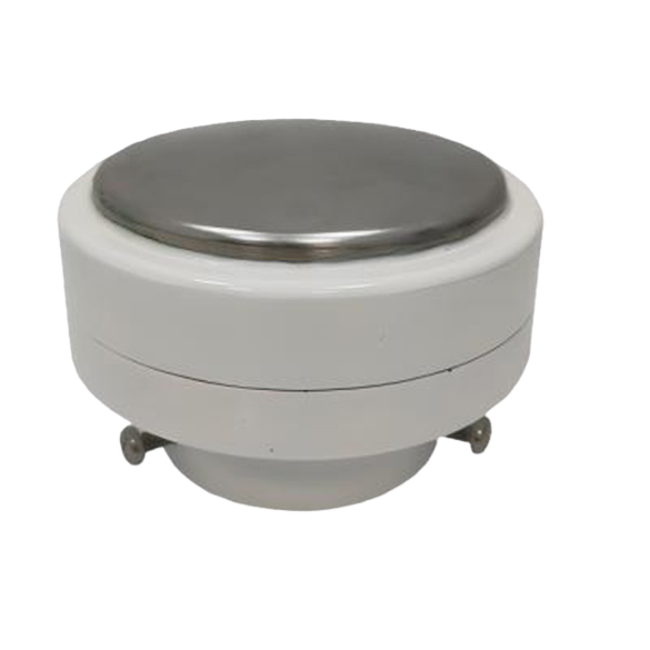

6. Precipitation sensor: a sensor used to measure precipitation. Common types include rain gauges, liquid stream gauges and optical precipitation sensors.

A rain gauge is a sensor device used to measure the amount of precipitation. It accurately measures the amount of rainfall and helps meteorologists, farmers and other related industries in weather monitoring and water management.

There are several common types of rain gauges:

6.1. Cylinder rain gauge: also known as baked alcohol rain gauge, it is one of the most common and traditional types of rain gauges. It consists of a cylindrical glass measuring cylinder and a funnel. When it rains, the rainwater passes through the funnel into the measuring cylinder, thus measuring the amount of rainfall. The cylinder is labeled with a scale so that the amount of rainfall can be read directly.

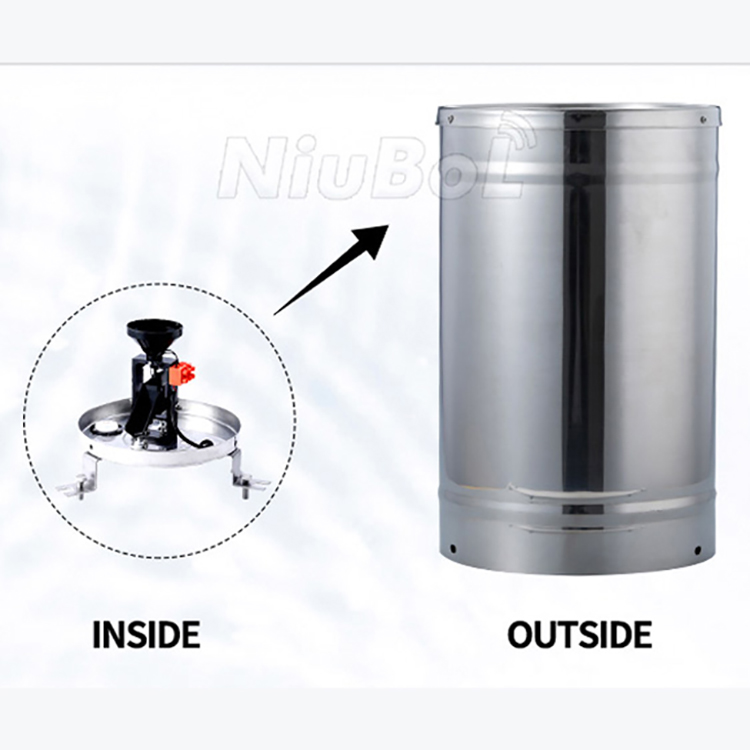

6.2. Tipping Bucket Rain Gauge: The tipping bucket rain gauge is a device that automatically records the amount of rainfall. It consists of a funnel and a tipping bucket. When rainfall occurs, rainwater passes through the funnel into the tipping bucket, and when the bucket accumulates to a certain level, it turns over and records the rainfall. This type of rain gauge is usually equipped with a data logger that allows continuous recording of rainfall data over a period of time.

6.3. Radar Rain Gauge: The radar rain gauge utilizes radar technology to measure rainfall. It determines the location and intensity of rainfall by transmitting radar beams and receiving the signals reflected back. This type of rain gauge can monitor rainfall over a wide area in real time and generate rainfall images and data.

6.4. Optical Rain Gauges: Optical rain gauges use optical sensors to measure rainfall. It detects the presence and number of raindrops by scattering and reflecting light beams to calculate the amount of rainfall. Optical rain gauges are usually characterized by fast response and high accuracy.

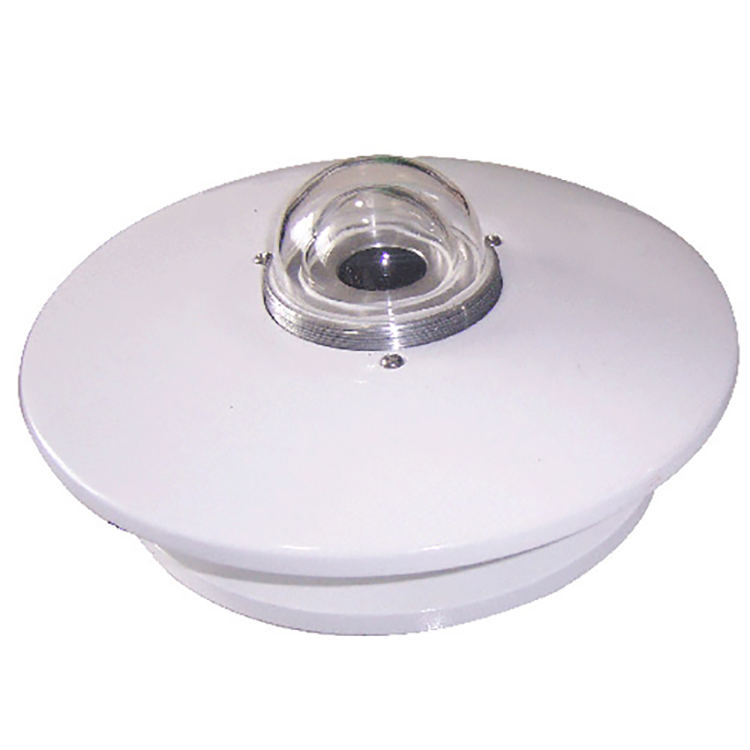

7. Radiation sensors: Sensors used to measure solar and terrestrial radiation. Common types include solar radiometers, infrared radiometers and all-sky radiometers.

A solar radiation sensor is a device capable of measuring solar radiation, which usually consists of a photosensitive element and a signal processing unit. The photosensitive element of a solar radiation sensor senses the light intensity of sunlight and converts it into an electrical or digital signal, which is then amplified, filtered, linearized, etc. by the signal processing unit, and finally outputs a readable solar radiation measurement.

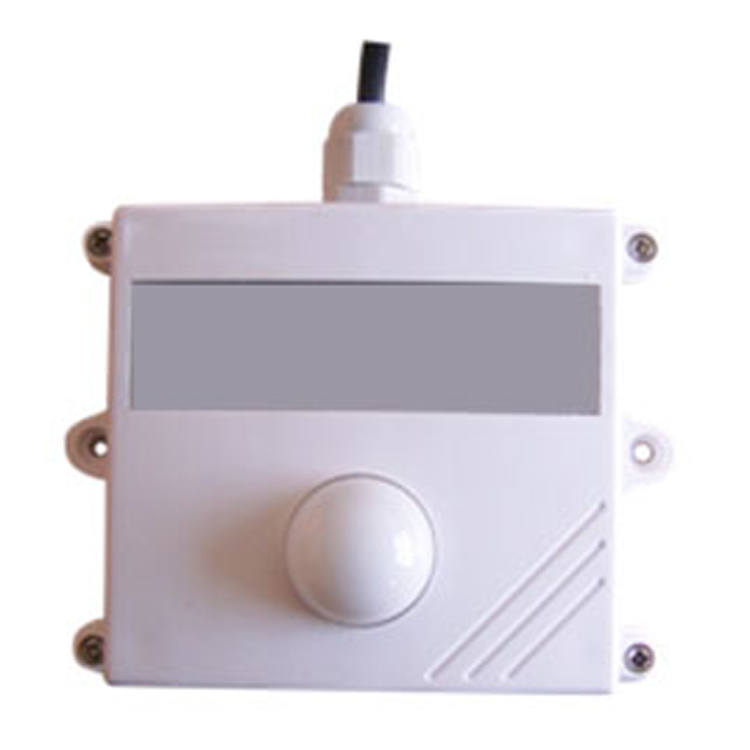

8. Illumination sensor: a sensor used to measure light intensity. Common types include photoresistors and photodiodes.

Illumination sensor is a device that can measure the intensity of light, it usually consists of a photosensitive element and a signal processing unit. The photosensitive element of the illuminance sensor is able to sense the light intensity and convert it into an electrical or digital signal, which is then amplified, filtered, linearized, etc. by the signal processing unit, and finally outputs a readable light intensity measurement result.

These are some of the common weather station sensors that work together to monitor and record different weather elements, providing important data for meteorology, climate research and weather forecasting.

These sensors can be used individually or in combination to obtain more comprehensive weather data. In weather stations, sensors are usually used in conjunction with data collectors, data processing systems and data transmission equipment to enable real-time monitoring, processing and transmission of weather data.
