Wind Sensor (Anemometer) Overview

Definition of Wind Sensor (Anemometer)

A wind sensor, commonly referred to as an anemometer, is an instrument used to measure wind speed and direction. It plays a critical role in fields such as meteorology, environmental monitoring, aviation, maritime navigation, agriculture, urban planning, and renewable energy (e.g., wind power). The data provided by the wind sensor helps decision-makers and researchers understand atmospheric conditions and optimize operations and designs.

Classification and Working Principles of Wind Anemometers

Wind anemometers can be classified into various types based on their measurement principles and structure:

1. Mechanical Wind Sensors

   - Cup Anemometer

     - Description: One of the most common types of anemometers, consisting of a set of three or four cups mounted on a frame at a specific angle (e.g., 120°). The cups rotate under the influence of the wind, with the rotational speed being proportional to the wind speed.

     - Advantages: Simple design, durable, widely used in meteorological stations.

     - Disadvantages: Mechanical wear can reduce accuracy over time; it has a minimum starting wind speed below which it cannot measure; sensitive to sand, snow, or corrosive environments.

     - Working Principle: The cups capture the wind, causing the component to rotate. The rotational speed is measured by a magnetic or optical encoder, which converts the rotation into an electrical signal proportional to the wind speed.

    - Vane Anemometer

     - Description: This type of anemometer measures both wind speed and direction. It typically has a vane aligned with the wind direction and a propeller or cup component that measures wind speed.

     - Advantages: Provides both wind speed and direction data, suitable for outdoor applications.

     - Disadvantages: Mechanical parts wear out, and accuracy may be reduced under turbulent conditions.

     - Working Principle: The vane aligns with the wind direction, while the propeller or cup component rotates. The rotational speed is measured similarly to a cup anemometer, and the vane provides directional data.

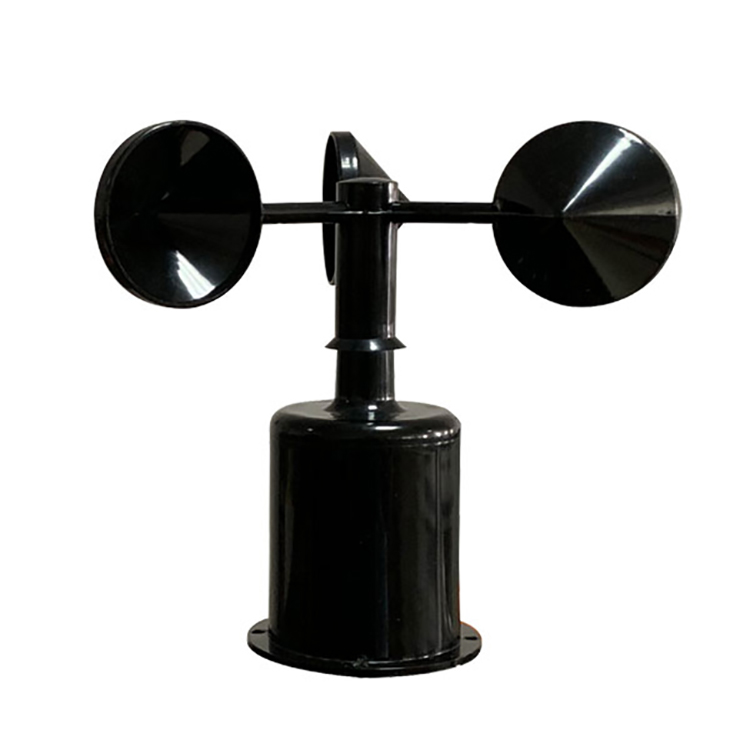

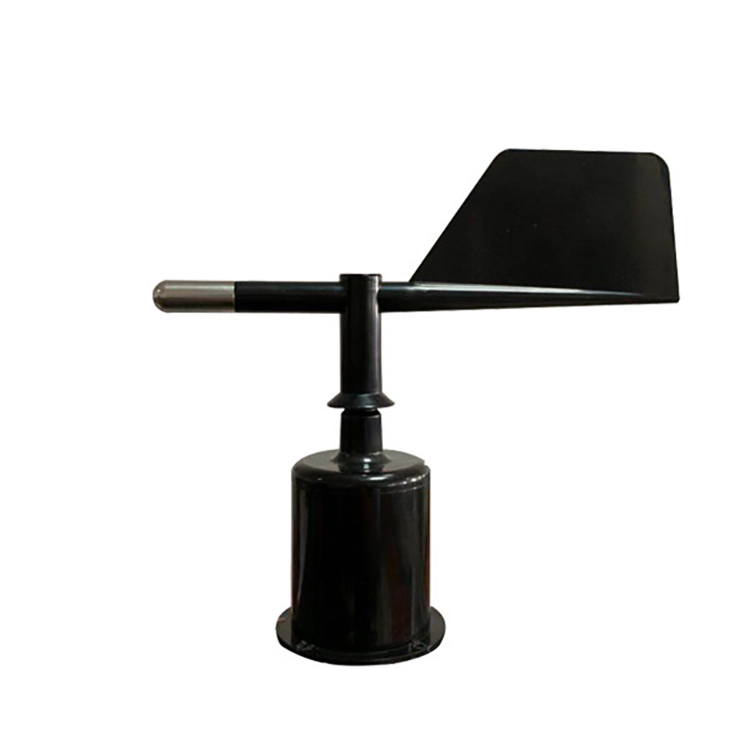

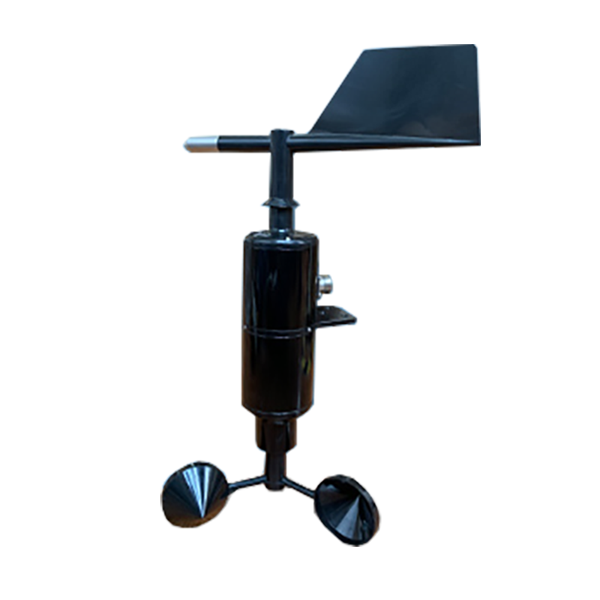

Wind direction sensor	Wind Speed sensor	Mechanical three cup wind speed direction sensor

2. Ultrasonic Wind Sensor

   - Description: Measures wind speed and direction by calculating the time it takes for ultrasonic waves to travel between pairs of transducers. The difference in travel times between opposite paths is used to determine wind speed and direction.

   - Advantages: No moving parts, more durable, lower maintenance, and longer lifespan; high accuracy and stability, unaffected by mechanical wear; wide measurement range from zero wind speed to high wind speeds; fast response, suitable for measuring instantaneous wind speeds; multi-functional, measuring both wind speed and direction with 360° accuracy; performs well in harsh environments and is less susceptible to contamination.

   - Disadvantages: More advanced technology, typically higher initial investment costs; electronic components may be sensitive to extreme temperatures or electromagnetic interference; requires more complex signal processing, with higher demands on both software and hardware.

   - Working Principle: Ultrasonic waves travel between a pair of transducers. The time taken for the waves to travel in opposite directions depends on the wind speed and direction. By measuring the time difference, the wind sensor calculates both wind speed and direction.

Ultrasonic wind speed and direction sensor	5 in 1 Ultrasonic weather stations	6 in 1 Ultrasonic Weather Station	All-in-One Ultrasonic Weather Station

3. Hot-Wire Anemometer

   - Description: Uses a fine wire heated by an electric current. When air flows over the wire, it cools down, and the temperature change is proportional to the wind speed. The anemometer adjusts the current to maintain a constant temperature, allowing it to calculate wind speed.

   - Advantages: High accuracy, especially suitable for measuring very low wind speeds, quick response time.

   - Disadvantages: Fragile, sensitive to pollutants, not suitable for outdoor use.

   - Working Principle: The heated wire is cooled by the wind, and the cooling amount is proportional to the wind speed. The anemometer adjusts the current to maintain a constant temperature, and the required current is used to calculate wind speed.

4. Laser Doppler Anemometer

   - Description: Utilizes laser light and detects the Doppler shift in the frequency of scattered light from particles in the air to measure wind speed. It offers high precision and can measure wind speed in multiple directions simultaneously.

   - Advantages: Extremely high precision and resolution, non-intrusive measurement.

   - Disadvantages: Expensive and complex, typically used in laboratory environments or specialized applications.

   - Working Principle: A laser beam is split into two beams, which intersect at a point in the air. Particles in the air scatter the light, and by measuring the frequency shift (Doppler shift) in the scattered light, the wind speed and direction are determined.

5. Pitot Tube Anemometer

   - Description: Measures wind speed by detecting the difference between static pressure and dynamic pressure. It is commonly used in aviation and industrial applications.

   - Advantages: Simple and reliable, widely used in aircraft and industrial ventilation systems.

   - Disadvantages: Not suitable for measuring low wind speeds, requires calibration for accurate readings.

   - Working Principle: The Pitot tube measures the difference between static pressure (pressure when the air is still) and dynamic pressure (pressure caused by moving air). Bernoulli's principle is used to calculate wind speed from this pressure difference.

Applications of Wind Anemometers

Wind anemometers play a crucial role across various industries and applications, providing valuable data for decision-making, safety, and efficiency. Some key applications include:

 1. Meteorology and Weather Forecasting

   - Role: Wind anemometers are essential in meteorological stations, providing real-time data on wind speed and direction. This information is used to predict weather patterns, track storms, and issue warnings for severe weather events.

   - Benefits: Accurate and continuous data collection supports both long-term climate research and short-term weather forecasting.

 2. Aviation

   - Role: Wind anemometers are used at airports to monitor wind conditions, ensuring safe takeoff and landing. Pilots rely on wind data to adjust flight plans and avoid dangerous conditions such as crosswinds or gusts.

   - Benefits: Real-time data helps pilots make informed decisions, enhancing flight safety and efficiency.

3. Maritime Navigation

   - Role: Ships and offshore platforms use wind anemometers to monitor wind conditions, helping navigators plan routes and avoid dangerous weather. Wind data is also important for maritime safety and operational planning.

   - Benefits: Continuous monitoring of wind conditions ensures safe and efficient navigation and operations at sea.

4. Wind Energy

   - Role: Wind farms use anemometers to optimize the performance of wind turbines. Accurate wind speed and direction data help operators adjust turbine blades to maximize energy output and minimize wear and tear.

   - Benefits: Improved energy efficiency, reduced maintenance costs, and extended turbine lifespan.

5. Environmental Monitoring

   - Role: Wind anemometers are used in environmental studies to monitor air quality, pollutant dispersion, and climate change. Wind data helps researchers understand how pollutants spread and how wind patterns affect local ecosystems.

   - Benefits: Supports environmental protection efforts and provides valuable data for policy-making and conservation measures.

6. Agriculture

   - Role: Farmers use wind anemometers to monitor wind conditions in greenhouses, orchards, and open fields. Wind data helps farmers manage irrigation, protect crops from wind damage, and optimize planting and harvesting schedules.

   - Benefits: Increased crop yield, reduced water usage, and better pest and disease management.

7. Construction and Civil Engineering

   - Role: Wind anemometers are used on construction sites, especially for high-rise buildings, bridges, and cranes. Wind data helps ensure worker safety and prevent equipment damage.

   - Benefits: Reduced risk of accidents and delays, ensuring projects are completed on time.

Comparison of Mechanical Wind Sensors and Ultrasonic Wind Sensors:

1. Intuition:

 Mechanical wind sensors use traditional designs such as three-cup anemometers or spiral blades. The principle is simple and intuitive, easy to understand and maintain. Users can directly observe the rotation of the wind cups or blades, which helps them understand the working principle.

Ultrasonic wind sensors, on the other hand, operate based on the time difference of ultrasonic waves' propagation to measure wind speed and direction. The technology is more advanced, but the principle is more complex, and the average user might find it difficult to intuitively grasp how it works.

 2. Initial Cost:

Mechanical wind sensors have relatively simple manufacturing processes and low material costs, which make their initial purchase cost lower, making them suitable for applications with limited budgets.

 Ultrasonic wind sensors use more advanced electronics and complex signal processing algorithms, leading to higher manufacturing costs, and thus a higher initial purchase price.

 3. Maintenance Requirements:

Mechanical wind sensors contain moving parts (such as wind cups and bearings), which are prone to wear over time and require regular maintenance and calibration to ensure measurement accuracy. In harsh environments, maintenance frequency may increase.

Ultrasonic wind sensors do not have moving parts, which reduces the likelihood of mechanical wear. As a result, they have lower maintenance requirements and are well-suited for long-term, unattended environmental monitoring applications.

4. Minimum Startup Wind Speed Limit:

Mechanical wind sensors have a minimum startup wind speed limit, typically around 0.5 m/s. If the wind speed falls below this value, the wind cups or blades cannot start spinning, making it impossible to accurately measure the wind speed under low-wind conditions.

 Ultrasonic wind sensors can measure accurately from zero wind speed to high wind speeds, making them particularly suitable for applications that require capturing light wind changes, such as meteorological research, agricultural monitoring, etc.

 5. Accuracy:

 The accuracy of mechanical wind sensors tends to degrade over time, primarily due to wear and aging of mechanical components. Thus, they require regular calibration to maintain measurement accuracy after long-term use.

 Ultrasonic wind sensors, being independent of mechanical motion, are not affected by mechanical wear and can provide stable and highly accurate wind speed and direction data, making them suitable for applications with high accuracy requirements.

 6. Response Speed:

 Mechanical wind sensors have a relatively slow response speed, especially when measuring instantaneous wind speed. There may be delays because the mechanical components need time to reach a stable rotational speed.

 Ultrasonic wind sensors have a fast response and can capture wind speed changes in a short period of time. This feature is particularly useful for measuring instantaneous wind speed and gusts, such as in aviation, maritime, and similar fields.

 7. Versatility:

 Mechanical wind sensors typically measure only wind speed, with some models adding a wind vane to measure wind direction. However, the range of direction measurement is limited, typically to 180° or 360°, depending on the design.

 Ultrasonic wind sensors can simultaneously measure both wind speed and direction and can perform 360° measurements without any angular limitations, providing more functionality and flexibility, making them suitable for applications that require comprehensive wind field data.

 8. Environmental Adaptability:

 Mechanical wind sensors are sensitive to dust, snow, or corrosive environments. Long-term exposure to such conditions may cause mechanical components to be damaged or degrade, affecting measurement accuracy.

 Ultrasonic wind sensors have strong environmental adaptability and can operate under harsh weather conditions without being affected by pollution or corrosion, making them ideal for use in extreme environments such as offshore platforms or mountain weather stations.

 9. Complexity:

 Mechanical wind sensors are relatively simple in design and operation. Users do not need advanced electronic knowledge to install and use them, making them suitable for applications with lower technical requirements.

 Ultrasonic wind sensors require more complex electronic signal processing and software support, which means they have higher hardware and software demands. They are better suited for users with a certain level of technical background or for specialized fields.

Summary:

 Anemometers are essential tools for measuring wind speed and direction and are widely used in meteorology, aviation, maritime, wind energy, environmental monitoring, agriculture, and other fields. Selecting the appropriate type of anemometer depends on specific application requirements, budget, and maintenance capabilities. Mechanical wind sensors, due to their simplicity and cost-effectiveness, still hold a place in certain applications, particularly where maintenance costs are low, and precision requirements are not high. Ultrasonic wind sensors, with their high precision, low maintenance, wide measurement range, and robust environmental adaptability, are better suited for applications requiring long-term stability and high-precision data, such as meteorological research, wind energy assessment, and precision agriculture.
