What is a Weather Station?

A weather station is a facility designed to observe, record, and analyze various physical and chemical conditions in the atmosphere. It uses a series of specialized instruments and devices to systematically collect, process, store, and transmit meteorological information. The main functions of a weather station include:

- Monitoring Meteorological Elements: It records key weather parameters such as temperature, humidity, atmospheric pressure, wind speed, wind direction, and precipitation in real-time.

- Supporting Weather Forecasts: The meteorological data it provides helps meteorological departments analyze weather patterns and make accurate forecasts, offering guidance for public activities such as travel and daily life.

- Climate Analysis: By collecting long-term data, weather stations study climate trends, understand climate change, and seasonal weather patterns, offering foundational data for climate research.

- Environmental Assessment: It monitors the air quality index, greenhouse gas concentrations, and other environmental factors, providing scientific support for environmental protection.

- Disaster Prevention: It monitors weather conditions that could lead to natural disasters such as floods, droughts, and storms, issuing early warnings to reduce disaster impacts.

- Agricultural Guidance: It provides critical weather data to help agricultural planning, including planting times, irrigation, and harvesting, improving agricultural productivity.

- Supporting Decision-Making: It offers data support to governments and businesses, helping to formulate strategies for extreme weather events and ensuring the smooth operation of socio-economic activities.

- Education and Research: It serves as an educational resource, enhancing public understanding of meteorological science while also supporting academic research to advance the field of meteorology.

Working Principle of a Weather Station

The working principle of a weather station includes the following steps:

1. Sensor Monitoring:

   - The weather station is equipped with various meteorological sensors, such as temperature, humidity, and wind speed sensors, which monitor the changes in weather elements in real-time.

2. Data Recording:

   - The meteorological data captured by the sensors is recorded and processed by the internal system for storage and future analysis.

3. Data Transmission:

   - Some weather stations can transmit data to central Weather Stations or other monitoring agencies through wireless or wired communication methods, enabling data sharing and distribution.

4. Data Analysis:

   - The weather station analyzes the meteorological data to generate reports and weather forecasts, providing users with relevant weather services.

Main Components of a Weather Station

1. Sensors:

   - These are used to measure various meteorological elements such as temperature, humidity, atmospheric pressure, wind speed, wind direction, and rainfall. Sensors are usually placed in observation fields and connected to a data logger via signal cables.

2. Data Logger:

   - The data logger collects the data from the sensors and transmits it to the data processing and storage system. It may also have preliminary data processing functions, such as filtering and calibration.

3. Data Processing and Storage System:

   - This system processes, analyzes, and stores the collected data. It typically involves computer hardware and software to generate reports, charts, and other visual outputs for further analysis and application.

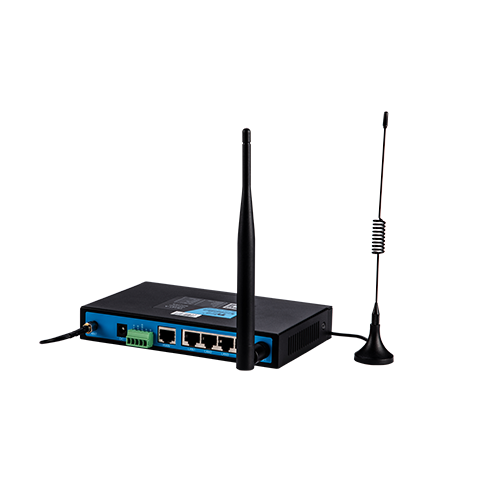

4. Communication Devices:

   - These devices transmit data to data centers or meteorological departments for further analysis. Modern weather stations are often equipped with wireless communication modules (such as GPRS, 4G/5G/Wi-Fi, satellite communication, LoRa, etc.) to transmit data in real-time.

5. Power Supply:

   - The weather station requires a stable power supply to operate normally. The power can come from mains electricity, solar panels, or batteries, especially in remote areas or for portable weather stations.

Types of Weather Stations

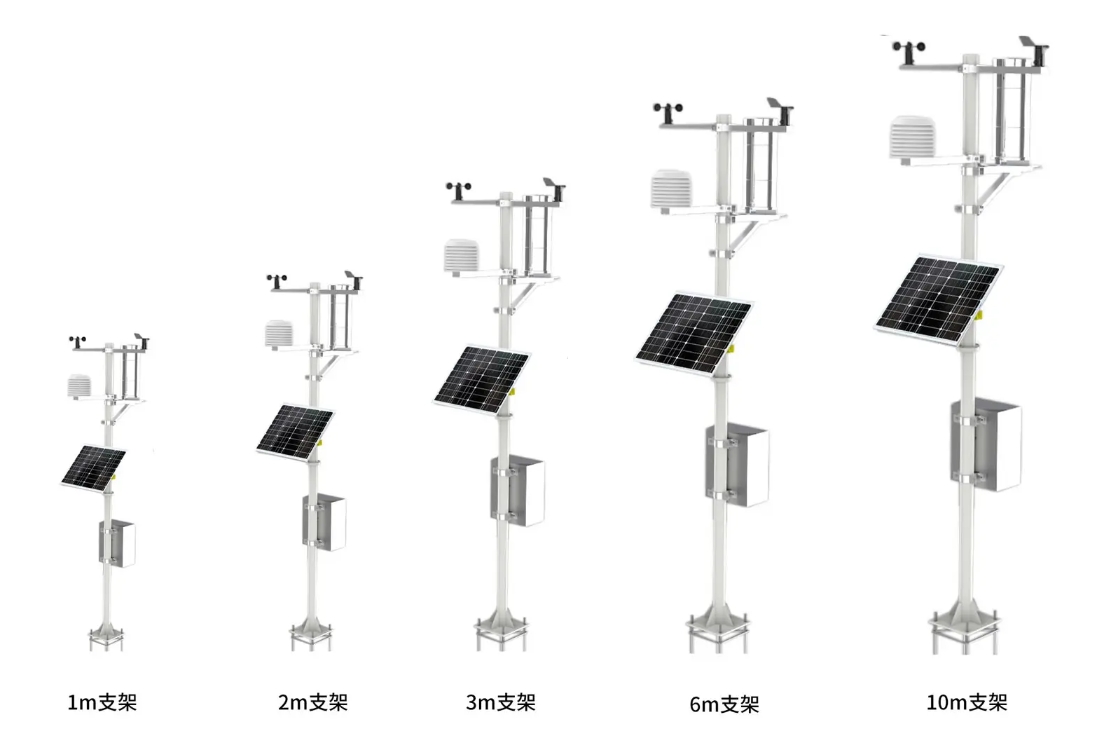

1. Fixed Weather Stations:

   - Characteristics: Fixed at a specific location for long-term meteorological observation. These are typically deployed at airports, meteorological centers, and research institutions. Fixed weather stations provide stable and accurate weather data over time.

   - Application: Meteorological research, airports, agricultural bases, urban weather monitoring, etc.

2. Portable Weather Stations:

   - Characteristics: Compact and easy to carry, suitable for temporary observations or detailed weather surveys of specific areas. Portable weather stations can be moved easily and are often used in field studies or emergency situations.

   - Application: Disaster response, outdoor activities, temporary scientific research, etc.

3. Automatic Weather Stations:

   - Characteristics: Automatically observe, process, store, and transmit meteorological elements. These stations are known for their real-time efficiency and accuracy. They are widely used in agriculture, forestry, and transportation for real-time data support.

   - Application: Agriculture, forestry, transportation, energy, water resources, etc.

4. National-Level Weather Observation Stations:

   - Characteristics: Equipped with comprehensive meteorological observation equipment and systems, capable of long-term, continuous data recording. These stations provide essential data for weather forecasting and climate research.

   - Application: National meteorological agencies, research institutions, climate studies, etc.

Weather Observation Items and Their Differences

Weather stations observe a variety of parameters, including the following:

1. Temperature:

   - Description: Reflects the temperature of the atmosphere and is an important indicator for understanding local climate change.

   - Sensors: Thermometers, thermocouples, resistance temperature detectors, etc.

2. Humidity:

   - Description: Reflects the moisture content in the atmosphere and plays a crucial role in weather changes and climate predictions.

   - Sensors: Hygrometers, capacitive humidity sensors, etc.

3. Atmospheric Pressure:

   - Description: Reflects the pressure of the atmospheric gases, offering insights into the composition of the atmosphere and local climate changes.

   - Sensors: Barometers, electronic pressure sensors, etc.

4. Wind Speed:

   - Description: Reflects the wind speed in the atmosphere and is important for analyzing the movement and strength of weather systems.

   - Sensors: Anemometers, ultrasonic wind speed sensors, etc.

5. Wind Direction:

   - Description: Reflects the wind direction in the atmosphere, helping to analyze the origin and movement direction of weather systems.

   - Sensors: Wind vanes, ultrasonic wind direction sensors, etc.

6. Precipitation:

   - Description: Reflects the amount of rainfall, which is crucial for understanding local water resources and predicting flooding or drought conditions.

   - Sensors: Rain gauges, tipping bucket rain sensors, etc.

Additionally, weather stations may also observe other parameters such as cloud cover, cloud type, cloud height, visibility, weather phenomena, and atmospheric events. These observation items each focus on different aspects of atmospheric conditions, collectively providing comprehensive monitoring of the weather.

 Weather Station Data Processing Workflow

The raw data collected by Weather Stations needs to undergo a series of processing steps before it can be converted into useful information. Below is the main workflow for processing data from Weather Stations:

 1. Data Collection

   - Sensor Readings: Weather Stations collect data on meteorological variables (e.g., temperature, humidity, wind speed, air pressure) in real-time using various sensors such as thermometers, hygrometers, anemometers, and barometers.

   - Data Acquisition: The sensors convert the collected analog signals into digital signals, which are processed and stored by a data acquisition system. The data acquisition system typically sets a sampling frequency (e.g., every minute or hourly) to ensure continuous and accurate data collection.

 2. Data Transmission

   - Local Storage: The data acquisition system can store the collected data locally in devices like SD cards, hard drives, or other storage media for later processing.

   - Remote Transmission: Modern Weather Stations are usually equipped with wireless communication modules (e.g., GPRS, 4G, 5G, Wi-Fi, satellite communication) to transmit data in real-time to data centers or meteorological departments. For stations in remote areas, satellite communication or other long-distance transmission methods may be used.

   - Online Upload: Data can be uploaded to cloud servers through the internet for access and analysis by multiple users or systems.

 3. Data Cleaning and Preprocessing

   - Removing Outliers: Due to sensor malfunctions or environmental interferences, the collected data may contain outliers. The data cleaning process involves identifying and removing these outliers to ensure the data's accuracy and reliability.

   - Filling Missing Data: Sometimes, data may be missing due to equipment failure or communication interruptions. Interpolation methods or other algorithms can be used to fill in the missing data, ensuring continuity in the dataset.

   - Unit Conversion: Different sensors may use different units (e.g., Celsius, Fahrenheit, mm Hg), so the data processing needs to standardize the units to ensure uniformity.

   - Time Alignment: Different sensors may have different sampling frequencies, so it is necessary to align the data from various sensors to ensure that the data from all sensors corresponds to the same time intervals.

 4. Data Analysis and Processing

   - Statistical Analysis: Historical data can be analyzed to calculate statistical measures such as mean, maximum, minimum, and standard deviation, which help understand the trends in meteorological variables.

   - Trend Analysis: Long-term data analysis can reveal trends in meteorological variables, such as rising temperatures or decreasing rainfall, supporting climate research.

   - Model Forecasting: Based on historical and current data, mathematical models or machine learning algorithms can be used for weather forecasting and climate prediction. For example, short-term weather forecasts can be based on current temperature, humidity, wind speed, etc., while long-term climate forecasts can be derived from multi-year historical data.

 5. Data Visualization

   - Chart Generation: The processed data can be displayed in charts such as line graphs, bar charts, heat maps, etc., for users to easily understand meteorological changes.

   - Map Display: For regional meteorological data, it can be displayed on Geographic Information Systems (GIS) to help users understand weather conditions in different areas.

   - Report Generation: Based on user needs, automated weather reports for daily, weekly, or monthly intervals can be generated, providing detailed meteorological data and analysis results.

 6. Data Publishing and Sharing

   - Public Release: Weather Station data can be released to the public through official websites, mobile apps, social media, and other channels, providing real-time weather information and forecasts.

   - Professional Sharing: Meteorological data can also be shared with other research institutions, government agencies, businesses, etc., for scientific research, disaster warnings, agricultural production, and other applications.

 Weather Station Equipment Maintenance

To ensure the proper operation of Weather Stations and the accuracy of data, regular maintenance is crucial. Below are the main components of Weather Station equipment maintenance:

 1. Daily Inspection

   - Visual Check: Periodic inspections should be carried out to check the physical condition of the equipment, ensuring no damage, corrosion, or looseness. Special attention should be paid to sensors, mounts, cables, etc., to ensure everything is intact.

   - Cleaning: Keeping the area around the station clean is essential to prevent dust, debris, or bird nests from affecting sensor performance. For example, the rain gauge funnel should be regularly cleaned to prevent blockages, and the anemometer and wind vane should be free from obstructions.

   - Power Supply Check: Regular checks should be made on the power supply system, especially solar panels and batteries. Ensuring the battery is fully charged and the charging system is functioning correctly is essential. For stations powered by mains electricity, the voltage stability should also be monitored.

 2. Sensor Calibration

   - Regular Calibration: Sensor accuracy can degrade over time, so sensors need to be calibrated periodically. Calibration can be performed by comparing against standard instruments or known reference values. Common calibration tasks include temperature, humidity, pressure, and wind speed.

   - Sensor Replacement: If a sensor malfunctions or its accuracy significantly deteriorates, it should be replaced promptly. In harsh environments (e.g., high humidity, strong winds, low temperatures), sensors may have shorter lifespans, requiring more frequent inspection and replacement.

 3. Data Acquisition System Maintenance

   - Software Updates: The firmware and software of the data acquisition system should be regularly checked and updated to the latest versions. Software updates fix known bugs and improve system stability and performance.

   - Storage Space Management: The storage capacity of the data acquisition system should be monitored to ensure enough space is available to store data. If storage space is insufficient, data loss or overwriting may occur. Regular data backups or offloading data to external storage devices should be conducted.

   - Communication Testing: The communication between the data acquisition system and the data center should be regularly tested to ensure smooth data transmission. Any communication issues should be addressed by checking the communication module, antenna, network connection, etc.

 4. Lightning Protection and Grounding

   - Lightning Protection: Weather Stations are often located in open areas and are vulnerable to lightning strikes. A reliable lightning protection and grounding system must be installed to safeguard the equipment. The lightning protection system should be regularly checked to ensure it is functioning properly and the ground resistance is within acceptable limits.

   - Lightning Rods and Grounding Wires: Ensure that the lightning rods and grounding wires are securely connected, and the grounding resistance meets the required standards. For newly installed stations, the lightning protection system should be designed and installed according to relevant standards.

 5. Spare Equipment Preparedness

   - Spare Sensors and Parts: Spare parts, especially for critical sensors and components, should be kept in stock to address unexpected failures. Spare equipment can temporarily replace malfunctioning components during repairs, ensuring the station continues to operate.

   - Backup Power: For stations reliant on mains power, it is recommended to provide uninterruptible power supplies (UPS) or backup generators to prevent data loss or equipment damage in case of power outages.

 6. Regular Inspections

   - Field Inspections: Technical personnel should regularly visit the station for on-site inspections, checking the equipment's operational status, recording its operating parameters, and addressing any issues that arise.

   - Remote Monitoring: A remote monitoring system can be used to continuously track the operation of the Weather Station. If any abnormalities are detected, personnel can be dispatched to conduct on-site maintenance.

 7. Documentation

   - Maintenance Log: After each maintenance session, detailed records should be made, including the maintenance tasks, time, and outcomes. This log helps track the equipment's performance history, evaluate maintenance effectiveness, and provide valuable reference for future work.

   - Fault Reports: If the equipment fails, a fault report should be created, documenting the symptoms, causes, and solutions. This can help in analyzing common issues and improving future maintenance strategies.

 Conclusion

Weather Stations are vital components of modern weather observation and forecasting systems, providing timely and accurate weather data through advanced sensor technologies and data analytics. Whether fixed or portable, Weather Stations play an essential role in various fields such as agriculture, transportation, environmental protection, and disaster warnings, helping us better respond to environmental changes. The data processing in Weather Stations involves complex steps from data collection and transmission to cleaning, analysis, and publishing, ensuring data accuracy and usability. Proper equipment maintenance, including routine inspections, calibration, cleaning, and lightning protection, is crucial for the long-term operation of Weather Stations, minimizing faults and ensuring high-quality weather data delivery.
