What is a 3D ultrasonic anemometer?

3D Ultrasonic Anemometer Overview

 What is a 3D ultrasonic anemometer?

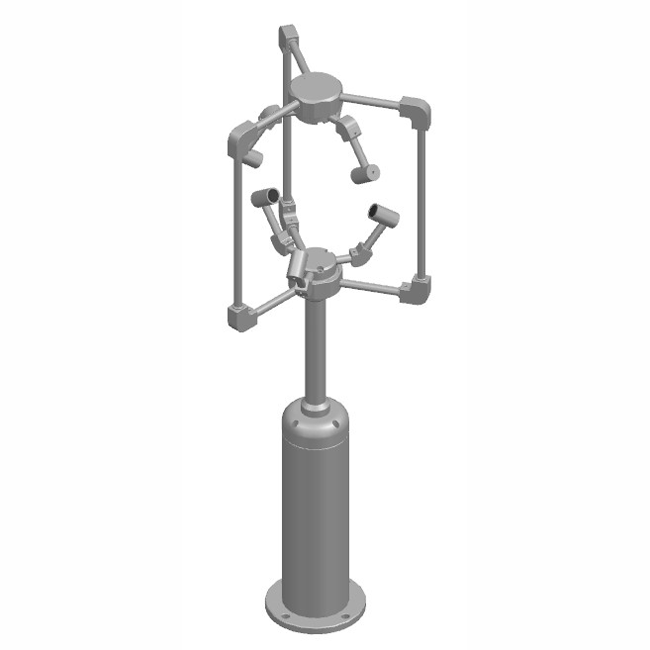

A 3D ultrasonic anemometer is an instrument that uses the principle of ultrasound to measure wind speed and direction in three dimensions. It typically contains multiple ultrasonic transmitters and receivers that are arranged in a fixed structure to determine wind speed and direction by measuring the propagation time of ultrasonic pulses through the air. Since ultrasonic anemometers do not contain any moving parts, they offer high reliability, low maintenance requirements and long service life.

3D ultrasonic anemometers measure wind speed horizontally (U and V components) and vertically (W component) to provide a full range of wind field data. This data is critical for applications that require accurate wind speed and direction information.

Application Scenarios of 3D Ultrasonic Anemometer

1.Meteorological Observation:

Weather forecasting and early warning: 3D ultrasonic anemometer can provide high-precision wind speed and direction data, which helps meteorological departments to more accurately predict and warn of natural disasters, such as typhoons, hurricanes, tornadoes and so on.

Climate research: Through long-term observation and data analysis, 3D ultrasonic anemometer can provide multi-faceted wind field data, which is important for the study of climate change, climate simulation and climate model validation.

2.Air quality monitoring:

Wind speed and direction are important input parameters for air pollution dispersion model. 3D ultrasonic anemometer can provide accurate wind field data to help monitor and assess the diffusion of air pollutants, and provide data support for environmental protection departments to formulate environmental management and air control strategies.

3. Wind energy resource assessment:

Wind energy is a renewable and clean energy source, and 3D ultrasonic anemometer plays an important role in wind energy resource assessment. By measuring the wind speed and direction in all directions, the location and capacity of suitable wind power plants can be determined, and the efficiency of wind energy utilisation can be improved.

3D Ultrasonic Anemometer technical parameters

Monitoring elements synthetic wind speed, horizontal wind direction, vertical wind direction, X/Y/Z axis vector wind speed

4.Building environment monitoring:

In the field of construction, 3D ultrasonic anemometers can measure the distribution of wind fields around buildings to help designers optimize building structures and improve the stability and energy efficiency of buildings. For example, in the design of high-rise buildings, 3D ultrasonic anemometers can be used to measure and analyse the wind speed and direction around the building to determine the wind load of the building to ensure its safety.

5. Research and Education: In universities and research institutes, 3D ultrasonic anemometers are used for research and teaching of atmospheric science and fluid dynamics.

6. Wind power: In the field of wind power generation, 3D ultrasonic anemometers are used to accurately measure wind resources, optimise the location and operation of wind turbines, and improve power generation efficiency.

7. Other fields:

3D ultrasonic anemometer is also widely used in aerospace, navigation, agriculture and other fields, providing important data support for scientific research, environmental monitoring and engineering decision-making in related industries.

7.1 Aerospace and Marine: In airports and harbours, 3D ultrasonic anemometers provide accurate wind speed and direction information, which is vital for aircraft landing and ship navigation.

7.2 Agriculture: In precision agriculture, 3D ultrasonic anemometers are used to monitor wind speed and direction in crop-growing environments to optimise irrigation and crop protection measures.

To summarise

3D ultrasonic anemometer is an advanced wind speed measurement device based on ultrasonic technology, featuring high-precision, real-time monitoring and multi-directional measurement, capable of providing wind speed and direction data in three-dimensional space. It has a wide range of applications in many fields such as meteorological observation, air quality monitoring, wind power generation, wind energy resource assessment, aviation and navigation, agriculture, as well as scientific research and education, and built environment monitoring. By providing accurate wind speed and direction data, the 3D ultrasonic anemometer provides important data support for scientific research, environmental management and engineering decision-making in related fields.
