Weather Station Equipment and Sensors

A weather station is an important facility for meteorological observation and forecasting, and its equipment configuration covers the monitoring of a wide range of meteorological elements. Weather stations usually consist of a wide range of equipment and sensors in order to comprehensively monitor and record various meteorological parameters. The following are common equipment and sensors found in weather stations:

Common equipment of weather stations

1. data collector: used to collect and store data from various sensors, usually with data transmission function to send the data to a remote server or computer.

2. power supply system: the weather station needs a stable power supply, usually using solar panels, wind turbines or batteries as the power source.

3. Communication equipment: including wireless transceiver, GPRS/3G/4G/5G/6G module, satellite communication module, etc., which are used to transmit data remotely.

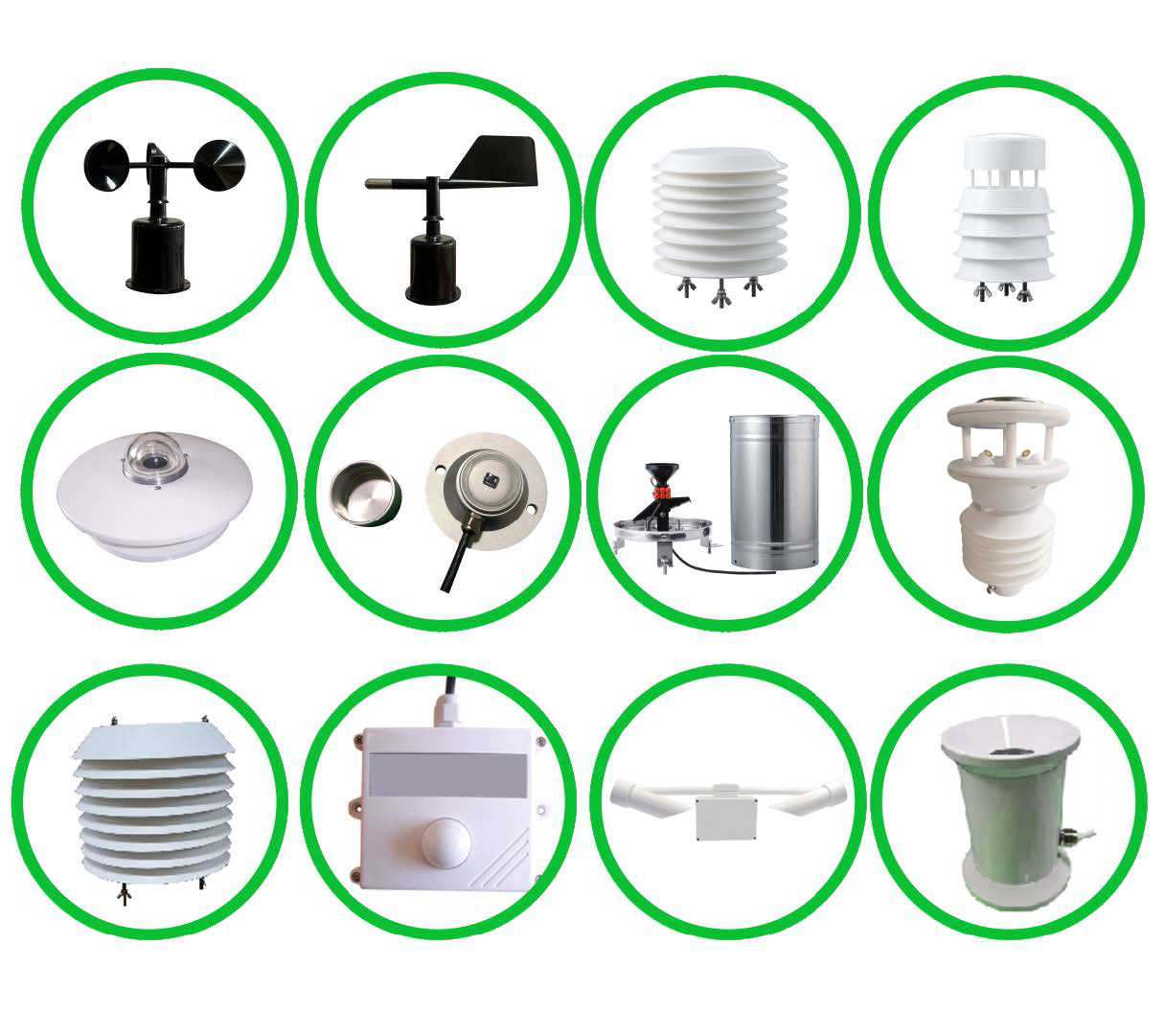

Common Sensors in Weather Station

1. Temperature Sensor: Measure the air temperature, usually placed in a louvered box to avoid direct sunlight affecting the readings.

2. Humidity Sensor: Measures the humidity of the air, often integrated with the temperature sensor.

3. Barometric Sensor: Measures atmospheric pressure and can be used to predict weather changes.

4. wind speed sensors (anemometers): measure wind speed, commonly used types include rotating cup anemometers and ultrasonic anemometers.

5. wind direction sensor (wind vane): measuring wind direction, usually used in conjunction with wind speed sensor.

6. rainfall sensor (rain gauge): measurement of rainfall, there are tipping bucket type rain gauge and weighing type rain gauge and other types.

7. solar radiation sensor: measuring the intensity of solar radiation, including global radiation, direct radiation and scattered radiation.

8. Ultraviolet Sensor: Measures the intensity of ultraviolet light, which is important for environmental monitoring and health protection.

9. soil moisture sensors: measure the moisture content of the soil, often used in agrometeorological stations.

10. Soil temperature sensor: Measures soil temperature at different depths, important for crop root growth and farm management.

11. Dew Point Sensor: Measures the dew point temperature of the air to help determine if dew or frost will form.

12. Visibility Sensor: Measures horizontal visibility, often used in traffic weather stations.

13. Snow Depth Sensor: Measures the depth of snow, mainly used in winter weather stations and ski resorts.

14. weather radar: used for monitoring and early warning of convective weather, such as thunderstorms, hail, etc., providing data support for disaster prevention and mitigation.

15. Remote sensing equipment: through remote sensing instruments carried by drones, airplanes or other platforms, information on surface temperature, vegetation cover, hydrology, etc. can be obtained.

15. Ambient air quality monitoring equipment: It is used to monitor the concentration of pollutants in the air, correlate and analyze with meteorological conditions, and forecast air quality.

Specialized equipment for meteorological stations

1. Radar: Used to monitor cloud cover, precipitation and storm systems, providing detailed weather images and forecast data.

2. Laser anemometer: utilizes laser technology to measure wind speed and direction with high accuracy, suitable for wind farms and aviation weather stations.

3. Aerosol Monitor: Measure the concentration of suspended particles in the air, commonly used in environmental monitoring.

Weather station accessories and auxiliary equipment

1. shutter boxes: used to protect the temperature and humidity sensors from direct solar radiation and to ensure accurate measurement data. 2. stands and towers: used to measure the concentration of airborne particles, often used for environmental monitoring.

2. stands and towers: used to mount and secure sensors to ensure that they are in the correct position and at the correct height for measurement.

3. lightning protection equipment: to protect the weather station equipment from damage caused by lightning strikes.

4. heaters: used to prevent sensors from freezing in cold weather, ensuring continuity and accuracy of data collection.

These devices and sensors work together to form a fully functional weather station, through which the meteorological department can provide accurate weather forecasts, environmental monitoring, climate monitoring and natural disaster warnings to safeguard people's lives and properties, as well as provide important services and support for many industries, such as agriculture, aviation, marine, and energy.

The way of collecting and transmitting data by weather station equipment includes the following steps:

1. Data collection: Sensors in weather stations are responsible for real-time monitoring and recording of various meteorological elements, such as temperature, humidity, barometric pressure, wind speed, wind direction, precipitation, and so on. These sensors can be contact, such as temperature and humidity meters, or non-contact, such as infrared thermometers.

2. Data processing: The collected raw data usually need to undergo preliminary processing and calibration to ensure the accuracy and reliability of the data. This step is usually carried out on-site at the weather station or at a remote weather data center.

3. Data transmission: The processed data need to be transmitted to the data center of the meteorological department. The transmission can be wired, e.g. via telephone lines or optical fiber, or wireless, e.g. via radio waves, satellite communications or mobile networks. Modern weather stations are increasingly relying on wireless transmission technologies, such as Wi-Fi, 3G/4G/5G/6G networks, LoRa, etc., which ensure real-time data and transmission stability.

4. Data storage: After the data is transmitted to the data center, it will be stored in the database for subsequent analysis and forecasting. The data center will be equipped with powerful servers and storage systems to ensure the long-term preservation and security of the data.

5. Data analysis and forecasting: Meteorological scientists and forecasters will use specialized software and algorithms to analyze the collected data and create weather forecasts and climate analysis reports. These reports will provide important decision support to the public, governments and businesses.

6. Early warning and information services: For possible extreme weather events, such as typhoons, rainstorms, cold waves, etc., the meteorological departments will issue early warning information based on the results of data analysis, and notify the public in a timely manner to take countermeasures through various channels, such as television, radio, cell phone apps and social media.

With the development of technology, modern weather station equipment is becoming smarter and more automated, capable of collecting and transmitting data more efficiently and accurately, providing powerful support for weather forecasting and climate research.
