Visibility Monitoring Stations: Smart Devices Guarding Traffic and Environmental Safety

In modern society, atmospheric visibility, as an important indicator of air quality and weather conditions, directly impacts traffic safety, aviation operations, and environmental protection. To meet the demands of these fields, visibility monitoring stations have emerged. These high-tech devices can monitor changes in atmospheric visibility in real-time, providing users with accurate and reliable data support. This article will provide a detailed introduction to the definition, working principle, functional advantages, and broad applications of visibility monitoring stations, helping readers understand how this technology enhances safety and efficiency.

 What is a Visibility Monitoring Station?

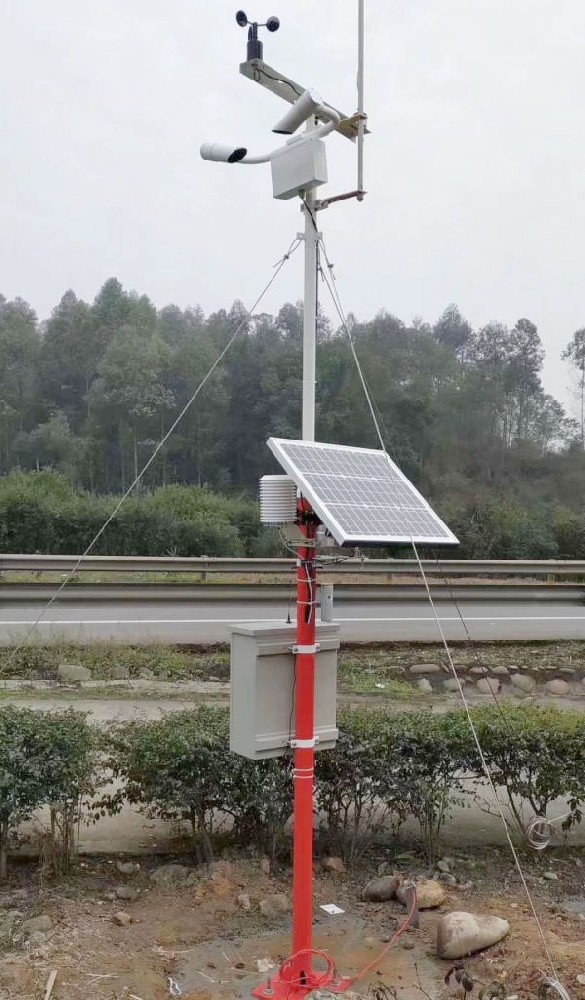

A visibility monitoring station is a specialized meteorological device designed to measure atmospheric visibility. It analyzes the scattering or absorption of light by airborne particles (such as fog droplets, dust, or aerosols) using optical technology, calculating the furthest distance at which objects can be clearly seen under specific weather conditions. A visibility monitoring station typically consists of sensors, data collectors, a power system, and a communication module. It can operate stably in various environments and transmit data to the backend system for analysis and use.

Compared to traditional meteorological equipment, visibility monitoring stations feature an integrated design, compact structure, and easy installation. Their optical components are specially treated to resist precipitation, dust, and pollution, ensuring the accuracy and long-term stability of measurement results. These devices are widely used in traffic management, airport operations, port safety, and environmental monitoring.

 Types and Working Principles of Visibility Monitoring Instruments:

The core component of a visibility monitoring station is the visibility monitoring instrument, which is primarily divided into two types based on the measurement principle: transmissive and scattering.

1. Transmissive Visibility Instruments

   Transmissive visibility instruments calculate atmospheric extinction coefficients to determine visibility by measuring the transmittance of light passing through the air. They require a longer baseline (light path length), sample a larger volume, and provide high measurement accuracy. This makes them suitable for scenarios that require high-resolution data, such as research or large meteorological stations. However, their installation and maintenance are more complex due to the baseline requirement.

2. Scattering Visibility Instruments

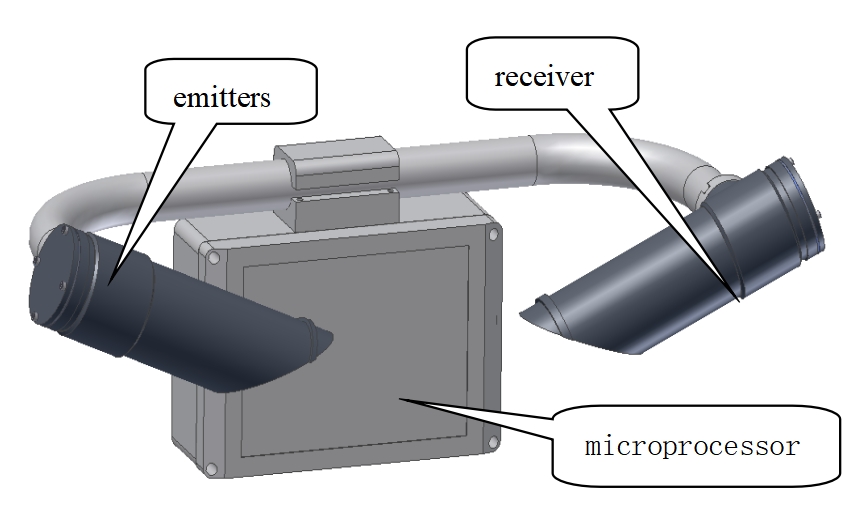

   Scattering visibility instruments assess visibility by measuring the intensity of scattered light from airborne particles. A common design utilizes 35° forward scattering technology, which improves measurement accuracy by exploiting the specific scattering characteristics of light at certain angles. This type is simple in structure, compact, and especially suitable for low-visibility environments (such as fog or sandstorms). It is the preferred choice for traffic and airport applications.

Modern visibility monitoring stations typically use a scattering design due to its ease of installation, strong adaptability, and ability to meet most practical needs. The device emits high-frequency light beams, receives scattered signals, and then calculates the visibility value using algorithms. The results are output in digital form for real-time viewing by users.

 Functional Advantages of Visibility Monitoring Stations:

Visibility monitoring stations offer significant advantages in terms of performance and practicality due to advanced technology and careful design:

1. High Accuracy and Stability

   By employing the 35° forward scattering principle, the visibility monitoring instrument can accurately measure scattered light intensity and provide reliable visibility data. The unique dual-scattering receiver design effectively reduces interference from sunlight and other stray light, ensuring data consistency.

2. Durability and Anti-Pollution Design

   The optical lenses of the device are treated with dustproof, antifungal, and anti-oil coatings, significantly reducing the risk of dust accumulation and salt mist corrosion. Even in harsh weather conditions (such as heavy rain or sandstorms), the lens remains clean, ensuring accurate measurements.

3. Robust Structure

   Visibility monitoring stations are made from high-quality anodized aluminum and 316 stainless steel, with multi-layer paint protection, reaching IP65 protection rating. This design allows them to withstand coastal climates or high-humidity environments, with corrosion-resistant screws further enhancing durability.

4. Low Power Consumption and Flexible Power Supply

   The device consumes less than 1W of power and supports 12V DC power supply, which can be operated via batteries or solar panels. This low power consumption feature makes it suitable for remote areas or mobile applications, and the system integration is more convenient.

5. Reliable Operation and Safety

   The built-in watchdog circuit ensures stable long-term operation. The power system is designed with reverse connection protection and self-resetting fuses to prevent damage caused by improper operation. The communication interface provides 15kV electrostatic protection and lightning protection, reducing the risks of lightning strikes or electrostatic discharge.

 6. Real-Time Data Output

   Data is updated every 60 seconds, and users can obtain information via passive inquiry methods. The interface is intuitive, making it easy for quick decision-making.

 Applications of Visibility Monitoring Stations in Various Fields:

The multifunctionality of visibility monitoring stations plays a crucial role in various industries. Here are the main application scenarios:

1. Road Traffic Safety

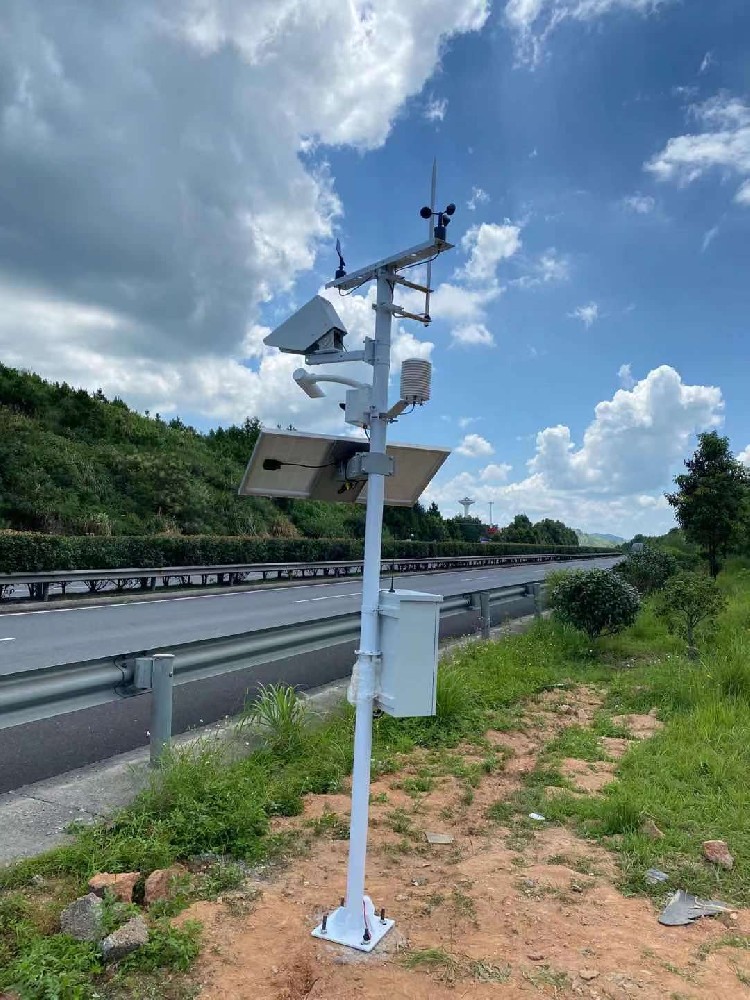

   In highways, tunnels, and rail systems, visibility monitoring stations monitor low visibility caused by fog, rain, or sandstorms in real time, providing warnings for drivers. For example, when visibility falls below a safe threshold, the system can trigger traffic signals or display screens to advise drivers to slow down or detour.

2. Airport Operations

   The visibility of airport runways directly impacts the safety of flight takeoffs and landings. Visibility monitoring stations provide precise data to pilots and air traffic controllers, ensuring correct decision-making in low-visibility weather conditions (such as dense fog or snow), thus improving aviation safety and efficiency.

3. Port and Shipping

   In ports and maritime navigation channels, visibility monitoring stations help ships navigate by providing visibility information during foggy or stormy conditions, reducing collision risks and ensuring cargo transportation safety.

4. Environmental Monitoring and Meteorological Research

   Visibility data is an important indicator for assessing air quality and pollution levels. Monitoring stations can be used in fog detection networks, cooling tower smoke monitoring, and climate change research, providing valuable data for environmental protection policies.

5. Disaster Prevention

   In regions prone to frequent fog or sandstorms, visibility monitoring stations provide early warnings of low-visibility weather, helping governments and enterprises take preventive measures to reduce economic losses and safety risks.

As technology advances, the performance of visibility monitoring stations will continue to improve. Future devices may integrate additional sensors (such as PM2.5 or temperature and humidity monitoring) to provide more comprehensive environmental data. The application of intelligent design and Internet of Things (IoT) technology will allow seamless integration with traffic systems or meteorological networks, enabling automated alerts and remote management. Additionally, the development of portable visibility monitoring instruments will provide more options for outdoor operations and temporary monitoring.

 Conclusion:

Visibility monitoring stations, as modern guardians of meteorology and traffic safety, provide critical support for roads, aviation, shipping, and environmental protection with their high accuracy, stability, and wide applicability. From real-time monitoring to disaster early warning, they not only enhance data acquisition efficiency but also provide reliable decision-making bases for users. For foreign customers focusing on safety and efficiency, visibility monitoring stations offer a trustworthy solution. As technology continues to evolve, these devices will play a greater role in more fields, bringing greater convenience and security to global users.
