Soil PH sensor product introduction

Soil pH sensor

The most important step when planting crops is the pH of the soil, too low or too high pH will affect nutrient absorption, NiuBoL soil ph sensor can be used to measure soil pH values, it consists of a combination of metal sensor and functional value switching device.

Metal sensor as the core hardware system, detection directly contact with the soil, the use of chemical reaction in the oxidation reaction to generate current, the size of the current value will drive the current meter corresponding to the different ph value unit data, through the host conversion, to show people the value.

It can be widely used in the detection of soil pH, fine agriculture, forestry, geological exploration, plant cultivation, water conservancy, environmental protection and other fields of pH measurement.

Soil PH sensor features：

1、Low threshold, few steps, fast measurement, no reagent required, unlimited testing times.

2、High measurement accuracy, up to ±0.3PH accuracy, fast response time, good interchangeability.

3、The electrode is made of specially treated alloy material, which can withstand strong external impact and is not easily damaged.

4、Completely sealed, resistant to acid and alkali corrosion, can be buried in the soil for long-term dynamic detection.

5、Probe insertion design ensures accurate measurement and reliable performance.

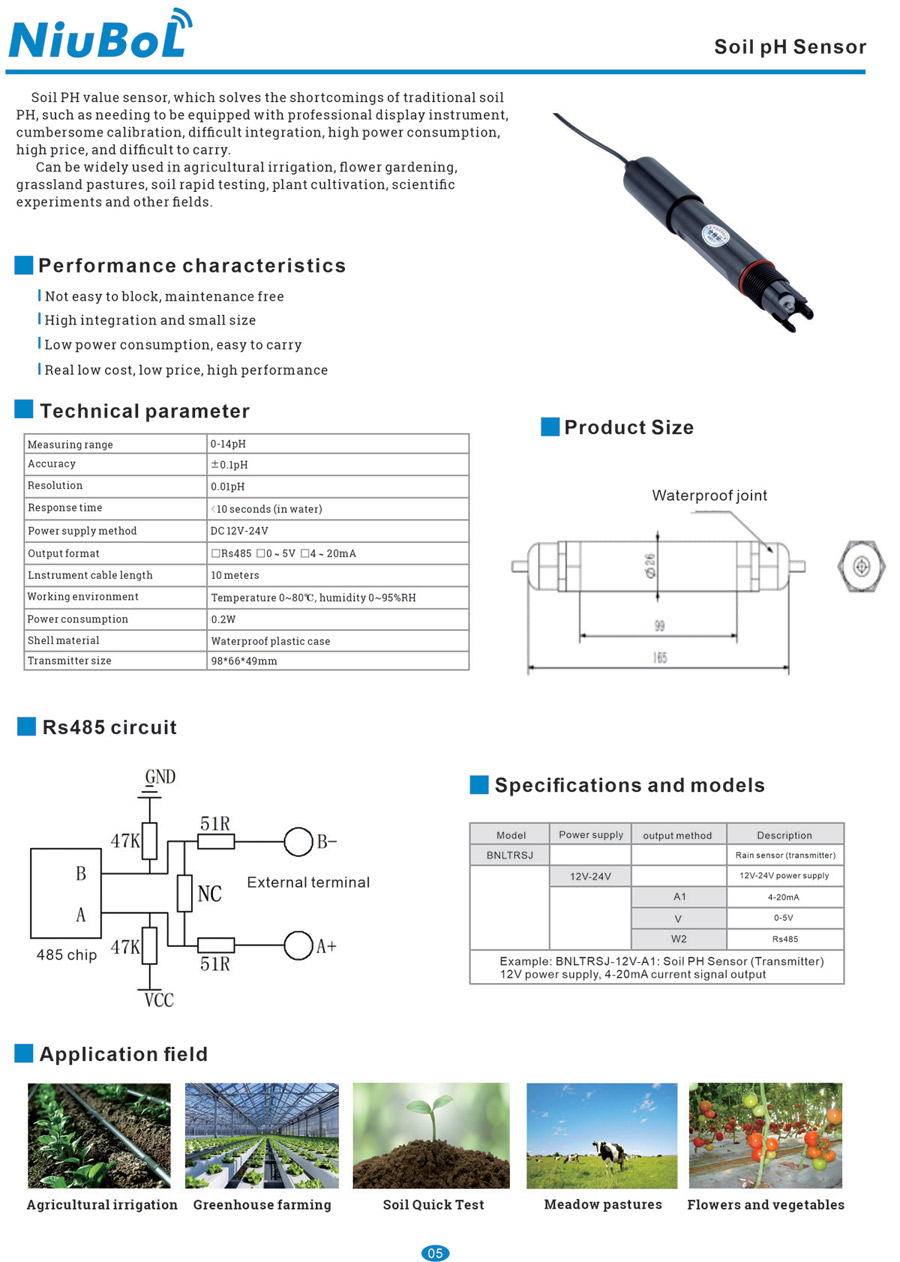

Soil pH Sensor data sheet

NBL-S-PH-Soil-PH-Sensor-Instruction-Manual-V4.0.pdf
