Soil Moisture Sensor Products

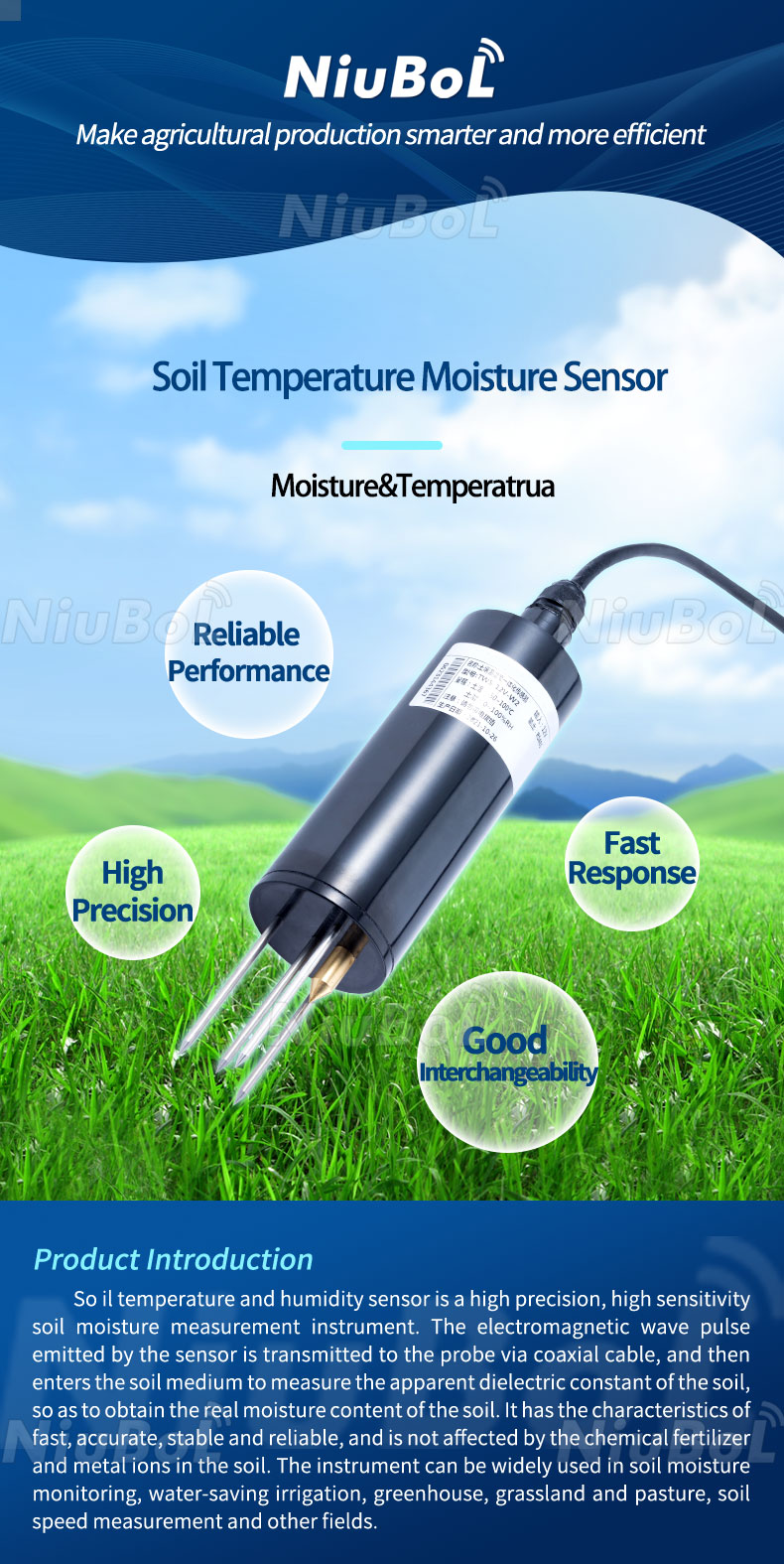

Soil moisture sensor is a new generation sensor with world advanced level independently developed by our company based on conductance theory and using frequency domain measurement technology. It can measure the specific water content of porous media such as soil (or other media), and convert it into a standard current signal output, which can be used for system integration and real-time monitoring of soil/medium water content. At present, this product is widely used in agricultural irrigation, landslide monitoring, pollution-free garbage disposal, agricultural soil research, moisture measurement of concrete, building materials, paper, and textile materials.

1. Function and characteristics of soil moisture sensor:

1. Take into account the soil temperature measurement at the same time;

2. The sensor is compact in size, easy to carry, easy to install, operate and maintain;

3. The structure design is reasonable, and the stainless steel probe ensures the service life;

4. The exterior is encapsulated with epoxy resin pure colloid, which has good sealing performance and can be directly buried in the soil for use without corrosion;

5. The influence of soil quality is small, and the application area is wide;

6. High measurement accuracy and reliable performance to ensure normal work;

7. Fast response speed and high data transmission efficiency;

The NiuBoL soil moisture sensor has good linear characteristics in the range of soil/substrate saturated moisture content.

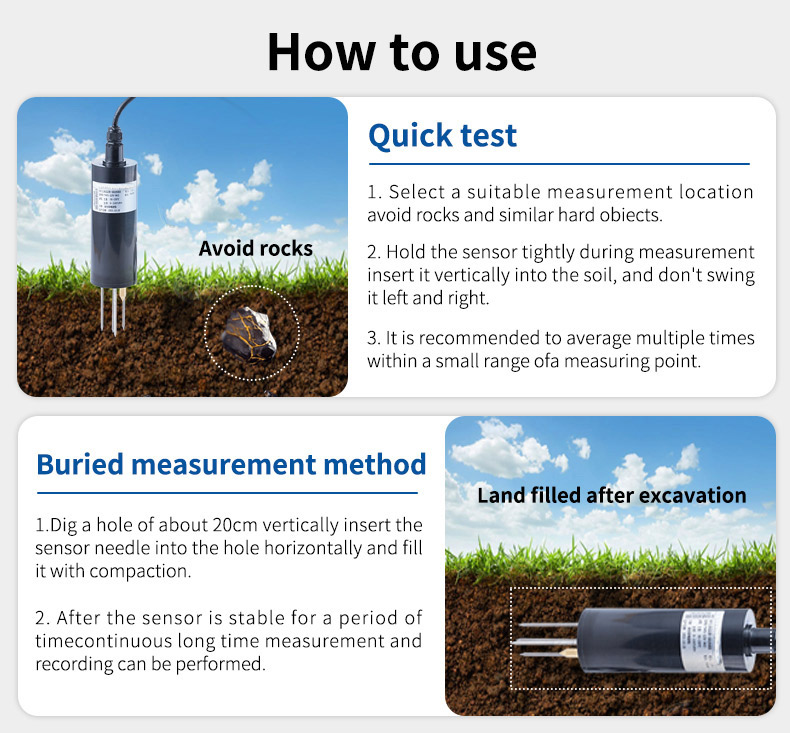

2. Precautions and maintenance of soil moisture sensor

1. Do not try to insert the probe into stones or hard clods to avoid damage to the probe.

2. When moving the sensor out of the soil, do not pull the cable directly.

3. The sensor probe should be fully inserted into the soil/substrate to reduce operating errors.

4. Pay attention to minimize the disturbance to the soil itself and improve the measurement accuracy.

5. After use, wash and dry it.
