NBL-W-SNOW type Snow Sensor Introduction

Snowfall is an important part of the water cycle, and snowfall has a certain impact on the balanced development of the ecological environment and people's life and production.

The snow depth detection sensor can carry out automatic and continuous observation of snow depth, snow amount and snow thickness, thus making the observation data more accurate and continuous. With the continuous development of science and technology, snow monitoring in the current level of science and technology, automatic observation equipment gradually replaced the artificial observation.

NBL-W-SNOW type Snow Sensor Introduction:

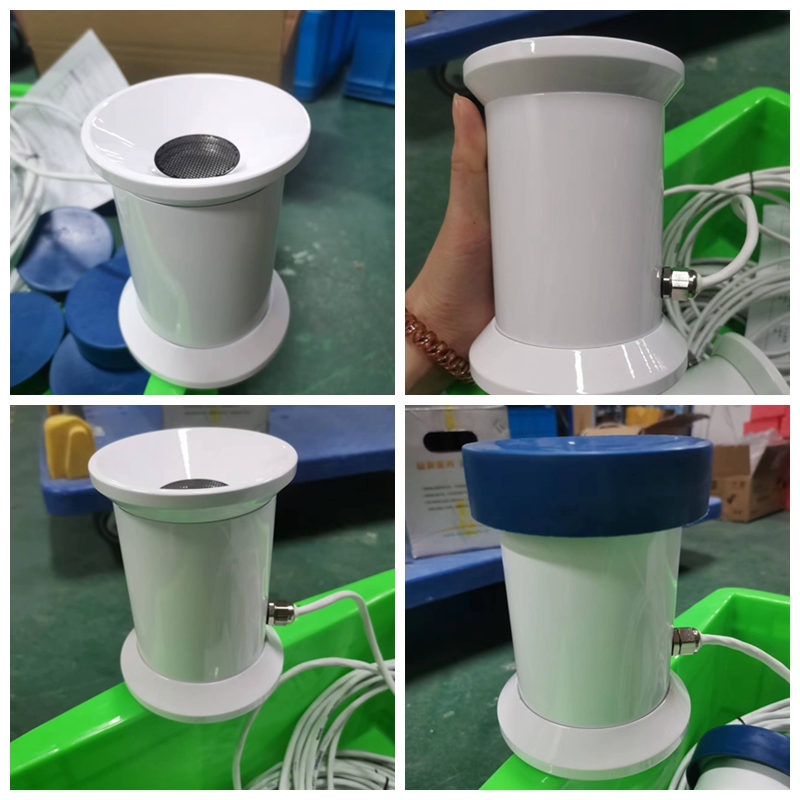

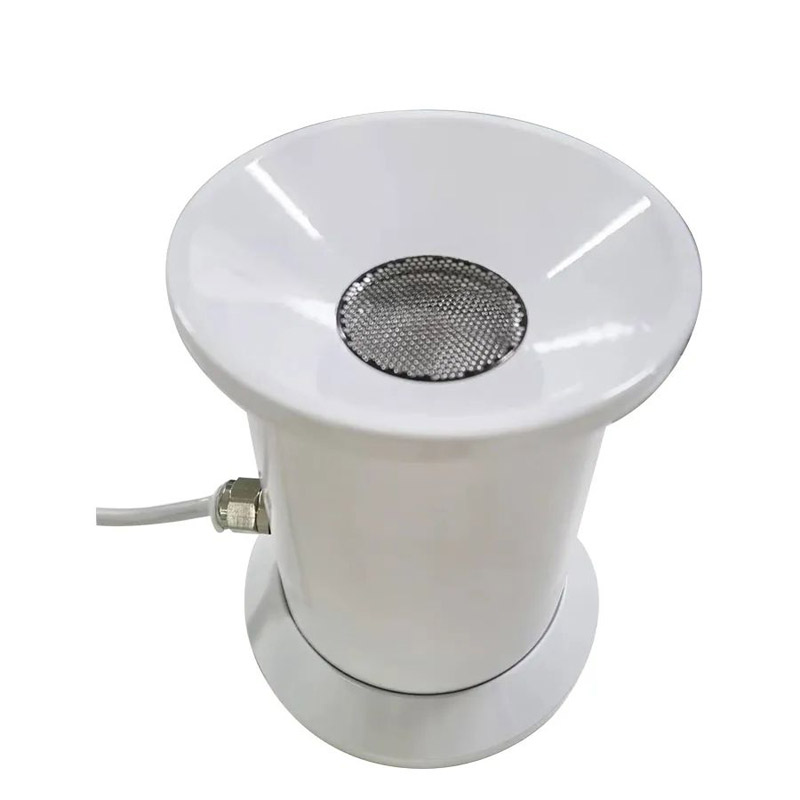

NBL-W-SNOW is a device that uses ultrasonic telemetry technology to measure snow depth. snow sensor, by transmitting 50KHz ultrasonic waves to measure the emission to return to the time difference of this signal process to calculate the depth of snow,realize the snow depth automation continuous monitoring of the intelligent snow depth sensor.

NBL-W-SNOW snow monitoring sensor, breaks through the traditional artificial observation of the many limitations of the way, can be a long-term automatic continuous measurement of the depth of snow, the amount of snowfall in the time period, etc., to achieve real-time data feedback. Can effectively improve the meteorological department on the snowfall of real-time monitoring and early warning capabilities, is now widely used in agriculture, power supply, transport, science and education and other industries, and for the snow protection has played a role that can not be ignored~.

NBL-W-SNOW snow sensor product installation precautions.

1. Equipment installation location should be selected open space.

2. Equipment should be installed to ensure that the cross arm of at least 1000mm.

3. There should be no obstruction above the equipment.

4. The distance from the equipment to the ground plane should be within 20cm-200cm, in order to ensure the accuracy of the measurement, the recommended distance is 100cm.

4. The equipment mounting bracket should be kept horizontal, the sensor's reflection of the ground is best to do horizontal processing, reflection point within a radius of 1 metre should be ensured to avoid weed interference.
