Smart Agriculture Soil Sensor Moisture Monitoring System

Soil sensor moisture monitoring smart agricultural system solution requirements:

The soil moisture monitoring system can realize long-term continuous monitoring of soil moisture (soil moisture). Users can flexibly arrange soil moisture sensors according to monitoring needs; they can also arrange sensors at different depths to measure soil moisture in profiles. The system also provides additional expansion capabilities, and corresponding sensors can be added according to monitoring needs to monitor soil temperature, soil conductivity, soil PH value, groundwater level, groundwater quality, air temperature, air humidity, light intensity, wind speed and direction, rainfall and other information It can comprehensively, scientifically and truly reflect the soil changes in the monitored area, and can timely and accurately provide the soil moisture status of each monitoring point, providing important basic information for disaster reduction and drought relief.

Smart Agriculture Soil Sensor Moisture Monitoring System

Technology deployment of soil sensor moisture monitoring smart agricultural system

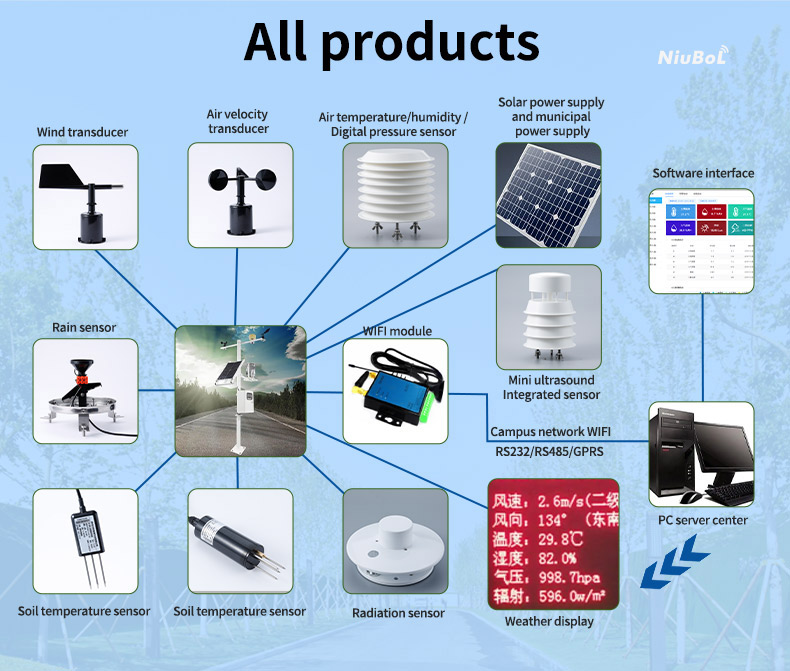

The soil moisture monitoring system is mainly composed of four parts: monitoring center, communication network, remote monitoring equipment and soil moisture testing equipment:

Monitoring Center: The hardware is mainly composed of servers, computers, switches, printers, etc. The software mainly consists of operating system software, database software, and soil moisture monitoring system software.

Communication platform: including 4G/5G network and Internet public network. The system plans to use the public network dedicated line networking method, and the monitoring center needs to have a fixed IP address that can access the external network.

Remote monitoring equipment: Remote monitoring equipment can be divided into mains-powered soil moisture monitoring terminals, solar-powered soil moisture monitoring terminals and battery-powered soil moisture monitoring terminals according to the type of power supply. In view of the characteristics of scattered distribution of soil moisture monitoring points and difficult wiring, it is recommended to use solar-powered soil moisture monitoring terminals.

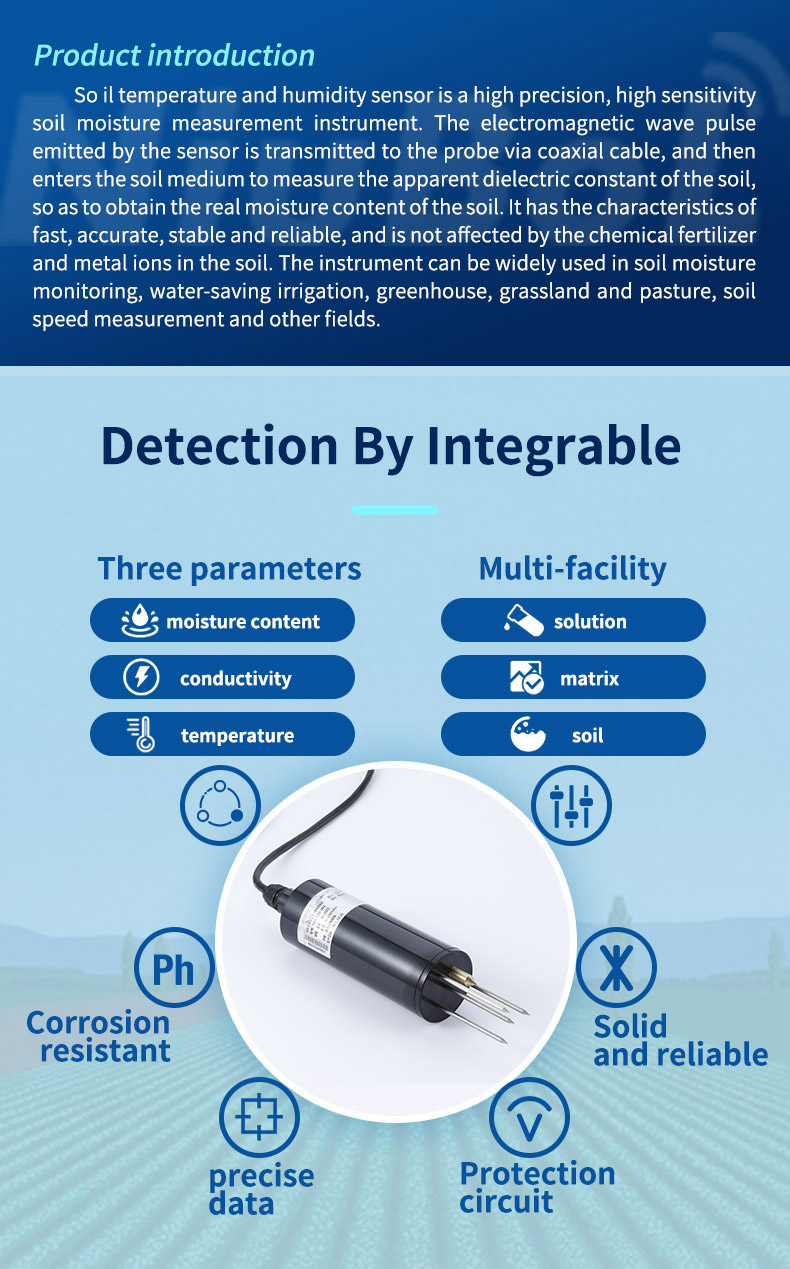

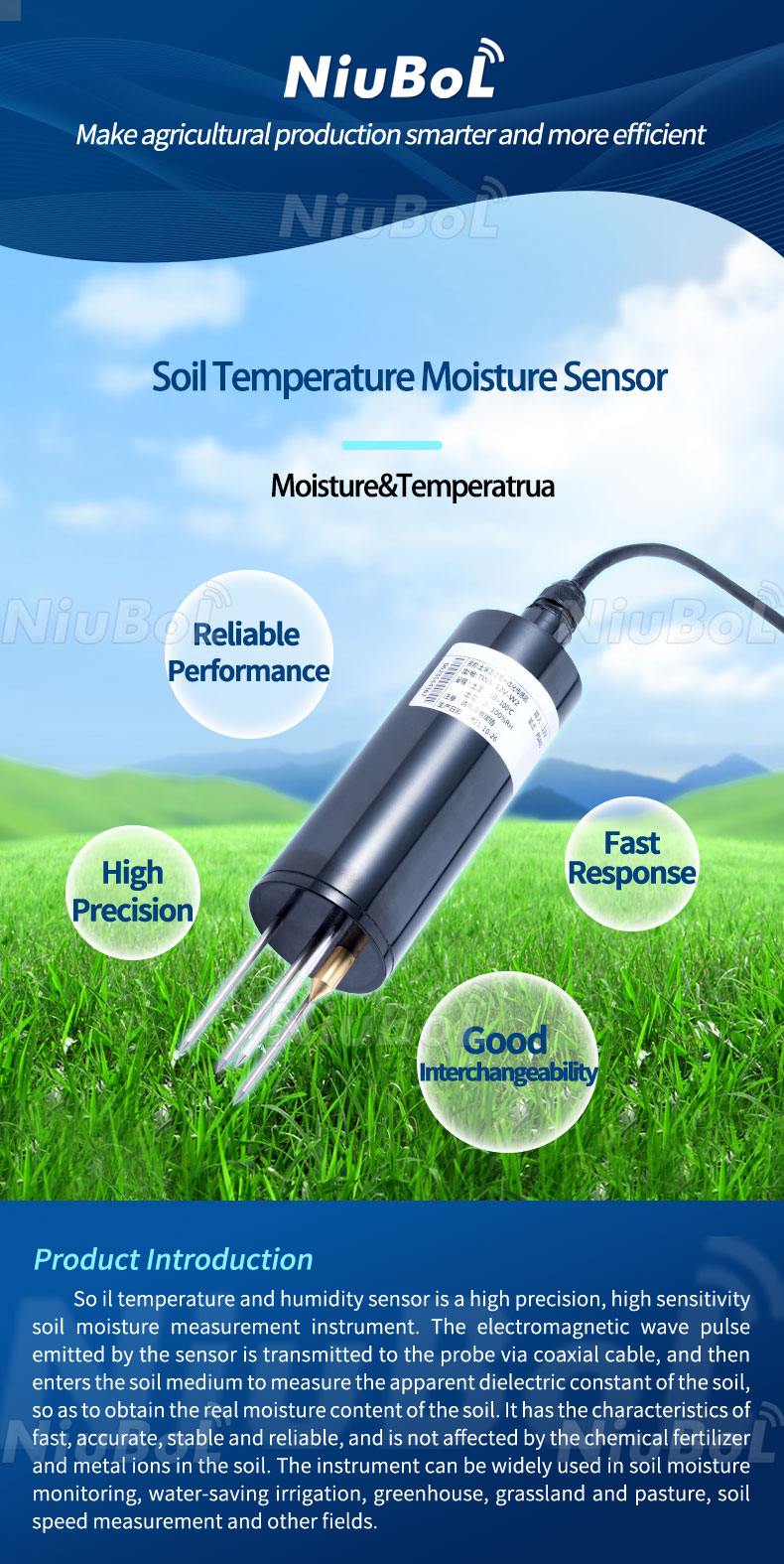

Soil moisture detection equipment: According to the monitoring requirements, one-way soil moisture sensor can be used to realize single-point moisture detection; multiple soil moisture sensors can also be used, and the sensors can be arranged at different depths to realize the profile soil moisture detection of monitoring points.

Advantages of soil sensor moisture monitoring smart agricultural system solution

★ Real-time monitoring of soil moisture, flexible single-channel measurement or multi-channel profile measurement at each monitoring point

★ When the soil moisture exceeds the preset limit, an alarm message will be reported immediately

★ It can expand the monitoring functions of soil temperature, conductivity, PH value, groundwater parameters, meteorological parameters, etc.

★ The frequency of data collection and storage can be adjusted flexibly, and the working parameters of monitoring equipment can be set remotely

★ The remote monitoring equipment only supplies power to the sensor when collecting data. On the one hand, it saves energy, and on the other hand, it avoids measurement errors caused by changes in soil physical properties caused by long-term power supply.

★ Support GPRS/4G/5G, local area network and other communication methods, it is recommended to use GPRS/4G/5G wireless communication

★ Monitoring data can be reported to multiple centers at the same time

★ Monitoring system software supports docking with other systems through OPC interface

★ With the statistics and analysis functions of monitoring data and alarm data, data reports can be exported and printed out

★ The monitoring system software has GIS function, which can display the detailed distribution location of each monitoring point on the map
