In the context of smart agriculture, the integration of rain sensors in an IoT-based agricultural microclimate observatory is a significant advancement that demonstrates the power of sensing technologies in modern farming. These sensors provide farmers with accurate, real-time data on rainfall patterns, which is essential for efficient water management, crop monitoring, and environmental protection.
A rain sensor is a device that measures liquid precipitation in terms of both the amount of rainfall and precipitation intensity. It also records the start and end times of rainfall events, which are crucial for making informed decisions about irrigation, soil health, and crop management. Rain sensors are commonly used in meteorological stations, hydrological stations, agriculture, forestry, and national defense, with applications in areas like flood control, water supply scheduling, and reservoir management.
In agriculture, these sensors are critical for automated hydrological monitoring and field reporting systems that provide essential data for irrigation and water usage management. By integrating rain sensors into IoT networks, agricultural operations can monitor rainfall patterns in real time, enabling precise irrigation and water conservation strategies.

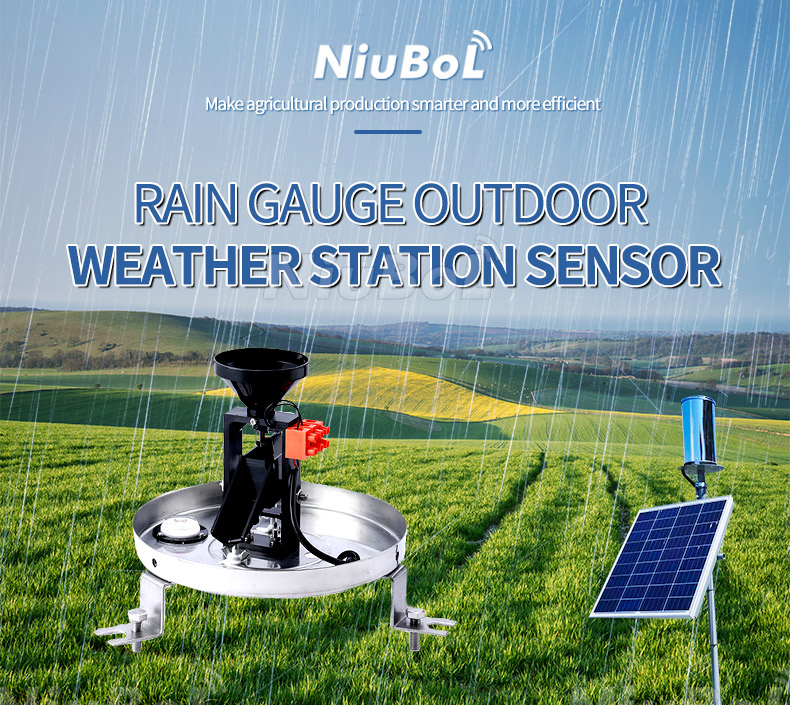

The operational principle of a rain sensor revolves around the mechanical tipping bucket mechanism. The process involves the following steps:

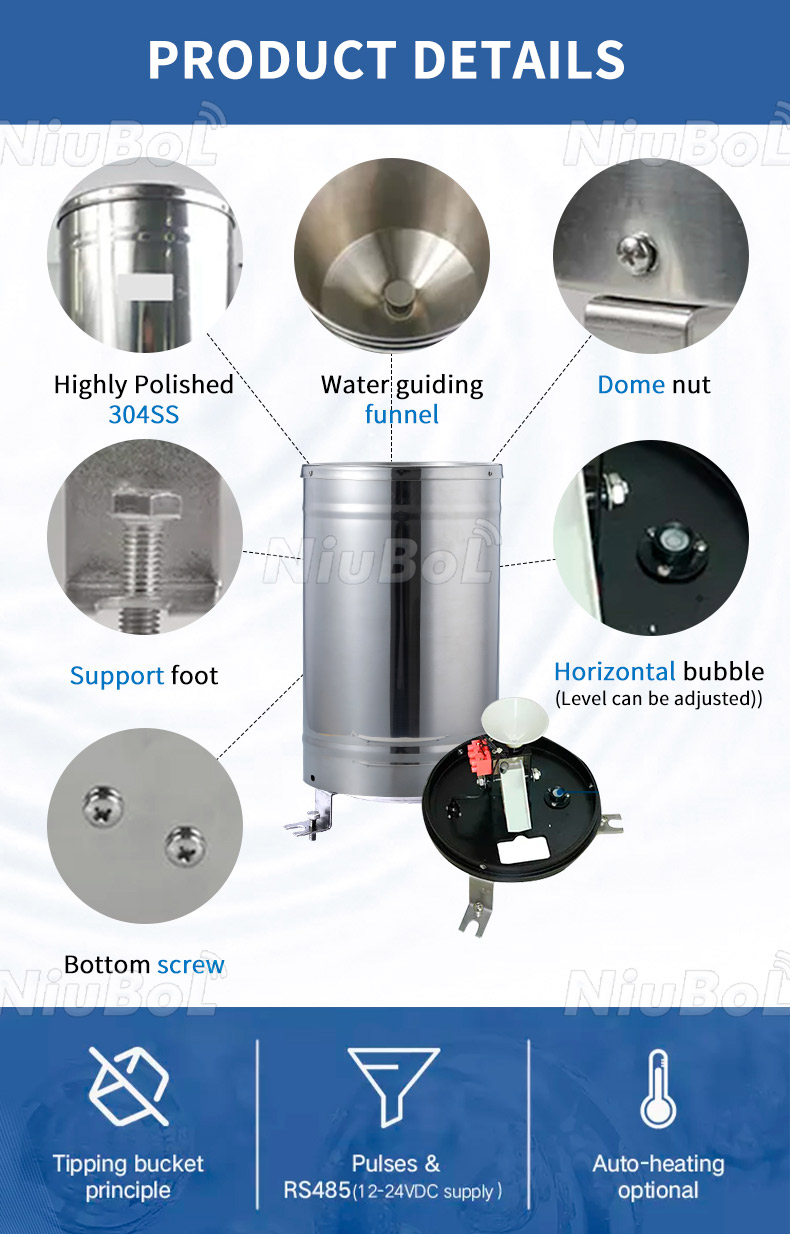

1. Rain Collection: Rainwater is collected through a funnel (the upper cylinder), which directs the water into the metering tipper.
2. Tipping Bucket Mechanism: The metering tipper is a bistable mechanical structure consisting of two compartments. As water enters one compartment, the other compartment remains in a waiting state.

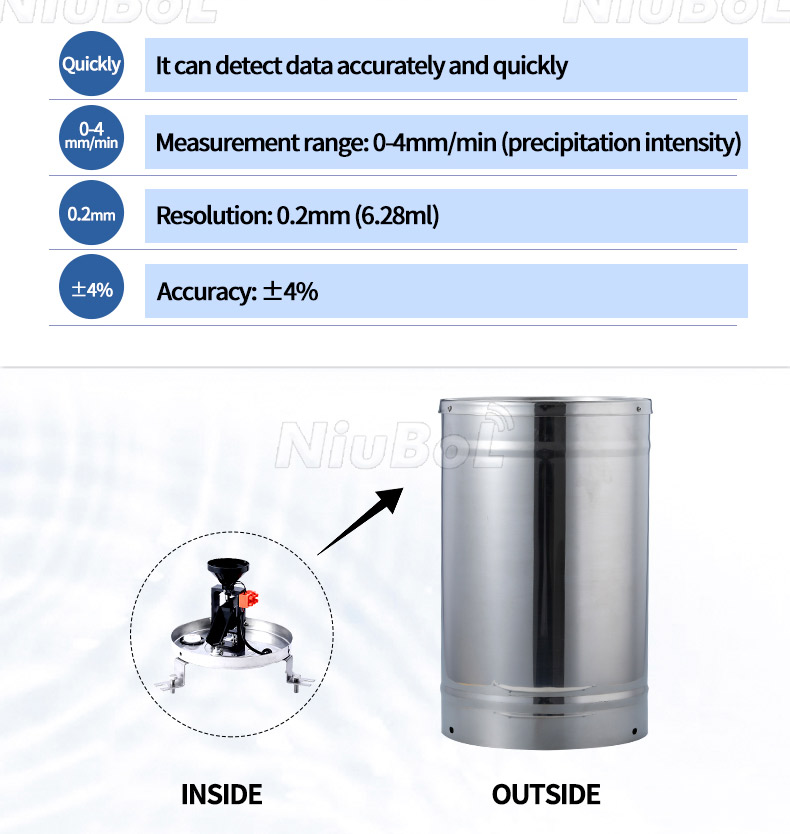

3. Bucket Overturning: When the accumulated water reaches a predetermined threshold (typically 0.2 mm or 0.5 mm), gravity causes the bucket to tip over. This action transfers the water to the other compartment, and the tipping process starts again.
4. Signal Generation: Each time the bucket tips, a magnetic steel sensor, installed on the side of the tipping bucket, interacts with a reed switch. When the bucket tips, the reed switch is activated, generating a pulse signal that is sent to the monitoring system.
5. Data Transmission: This pulse signal represents a specific amount of rainfall (e.g., 0.2 mm or 0.5 mm per pulse) and can be counted to determine the total rainfall amount over a specified period.
This mechanism allows for continuous, accurate rainfall measurements that can be transmitted in real-time to the IoT network for further analysis.
In the context of an IoT agricultural microclimate observatory, rain sensors play a vital role by providing granular, localized data on rainfall. Here’s how they enhance smart agriculture:
1. Real-Time Data Collection: Rain sensors embedded in agricultural fields collect data on rainfall events in real-time. This data is sent to a central IoT system for further processing and analysis.
2. Improved Irrigation Management: By knowing exactly how much rainfall a particular area has received, farmers can adjust their irrigation schedules accordingly, ensuring that crops receive the right amount of water. This leads to significant water savings, particularly in areas where water scarcity is a concern.
3. Flood Risk Prediction: Accurate rainfall data can be used to predict potential flooding risks. By monitoring the intensity and duration of rainfall, the system can issue early warnings, enabling farmers to take preventative measures such as installing drainage systems or adjusting crop management strategies to avoid flood damage.
4. Optimized Water Usage: With precise measurements of rainfall, farmers can avoid over-irrigating fields, which not only saves water but also prevents over-saturation of the soil, which can lead to poor crop growth and soil erosion.
5. Soil Health and Crop Growth Monitoring: Rainfall directly affects soil moisture levels, which in turn influence crop growth. By tracking rainfall patterns, farmers can monitor the soil's water retention capacity and adjust their planting, fertilization, and irrigation practices for optimal crop health.
6. Integration with Other Environmental Sensors: The rain sensor data can be combined with other environmental parameters such as temperature, humidity, soil moisture, and wind speed, creating a comprehensive picture of the agricultural microclimate. This allows for more accurate predictions of crop conditions, helping farmers optimize their practices.
7. Automation and Remote Monitoring: The IoT integration allows for remote monitoring of rainfall and other environmental factors, providing farmers with the convenience of checking their fields from any location via mobile apps or desktop systems. Automated systems can make adjustments to irrigation or alert farmers to extreme weather conditions, reducing the need for manual intervention.
1. Irrigation Systems: Integrating rain sensors into automated irrigation systems can ensure that fields are irrigated only when necessary. For example, if rainfall exceeds a certain threshold, the irrigation system can be automatically paused, preventing overwatering and water wastage.
2. Weather Forecasting: The data from rain sensors can be used in conjunction with meteorological forecasts to provide more localized and accurate predictions of weather events, such as storms, rainfall, and drought. This allows farmers to plan ahead and protect their crops from extreme weather conditions.
3. Climate Adaptation: As climate patterns change, rain sensors provide valuable data to help farmers adapt to shifting weather trends. The continuous monitoring of rainfall and other environmental factors enables more resilient farming practices and better long-term planning.
4. Crop Yield Optimization: By understanding the correlation between rainfall, soil moisture, and crop growth, rain sensors contribute to optimizing crop yield. Farmers can track the effects of rainfall on different crops and adjust their strategies to maximize productivity.
Conclusion
The application of rain sensors in an IoT-based agricultural microclimate observatory is a powerful tool in the development of smart agriculture. By providing accurate, real-time data on rainfall, these sensors enable farmers to make informed decisions regarding irrigation, water management, and disaster prevention. The integration of rain sensors into IoT networks helps promote efficient water usage, reduce environmental impact, and improve overall agricultural productivity, paving the way for more sustainable farming practices.
