RS485 Sensor Application Cases

RS485 sensors have a wide range of applications in industrial automation, building automation, traffic control, environmental monitoring and other fields due to their excellent anti-interference ability and long-distance transmission capability. The following are some typical RS485 sensor application cases:

1. industrial control:

  Temperature sensors: Monitor the temperature of the factory to ensure that the production process is carried out within the appropriate temperature range.

  Pressure sensors: Monitor the working status of hydraulic or pneumatic systems for control and regulation.

  Flow sensors: monitor the flow of liquids or gases, for energy management and efficiency optimisation.

2. Building automation:

  Light sensor: automatically adjusts the indoor lighting, adjusting the brightness according to the light intensity.

  Humidity sensor: monitor indoor humidity, maintain a comfortable living environment.

  Air quality sensor: monitor indoor air quality, to ensure that the air quality meets health standards.

3. Traffic control:

  Traffic flow sensor: monitors the number of vehicles passing through an intersection for traffic management and signal control.

  Vehicle speed sensor: monitor vehicle speed, used for speeding detection and traffic enforcement.

4. Environmental monitoring:

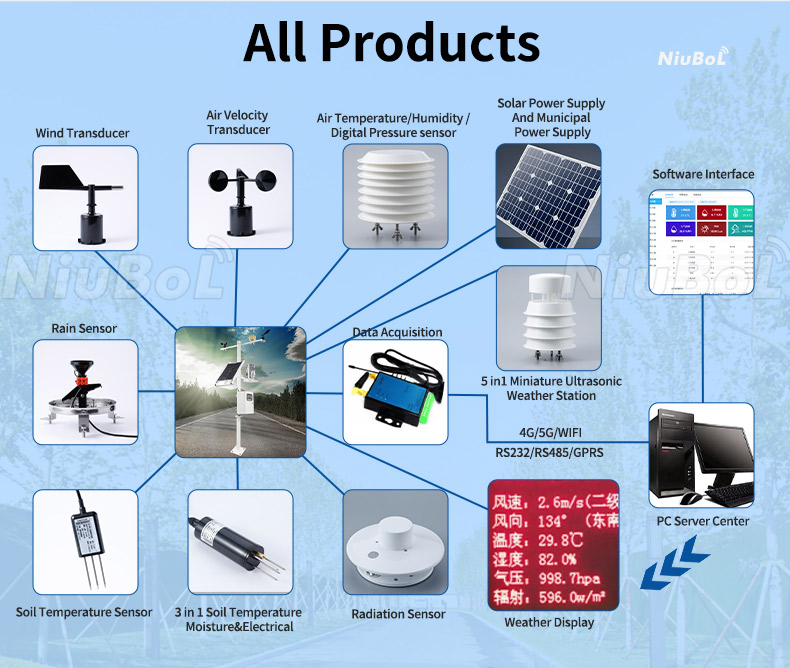

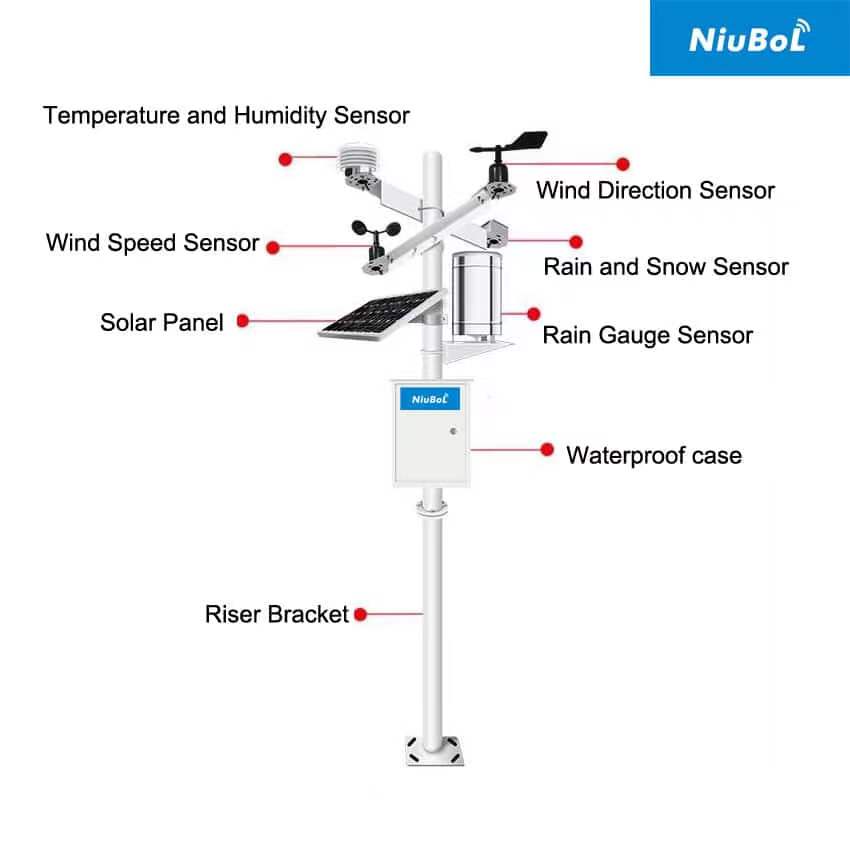

  Meteorological sensors: monitor meteorological parameters such as temperature, humidity, wind speed, etc. for weather forecasting and climate research.

  Water quality sensor: monitoring chemical composition and biological indicators in water body, used for water quality analysis and environmental protection.

5. Energy management:

  Electrical energy sensor: monitoring power consumption, used for energy consumption analysis and energy saving optimisation.

  Fuel sensors: monitor fuel consumption for energy management of vehicles or machinery.

6. agricultural applications:

  Soil moisture sensors: monitor soil moisture for irrigation systems and agricultural monitoring.

  Light sensor: monitors light conditions for greenhouse lighting control and plant growth studies.

In these applications, RS485 sensors are usually connected to one or more RS485 buses and communicate with the host system through a gateway or data collector. Since RS485 supports multi-node communication, one RS485 bus can be connected to multiple sensors for centralised monitoring and control. In addition, the stability, reliability and long-distance transmission capability of the RS485 communication protocol make it very popular for remote monitoring and control systems.
