Environmental Monitoring Sensors

Environmental monitoring sensors are devices used to measure and monitor environmental parameters in order to collect data related to the environment. These sensors use different techniques and principles to detect and measure various environmental elements. A few common environmental monitoring sensors and their principles are described in detail below:

1. Temperature Sensors: Temperature sensors are used to measure the temperature of the environment. Common temperature sensors include thermocouples, thermistors (e.g., NTC and PTC), and infrared sensors. Thermocouples use the thermoelectric effect of two different metals to generate a voltage and measure the temperature based on the change in voltage. Thermistors measure temperature based on the change in their resistance with temperature. Infrared sensors, on the other hand, calculate the temperature by measuring the infrared rays radiated from an object.

2. Humidity Sensors: Humidity sensors are used to measure the amount of moisture content in the environment. Common humidity sensors are capacitive humidity sensors, resistive humidity sensors and surface mount humidity sensors. Capacitive humidity sensors are based on the principle of capacitance change and calculate humidity by measuring the change in capacitance after absorbing moisture. Resistive humidity sensors, on the other hand, measure humidity based on the effect that humidity has on resistance.

3. Barometric Sensors: Barometric sensors are used to measure atmospheric pressure. The common types of barometric pressure sensors are piezoresistive sensors and capacitive sensors. Piezoresistive sensors measure barometric pressure based on the change in resistance of the piezoresistive element with changes in barometric pressure. Capacitive sensors measure the change in capacitance to calculate the air pressure. 4.

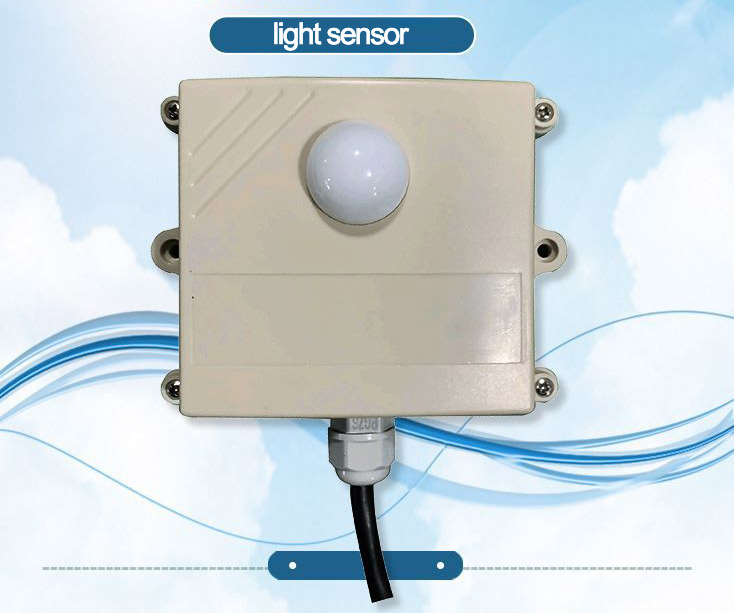

4. Light sensors: Light sensors are used to measure the intensity of light in the environment. Common light sensors include photoresistors, photodiodes and phototransistors. Photoresistors measure light intensity based on the change in resistance when exposed to light. Photodiodes and phototransistors measure light energy by converting it into an electrical signal according to the principle of photoelectric effect.

5. Gas Sensors: Gas sensors are used to detect the concentration of gases in the environment, such as carbon dioxide, carbon monoxide, methane, volatile organic compounds and so on. Common gas sensors include electrochemical sensors, infrared sensors and semiconductor sensors. Electrochemical sensors measure gas concentration by using the chemical reaction that occurs between the gas and an electrode. Infrared sensors measure the concentration of a gas by detecting how much the gas absorbs infrared light of a specific wavelength. Semiconductor sensors measure gas concentration based on the change in electrical resistance caused by the contact of the gas with the semiconductor material.

6. Soil Moisture Sensors: Soil moisture sensors are used to measure the moisture content of the soil. Common soil moisture sensors include capacitive sensors and resistive sensors. Capacitive sensors calculate moisture content by measuring the change in capacitance between the soil and an electrode. Resistive sensors, on the other hand, measure moisture content by using the change in conductivity of the soil as a function of moisture content.

7. Water Quality Sensors: Water quality sensors are used to monitor various parameters in water bodies such as pH, dissolved oxygen, conductivity, turbidity etc. Common water quality sensors are electrochemical sensors, optical sensors and conductivity sensors. Electrochemical sensors measure water quality parameters by measuring changes in the potential of chemicals in the water. Optical sensors measure water quality parameters by using the absorption, scattering or transmission properties of light. Conductivity sensors assess water quality conditions based on the conductivity in the water body.

These environmental monitoring sensors can be connected to data logging devices or cloud platforms for real-time transmission and storage of collected data, as well as data analysis, visualisation and applications. This helps in better understanding and management of the environment, thereby improving environmental quality and sustainable development.

Environmental monitoring sensors play an important role in various application scenarios, and their main application scenarios and values are described below:

1. Weather forecasting and climate research: Temperature, humidity and barometric pressure sensors, among others, are used in weather stations and meteorological satellites to collect data on atmospheric parameters to predict weather changes and provide accurate meteorological information. This is vital for weather forecasting, disaster warning, agricultural production and climate research.

2. Air quality monitoring: Gas sensors are used to detect the concentration of harmful gases in the environment, such as carbon dioxide, carbon monoxide, methane, and so on. This is important for urban air quality monitoring, industrial pollution control and indoor air quality improvement to help people understand and improve air quality and protect health.

3. Water quality monitoring: Water quality sensors are used to monitor various parameters in water bodies such as pH, dissolved oxygen, conductivity and turbidity. This is very important for water source protection, drinking water safety, water ecological protection and environmental monitoring, can help people timely detection of water quality problems and take appropriate measures.

4. Agriculture and horticulture management: Soil moisture sensors are used to measure the moisture content in the soil, helping farmers and horticulturists to optimise irrigation and fertiliser schedules, improve crop yield and quality, and reduce water waste and environmental pollution.

5. Building Energy Efficiency Management: Temperature, humidity and light sensors are used to monitor energy consumption and manage energy savings in buildings. Through real-time monitoring of indoor environmental parameters, you can optimise the control of air conditioning and lighting systems, improve energy efficiency and reduce energy costs.

6. Industrial production process monitoring: Temperature, humidity and air pressure sensors are used for monitoring and control of industrial production processes. Through real-time monitoring of environmental parameters, it can ensure a stable production environment, control product quality, and reduce production accidents and losses.

7. Smart home and IoT applications: temperature, humidity and light sensors are used in smart home systems and IoT applications. By monitoring indoor environmental parameters, automatic adjustment of indoor temperature, humidity and lighting can be achieved to improve the quality of life and energy saving.

Overall, environmental monitoring sensors play a very important role in various fields to help people better understand and manage the environment, protect health, improve productivity, conserve resources and promote sustainable development.
