The core function and application of 4G DTU

Time:2022-01-26 20:37:38 Popularity:597

The core function and application of 4G DTU

DTU (Data Transfer Unit) is a wireless terminal device specially used to convert serial data into IP data or convert IP data into serial data for transmission through wireless communication network. DTU is widely used in meteorology, hydrology and water conservancy, geology and other industries.

4G DTU adopts high-performance industrial-grade 8/16/32-bit communication processor and industrial-grade wireless module, uses embedded real-time operating system as software support platform, and provides RS232 and RS485 (or RS422) interfaces, which can be directly connected to serial devices , to realize the function of transparent data transmission. Today we will take a look at the core functions of 4G DTU:

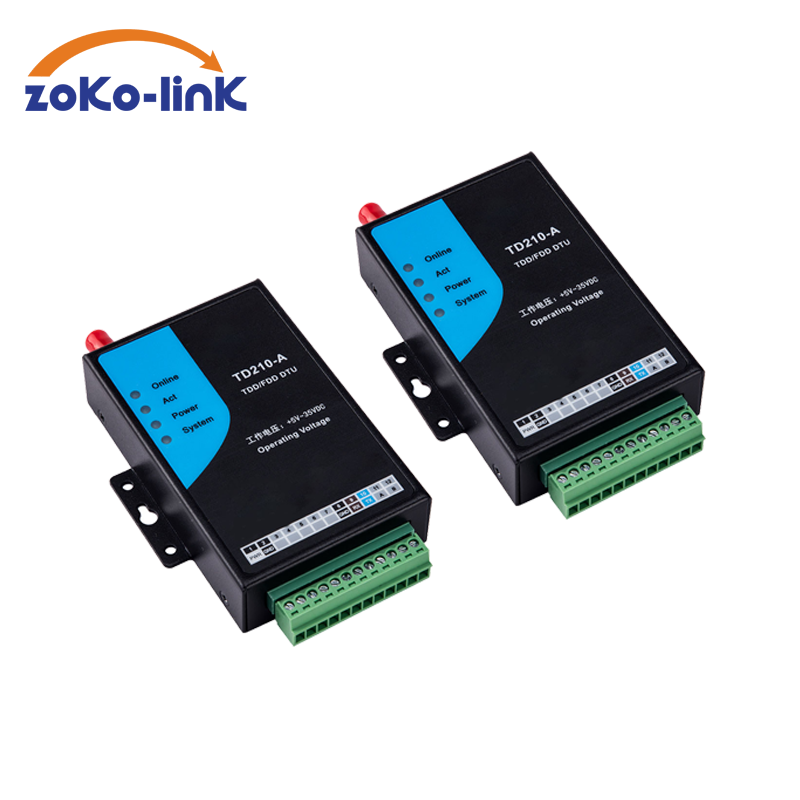

DTU (2).png

DTU

1) Internal integrated TCP/IP protocol stack

The 4G DTU encapsulates the PPP dial-up protocol and the TCP/IP protocol stack and has an embedded operating system. From the hardware, it can be regarded as a combination of embedded PC and wireless GPRS MODEM; it has GPRS dial-up Internet access and TCP/IP data. function of communication.

2) Provide serial data bidirectional conversion function

4G DTU provides serial communication interfaces, including RS232, RS485, RS422, etc., which are commonly used serial communication methods, and 4G DTUs are mostly designed to use serial data as a "transparent conversion" method, which means that 4G DTU can Convert the original data on the serial port into TCP/IP data packets for transmission without changing the original data communication content. Therefore, 4G DTU can be connected with various user equipments that use serial communication, and there is no need to make changes to the user equipment.

3) Support automatic heartbeat, keep online forever

One of the advantages of the GPRS communication network is that it supports GPRS terminal devices to be permanently online. Therefore, typical 4G DTUs are designed to support the permanent online function. When there is no data communication, the mobile gateway will disconnect the connection between the DTU and the center, and the heartbeat packet is a small data packet sent by the DTU and the data center before the connection is disconnected to keep the connection from being disconnected), support automatic reconnection after disconnection , automatic redial and other features.

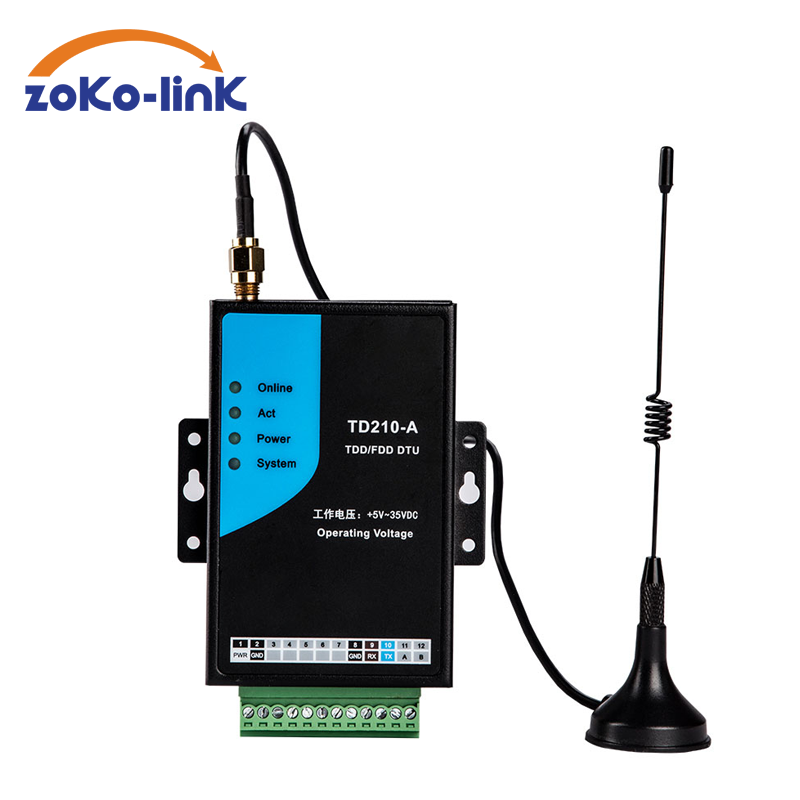

4G DTU

4) Support user serial port parameter setting

The serial port parameters of different user equipment are different. When the DTU is connected to the serial port of the user equipment, the DTU side should be set according to the actual parameters of the serial port of the user equipment to ensure the normal communication and reliable data transmission of the user equipment.

5) Support parameter configuration, save permanently

As a communication device, 4G DTU has a wide range of applications. In different applications, the IP address and port number of the data center, and the baud rate of the serial port are all different. Therefore, all 4G DTUs should support parameter configuration, and save the configured parameters in the internal permanent storage device (usually FLASH or EEPROM, etc.). Once powered on, it will automatically work according to the set parameters.
