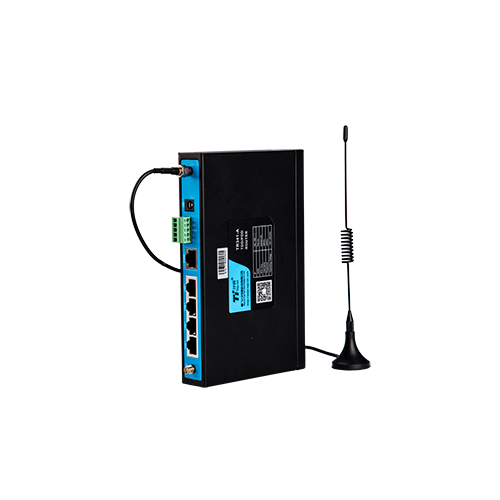

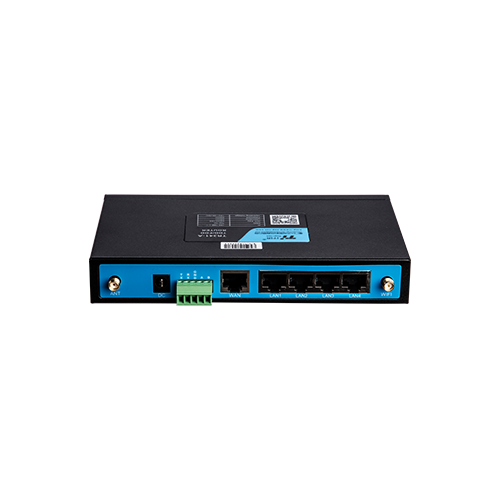

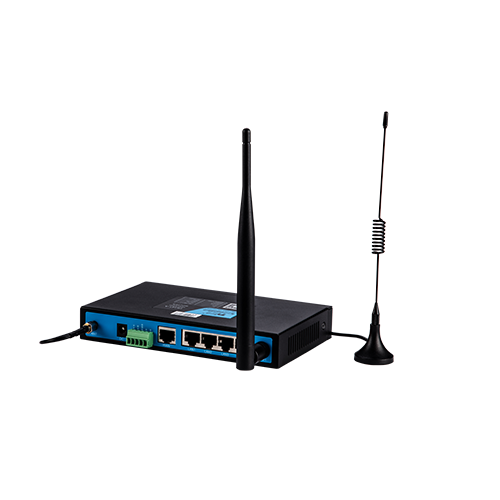

4G IoT Router Support RS485 RS232 serial port for smart industry, transportation, agriculture, weather

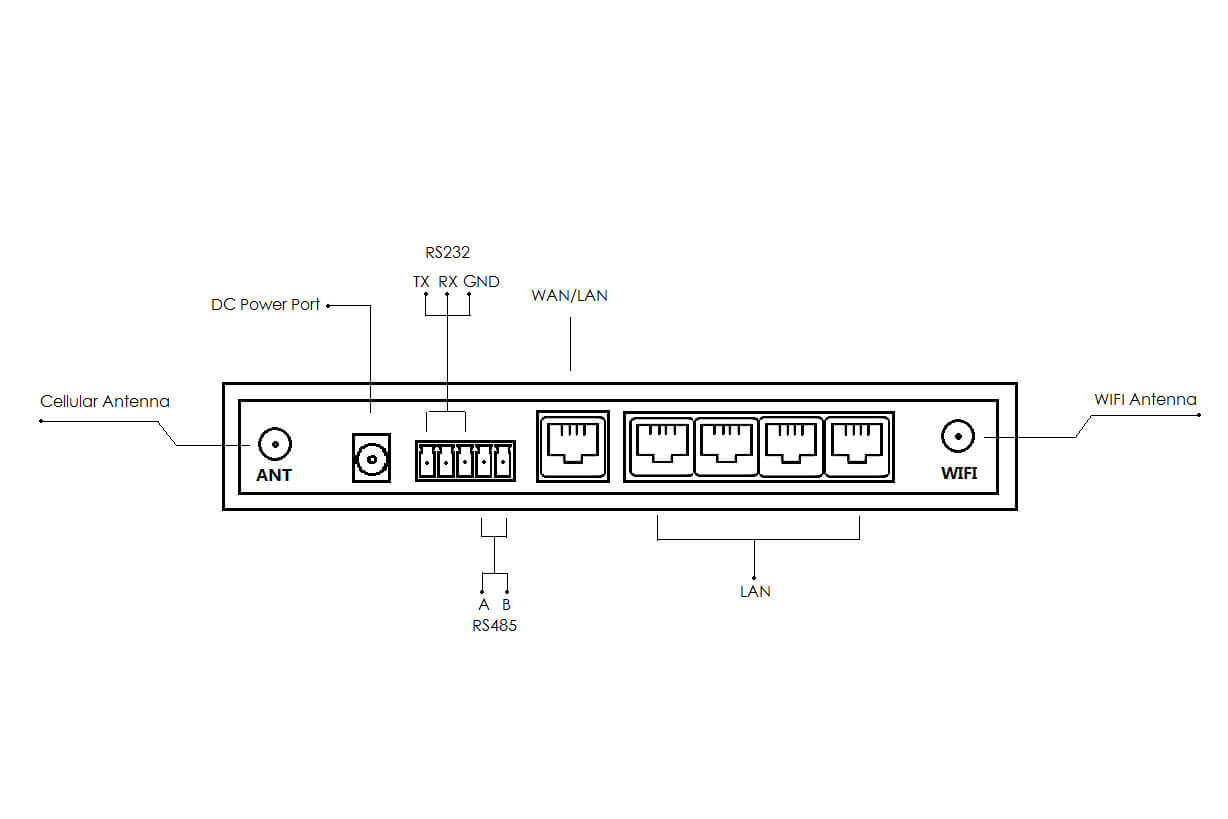

TR341 industrial router is an industrial grade router that provides 5 Ethernet ports allows you to connect to up to 5 LAN devices or controllers. Besides, it has RS232, RS485 with Modbus TCP/RTU and MQTT to integrate your system with both Serial port and Ethernet port based system, which makes your solution more cost-effective.

TR341 industrial router has dual SIM* for failover, which ensures you have reliable cellular network between different carriers. And the WAN port allows you auto switch between WWAN and WAN.

The RADIUS WiFi Authentication ensures you can remote manage routers and field devices in a secure way.

The independent GPS* allow you track your mobile assets, including truck, bus, RV.

TR341 is an industrial-grade 5G/4G all-network five-network port high-speed wireless router, supports 5.8 WiFi, with wired and wireless dual backup, supports 5G/4G, WIFI, VP and other networking, support for serial DTU function, widely adapted to the multi-channel (up to 5-way) large data, pictures, video and other industrial field remote monitoring and data transmission application scenarios.

Industrial quality, designed for unattended, harsh environment applications, industrial-grade metal casing, to provide basic protection for the stability of the equipment; high EMC electromagnetic compatibility, strong electromagnetic environment, stable work, through the EMC level test: stable work in ultra-high and ultra-low temperature (-40C to 80C), wide voltage (5V-35V), strong moisture-proof, lightning protection, anti-electromagnetic interference capabilities, adapt to a variety of harsh environments.

Support IPec, L2TP, PPTP, Open/PN, GRE and 12tp over Ipsec and other mainstream PN protocols: support for operators APN private network access and specify the IP; on the basis of the private network and then add a layer of encryption method of transmission to fully protect the transaction data, the security of the management of the data, the accuracy of the data; embedded PPP, TCP/IPUDP/IP, ODBUS-TP, WODBUS-RITU and other protocols.

Remote management, you can easily realize remote monitoring, configuration, upgrading, diagnosis, management and other equipment to save manpower and resources!

Equipment failure alarm, enhance the equipment online rate in remote areas: support SIM card management, without fixed IP, to enhance the ability to scale management: remote diagnosis, upgrade, fault self-recovery, to ensure that the transmission pipeline is smooth; remote management and maintenance of equipment, reduce operation and maintenance costs, improve efficiency; support for the local configuration and upgrading, support for remote configuration and upgrading of the TCP/IP channel.

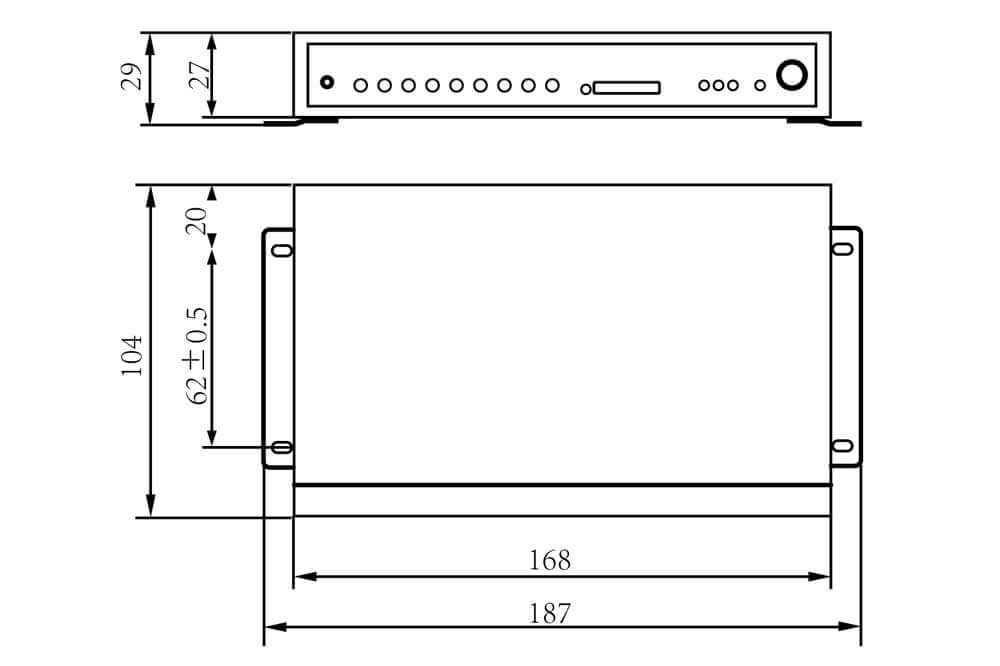

Product Size:
