All products

Auto weather station

​Auto Weather Station (Automatic Weather Station,AWS) is a device used to automatically monitor and record meteorological parameters. It usually consists of sensors, data acquisition units, communication modules and corresponding software. Automatic Weather Station is widely used in meteorological monitoring, agriculture, forestry, environmental monitoring, transport, marine observation and other fields, providing valuable meteorological information for various industries.

Inquiry

Tel/WhatsApp:+8615367865107

Email:Arvin@niubol.com +Nearly 100 partner company in more than 68 countries. We are committed to providing high-quality, practical products to meet your needs and help you solve problems.

Product Details

Automated Weather Stations (AWS) is an automated weather observatory for collecting and recording weather data.AWS consists of multiple sensors and instruments that measure and record different weather elements such as temperature, humidity, wind speed and direction, barometric pressure, precipitation, etc. in real time. These sensors provide accurate and continuous meteorological data through numerical and automatic recording.

The main benefits of AWS are automation and real-time. Due to automated data collection and real-time transmission through a data transfer system, AWS can provide continuous and accurate weather data without human intervention. This data is important for weather forecasting, climate research, agriculture, transport and more.

Weather station parameters

MeasuredMeasuring rangeResolutionPrecision
Humidity0~100%RH0.1%RH±0.5℃
Temperature-40~80℃0.1℃±5%RH
Atmospheric pressure10~1200hPa0.1hPa±1.5hPa
Soil temperature-40~80℃0.1℃±0.5℃
Soil Humidity (moisture)0-100%RH0.1%RH±5%RH
Conductivity0-10000us/cm1us/cm±5%
Wind speed0~70m/s0.1m/s±(0.3+0.03V)m/s
wind direction0~360°-±3°
Noise30~130dB--
Illuminance0-200000Lux-±7%
Rainfall0-4mm/min0.2mm±4%
PM2.5/PM100-2000μg/m3-±15%
Solar radiation0~2000W/m2-≤5%
CO20~2000ppm1ppm±7%
Supply mode220VDC12-24Vsolar power optional

Weather station equipment sensors

Anemometer Wind Speed sensor.jpgWind direction sensor.jpgTipping bucket rain gauge sensor.jpgTipping bucket rain gauge sensor.jpgPiezoelectric Rain Gauge.png
Anemometer Wind Speed sensorWind direction sensorTipping bucket rain gauge sensorTipping bucket rain gauge sensorPiezoelectric Rain Gauge
Atmospheric Temperature Humidity air pressure Sensor.jpgultrasonic wind speed and direction sensor.png5 in1 Ultrasonic Weather Station Sensor.pngAll-in-One Weather Station.png7 in1 Ultrasonic Weather Station Sensor.png
Atmospheric Temperature Humidity air pressure Sensorultrasonic wind speed and direction sensor5 in1 Ultrasonic Weather Station SensorAll-in-One Weather Station7 in1 Ultrasonic Weather Station Sensor
Solar Radiation Sensor.jpgSolar Radiation Sensor.jpgPhotosynthetically Active Radiation Sensor.pngillumination sensor.pngUltrasonic Snow Depth Sensor.png
Solar Radiation SensorSolar Radiation SensorPhotosynthetically Active Radiation Sensor;illumination sensorUltrasonic Snow Depth Sensor
Noise measurement sensor.pngCarbon dioxide(CO2) sensor.jpgPM2.5 and PM10 sensors.pngVisibility sensors.jpgSoil Moisture Temperature sensor.jpg
Noise measurement sensorCarbon dioxide(CO2) sensorPM2.5 and PM10 sensorsVisibility sensorsSoil Moisture Temperature sensor


Auto Weather Station (Automatic Weather Station,AWS) is a device used to automatically monitor and record meteorological parameters. It usually consists of sensors, data acquisition units, communication modules and corresponding software. Automatic Weather Station is widely used in meteorological monitoring, agriculture, forestry, environmental monitoring, transport, marine observation and other fields, providing valuable meteorological information for various industries.

Automated Weather Stations (AWS).jpg

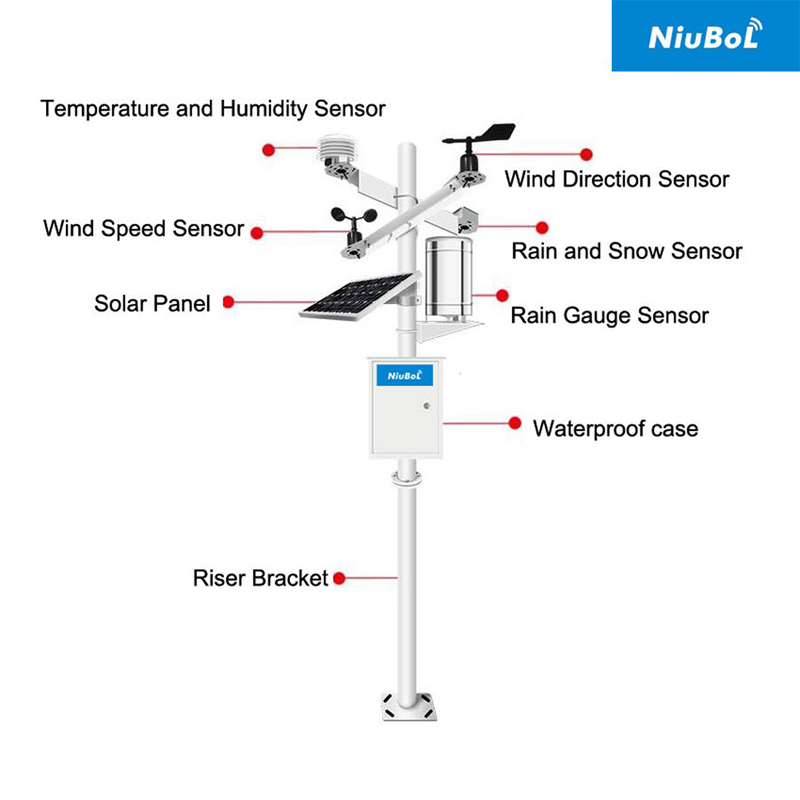

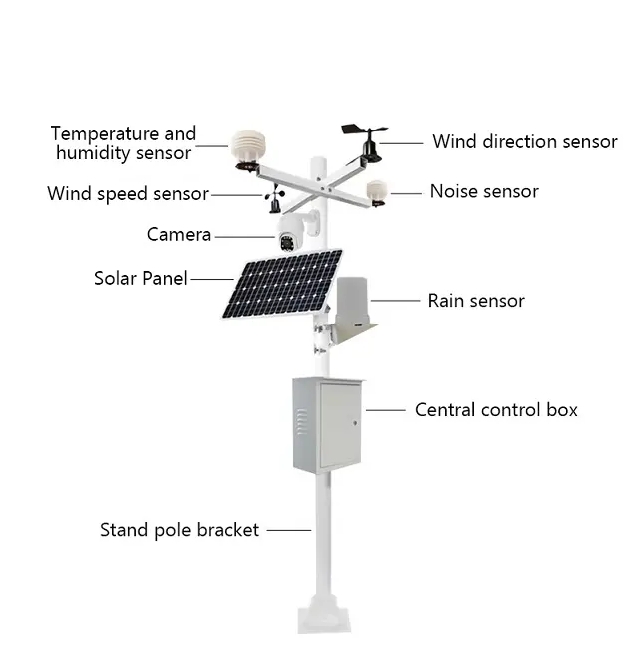

The following are the general components of Auto Weather Station:

1. Sensors: Auto Weather Station is equipped with a variety of sensors for measuring different meteorological parameters in the atmosphere, including but not limited to:

  Temperature Sensor: Used to measure ambient temperature.

  Humidity Sensor: Used to measure the ambient humidity.

  Barometric Pressure Sensor: Used to measure atmospheric pressure.

  Wind speed sensors: for measuring wind speed.

  Wind direction sensor: Used to measure wind direction.

  Precipitation Sensor: Used to measure the amount of precipitation.

2. Data logger: Data logger is used to store and record the data measured by the sensor. It usually has the function of large capacity storage and high precision recording, which can continuously record meteorological data and store them according to the set time interval.

3. Communication equipment: Auto Weather Station is equipped with communication equipment for transmitting the collected meteorological data to the central control centre or other monitoring systems. Common communication methods include wired communication (e.g. RS232, RS485) and wireless communication (e.g. GSM, WiFi, LoRa, etc.).

4. Power supply system: In order to ensure the normal operation of the Auto Weather Station, it usually needs to be equipped with a power supply system, which can be batteries, solar panels or other renewable energy power supply system.


 Main features of Auto Weather Station:

1. Automatic monitoring: Auto Weather Station can continuously monitor meteorological parameters such as temperature, humidity, barometric pressure, wind speed, wind direction, precipitation and so on.

2. Data Storage and Transmission: Automatic Weather Station can store the collected data and transmit them to the data centre or other equipments through wired or wireless means when needed.

3. Remote control and monitoring: Users can access the automatic weather station remotely via computer or mobile device to view data, control equipment and download data.

4. Intelligent: Modern automatic weather stations usually have certain intelligent functions, such as self-diagnosis, automatic calibration, abnormal weather warning and so on.

5. Strong adaptability: the design of automatic weather station usually takes into account various environmental conditions, and can adapt to high temperature, low temperature, high humidity, strong winds and other harsh environments.

Auto Weather Station Application Scenarios:

Auto Weather Station plays an important role in various application scenarios, the following are some of the common application scenarios:

1. Meteorological monitoring and prediction:

  Auto Weather Station is widely used to monitor various meteorological parameters in the atmospheric environment, such as temperature, humidity, barometric pressure, wind speed, wind direction, precipitation and so on. These data are used in weather forecasting, climate research and natural disaster early warning, providing important reference information for agriculture, transport, aviation, energy and other industries.

2. Agriculture and forestry:

  Farmers and foresters can make use of automatic weather stations to monitor environmental conditions, including temperature, humidity, precipitation, etc., so as to carry out rational crop cultivation and forest management. Based on the meteorological data, they can rationally arrange irrigation and fertiliser timing to improve crop yield and quality.

3. Transport:

  In the field of transport, automatic weather stations are used to monitor weather conditions on the road and in the air to ensure traffic safety and transport efficiency. Wind speed and direction data can help pilots and ship captains with route planning and flight/navigation decisions, and precipitation data can help traffic management authorities warn of and respond to adverse weather conditions such as slippery roads or snow and ice.

4. Aerospace:

  In aerospace, automatic weather stations are one of the essential equipment. Pilots and aviation controllers need to monitor meteorological conditions in real time to ensure flight safety. Data such as atmospheric pressure, temperature and humidity have a significant impact on aircraft performance and flight altitude.

5. Energy management:

  In the energy sector, automatic weather stations are used for the operation and management of energy facilities such as wind farms and solar farms. Data such as wind speed and solar radiation can help predict wind and solar power capacity and optimise energy production and supply plans.

6. Environmental monitoring:

  Automatic weather stations are also widely used in the field of environmental monitoring to monitor the concentration of air pollutants, climate change and other environmental parameters. These data are important for environmental protection, air quality improvement and urban planning.

Weather Stations.jpg

As an important tool for modern meteorological monitoring and environmental observation, the accuracy and stability of Auto Weather Station are crucial for scientific research and decision-making in related fields. With the features of automation, high precision and continuous monitoring, Auto Weather Station is widely used in meteorological monitoring, weather forecasting, environmental monitoring, agricultural production, transport, aerospace and other fields. It provides users with timely and accurate meteorological data, which is an important reference for decision-making in all walks of life.

Sensors & Weather Stations Catalog

Agriculture Sensors and Weather Stations Catalog-NiuBoL.pdf

Weather Stations Catalog-NiuBoL.pdf

Agriculture Sensors Catalog-NiuBoL.pdf
