Wind detector sensor

 Wind Speed and Wind Direction Sensor Product Overview

 This wind speed and wind direction sensor is designed with advanced concepts and technologies, specifically for meteorology, marine, environmental, airport, port, laboratory, industrial, agricultural, and transportation fields. The sensors feature high precision, wide measurement range, fast response, strong lightning protection, and other advantages, making them ideal for wind speed and wind direction monitoring in complex environments. The products are widely used in meteorological stations, environmental monitoring, intelligent traffic, industrial automation, and other fields, providing reliable wind speed and direction data.

 Wind Detector Sensor Product Features

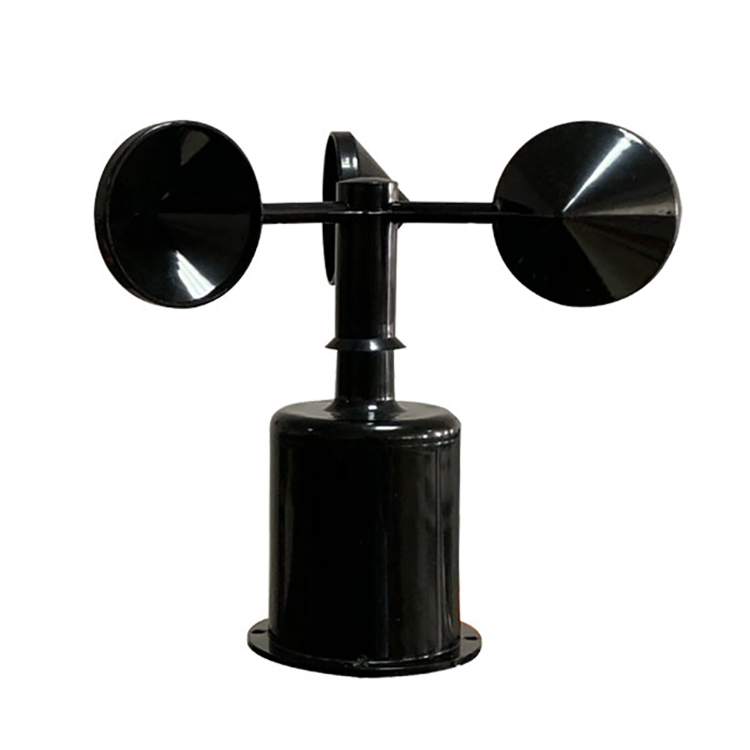

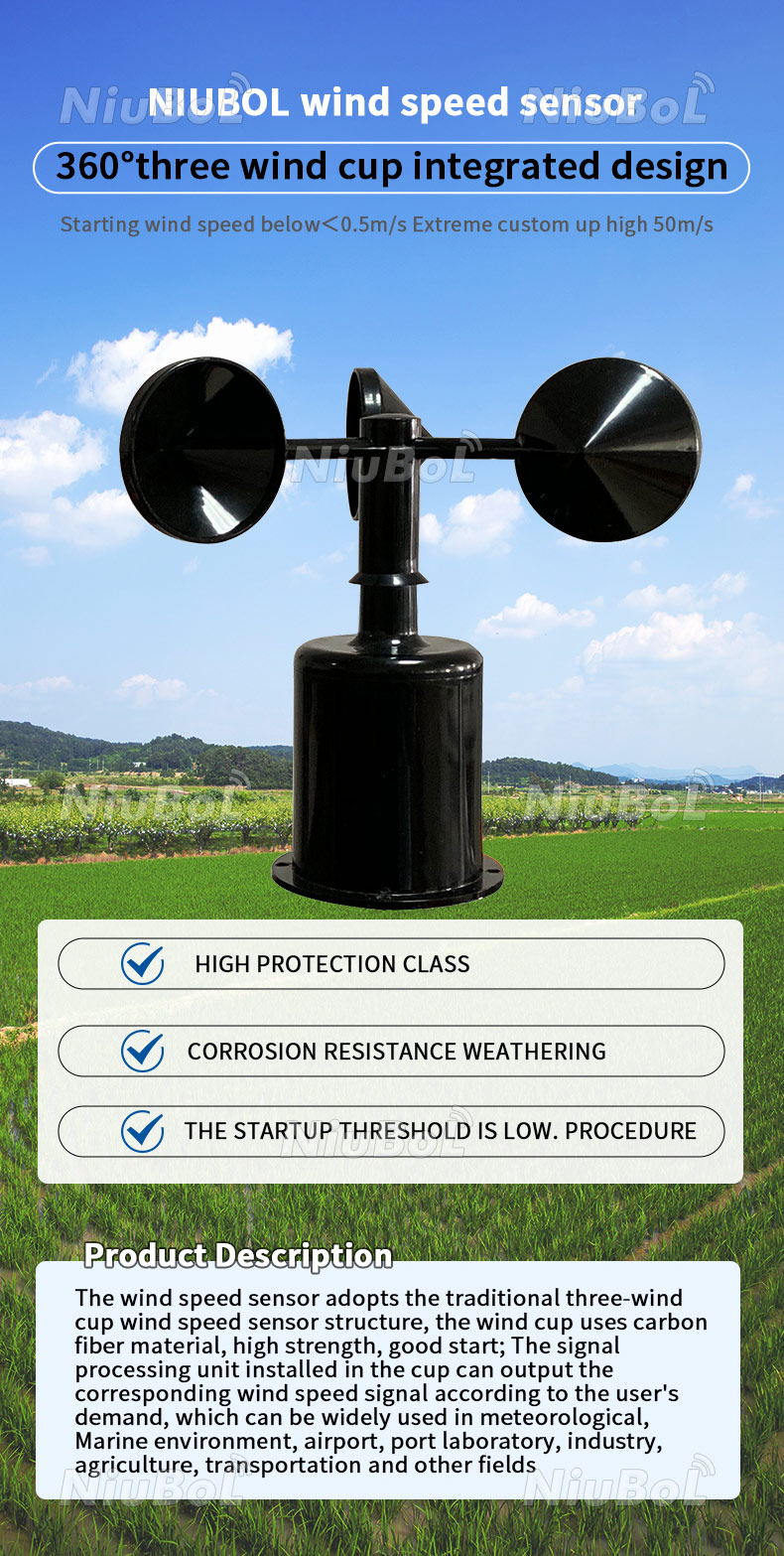

 - High-Strength Carbon Fiber Cup: The wind speed sensor uses a three-cup structure made of carbon fiber, which is lightweight, high-strength, and corrosion-resistant. It can start measuring at a low wind speed of 0.5 m/s, ensuring accurate measurement even in light wind conditions.

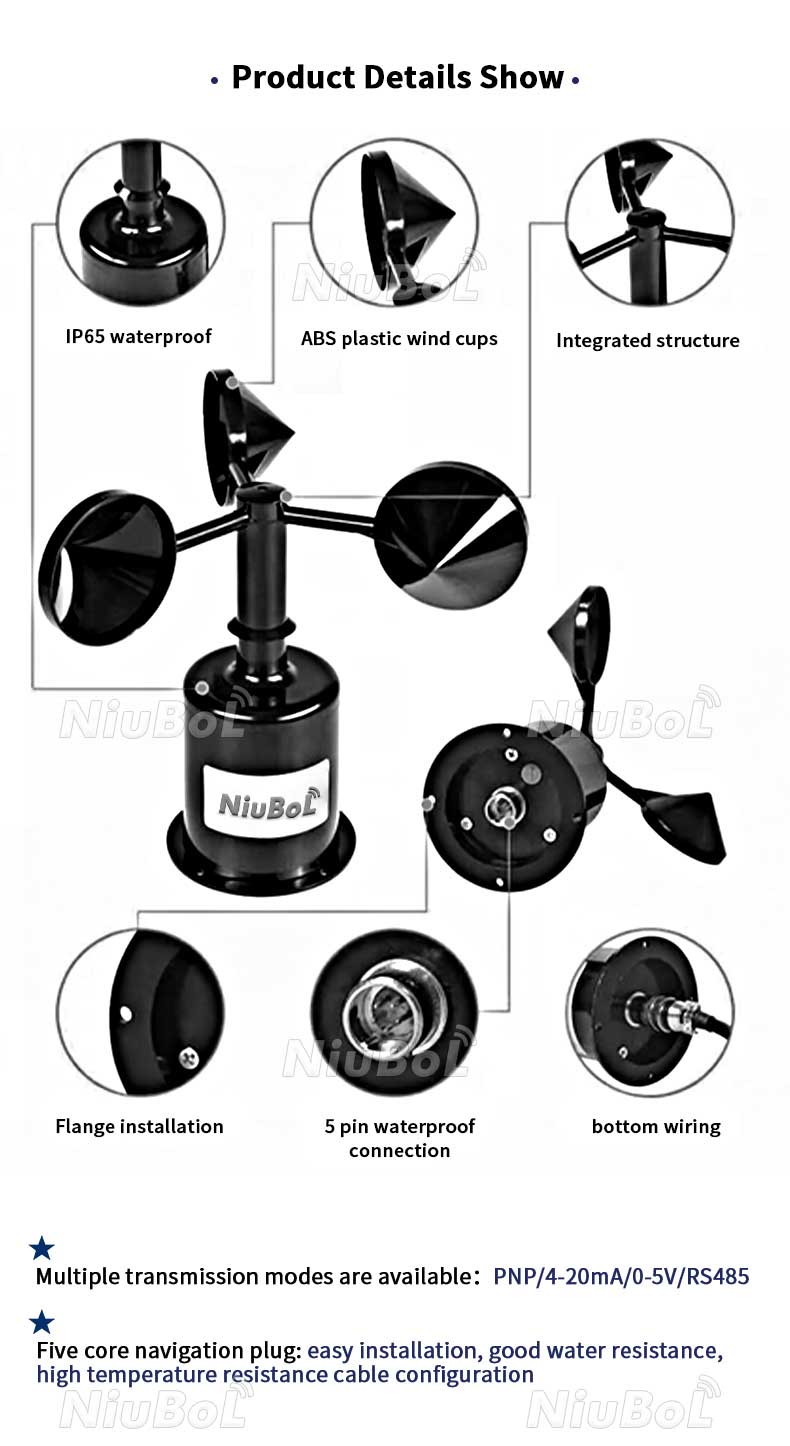

  - Integrated Signal Processing Unit: The wind cups contain an integrated high-performance signal processing unit, which can output various standard signals (pulse, current, voltage, RS485, etc.) based on user requirements, making it easy to interface with various control systems.

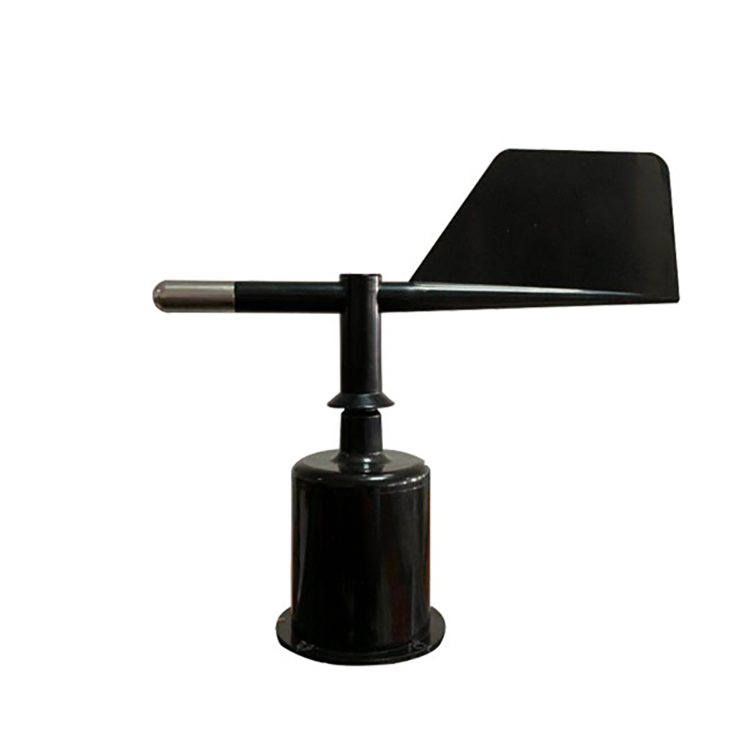

 - High-Precision Magnetic Sensing Chip: The wind direction sensor uses a high-precision magnetic sensing chip, combined with a low-inertia ABS material wind vane. This ensures fast response, good dynamic characteristics, and accurate wind direction measurement.

 - Wide Measurement Range and High Resolution:

  - Wind Speed Sensor: Measurement range up to 0–70 m/s, resolution up to 0.1 m/s.

  - Wind Direction Sensor: Measurement range from 0° to 360°, accuracy ±3°, suitable for various extreme weather conditions.

 - Lightning Protection Design: The sensor housing is made of high-strength materials with an IP45 protection rating, offering good water and dust resistance. Additionally, the built-in lightning protection circuit ensures stable operation in harsh environments.

 - Multiple Power Supply Options: Supports DC 5V, DC 12V–24V, and other power supply options, making it adaptable to various application scenarios and easy to install.

 - Long Lifespan and Low Maintenance: The sensor is made with high-quality materials and precision manufacturing techniques, ensuring excellent durability and reliability. It requires minimal maintenance and is suitable for long-term outdoor use.

- Harsh Environment Compatibility: With an IP45 protection rating, the sensor can withstand temperatures from -40°C to 80°C and 100% relative humidity, ensuring stable operation even in extreme weather conditions.

 Wind Speed Sensor Technical Parameters

 Wind Direction Sensor Technical Parameters：

Wind Detector Sensor Application Scenarios

- Meteorological Stations: Used for real-time wind speed and direction monitoring, providing accurate meteorological data to support weather forecasting and climate research.

- Marine Monitoring: Applied on offshore platforms, buoys, and other equipment to monitor wind speed and direction over the sea, ensuring the safety of offshore operations.

- Environmental Monitoring: Used for air quality monitoring and pollution source tracking, helping assess the impact of wind on pollutant dispersion.

- Airports: Provides real-time wind speed and direction data for air traffic control to ensure safe aircraft takeoff and landing.

- Ports: Monitors wind speed and direction in port areas to ensure the safety of ship loading and unloading operations.

- Laboratories: Used for wind speed and direction measurements in research experiments, supporting fluid dynamics, meteorology, and other fields of study.

- Industrial and Agricultural Applications: Applied in environments such as greenhouses and farms to optimize ventilation systems and improve production efficiency.

- Transportation: Used in highways, bridges, and other transportation facilities to monitor wind speed and prevent wind-related traffic accidents.

 Wind Detector Sensor Installation and Usage

1. Installation Location Selection: The sensor should be installed in an open, unobstructed area to avoid interference from buildings, trees, or other objects that could affect wind speed and direction measurements.

2. Installation Height: It is recommended to install the sensor at a height of about 10 meters above the ground to obtain more accurate wind speed and direction data.

3. Wiring and Calibration: Choose the appropriate output type (pulse, current, voltage, RS485, etc.) based on user requirements and follow the instructions for wiring and calibration.

4. Regular Maintenance: Periodically check the sensor's appearance and connection wires to ensure proper operation. If any anomalies are found, clean or recalibrate the sensor as necessary.

5. After-Sales Service: Warranty period: 12 months.

 Conclusion

The wind speed and wind direction sensors, with their outstanding performance and reliable quality, have become the top choice for many industry users. We are dedicated to providing you with the best meteorological monitoring solutions to help you better cope with complex environmental challenges. Feel free to consult and purchase!
