Wind Speed and Wind Direction Sensors

Wind Speed and Wind Direction Sensors Product Overview:

Wind Speed Sensors, is a precision weather sensor. The device adopts the traditional three-cup wind speed sensor structure, the wind cup is made of carbon fiber material, which has high strength and good starting characteristics. The wind speed sensor has a built-in signal processing unit, which can output the corresponding wind speed signal according to the user's needs.

Wind direction sensor, the internal use of high-precision magnetic sensitive response chip, and the use of low inertia ABS wind vane response wind direction, with good dynamic characteristics. The product has the advantages of large range, good linearity, strong resistance to lightning, easy to observe, stable and reliable.

Integrated Wind Speed and Wind Direction Sensors, which integrates advanced wind speed and wind direction measurement technology.

Wind Speed and Wind Direction Sensors can be widely used in meteorology, ocean, environment, airport, harbor, laboratory, industry and agriculture, and transportation.

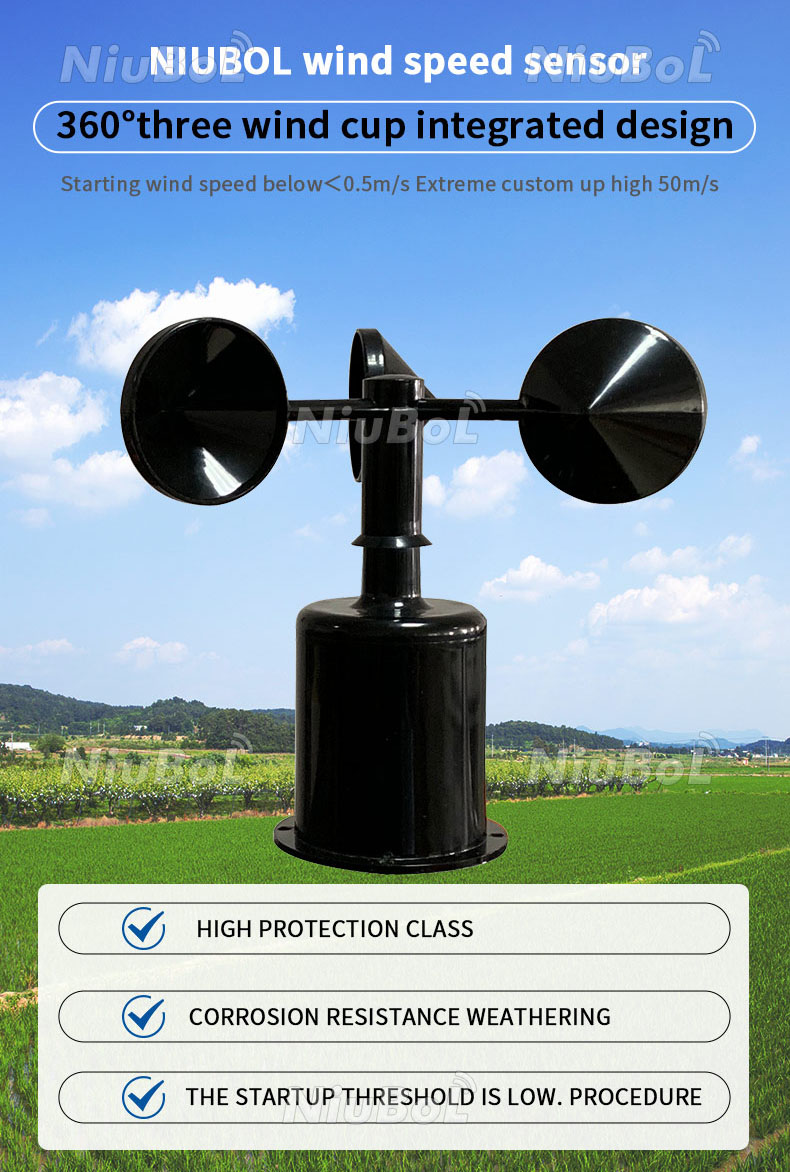

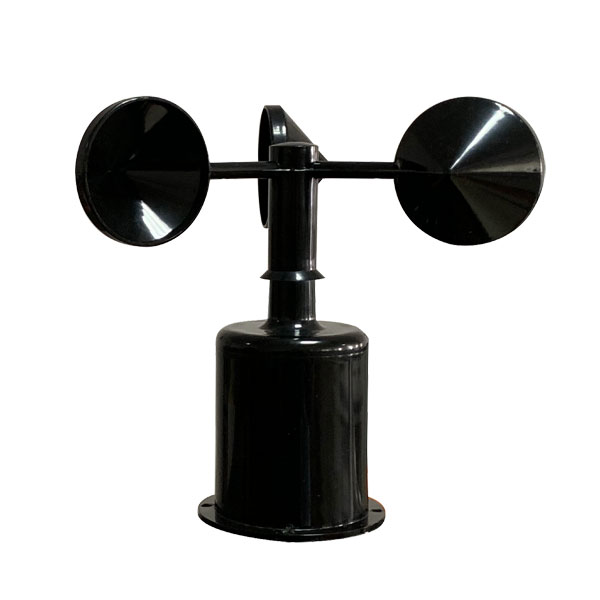

Wind Speed Sensors Features:

Structural Advantage: Adopting the classic three wind cup design, the wind cup is made of high-strength carbon fiber, which not only ensures the durability of the structure, but also greatly improves the start-up performance, and it can respond quickly even in light wind environment.

Signal Processing: Built-in advanced signal processing unit can flexibly output a variety of wind speed signals according to user requirements, including pulse signals, 4-20mA current, 0-5V/0-2.5V voltage and RS485 communication protocol, to meet the integration requirements of different systems.

Measuring range and accuracy: The measuring range covers 0～70m/s, with accuracy as high as ±(0.3+0.03V)m/s and resolution up to 0.1m/s, which ensures precise and error-free data. Start-up wind speeds as low as 0.5m/s mean that even light winds can be accurately captured.

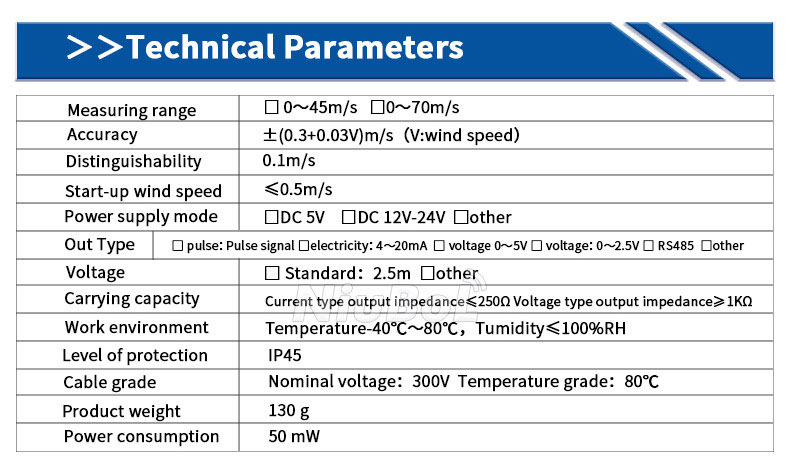

Wind speed sensor technical parameters:

- Measuring range: 0 to 70m/s

- Accuracy: ± (0.3 + 0.03V) m/s (V: wind speed)

- Resolution: 0.1m/s, fine capture of wind speed changes.

- Starting wind speed: ≤0.5m/s

- Power supply: DC 5V or DC 12V-24V, adaptable.

- Output form: pulse, current (4～20mA), voltage (0～5V or 0～2.5V), RS485

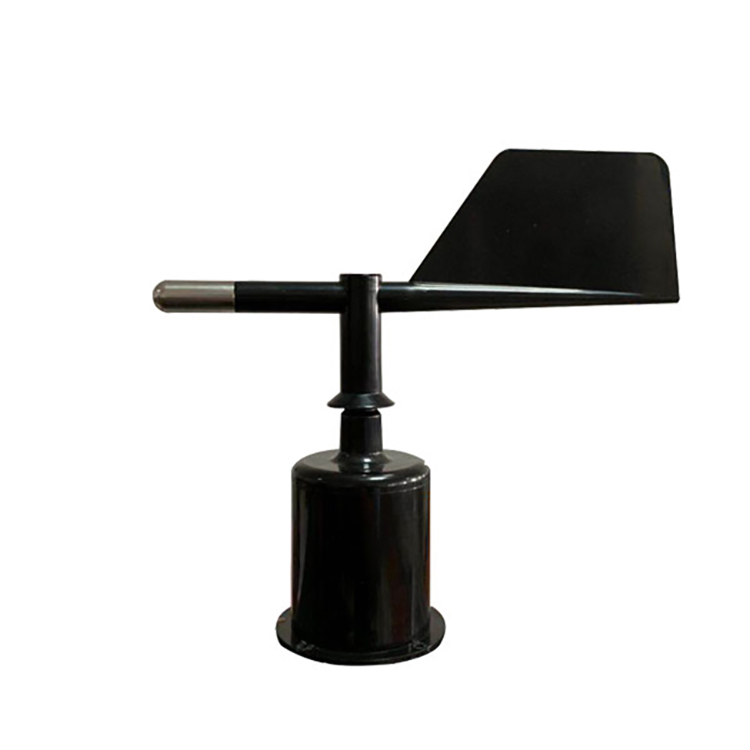

Wind direction sensor characteristics:

- Technical core: built-in high-precision magnetic sensitive response chip, combined with lightweight ABS wind vane, rapid response, excellent dynamic characteristics.

- Accuracy: Measuring range covers 0～360°, the accuracy is kept at ±3°, which ensures the accuracy of wind direction data.

- Variety of outputs: Supports 4～20mA current and 0～5V voltage outputs, as well as RS485 digital communication, which is convenient for data integration and analysis.

- Power supply and compatibility: Also supports DC 5V or DC 12V-24V power supply to ensure system consistency and convenience.

Durable and Reliable: Designed with severe weather conditions in mind, it has excellent lightning resistance and stability to ensure long-term stable operation.

Wind direction sensor technical parameters:

- Measuring range: 0～360°

- Accuracy: ±3°

- Starting wind speed: ≤0.5m/s

- Power supply: DC 5V or DC 12V-24V

- Output form: current (4-20mA), voltage (0-5V), RS485

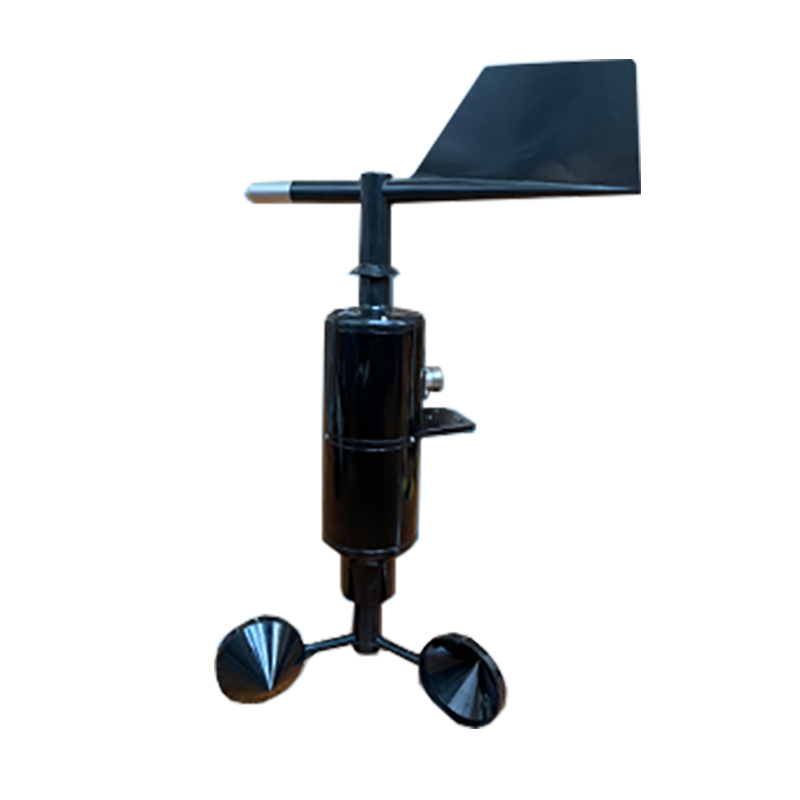

Integrated wind speed and direction sensor:

- Wind speed sensor: adopts the traditional three wind cups wind speed sensor structure, the wind cup is made of carbon fiber material, built-in signal processing unit, output the corresponding wind speed signal.

- Wind direction sensor: internal use of precision potentiometers, the use of low inertia light metal wind vane response wind direction, good dynamic characteristics.

All-in-one wind speed and direction sensor product advantages:

- All-in-one design: wind speed sensor and wind direction sensor are integrated in one unit, compact structure, convenient installation.

- Material and performance: the wind speed part uses carbon fiber, the wind direction part uses precision potentiometer and light metal wind vane to ensure the overall stability and response speed.

- Strong resistance to lightning strikes: the equipment has good resistance to lightning strikes to ensure the safety of use.

- Stable and reliable: adopting high-precision sensors and signal processing units to provide stable and reliable data output.

Convenient installation: The integrated design of wind speed and wind direction sensors simplifies the installation process, reduces the complexity of on-site wiring and improves the installation efficiency.

Unified power supply: Supports DC 5V or DC 12V-24V wide voltage range power supply, adapting to the power conditions of different application scenarios.

Comprehensive applications: With its excellent performance and wide compatibility, the integrated wind speed and wind direction sensors can be widely used in all kinds of fields that require accurate wind environment data, providing powerful support for meteorological observation, environmental monitoring, traffic management, industrial control, etc.

Wind Speed and Wind Direction Sensors application scenarios:

- Meteorological Observation: Provide accurate wind speed and wind direction data for weather stations to support weather forecasting and climate research.

- Marine Detection: Suitable for marine environment monitoring, providing key data support for navigation safety.

- Environmental monitoring: monitoring air quality, environmental humidity, wind speed and direction, etc., helping environmental protection work.

- Airports and ports: Provide key data support for airport runway monitoring and harbor operations to ensure operational safety.

- Industry and agriculture: Optimize the crop growing environment to improve production efficiency; monitor the environment of factory workshops to ensure production safety.

- Transportation management: Provide real-time meteorological information support for road safety and traffic flow control.

Conclusion:

Wind Speed and Wind Direction Sensors, with high precision, high stability and wide applicability, provide you with accurate and reliable wind speed and direction data. Whether for scientific research, transportation or environmental protection, it is your reliable partner. Whether it is the complex needs of a professional weather station or the simple application of daily environmental monitoring, it provides the most reliable data support. Choose us for more accurate and efficient weather monitoring!

Wind Speed and Wind Direction Sensors Datasheet

NBL-W-DS-wind-direction-sensor-Manual.pdf

NBL-W-SS-Wind-Speed-Sensors-Instruction-Manual-V4.0.pdf

NBL-W-SDS Integrated wind speed and direction sensor User manual.pdf
