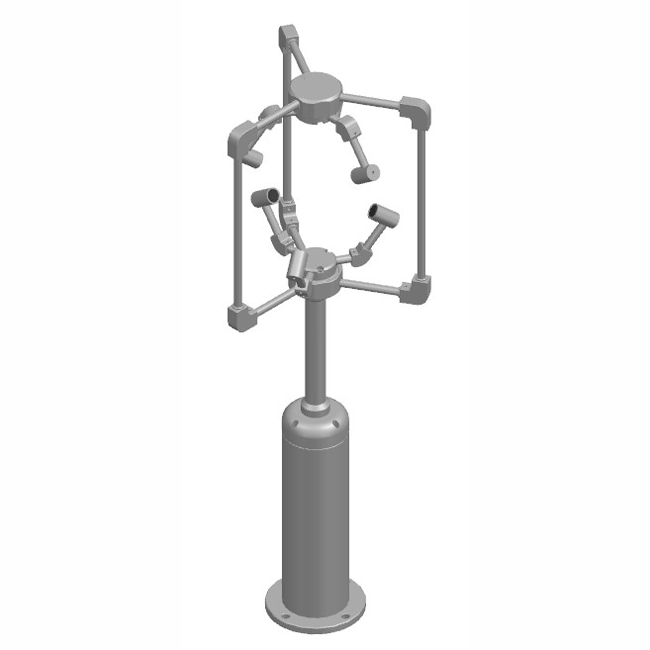

3D Sonic Anemometer

3D Sonic Anemometer is a highly accurate and reliable weather monitoring device that utilizes ultrasonic technology to accurately capture changes in wind direction and speed in three dimensions without moving parts. This contactless measurement ensures long-term stability and low maintenance requirements, making it the tool of choice in fields such as meteorology, environmental research, agriculture, urban planning, and wind energy assessment. The following is a detailed introduction to the 3D Sonic Anemometer:

3D Ultrasonic Anemometer technical parameters

Monitoring elements synthetic wind speed, horizontal wind direction, vertical wind direction, X/Y/Z axis vector wind speed

First, 3D Sonic Anemometer working principle

Ultrasonic technology: 3D Sonic Anemometer utilizes ultrasonic technology to measure wind speed and direction. It utilizes the Doppler effect to calculate wind speed and direction by emitting ultrasonic pulses and receiving their return signals.

Multi-sensor synergy: The device typically consists of three ultrasonic sensors that emit ultrasonic pulses at the same time and measure the time difference of the return signals. With this data, the device is able to calculate the wind speed and direction signals in three directions.

Second, 3D Sonic Anemometer Functional Features

High accuracy: Highly accurate wind speed and direction measurement is realized by advanced algorithm and sensor technology.

Multi-parameter Calculation: Instantaneous value, mean value, standard deviation, time average of wind direction and wind speed can be calculated to meet different users' needs.

Mechanical wear-free design: wind speed is calculated by the time difference of ultrasonic wave propagation in the air, avoiding the mechanical wear problem of traditional anemometers and ensuring long-term measurement accuracy and reliability.

  Three-dimensional measurement capability: capable of simultaneously measuring the three orthogonal components of wind (U, V, W), i.e., horizontal wind direction and speed as well as vertical wind speed, providing comprehensive data for the study of atmospheric turbulence, energy exchange and wind energy assessment.

Adaptation to harsh environments: Designed with long-term outdoor use in mind, it is resistant to extreme weather, including wind and rain, high and low temperatures, to ensure stable operation under various climatic conditions.

Data Processing and Output: Built-in signal processing unit, capable of outputting digital signals according to user needs, easy to interface with various data acquisition systems and analysis software.

Third, 3D Sonic Anemometer application areas

Meteorological monitoring: As an important part of meteorological monitoring station and meteorological disaster warning system, it provides real-time and accurate wind speed and direction data.

Environmental monitoring: It is also widely used in the field of environmental monitoring, such as air quality monitoring and wind resource assessment.

Agricultural meteorology: In agricultural meteorology, it provides important meteorological information for the growth of crops and helps farmers to rationally arrange farming activities.

Wind energy assessment: Provide key wind speed data in wind farm siting and performance assessment.

Urban planning: Analyze urban heat island effect and wind environment to improve urban microclimate.

Fourth, 3D Sonic Anemometer Strengths and Weaknesses

Advantage:

High accuracy: higher measurement accuracy compared to traditional anemometers.

Versatility: able to measure multiple parameters at the same time, providing comprehensive meteorological data.

Good stability: can maintain stable measurement performance even under adverse weather conditions.

Shortcomings:

Higher cost: due to the use of advanced sensor and algorithm technology, the equipment cost is relatively high.

Higher environmental requirements: it needs to be installed in a suitable location to avoid shading and interference.

Summary

As an advanced weather monitoring device, 3D Sonic Anemometer has significant advantages in wind speed and direction measurement. It realizes three-dimensional measurement through ultrasonic technology and provides high-precision and multi-parameter meteorological data, which are widely used in the fields of meteorological monitoring, environmental monitoring and agricultural meteorology. They not only promote in-depth understanding of atmospheric dynamics, but also provide reliable solutions for a variety of applications requiring precise wind speed and direction data.

3D Ultrasonic Anemometer Datasheet

3D Ultrasonic Anemometer Datasheet.pdf
